Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

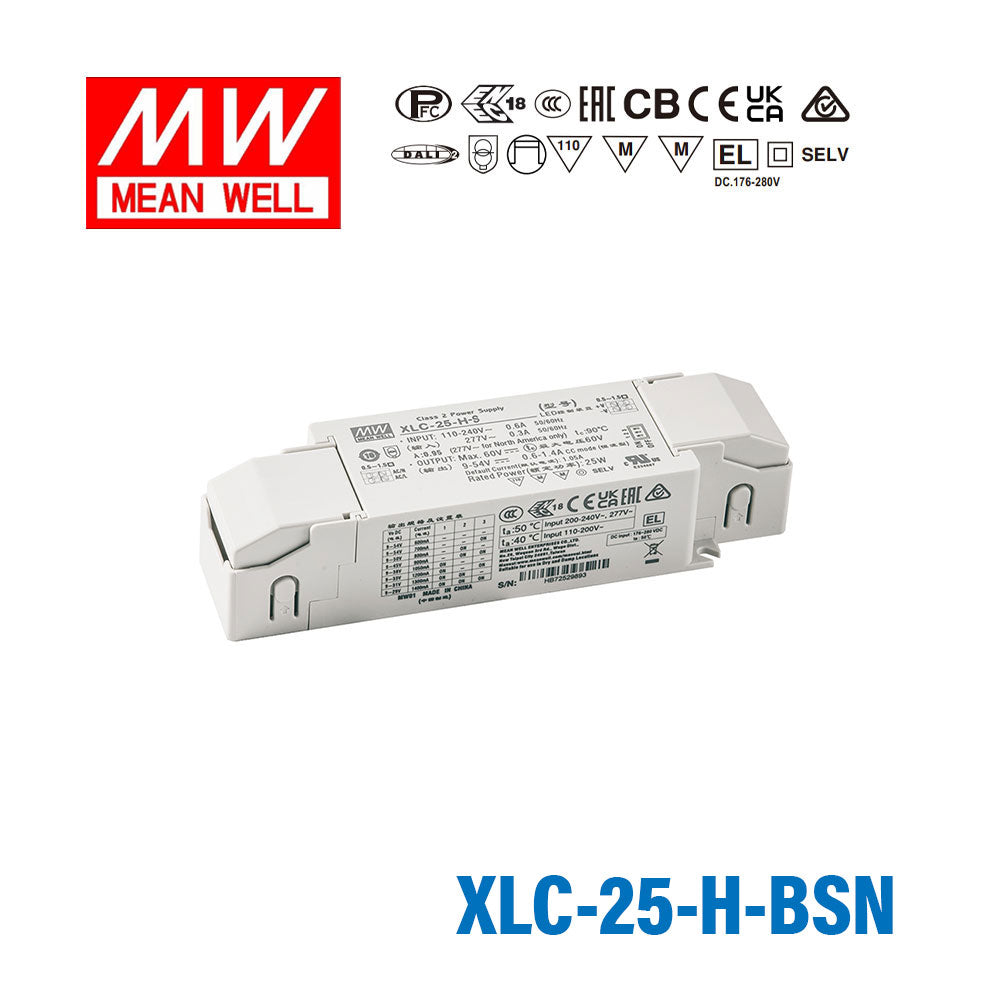

Mean Well XLC-25-H-BSN LED Driver 25W 700mA 9~54V Constant Power, 3 in 1 Dimming with Strain-relief, NFC Current Setting

Q: Can the XLC-25-H-BSN be used in LED downlights installed in locations where the driver is inaccessible after installation?

Yes. The XLC-25-H-BSN combines NFC current setting with 3-in-1 dimming, so both current adjustment (0.3–1.05A) and dimming control can be configured or modified without physically accessing the driver. This is ideal for concealed luminaire installations.

Q: Is the XLC-25-H-BSN appropriate for LED signage that requires periodic brightness adjustments?

Yes. The NFC interface allows current output adjustment from 0.3A to 1.05A using a smartphone, making it straightforward to retune brightness for seasonal or campaign changes on illuminated signage without wiring changes.

Q: Can the XLC-25-H-BSN drive small LED arrays in pendant or suspended lighting where cable strain is a risk?

Yes. The XLC-25-H-BSN includes a strain-relief fitting that protects the cable connection under mechanical load. Combined with its 25W, 700mA constant current output and 9–54V compliance, it is well-suited for pendant fixtures where the driver hangs with the luminaire.

Q: How does the XLC-25-H-BSN compare to the XLC-25-H-BS?

Both the XLC-25-H-BSN and XLC-25-H-BS are 25W, 700mA drivers with 3-in-1 dimming and strain-relief. The BSN uses NFC for current setting, while the BS uses a dip switch. Choose BSN where wireless commissioning is needed; BS where a simple physical switch adjustment is preferred.

Q: What input voltage range does the XLC-25-H-BSN accept?

The XLC-25-H-BSN accepts 100–305VAC input, covering both 100–120V and 200–240V mains supplies worldwide. This wide range eliminates the need for a separate model when deploying across regions with different grid voltages.

Q: Is the XLC-25-H-BSN suitable for use in cold-climate outdoor enclosures?

The XLC-25-H-BSN operates from -25°C to +90°C. When installed inside a suitably rated weatherproof enclosure, this temperature range supports outdoor deployment in cold climates. The driver itself has no independent outdoor IP rating and requires enclosure protection.

current adjustment range 0.3~1.05Aclass II and PFCflicker-free

SKU XLC-25-H-BSN

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Mean Well XLC-25-H-BSN is a 25W multiple-stage constant power LED driver delivering 700mA across a 9~54V constant current region, with the output current selectable by DIP switch or NFC. It is housed in an independent-type plastic housing supplied with a strain-relief cap, is Class II with no earth connection required, and has built-in active PFC with flicker-free output to the CE ErP directive.

Accepting 100~305VAC universal input, the XLC-25-H-BSN operates at a case temperature of -25°C to 90°C and carries CB, CCC, CE, EAC, ENEC and SELV approvals. It supports 1-10V, 10V PWM and resistance (3-in-1) dimming. Suitable for emergency lighting (EL) installations on a 176~280VDC supply. Protected against short circuit and over temperature, and backed by a 5-year warranty.

Key Features

✓Constant power mode output with multiple stages selectable by dip switch or NFC setting (H-type)
✓Plastic housing with class II/2 and PFC design
✓Flicker-free, complying with IEEE1789/ErP
✓Standby power consumption <0.5W
✓Meet emergency lighting (EL) application
✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
✓5 years warranty

Frequently Asked Questions

Can the XLC-25-H-BSN be used in LED downlights installed in locations where the driver is inaccessible after installation?

Yes. The XLC-25-H-BSN combines NFC current setting with 3-in-1 dimming, so both current adjustment (0.3–1.05A) and dimming control can be configured or modified without physically accessing the driver. This is ideal for concealed luminaire installations.

Is the XLC-25-H-BSN appropriate for LED signage that requires periodic brightness adjustments?

Yes. The NFC interface allows current output adjustment from 0.3A to 1.05A using a smartphone, making it straightforward to retune brightness for seasonal or campaign changes on illuminated signage without wiring changes.

Can the XLC-25-H-BSN drive small LED arrays in pendant or suspended lighting where cable strain is a risk?

Yes. The XLC-25-H-BSN includes a strain-relief fitting that protects the cable connection under mechanical load. Combined with its 25W, 700mA constant current output and 9–54V compliance, it is well-suited for pendant fixtures where the driver hangs with the luminaire.

How does the XLC-25-H-BSN compare to the XLC-25-H-BS?

Both the XLC-25-H-BSN and XLC-25-H-BS are 25W, 700mA drivers with 3-in-1 dimming and strain-relief. The BSN uses NFC for current setting, while the BS uses a dip switch. Choose BSN where wireless commissioning is needed; BS where a simple physical switch adjustment is preferred.

What input voltage range does the XLC-25-H-BSN accept?

The XLC-25-H-BSN accepts 100–305VAC input, covering both 100–120V and 200–240V mains supplies worldwide. This wide range eliminates the need for a separate model when deploying across regions with different grid voltages.

Is the XLC-25-H-BSN suitable for use in cold-climate outdoor enclosures?

The XLC-25-H-BSN operates from -25°C to +90°C. When installed inside a suitably rated weatherproof enclosure, this temperature range supports outdoor deployment in cold climates. The driver itself has no independent outdoor IP rating and requires enclosure protection.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well XLC-25-H-DA2SN LED Driver 25W 700mA 9~54V Constant Power, DALI2 + Push Dimming with Strain-relief, NFC Current Setting	25W	60V	0.7A	Indoor	View
Mean Well XLC-25-H-KNS LED Driver 25W 9~54V Constant Power, Current Setting by Dip Switch, For KNX System, With Strain-Relief	25W	60V	0.3A	Indoor	View
Mean Well XLC-25-H-KN LED Driver 25W 9~54V Constant Power, Current Setting by Dip Switch, For KNX System	25W	60V	0.3A	Indoor	View
Mean Well XLC-25-H-MAS LED Driver 25W 700mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming with Strain Relief	25W	60V	0.7A	Indoor	View
Mean Well XLC-25-H-MA LED Driver 25W 700mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming	25W	60V	0.7A	Indoor	View
