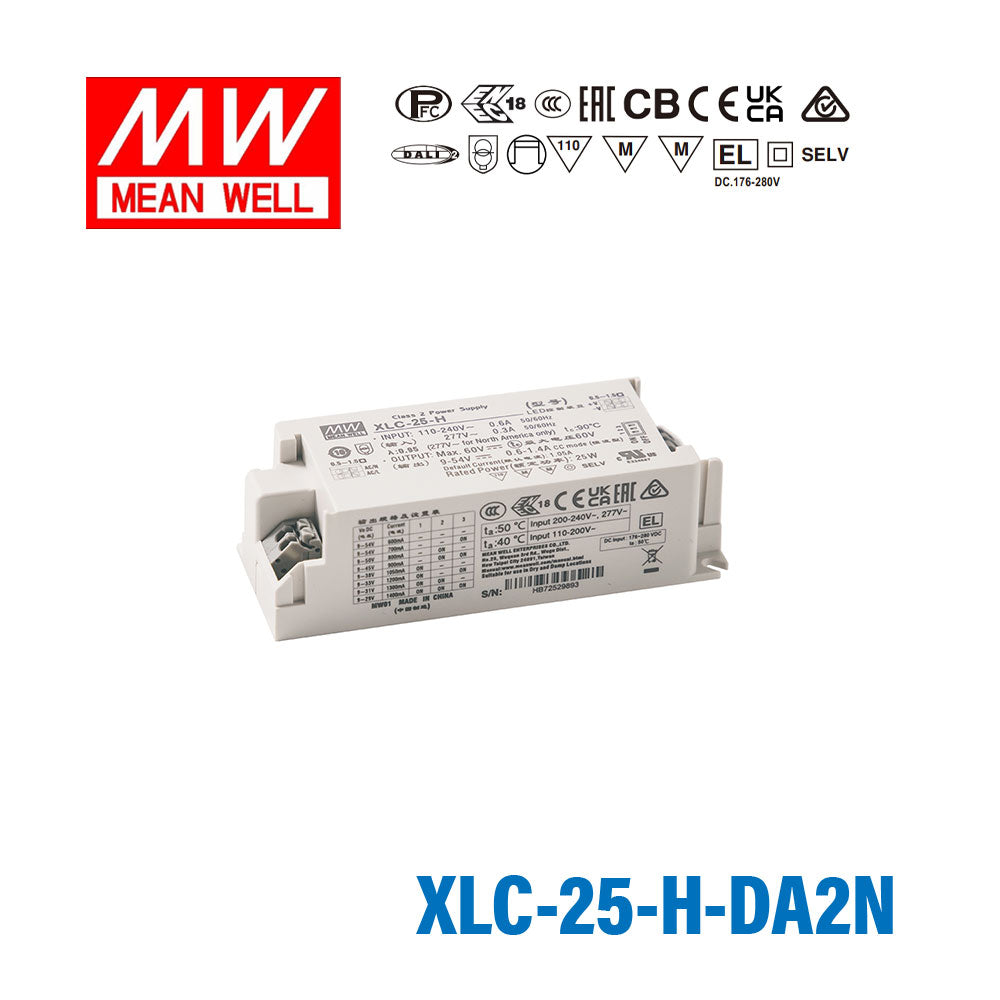

Mean Well XLC-25-H-DA2N LED Driver 25W 700mA 9~54V Constant Power, ...
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating25 Watt
-
Output Voltage60 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length14.7 cm
-
Width3.2 cm
-
Height4 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the XLC-25-H-DA2N be used in DALI2 downlight systems where current output needs post-installation adjustment?
Yes. The XLC-25-H-DA2N combines DALI2 + push dimming with NFC current setting (0.3–1.05A), so the drive current can be adjusted wirelessly via smartphone after the driver is installed inside a recessed fixture, without disrupting the DALI wiring.
Is the XLC-25-H-DA2N appropriate for LED downlights in smart offices where DALI2 control is required?
Yes. The XLC-25-H-DA2N supports DALI2, enabling individual addressing, scene recall, and group control from a DALI2 system controller. Its 700mA output at up to 25W suits the LED modules commonly used in recessed office downlights.
Can the XLC-25-H-DA2N achieve near-off dimming levels for hospitality LED lighting?
Yes. The XLC-25-H-DA2N is rated for a minimum dimming level of 0.1%, which allows LEDs to be dimmed to a near-imperceptible level without fully switching off. This is useful in hotel rooms, restaurants, and other hospitality spaces where smooth dim-to-low is required.
Can the XLC-25-H-DA2N power LED signage modules in a DALI-addressed installation?
Yes. The 700mA constant current output across a 9–54V compliance range supports LED signage modules of varying forward voltages, and the DALI2 bus interface allows each driver to be individually addressed and brightness-controlled from a central system.
How does the XLC-25-H-DA2N differ from the XLC-25-H-DA2?
Both models are 25W, 700mA DALI2 + push dimming drivers with identical electrical specifications. The XLC-25-H-DA2N uses NFC for current setting, while the XLC-25-H-DA2 uses a dip switch. NFC is preferable when drivers are concealed and physical access after installation is limited.
Is the XLC-25-H-DA2N suitable for operation in high-temperature luminaire enclosures?
Yes. The XLC-25-H-DA2N is rated for operating temperatures from -25°C to +90°C and is designed for built-in use. This temperature range accommodates the elevated ambient conditions found in recessed luminaire compartments under thermal load.
