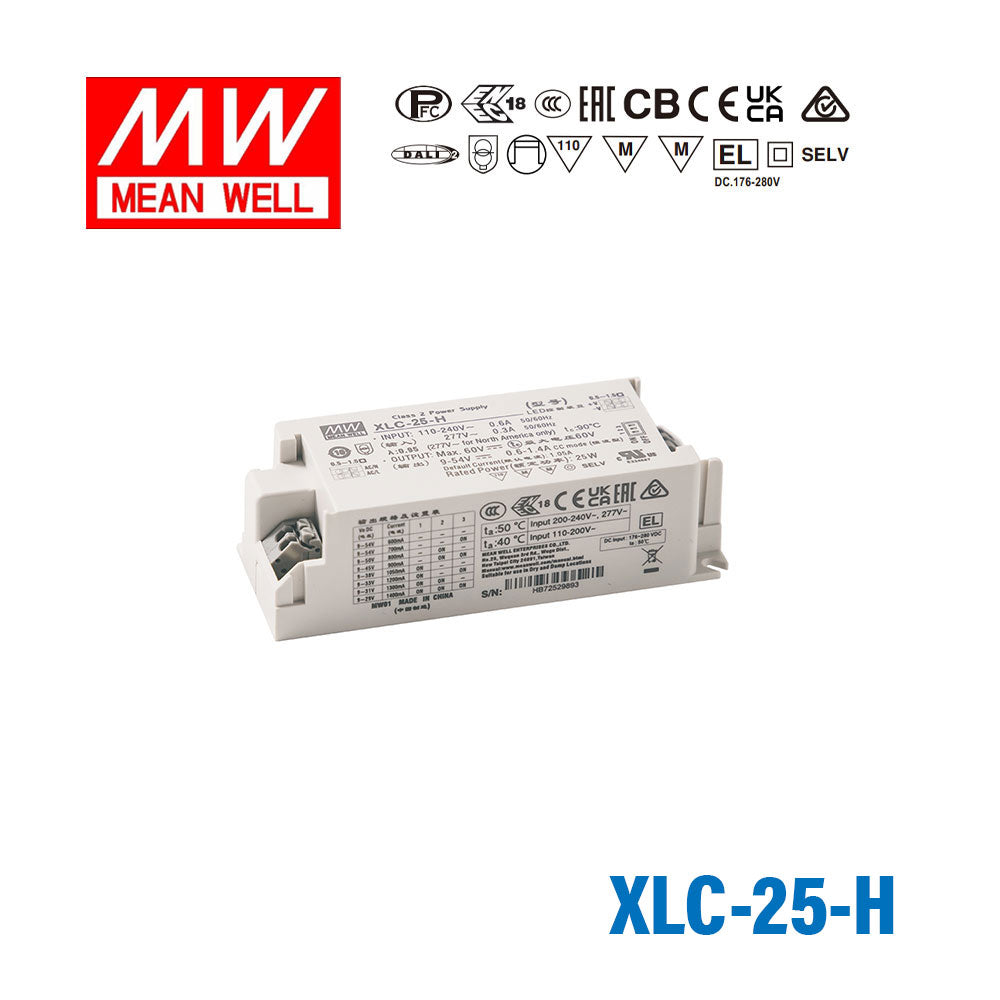

Mean Well XLC-25-H LED Driver 25W 700mA 9~54V Constant Power, Curre...
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating25 Watt
-
Output Voltage60 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length14.7 cm
-
Width3.2 cm
-
Height4 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLC-25-H to drive LED downlights in a commercial lighting fixture?
Yes. The XLC-25-H delivers 700mA constant current across a 9–54V output range, making it well-suited for LED downlight modules that operate within that voltage window. At 25W total power, it is appropriate for single or multi-LED downlight arrays where the combined forward voltage falls between 9V and 54V.
Is the XLC-25-H suitable for powering LED signage modules?
Yes, provided the signage LED modules require constant current at 700mA and their forward voltages fall within the 9–54V CC range. The driver's current can also be adjusted between 0.3A and 1.05A via dip switch, allowing tuning to match the module's rated drive current.
Can I use the XLC-25-H for small LED arrays in architectural lighting?
Yes. The XLC-25-H operates as a constant current driver at 700mA with a wide 9–54V compliance range, making it compatible with small LED arrays used in cove lighting, accent fixtures, and similar architectural applications. Its compact 147 × 32 × 40 mm form factor supports built-in installation.
Does the XLC-25-H support flicker-free operation for display or retail environments?
Yes. The XLC-25-H is rated flicker-free, which is important for display cases, retail shelving, and other environments where visible flicker could affect product presentation or occupant comfort.
How many LEDs can the XLC-25-H drive in series?
The XLC-25-H outputs constant current across a 9–54V compliance window. The number of LEDs that can be connected in series depends on each LED's forward voltage — divide the available voltage range by the individual LED Vf to determine how many will fit. No specific LED count applies universally.
What is the operating temperature range of the XLC-25-H?
The XLC-25-H is rated for operation from -25°C to +90°C. This range supports installation in both cold storage environments and high-ambient-temperature enclosures such as recessed luminaires.
How does the XLC-25-H differ from the XLC-25-12 and XLC-25-24 models in the same series?
The XLC-25-H is a constant current model (700mA, 9–54V CC range, 25W), while the XLC-25-12 outputs constant voltage at 12V/2.1A (25.2W) and the XLC-25-24 outputs constant voltage at 24V/1.05A (25.2W). The -H variant is intended for LED loads requiring current regulation; the -12 and -24 variants are for constant-voltage LED strips or systems.
