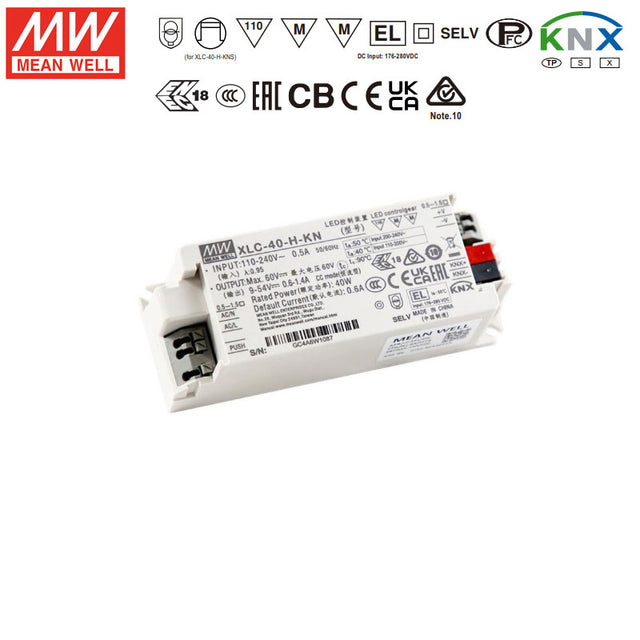

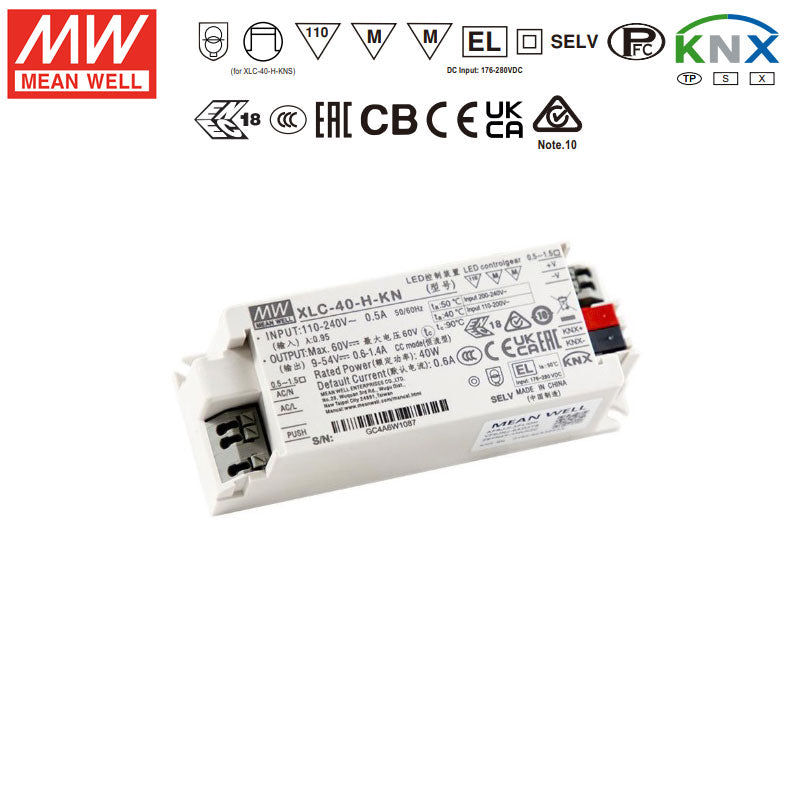

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well XLC-40-H-KN LED Driver 40W 9~54V Constant Power, Current Setting by Dip Switch, For KNX System

current range 600-1400mAminimum dimming level 0.5%without strain-relief

SKU XLC-40-H-KN

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

XLC-40-H-KN is the model of this series: rated power 40W, typical efficiency 88%.

XLC-40-KN Series is a 40W with constant power output LED driver . It can operate from 100~305VAC and output current ranging between 600 mA to 1400 mA selectable by ETS database. The integrate KNX interface avoids using the complicated KNX-DALI gateway. Thanks to high efficiency up to 88%, it is able to operate for -25℃ ~90℃ case temperature under free air convection. XLC-40-KN is designed based on latest safety regulations and provides more flexibility for LED Lighting application.

Features

Constant power mode output with multiple stage selectable by ETS database
Plastic housing with class II and PFC design
Flicker free, complying with CE ErP directive
Standby power consumption <0.5W
Meet emergency lighting (EL) function application
KNX/EIB protocol, support KNX data secure
Minimum dimming level 0.5%
Function:operation hours,power consumption feedback, log/linear curve selection...etc
5 years warranty

Specifications

XLC-40-H-KNSpecifications from the official datasheet (2025-04-18 edition)

OUTPUT

OPEN CIRCUIT VOLTAGE^Note.2: 60V
DEFAULT CURRENT: 600mA
CURRENT ADJ.RANGE (BY ETS Database): 0.6~1.4A
CONSTANT CURRENT REGION^Note.3: 9~54V
RATED POWER^Note.4: 40W
CURRENT RIPPLE: <4%(@full load)
CURRENT TOLERANCE: ±5%
DIMMING RANGE: 0~100%
SETUP, RISE TIME^Note.5: 500ms, 100ms/230VAC, 1000ms, 100ms/115VAC

INPUT

VOLTAGE RANGE: 100 ~ 305VAC 141 ~ 400VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD<10%(@load≧50%/230VAC; @load≧75%/277VAC), THD<15%(@load≧50%/115VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)^Note.6: 88%
AC CURRENT: 0.5A / 115VAC 0.25A / 230VAC 0.2A/277VAC
INRUSH CURRENT(Typ.): COLD START 10A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 51 units (circuit breaker of type B) / 51 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
STANDBY POWER CONSUMPTION^Note.7: Standby power consumption<0.5W(Dimming off)

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE: Stage 1: De-rating to 75% loading; Stage 2: De-rating to 50% loading. Recovers automatically after fault condition is removed.

ENVIRONMENT

WORKING TEMP.: Tcase=-25 ~ 90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=90℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC input 176-280VDC), BS EN/EN62384; GB/T19510.1, GB/T19510.213; EAC TP TC 004 approved; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current BS EN/EN61000-3-2 , GB17625.1 Class C @load≥50%
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN61547

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT/Burst BS EN/EN61000-4-4 Level 2
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 2
Voltage Dips and Interruptions BS EN/EN61000-4-11 70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated	BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current	BS EN/EN61000-3-2 , GB17625.1	Class C @load≥50%
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2
EFT/Burst	BS EN/EN61000-4-4	Level 2
Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 2
Magnetic Field	BS EN/EN61000-4-8	Level 2
Voltage Dips and Interruptions	BS EN/EN61000-4-11	70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

OTHERS

KNX: Certified protocol
FLICKER^Note.8: PstLM ≤ 1, SVM ≤ 0.4
MTBF: 3935.2 K hrs min. Telcordia SR-332 (Bellcore) ; 342.9 Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 147*40*32mm,107*40*32mm (L*W*H)
PACKING: 193g; 60pcs/12.6Kg/0.58CUFT(for blank type); 205g; 50pcs/11Kg/0.57CUFT(for S-type)

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Output hiccups under no-load condition.
3. Please refer to “DRIVER METHODS OF LED MODULE”.
4. De-rating may be need under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
5. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
6. Efficiency is measured at 800mA/50V output set by ETS database.
7. Standby power consumption is measured at 230VAC.
8. Flicker is measured at full load with the light source provided by MEAN WELL.
9. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
10. For XLC-S series: RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations. For XLC(except -S) series: RCM is on a voluntary basis and meets relevant IEC or AS/NZS standards complying with AS/NZS 4417.1
11. The ambient temperature de-rating of 3.5℃/1000m with fanless models and 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
13. For more information, please contact with MEAN WELL sales.

Technical drawings

XLC-40-H-KN BLOCK DIAGRAM — BLOCK DIAGRAM

XLC-40-H-KN DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

XLC-40-H-KN XLC-40-KN series — XLC-40-KN series

XLC-40-H-KN Powerinputrelativetolumenoutput — Powerinputrelativetolumenoutput

XLC-40-H-KN ※PUSH dimming or AC/DC input monitor(Primary side) — ※PUSH dimming or AC/DC input monitor(Primary side)

XLC-40-H-KN OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

XLC-40-H-KN TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

XLC-40-H-KN POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

XLC-40-H-KN EFFICIENCY vs LOAD — EFFICIENCY vs LOAD

XLC-40-H-KN MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

Downloads

Datasheet1

XLC-40-H-KN datasheetXLC_40_KN_Spec_Sheet.pdf · 2025-04-18 edition PDF Download

FAQ

Can I use the XLC-40-H-KN to drive LED downlights in a KNX smart building system?

Yes, the XLC-40-H-KN is specifically designed for KNX system integration, allowing it to receive dimming commands from a KNX bus controller. It delivers 40W constant current with a default 600mA output and can dim down to a minimum of 0.5%, making it appropriate for addressable LED downlight control in KNX-based commercial or residential lighting systems.

Is the XLC-40-H-KN a good fit for LED signage modules controlled from a KNX panel?

The XLC-40-H-KN can power LED signage modules whose forward voltage falls within the 9–54V CC output range, as long as total load stays within 40W. Combined with KNX control, it enables centrally scheduled brightness changes for illuminated signage without a separate dimming controller.

Can the XLC-40-H-KN power LED arrays in museum or retail accent lighting tied to a KNX scene controller?

The XLC-40-H-KN suits KNX-controlled accent or display lighting where scene-based dimming is needed. Its 40W constant current output at a default 600mA supports small LED arrays with compatible Vf in the 9–54V range. The 0.5% minimum dimming level provides smooth fade capability for scene transitions.

How is the output current set on the XLC-40-H-KN?

The XLC-40-H-KN output current is set via the ETS database, allowing selection between 600mA and 1400mA. This digital configuration is made through the KNX interface, making it suitable for installations where current is set during commissioning via software. Unlike models with fixed current, changes require access to the ETS programming tool.

Does the XLC-40-H-KN have a strain-relief fitting for the output cable?

No, the XLC-40-H-KN does not include a strain-relief fitting. It uses a compact 107.0 × 40.0 × 32.0 mm housing without the strain-relief attachment. The XLC-40-H-KNS is the corresponding variant that adds a strain-relief cable fitting for installations where mechanical cable security is required.

Can the XLC-40-H-KN be installed inside a luminaire or enclosed ceiling fitting?

The XLC-40-H-KN is rated for built-in use, meaning it is designed to be housed inside a luminaire or enclosure rather than mounted externally. Its operating temperature range of -25°C to +90°C accommodates typical thermal conditions inside enclosed ceiling fixtures. It does not carry an IP rating for moisture exposure.
