Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

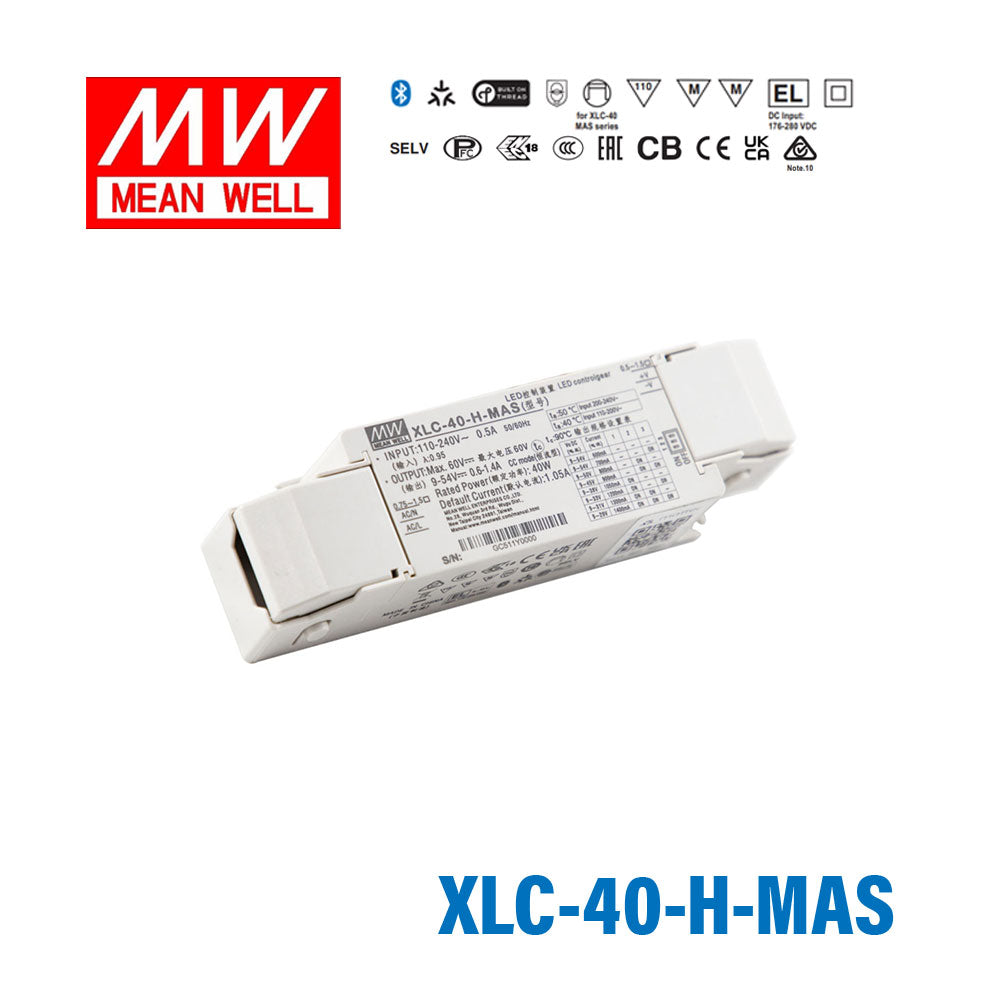

Mean Well XLC-40-H-MAS LED Driver 40W 1050mA 9~54V Constant Power, ...
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stage selectable by DIP switch
- ✓Plastic housing with class II and PFC design
- ✓Flicker free, complying with CE ErP directive
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.5%
- ✓Matter over thread, Matter 1.3 specification
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating40 Watt
-
Output Voltage60 Volt
-
Rated Current1.05 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Current
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length14.7 cm
-
Width3.2 cm
-
Height4 cm
-
Weight0.19 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the XLC-40-H-MAS dim LED downlights wirelessly through a Matter smart home system?
Yes, the XLC-40-H-MAS supports Matter 1.3 wireless dimming and integrates with Matter-compatible controllers, apps, and voice assistants. It delivers 40W at 1050mA constant current and can power LED downlights in the 9–54V CC range, allowing scene-based or automated brightness control without a separate in-wall dimmer.
Is the XLC-40-H-MAS a good option for commercial LED downlight installations that require wireless control and cable strain relief?
The XLC-40-H-MAS is well suited to commercial installations where both Matter wireless dimming and mechanical cable security are needed. The built-in strain-relief fitting protects the output cable connection in applications where cables are routed through conduit or subject to tension, while Matter 1.3 enables integration with building or hospitality control systems.
Can the XLC-40-H-MAS power LED modules in architectural or cove lighting with automated scene control?
Yes, the XLC-40-H-MAS suits architectural cove lighting where scene automation is managed through a Matter hub. Its 40W, 1050mA output drives LED arrays in the 9–54V CC range, and the flicker-free design ensures consistent light quality during smooth dimming transitions triggered by schedules or occupancy sensors.
What is the difference between the XLC-40-H-MA and the XLC-40-H-MAS?
Both the XLC-40-H-MA and XLC-40-H-MAS deliver 40W at 1050mA with Matter 1.3 wireless dimming and identical CC voltage range, certifications, and current adjustment capability. The XLC-40-H-MAS adds a factory-fitted strain-relief cable fitting and has a longer 147.0mm body versus the XLC-40-H-MA's 107.0mm body. The strain-relief variant is preferable where output cables may experience mechanical stress.
What LED array voltage range is the XLC-40-H-MAS compatible with?
The XLC-40-H-MAS constant current output spans a CC voltage range of 9–54V, making it compatible with a broad variety of LED arrays and modules. The exact number of LEDs per string depends on the forward voltage of each LED — you should sum the Vf values of your specific LEDs to confirm they fall within this range.
Can the XLC-40-H-MAS be installed inside an enclosed luminaire in a warm ceiling space?
Yes, the XLC-40-H-MAS is designed for built-in installation inside a luminaire or enclosure. Its operating temperature range of -25°C to +90°C covers the elevated ambient conditions found in enclosed ceiling fixtures and recessed housings. It is Class II rated and does not require an earth connection.
