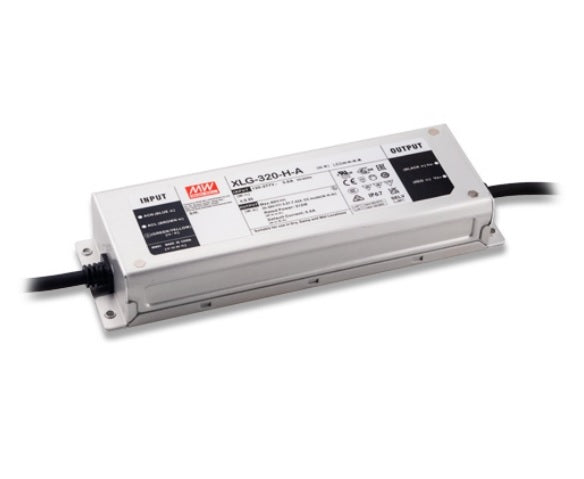

Mean Well XLG-320-H-A Power Supply 312W 5600mA 30-56V Constant Power, Adjustable output

metal case, economical, 100~305VAC wide range input, efficiency up to 90%

|

Description

Features

Wide input range 100~305VAC (Class I)
Full power output at 70~100% constant power mode operation
Metal case with IP67, suitable for outdoor application
Surge protection with 6KV/4KV
3 in 1 dimming function (Dim to off and isolation design)
Protection functions: OVP/SCP/OCP/OTP
Lifetime > 50,000 hrs. and 5 years warranty

General Specification

AC input voltage range 100~305VAC;142~431VDC
AC inrush current Cold start, 45A at 230VAC
DC adjustment range ±10% rated output voltage
Over-voltage protection 102%~111% rated output voltage
Setup, rise, hold up time 500ms, 100ms, 12ms
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature -40~+85°C
Safety standards UL8750 approved; ENEC BS EN/EN61347-1; EAC TP TC 004; NOM-058-SCFI-2017; IP67 approved
EMC standards EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH) 246x77x39.5
Packing 9pcs / 14kg

Specifications

  • Brand
    Mean Well
  • Series
    XLG Series
  • Power Rating
    312 Watt
  • Output Voltage
    60 Volt
  • Rated Current
    5.6 Ampere
  • Input Voltage
    142V~431V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,RCM,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~85°C
  • Warranty
    5 Year
  • Length
    24.6 cm
  • Width
    7.7 cm
  • Height
    3.95 cm
  • Weight
    1.45 kg

File Downloads
