Envo

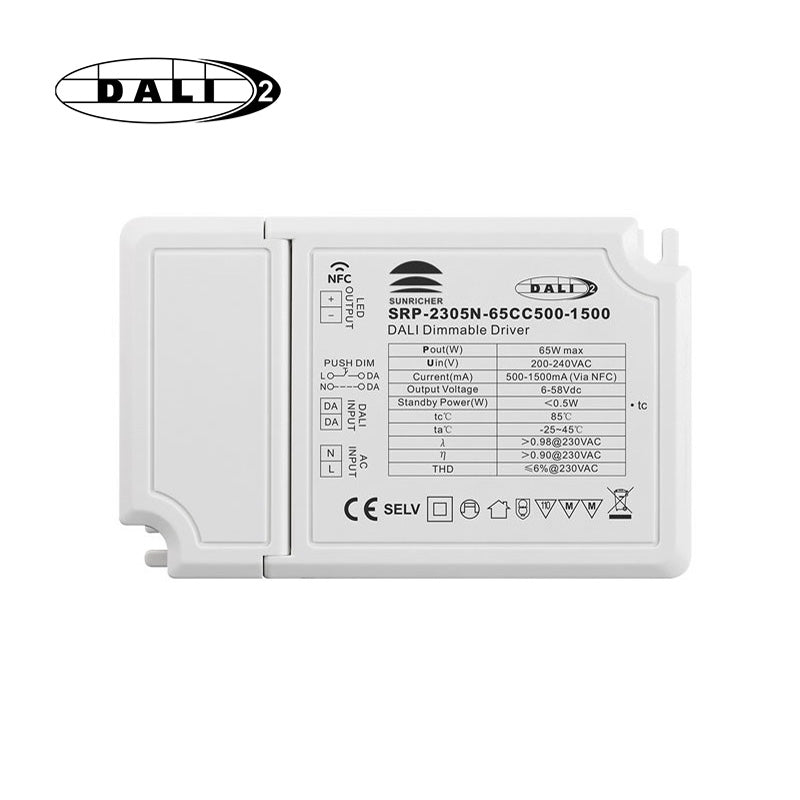

ENVO SRP-2305N-65CC500-1500 DT6 CC Driver, 65W, 500-1500mA, NFC Control

65W NFC Programmable DALI DT6 LED Driver (Constant Current)
SKU SRP-2305N-65CC500-1500
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

SRP-2305N-65CC500-1500 is the 6-58V output model of this series: rated power Max. 65W.

Features

  • In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2，
  • Built-in DALI-2 interface, DALI DT6 device
  • Dimmable LED driver. Max. output power 65W
  • 500-1500mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
  • DALI Address/Group/Scene setting via NFC program tool.
  • Class Ⅱ power supply, full isolated plastic case
  • High power factor and efficiency
  • To switch and dim LED lighting luminaries
  • Amplitude/CCR dimming, smooth and deep dimming
  • Compatible with universal DALI masters that support DT6 commands
  • Error report function
  • IP20 rating, suitable for indoor LED lighting applications
  • 5 years warranty

Specifications

SRP-2305N-65CC500-1500Specifications from the official datasheetDownload datasheet PDF

Output

LED Channel
1
DC Voltage
6-58V
Current
500-1500mA via NFC setting; Min.current gear lower to 0.1mA
Current Accuracy
±3% (±1% @ certain full load) @ full load
Rated Power
Max. 65W

Input

Voltage Range
200-240VAC/176-280VDC
Frequency Range
50/60Hz
Power Factor (Typ.)
> 0.98 @ 230VAC Full load
Total Harmonic Distortion
THD ≤ 6% (@ full load / 230VAC)
Efficiency (Typ.)
＞90% @ 230VAC full load
AC Current (Typ.)
0.35A @ 230VAC
Inrush Current (Typ.)
Max. 9.68A at 230VAC; 70μs duration
Leakage Current
< 5mA /230VAC
Standby Power Consumption
＜0.5W
Anti Surge
L-N:2KV

Control

Dimming Interface
DALI Device Type 6 (DALI consumption < 2mA) / AC Push
Dimming Range
0.01%-100% @ max current
Dimming Method
Amplitude/CCR dimming
Dimming Curve
Linear/ Logarithmic optional

Protection

Short Circuit
Yes, recovers automatically after fault condition is removed
Over Current
Yes, recovers automatically after fault condition is removed
Over Temperature
Yes, recovers automatically after temperature drop

Environment

Working Temp.
-25℃ ~ +45℃
Max. Case Temp.
TC=85℃ (Ta=45℃)
Working Humidity
10% ~ 95% RH non-condensing
Storage Temp. & Humidity
-40℃ ~ +80℃, 10% ~ 95% RH

Safety & EMC

Safety Standards
EN61347-1, EN61347-2-13
Withstand Voltage
I/P-O/P: 3.75KVAC
Isolation Resistance
I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH
EMC Emission
En55015, EN61000-3-2, EN61000-3-3
EMC Immunity
En61547, EN61000-4-2,3,4,5,6,8,11

Others

MTBF
191350H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature
Dimension
123.9x78.8x30mm (L*W*H)
Warranty
5 Years

Technical drawings

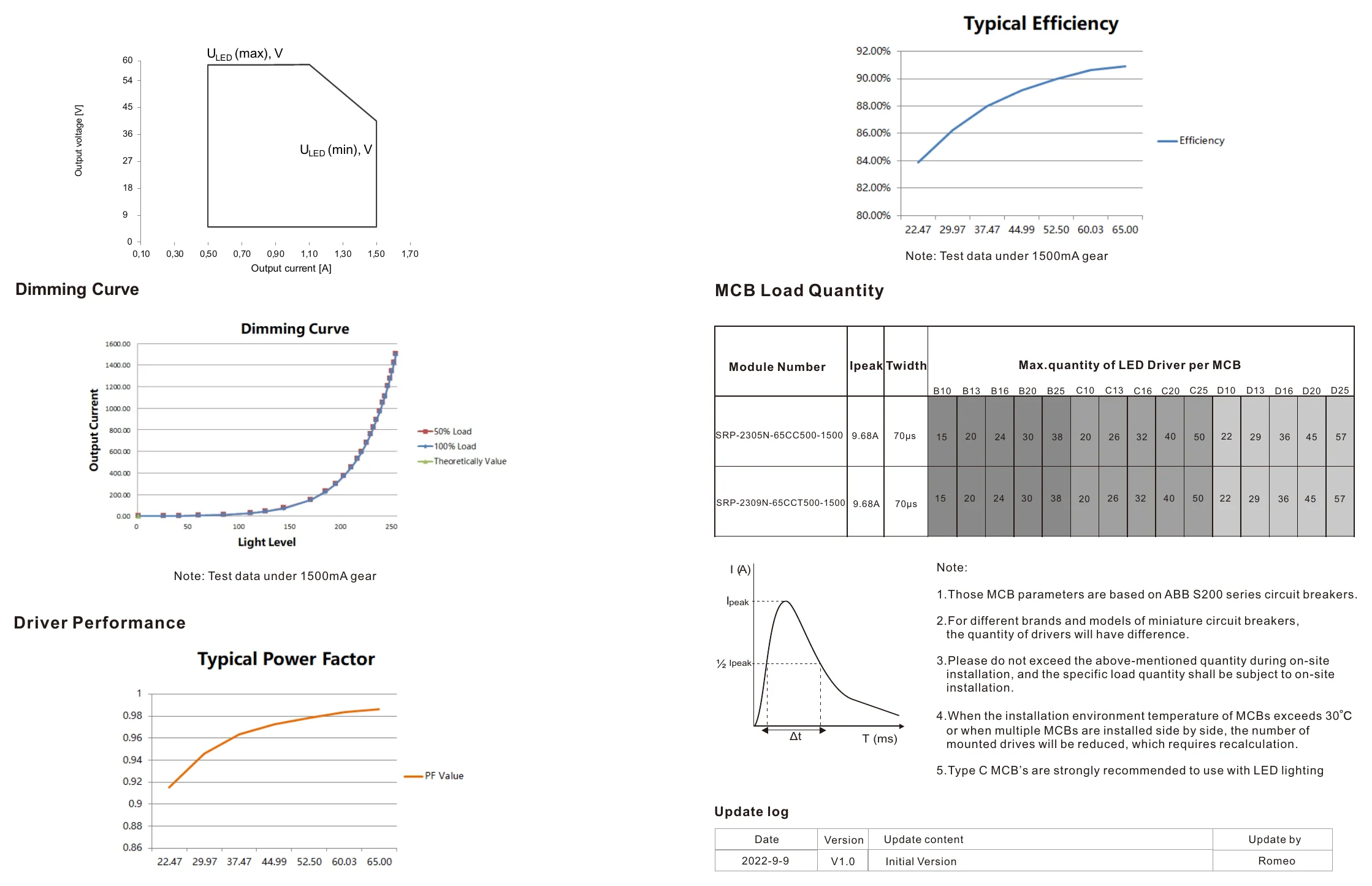

SRP-2305N-65CC500-1500 Diagram
Diagram

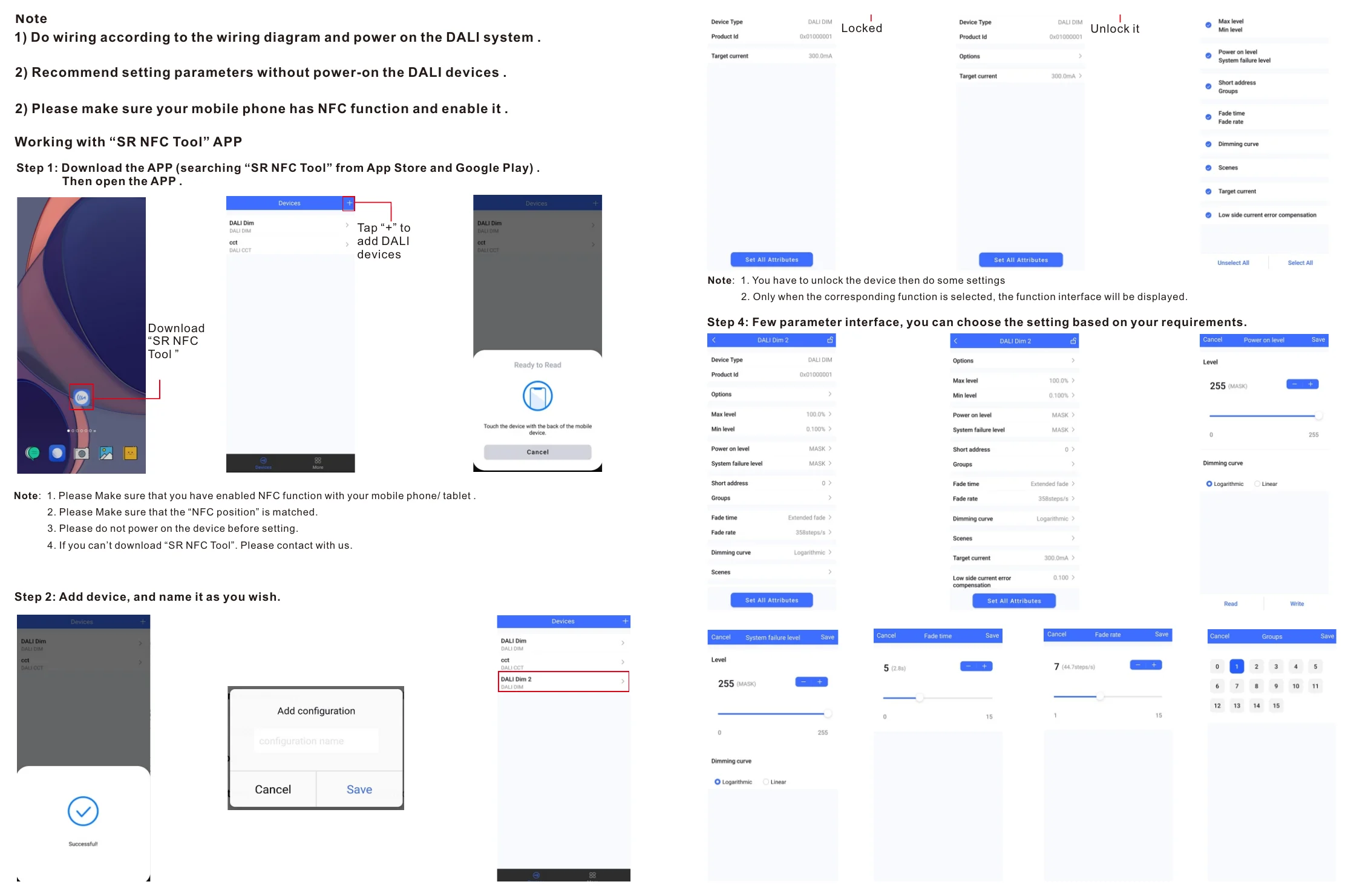

SRP-2305N-65CC500-1500 Diagram
Diagram

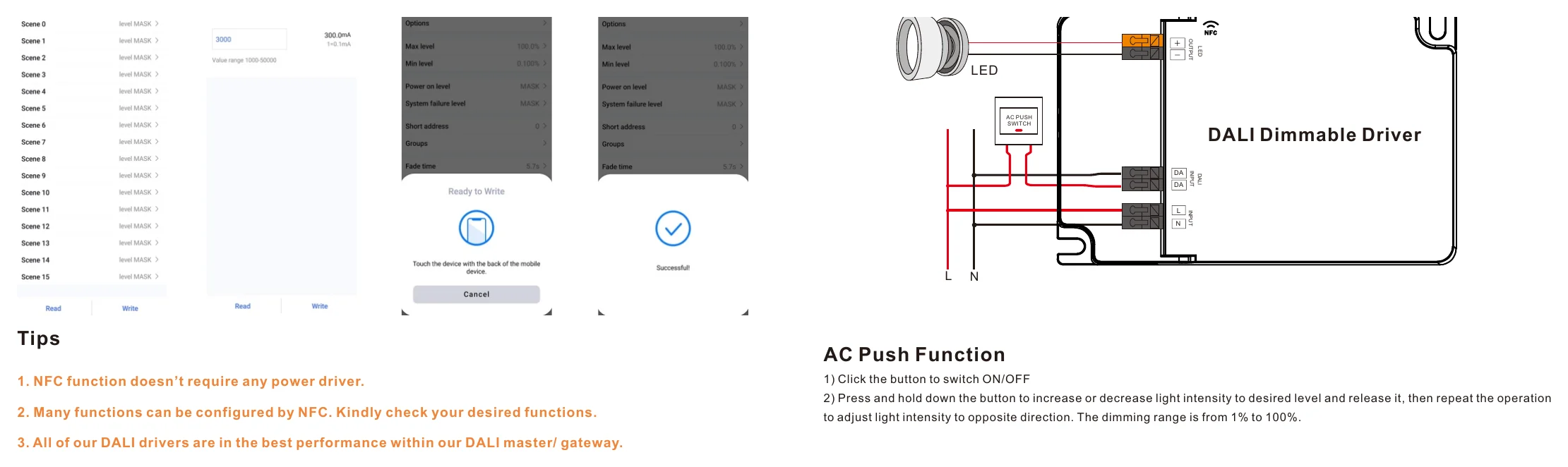

SRP-2305N-65CC500-1500 Diagram
Diagram

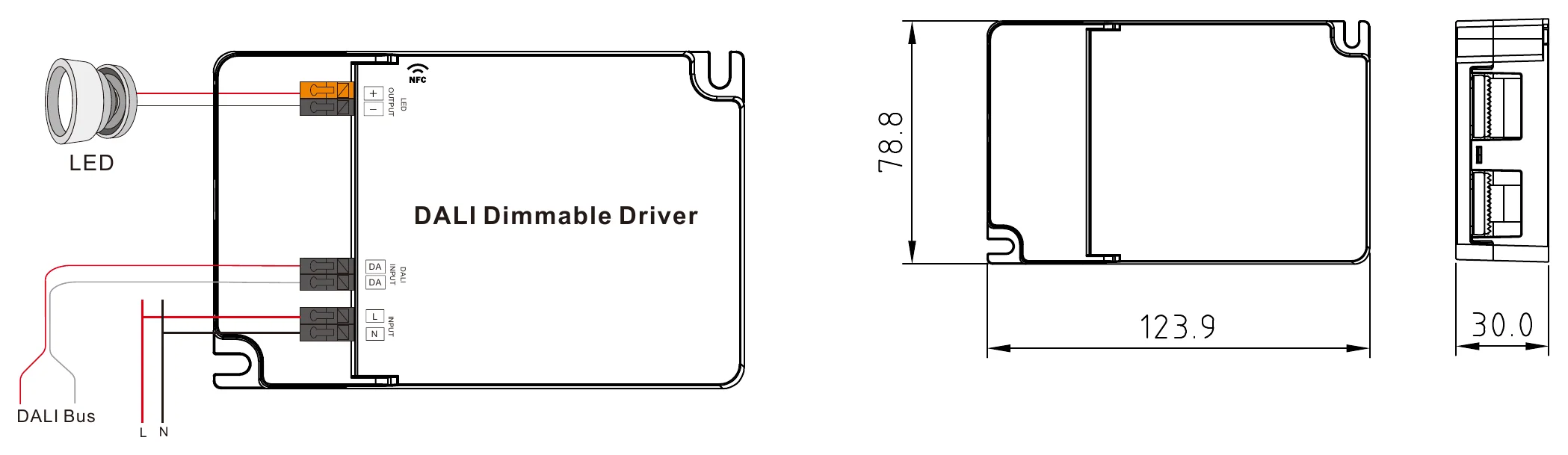

SRP-2305N-65CC500-1500 Diagram
Diagram

Downloads

FAQ

What is the Sunricher SRP-2305N-65CC500-1500 designed for?

This model is a constant current LED driver for applications that need DALI2 DT6 dimming control. It is suited to commercial and professional lighting projects where a 65W driver with adjustable output current in the 500-1500mA range is required.

What are the main electrical specifications of this driver?

The SRP-2305N-65CC500-1500 is rated at 65W with a maximum output voltage of 58V. Its listed rated current is 0.5000A, and the model range supports 500-1500mA constant current operation.

Does this LED driver support DALI dimming?

Yes, this driver supports DALI dimming and is identified as a DALI2 DT6 constant current driver. That makes it appropriate for projects that require DALI-based lighting control compatibility.

What does NFC control mean on this model?

This product is specified with NFC control, which distinguishes it from basic constant current drivers without that feature. Buyers comparing models can use that as a selection point when NFC-based configuration capability is required in the project specification.

What operating temperatures is this driver rated for?

The specified operating temperature range is from -25°C to +45°C. That makes it suitable for indoor or controlled-environment applications that stay within those limits.

What warranty is provided for the SRP-2305N-65CC500-1500?

This model includes a 5-year warranty period. For B2B buyers, that provides a defined coverage term for project planning and product support expectations.
