Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

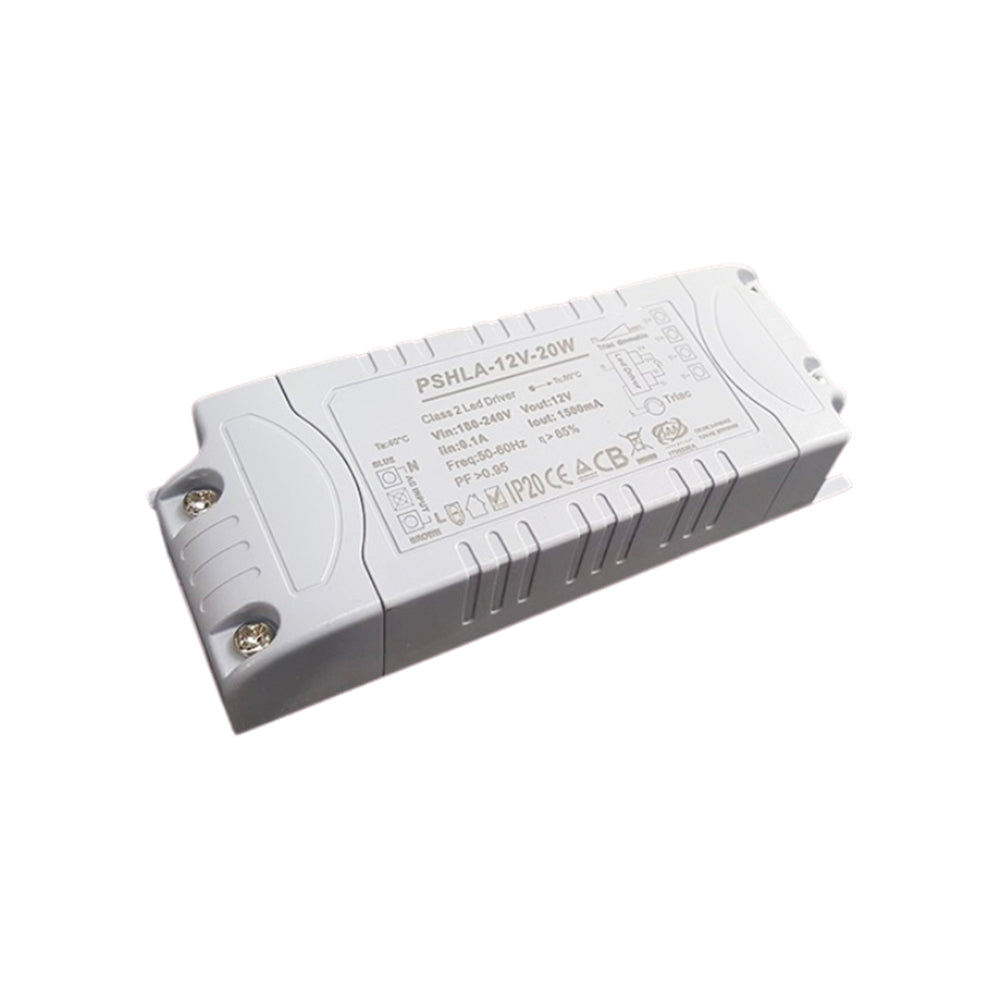

Thinkwise PSHLA-12V-20W Triac Dimmable Power Supply - 20W 12V 1.66A - Screw Terminal

SKU:

PSHLA-12V-20W

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

A triac dimmable 20Watt 12VDC power supply suitable for running led strip etc.

Frequently Asked Questions

What type of loads is the Thinkwise PSHLA-12V-20W designed for?

This model is a 12V constant-voltage power supply intended for low-voltage LED products such as 12V LED strip. It provides up to 20W total output, so it is best suited to applications that need 12V DC and stay within that power limit.

Is the PSHLA-12V-20W dimmable?

Yes. This model supports AC phase-cut dimming, which is commonly referred to as triac dimming. That makes it a relevant option when a 12V LED application needs dimming compatibility from the power supply itself.

How do I know if 20W is enough for my 12V LED application?

This power supply is rated for 20W at 12V with a maximum output current of 1.66A. It is suitable when your total 12V DC load does not exceed those limits, so it is generally better for smaller LED strip or low-power lighting runs rather than larger installations.

What are the key electrical specs of this model?

The PSHLA-12V-20W is rated at 20W output, 12V DC output voltage, and 1.66A rated current. Those specs identify it as a compact constant-voltage option for lower-power 12V LED applications.

Can this power supply be used in colder or warmer working conditions?

This model has a stated operating temperature range of -25°C to 40°C. That gives it flexibility for a range of indoor or protected-environment applications, but the actual installation environment still needs to remain within that specified range.

What warranty is offered on the Thinkwise PSHLA-12V-20W?

This power supply carries a 3-year warranty period. For B2B buyers, that can be useful when comparing lifecycle support across small 12V dimmable power supply options.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Thinkwise PSHLA-12V-80W Triac Dimmable Power Supply - 80W 12V 6.66A - Screw Terminal	80W	12V	6.66A	IP20	View
Thinkwise PSHLA-12V-60W Triac Dimmable Power Supply - 60W 12V 5A - Screw Terminal	60W	12V	5A	IP20	View
Thinkwise PSHLA-12V-40W Triac Dimmable Power Supply - 40W 12V 3.33A - Screw Terminal	40W	12V	3.33A	IP20	View
Thinkwise PSHLA-12V-30W Triac Dimmable Power Supply - 30W 12V 1.5A - Screw Terminal	30W	12V	1.5A	IP20	View
Thinkwise PSHLA-12V-12W Triac Dimmable Power Supply - 12W 12V 1A - Screw Terminal	12W	12V	1A	IP20	View
