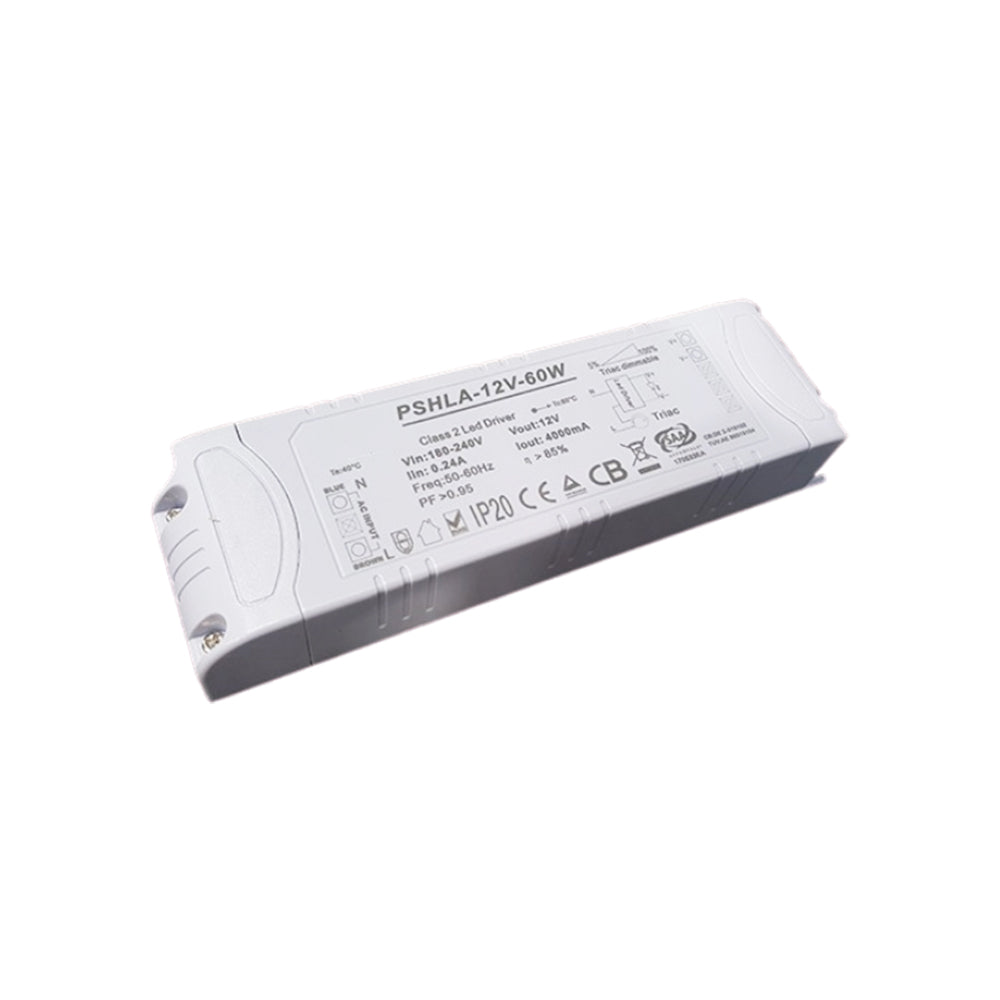

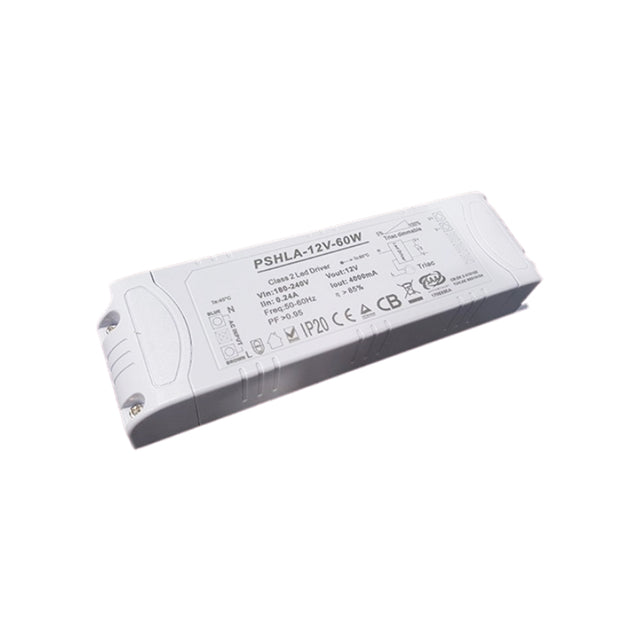

Thinkwise PSHLA-12V-60W Triac Dimmable Power Supply - 60W 12V 5A - ...
Log in to see price-
BrandThinkwise
-
SeriesThinkwise Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage220V~240V
-
Standards MetEMC,RCM,SAA,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~40°C
-
Warranty3 Year
-
Length17 cm
-
Width5 cm
-
Height2.9 cm
-
Weight0.5 kg
::specification::
Frequently Asked Questions
What are the main output specifications of the Thinkwise PSHLA-12V-60W?
This model is a 60W constant-voltage power supply with a 12V DC output and a rated current of 5A. Those figures make it suitable for 12V loads that stay within the unit's 60W maximum capacity. It is specifically identified as the PSHLA-12V-60W model.
Is the PSHLA-12V-60W suitable for 12V LED strip applications?
Yes, this model is described as suitable for running 12V LED strip loads. Its 12V DC output matches 12V systems, and the 60W / 5A rating helps buyers assess whether the total load is within range. It is a constant-voltage option rather than a constant-current driver.
Can I use this power supply with 24V LED products?
No, this model has a 12V DC output, so it should be matched with 12V equipment rather than 24V products. Buyers comparing 12V and 24V options should treat them as different voltage classes, not interchangeable choices. If the load requires 24V, this is not the correct model.
What kind of dimming control does the PSHLA-12V-60W use?
This power supply uses triac dimming with AC phase-cut control. That makes it relevant for projects where phase-cut dimming compatibility is a buying requirement. It is a dimmable model, unlike standard non-dimmable constant-voltage supplies.
How does this model compare with a non-dimmable 12V 60W power supply?
The main differentiator is dimming control: the PSHLA-12V-60W is a triac dimmable 12V 60W unit, while a non-dimmable version would only provide fixed output. Buyers who need dimming capability for compatible 12V lighting applications would choose this model for that reason. If dimming is not needed, the decision usually comes down to the project's control requirements.
What operating temperature range is this model rated for?
The stated operating temperature range is -25°C to 40°C. That gives buyers a defined environmental window for selecting it for colder or moderately warm locations. The listed warranty period for this model is 3 years.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PSHLA-12V Models
5 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Thinkwise PSHLA-12V-20W Triac Dimmable Power Supply - 20W 12V 1.66A - Screw Terminal | 20W | 12V | 1.66A | IP20 | View |
| Thinkwise PSHLA-12V-80W Triac Dimmable Power Supply - 80W 12V 6.66A - Screw Terminal | 80W | 12V | 6.66A | IP20 | View |
| Thinkwise PSHLA-12V-40W Triac Dimmable Power Supply - 40W 12V 3.33A - Screw Terminal | 40W | 12V | 3.33A | IP20 | View |
| Thinkwise PSHLA-12V-30W Triac Dimmable Power Supply - 30W 12V 1.5A - Screw Terminal | 30W | 12V | 1.5A | IP20 | View |
| Thinkwise PSHLA-12V-12W Triac Dimmable Power Supply - 12W 12V 1A - Screw Terminal | 12W | 12V | 1A | IP20 | View |
