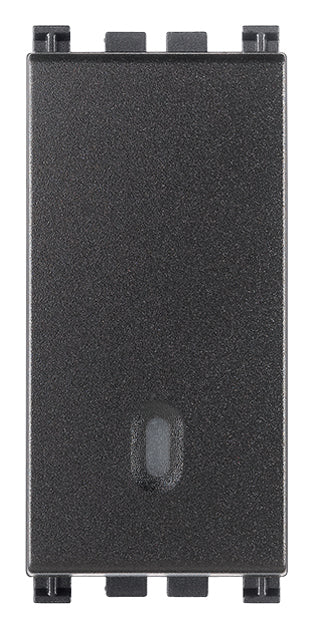

Vimar Arke 1P 16AX 1-Way Switch Grey
Log in to see priceOverview
VM-19001 is Vimar ARKÉ 19001, 1P 16AX 1-way switch grey.
1P 16 AX 250 V~ 1-way switch, lightable, replaceable button, grey. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)
Specifications
Technical data
- Product type
- Installation switch
- Wiring system
- Switch 1-pole
- Operating method
- Rocker/button
- Assembly arrangement
- Modular device for domestic switching devices
- Number of modules (module system)
- 1
- Push button switch
- Yes
- Number of rockers
- 1
- Mounting method
- Flush-mounted
- Type of fastening
- Engage (snap)
- With mounting plate
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Matt
- Colour
- Grey
- RAL-number (similar)
- 7015
- Label space/information surface
- Yes
- Lighting
- Optional
- Function lighting
- Control and orientation
- Type of lighting
- LED exchangeable
- Suitable for degree of protection (IP)
- IP40
- Nominal voltage
- 250 V
- Rated current
- 16 A
- Monitoring contact
- No
- Connection type
- Screwed terminal
- Washing machine switch
- No
- Device width
- 22.3 mm
- Device height
- 49 mm
- Device depth
- 36.8 mm
- Built-in depth
- 25 mm
Packaging
- EAN
- 8007352412910
- Packed size (cm)
- 4.1 × 2.8 × 5.3
- Packed weight
- 24.6 g
- Pieces per box
- 50
Certifications
- Certifications
- CE marking (EU), PSE (Japan), IMQ (Italy), RCM (Australia), INGCER (Chile), ISI (India), TSE (Turkey), CCC (China), Product Environm. Profile, NOM (Mexico), SASO (Saudi Arabia), WEEE Directive, TISI (Thailand)

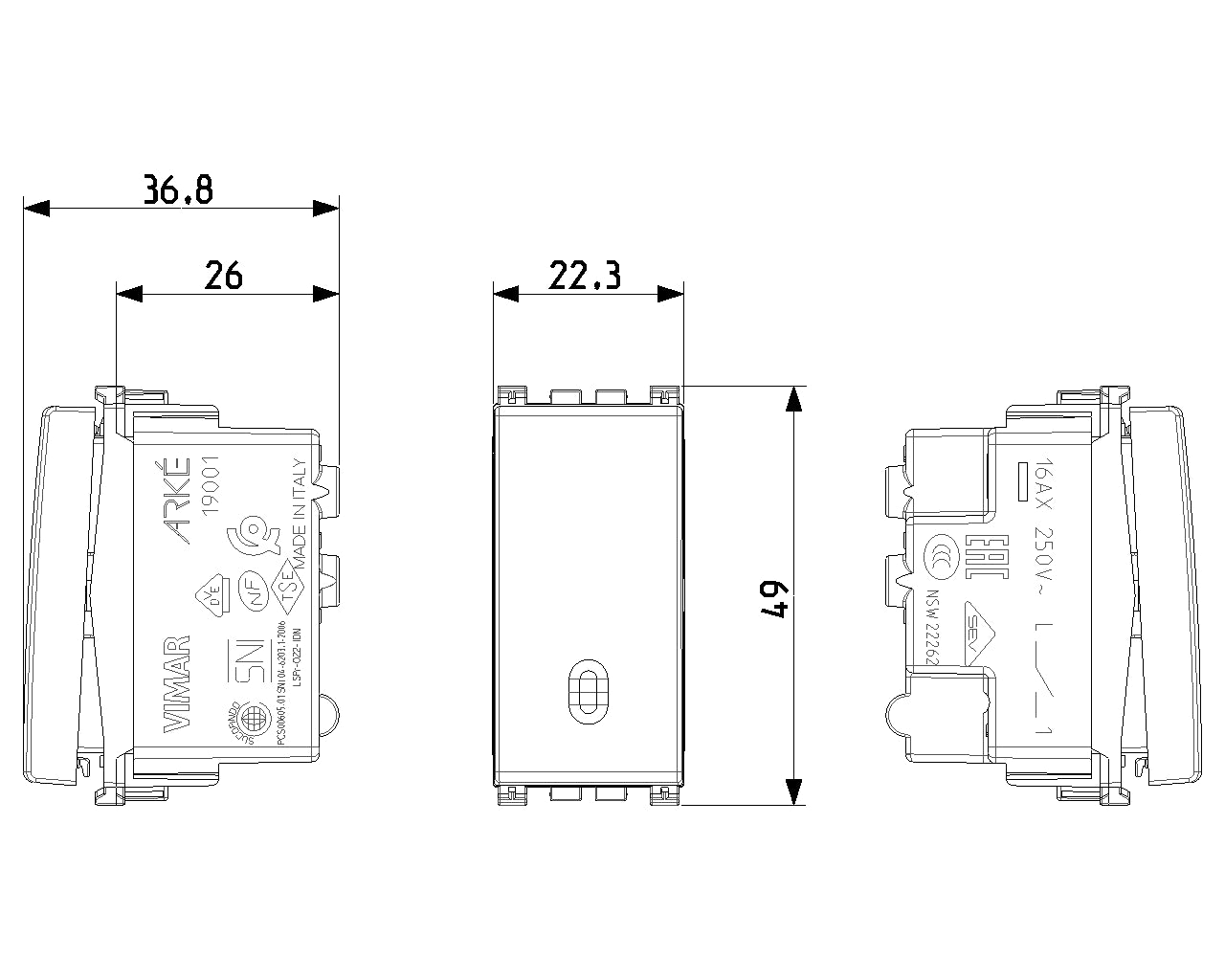

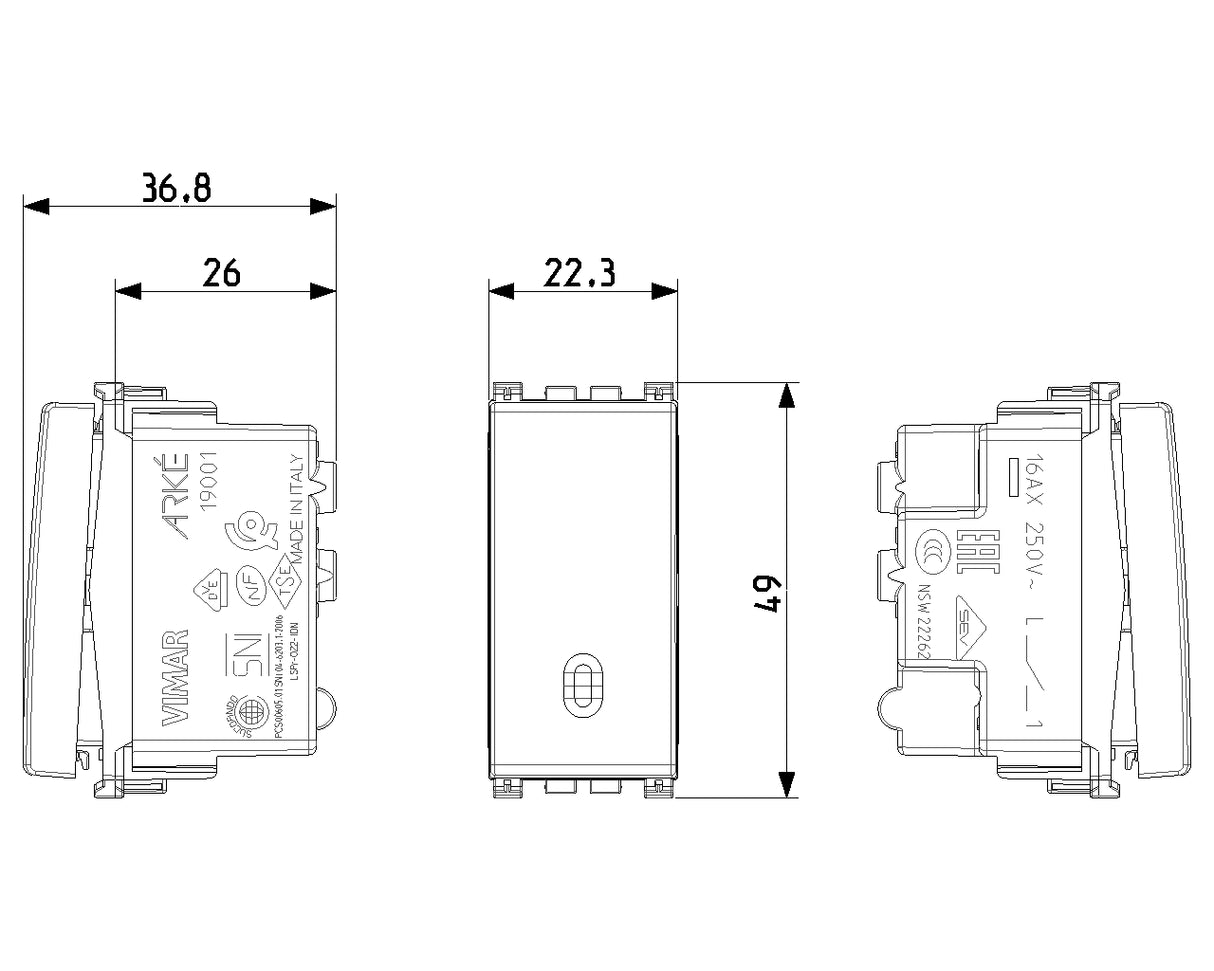

Technical drawings
Downloads
Datasheet1
Certificates2
Catalogues15
FAQ
What is the Vimar Arke 1P 16AX 1-Way Switch Grey used for?
This model is a 1-way switch intended for standard on/off control in Arke-based electrical installations. It is suited to projects that need a grey switch module with a clean, modern appearance for residential or commercial interiors.
What are the main technical specifications of this switch?
The Vimar Arke 1P 16AX 1-Way Switch Grey is rated at 16AX and 16.0000 A. It comes in a grey finish, weighs 0.0264 kg, and includes a 3.0000 year warranty period.
Is this switch suitable for demanding indoor environments?
It is designed to operate within an ambient temperature range of -20.0000 °C to 50.0000 °C. That makes it suitable for a wide range of normal indoor conditions where temperature performance matters.
How does this model fit within the Vimar Arke range?
This switch belongs to the Vimar Arke range, which is positioned around a contemporary, minimalist design language. The grey finish supports a more understated modern look while staying consistent with the broader Arke aesthetic described for style-focused spaces.
Is this product compatible with Vimar Arke systems?
Yes, this model is part of the Vimar Arke module family, so it is intended for use within that series. For buyers standardizing on Arke switches and dimmer lines, this helps maintain visual and range consistency across a project.
