Vimar Arke 1P 16AX 1-Way Switch White
Log in to see priceOverview
VM-19001.B is Vimar ARKΓ 19001.B, 1P 16AX 1-way switch white.
1P 16 AX 250 V~ 1-way switch, lightable, replaceable button, white. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)
Specifications
Technical data
- Product type
- Installation switch
- Wiring system
- Switch 1-pole
- Operating method
- Rocker/button
- Assembly arrangement
- Modular device for domestic switching devices
- Number of modules (module system)
- 1
- Push button switch
- Yes
- Number of rockers
- 1
- Mounting method
- Flush-mounted
- Type of fastening
- Engage (snap)
- With mounting plate
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Matt
- Colour
- White
- RAL-number (similar)
- 9016
- Label space/information surface
- Yes
- Lighting
- Optional
- Function lighting
- Control and orientation
- Type of lighting
- LED exchangeable
- Suitable for degree of protection (IP)
- IP40
- Nominal voltage
- 250 V
- Rated current
- 16 A
- Monitoring contact
- No
- Connection type
- Screwed terminal
- Washing machine switch
- No
- Device width
- 22.3 mm
- Device height
- 49 mm
- Device depth
- 36.8 mm
- Built-in depth
- 25 mm
Packaging
- EAN
- 8007352454453
- Packed size (cm)
- 4.1 Γ 2.8 Γ 5.3
- Packed weight
- 24.8 g
- Pieces per box
- 50
Certifications
- Certifications
- CE marking (EU), PSE (Japan), IMQ (Italy), RCM (Australia), INGCER (Chile), ISI (India), TSE (Turkey), CCC (China), Product Environm. Profile, NOM (Mexico), SASO (Saudi Arabia), WEEE Directive, TISI (Thailand)

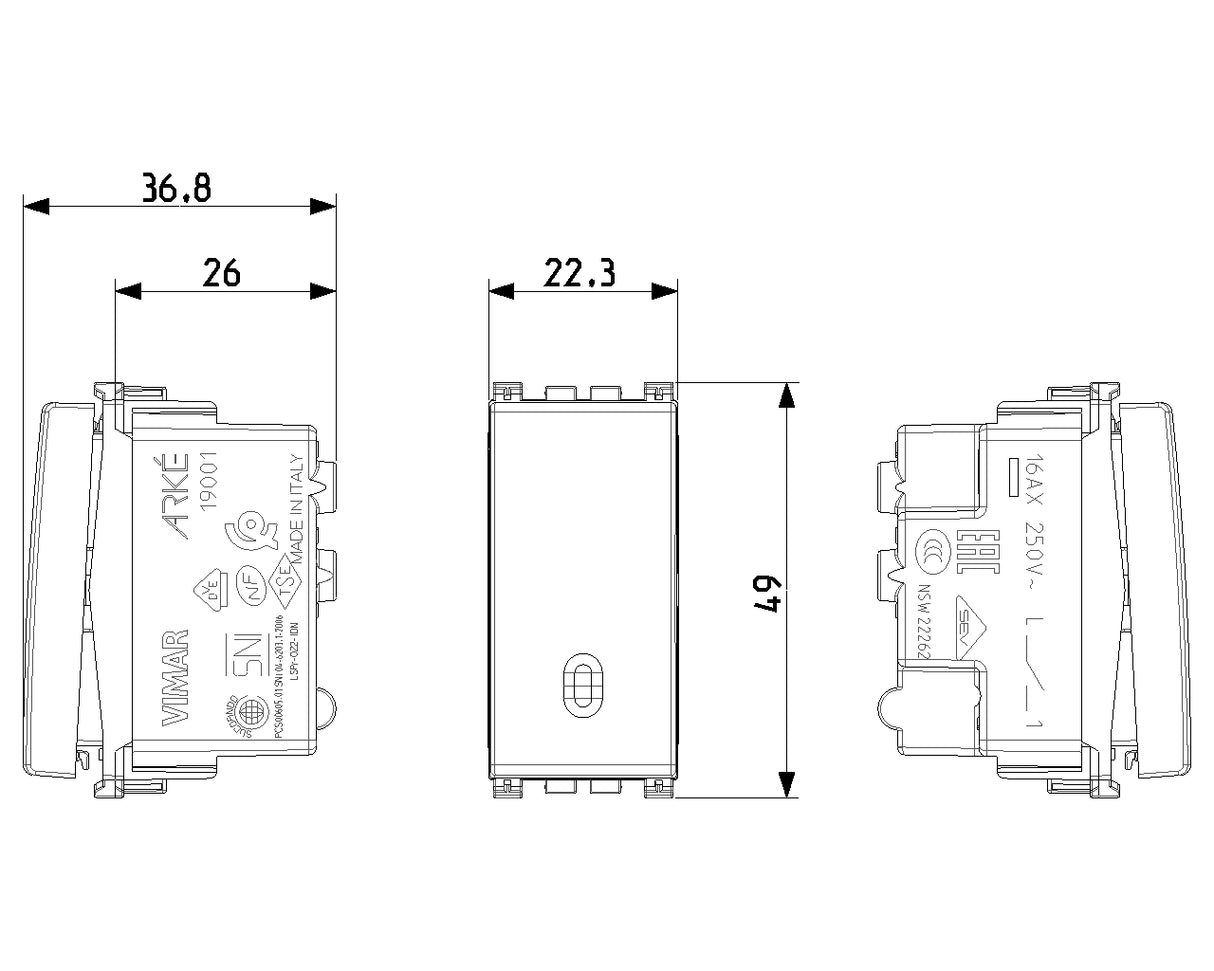

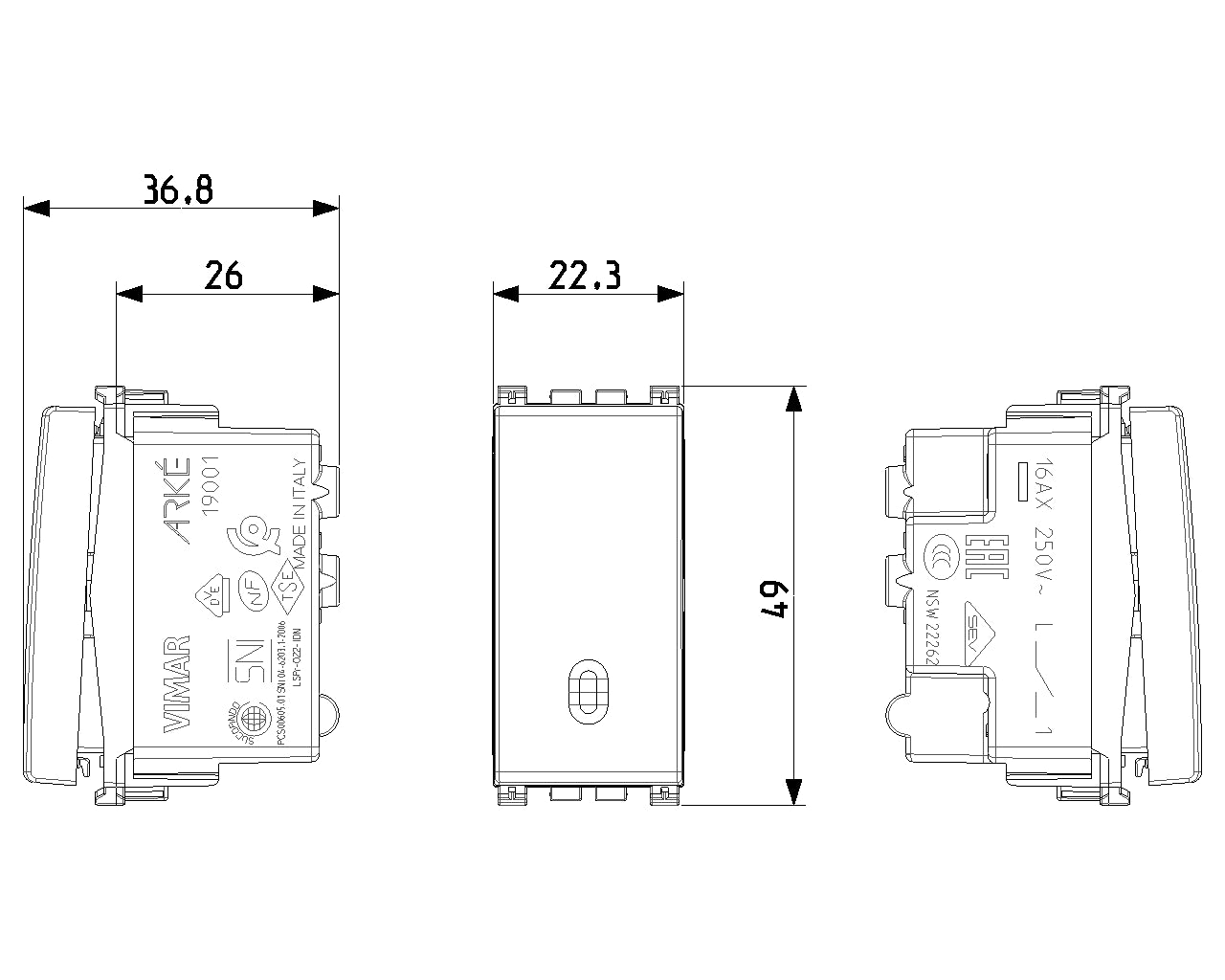

Technical drawings
Downloads
Datasheet1
Certificates2
Catalogues15
FAQ
What is the Vimar Arke 1P 16AX 1-Way Switch White used for?
This model is a 1-way switch module intended for switching control in Vimar Arke installations. It suits projects that want a clean white finish and a minimalist look, including residential interiors and commercial spaces where a consistent Arke-style appearance matters.
What is the rated current of the Vimar Arke 1P 16AX 1-Way Switch White?
This switch is rated at 16AX. That makes it a higher-capacity switching option within its category and a practical choice when buyers need a clear, specified current rating for project selection and documentation.
Is this switch part of the Vimar Arke range?
Yes. This model belongs to the Vimar Arke series and is presented as an Arke switch module in a white finish. For buyers standardizing on Arke aesthetics across a project, this helps maintain a coordinated look on the wall.
Can this Vimar Arke switch be used in demanding indoor environments?
It is specified for an operating temperature range from -20 degrees C to 50 degrees C. That gives it a defined environmental range for selection in indoor spaces where temperature conditions may vary across residential or commercial sites.
Why choose the white version of this Vimar Arke switch?
This model uses the classic white finish, which makes it easy to integrate into a wide range of interior styles. Compared with more decorative material-driven variants in the Arke family, the white version is the more neutral choice for projects prioritizing a clean and universal appearance.
What warranty is provided for the Vimar Arke 1P 16AX 1-Way Switch White?
This model carries a 3-year warranty period. That gives buyers a defined support window for specification, procurement, and maintenance planning.
