Vimar

Vimar Arke Round Plate 8M Reflex Ice TL

8 ModuleWhite
SKU VM-19698.B66
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

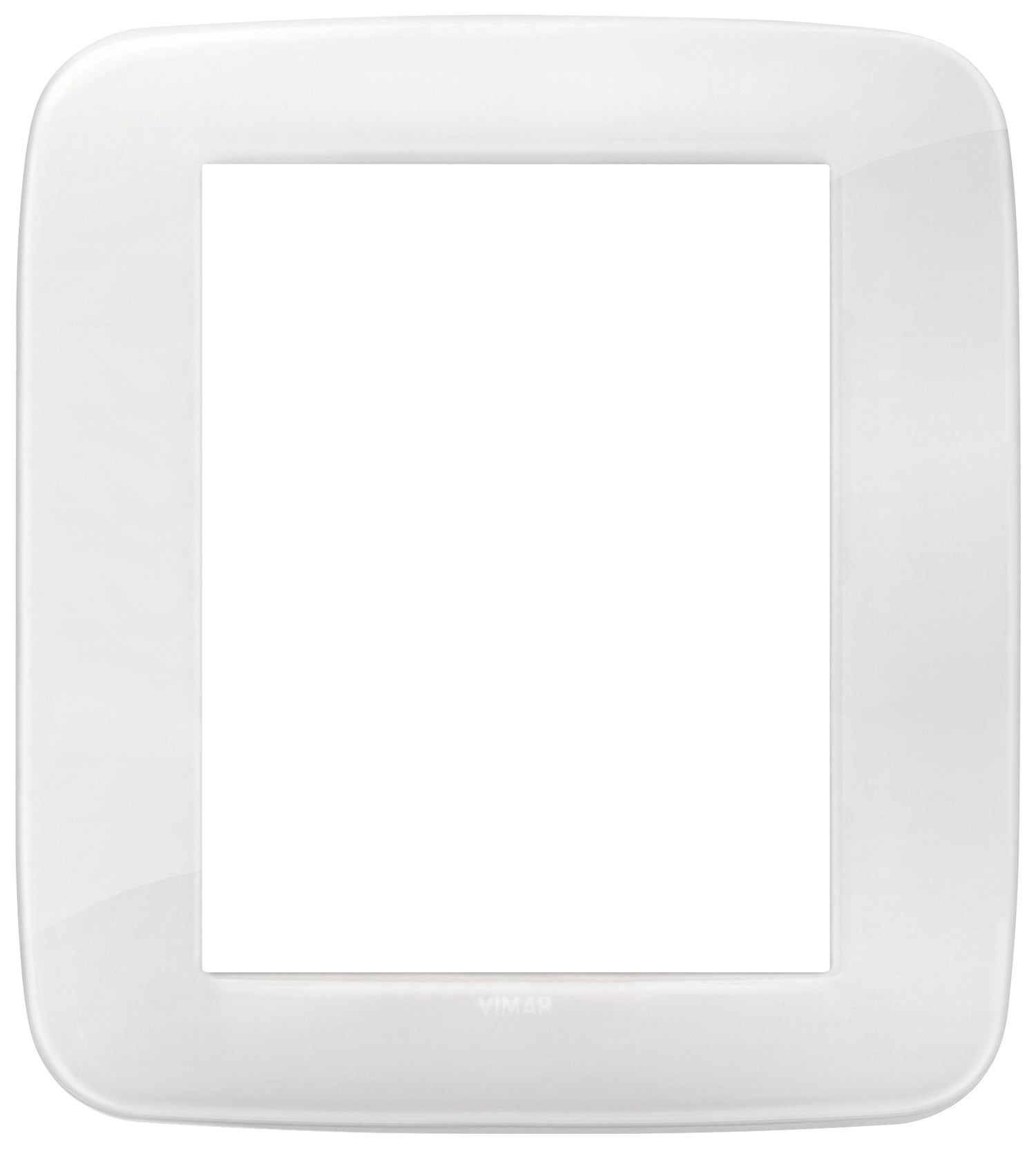

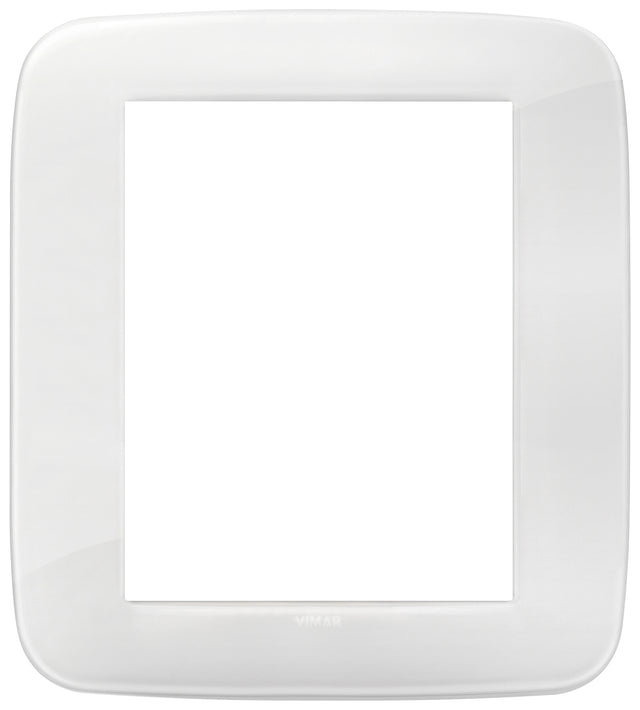

VM-19698.B66 is Vimar ARKÉ 19698.B66, round 8M Reflex ice total look cover plate.

Round 8-module cover plate, technopolymer, Reflex ice total look, white diaphragm

Specifications

VM-19698.B66Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
8
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
4
Number of device inserts vertical
2
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
2
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Acrylic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9016
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
145.5 mm
Height
162 mm
Depth
9.5 mm
Built-in width
145.5 mm
Built-in height
162 mm

Packaging

EAN
8007352538566
Packed size (cm)
18.5 × 18.5 × 2.2
Packed weight
121 g

Certifications

Certifications
CE marking (EU), IMQ (Italy)

Downloads

FAQ

What is the Vimar Arke Round Plate 8M Reflex Ice TL used for?

The VM-19698.B66 is a cover plate for the Vimar Arké switch range. It is used as the visible finishing plate for compatible Arké switch and socket configurations, giving the product face a clean white Reflex Ice appearance.

Is this product a complete switch?

No. This item is a switch cover plate, not a complete switch mechanism or electrical device. It is intended to be paired with compatible Vimar Arké components as part of a finished switch or socket assembly.

What colour and finish is this Vimar Arké plate?

This model is listed with a white finish colour and the product name specifies Reflex Ice TL. The appearance is suited to minimalist, contemporary interiors where a neutral cover plate is preferred.

Is this cover plate suitable for hotels and residential spaces?

Yes. The Arké range is described for modern living environments, including residential spaces and hotels where style details matter. This white cover plate is a practical choice for projects that need a clean, consistent switch finish.

What are the key specifications for SKU VM-19698.B66?

SKU VM-19698.B66 is the Vimar Arke Round Plate 8M Reflex Ice TL. It has a listed weight of 0.2350 kg and a warranty period of 3.0000 years.
