Vimar

Vimar Arke Round Plate 8M Technopolymer Blue

8 ModuleBlue
SKU VM-19698.86
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

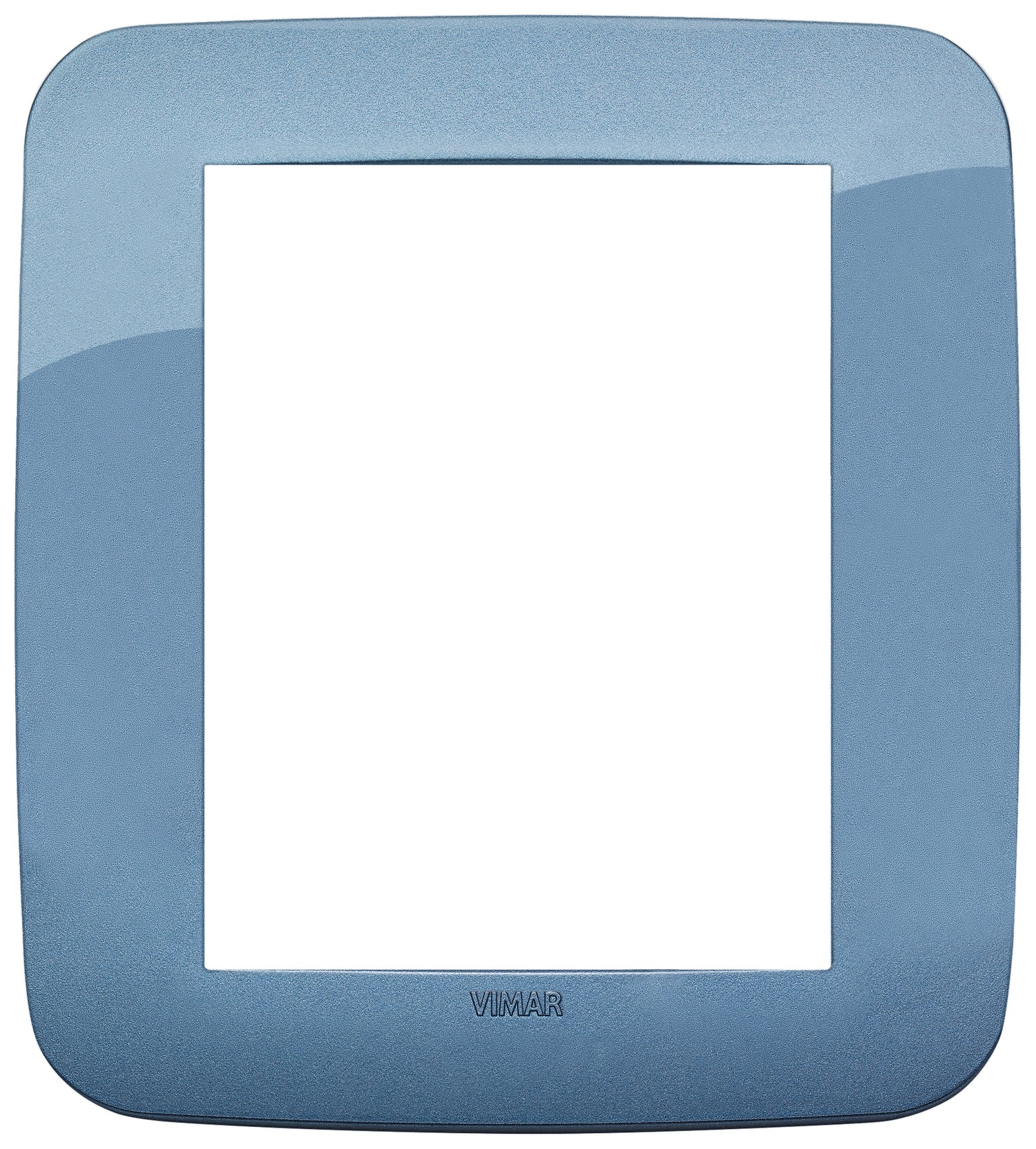

VM-19698.86 is Vimar ARKÉ 19698.86, round 8M cover plate blue.

Round 8-module cover plate (4+4), technopolymer, blue

Specifications

VM-19698.86Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
8
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
4
Number of device inserts vertical
2
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
2
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Blue
RAL-number (similar)
5009
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
145.5 mm
Height
162 mm
Depth
9.5 mm
Built-in width
145.5 mm
Built-in height
162 mm

Packaging

EAN
8007352450325
Packed size (cm)
18.5 × 18.5 × 2.2
Packed weight
93.4 g

Certifications

Certifications
CE marking (EU), IMQ (Italy)

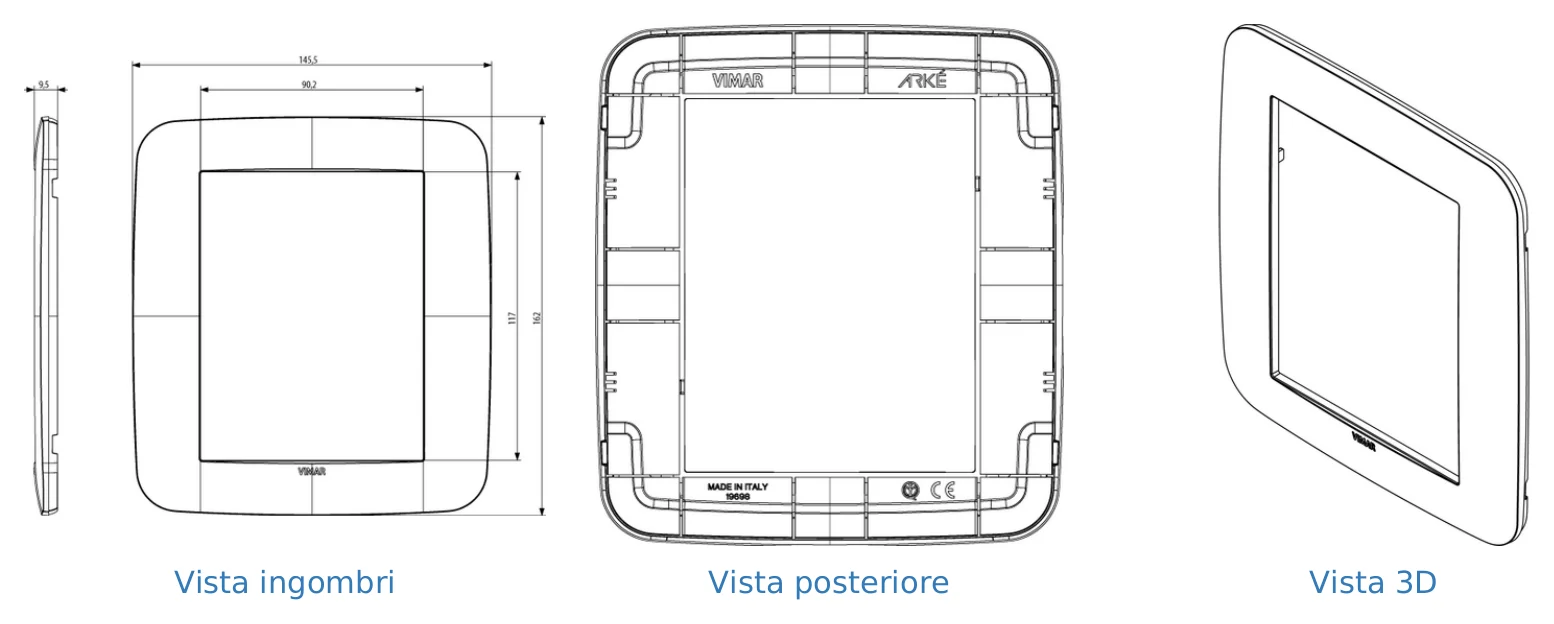

Technical drawings

VM-19698.86 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke Round Plate 8M Technopolymer Blue used for?

The Vimar Arke Round Plate 8M Technopolymer Blue is a cover plate for Vimar Arké light switch and socket applications. It is suited to projects that need an Arké-series plate with a blue technopolymer finish.

Is this plate part of the Vimar Arké range?

Yes, this model is part of the Vimar Arké range. The product name identifies it as an Arké round plate with an 8M format and blue finish.

What material is this Vimar Arké plate made from?

This cover plate is made from technopolymer. The listed finish colour for SKU VM-19698.86 is blue.

Where is this blue Arké cover plate commonly used?

This plate is suitable for residential, hospitality, and commercial interiors using Vimar Arké switch hardware. The blue finish can be useful where the switch area needs to match a design scheme or stand out from standard white plates.

How does this model differ from other Arké cover plates?

This model is specifically listed as a round 8M cover plate in blue technopolymer. Other Arké plates may vary by colour, material-driven finish, shape, or module size, so buyers should match those attributes to the project requirements.

What warranty period applies to this product?

The listed warranty period for this Vimar Arké cover plate is 3 years. This applies to SKU VM-19698.86 as provided in the product data.
