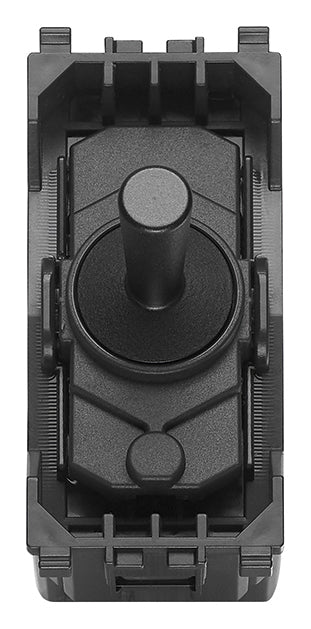

Vimar Eikon 1P 10AX 2-Way Switch Vintage Grey
Log in to see priceOverview
VM-22004.03 is Vimar EIKON 22004.03, 1P 10AX 2-way switch Vintage grey.
1P 10AX 2-way switch Vintage grey. Max 100 W for self-ballasted lamps (IEC 60669-1:2017)
Specifications
VM-22004.03Specifications from the official datasheet
Technical data
- Product type
- Installation switch
- Wiring system
- Two-way switch
- Assembly arrangement
- Modular device for domestic switching devices
- Number of modules (module system)
- 1
- Push button switch
- Yes
- Number of rockers
- 1
- Mounting method
- Flush-mounted
- Type of fastening
- Engage (snap)
- With mounting plate
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Lacquered
- Surface finishing
- Matt
- Colour
- Grey
- RAL-number (similar)
- 7024
- Label space/information surface
- Yes
- Lighting
- No
- Function lighting
- Control and orientation
- Nominal voltage
- 250 V
- Rated current
- 10 A
- Monitoring contact
- No
- Connection type
- Screwed terminal
- Washing machine switch
- No
- Device width
- 22.3 mm
- Device height
- 48.8 mm
- Device depth
- 54.7 mm
- Built-in depth
- 32 mm
Packaging
- EAN
- 8007352620544
- Packed size (cm)
- 5.1 Γ 2.7 Γ 6.5
- Packed weight
- 33.3 g
- Pieces per box
- 10
Certifications
- Certifications
- CE marking (EU), INMETRO (Brazil), IMQ (Italy), ISI (India), VDE (Germany), SNI-SUCOFINDO Indonesia, RoHS UAE, CCC (China), NOM (Mexico), WEEE Directive, IQC (Argentina)

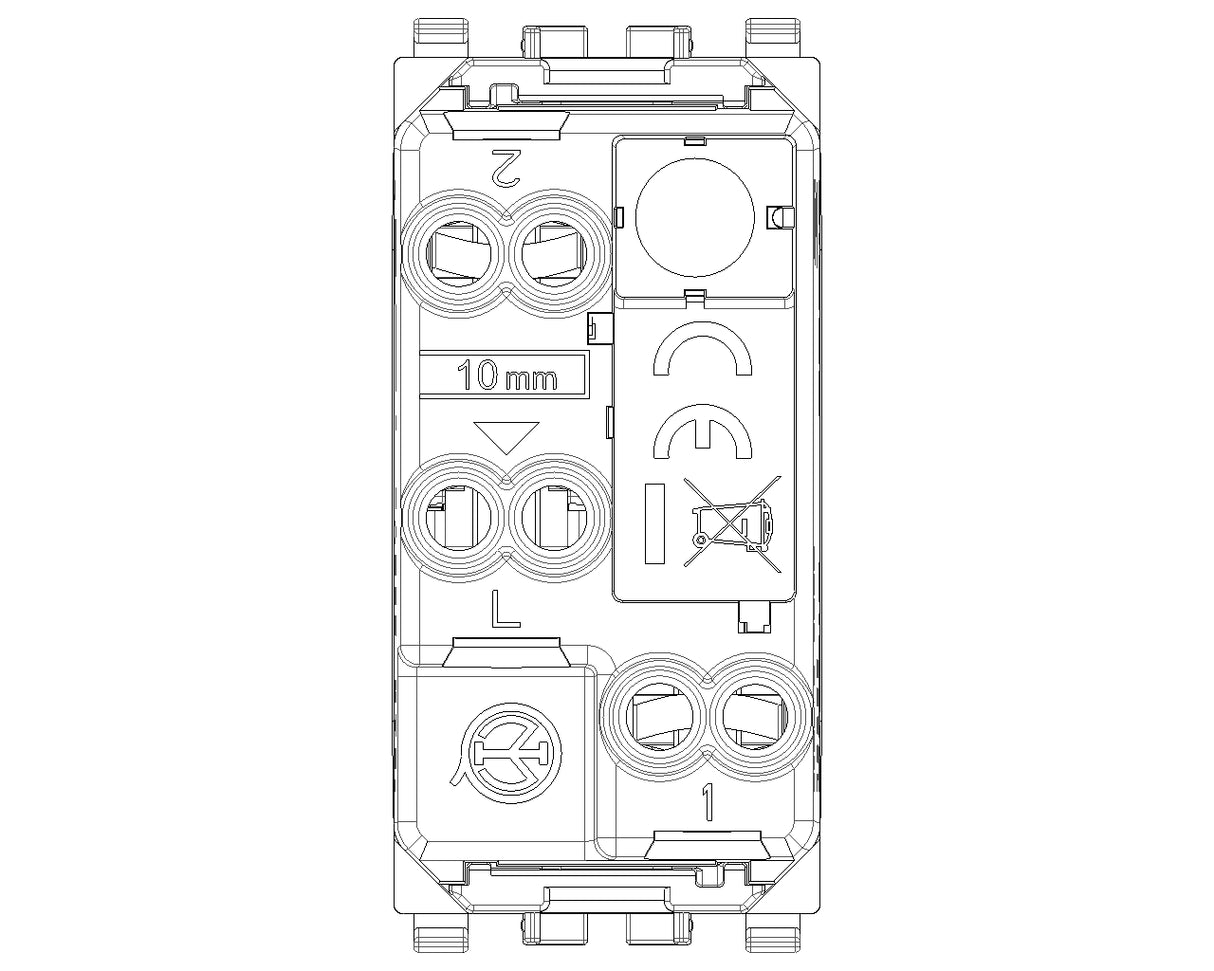

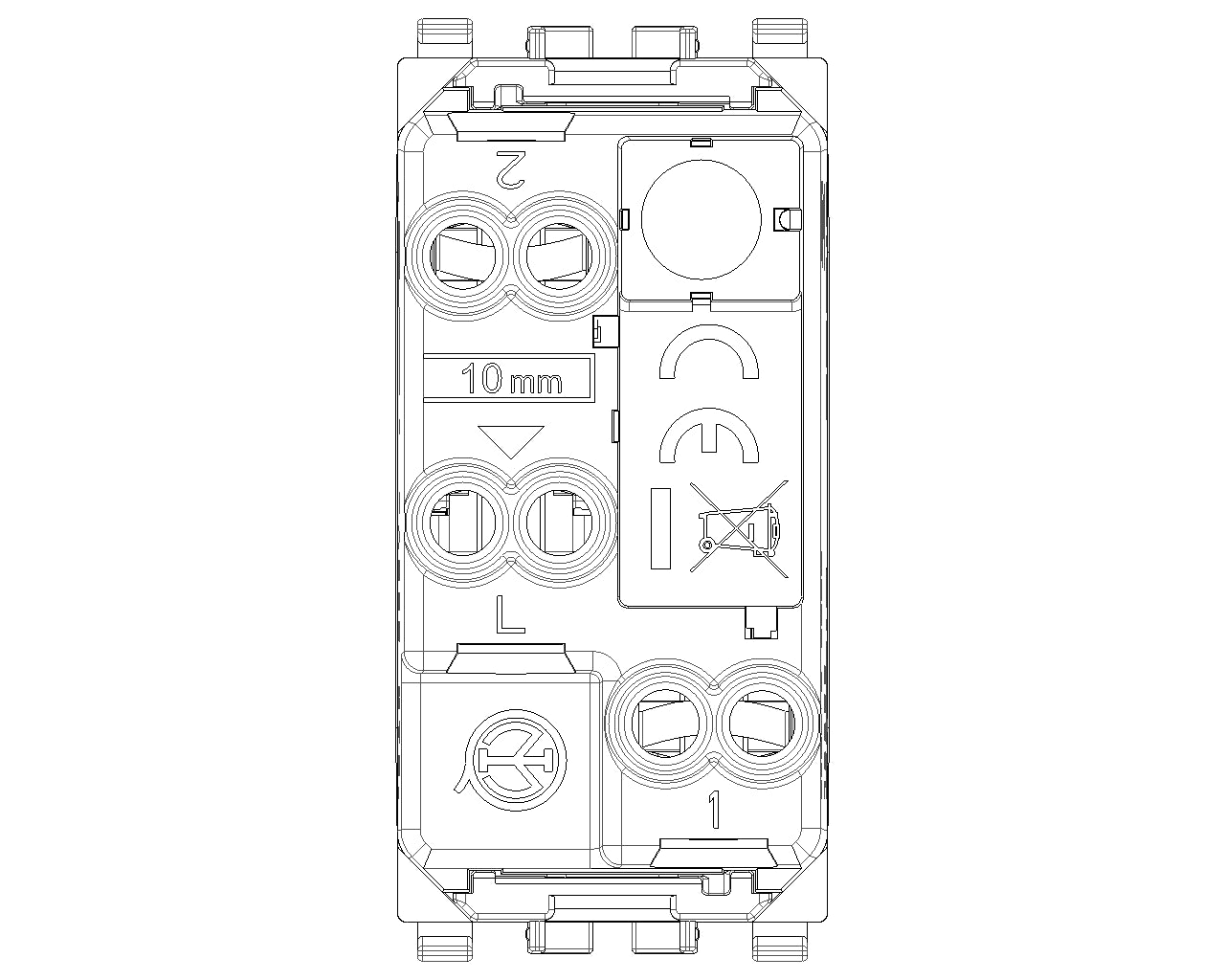

Technical drawings
Downloads
Datasheet1
Certificates2
Catalogues15
