Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

Vimar Plana Antibacterial 1P 16AX 1-Way Switch White

1P 16A White
SKU VM-14001.AB
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-14001.AB is Vimar PLANA 14001.AB, antibacterial 1P 16AX 1-way switch.

1P 16 AX 250 V~ 1-way switch, lightable, replaceable button, with antibacterial treatment, white. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Specifications

VM-14001.ABSpecifications from the official datasheet

Technical data

Product type
Installation switch
Wiring system
Switch 1-pole
Operating method
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Label space/information surface
Yes
Lighting
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16 A
Monitoring contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
22.3 mm
Device height
49 mm
Device depth
38.4 mm
Built-in depth
24 mm

Packaging

EAN
8007352499317
Packed size (cm)
4.1 × 2.8 × 5.3
Packed weight
28.1 g
Pieces per box
50

Certifications

Certifications
CE marking (EU), TISI (Thailand), IMQ (Italy), IQC (Argentina), SASO (Saudi Arabia), WEEE Directive

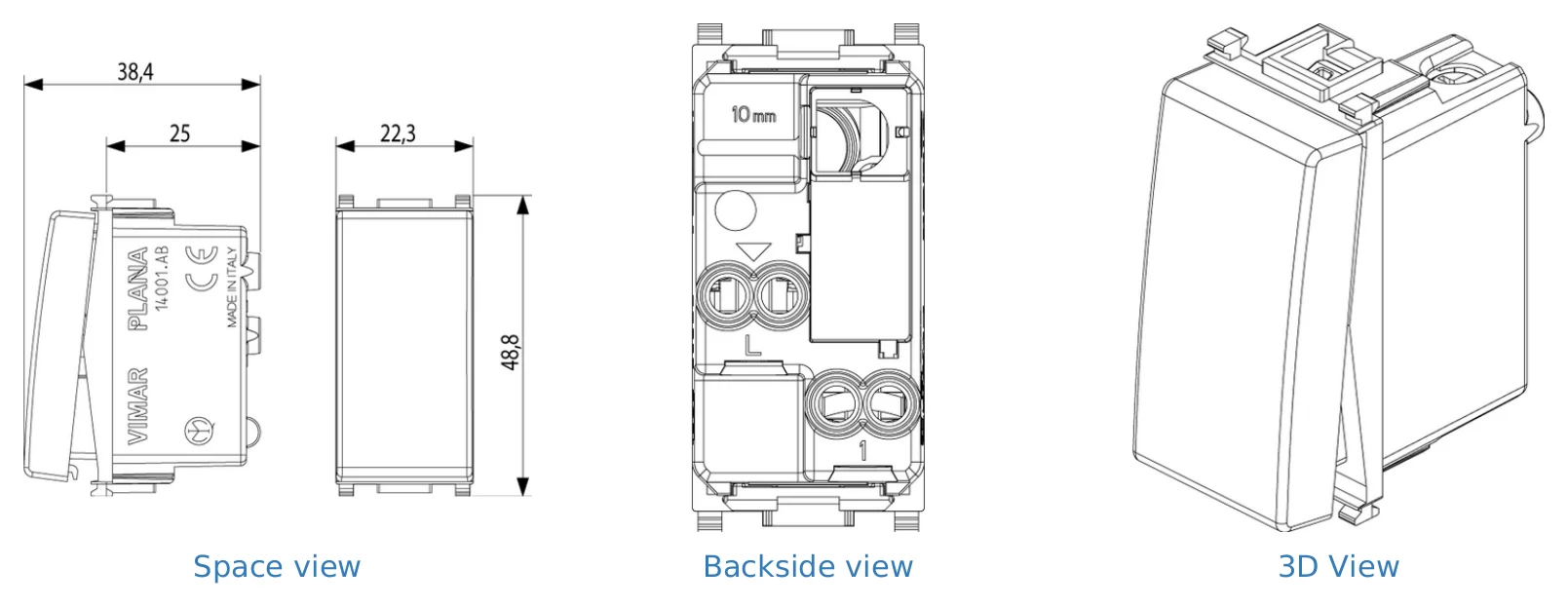

Technical drawings

VM-14001.AB Drawings
Drawings

Downloads

FAQ

What is the Vimar Plana Antibacterial 1P 16AX 1-Way Switch White used for?

This model is a 1-way switch module intended for standard on/off control in compatible switch layouts. It is part of the Vimar Plana range and is suited to projects that want a clean white finish with an antibacterial surface treatment.

What are the key specifications of this switch module?

The product is rated at 16AX with a rated current of 16 A. It comes in white, weighs 0.0281 kg, and includes a 3-year warranty period.

Is this switch part of the Vimar Plana series?

Yes, this model belongs to the Vimar Plana series. That makes it a suitable choice for projects already using Plana-style devices and finishes where visual consistency across the range matters.

What does the antibacterial designation mean on this switch?

The product is identified as an antibacterial version within the Plana range. For buyers, this mainly distinguishes it from standard finish variants when selecting devices for environments where surface hygiene is a consideration.

What temperature range is this switch module designed for?

This model is specified for use in ambient temperatures from -20 °C to 50 °C. That gives it a broad operating range for typical indoor commercial and residential environments within those limits.
