Vimar Eikon 1P NO 10A Push Button Vintage Nickel
Log in to see priceOverview

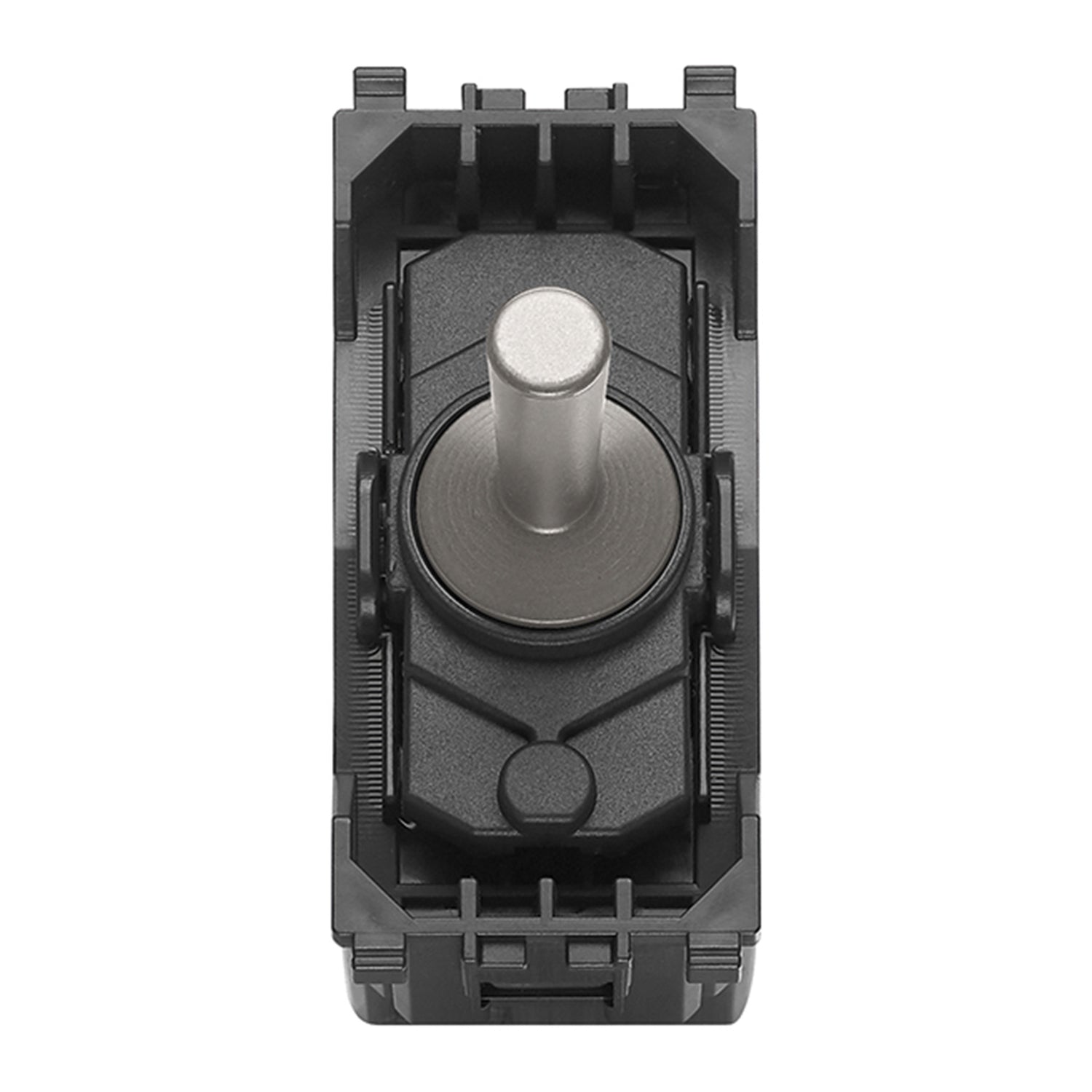

VM-22008.11 is Vimar EIKON 22008.11, 1P NO 10A push button Vintage nickel.
1P NO 10A push button Vintage nickel
Specifications
VM-22008.11Specifications from the official datasheet
Technical data
- Product type
- Push button
- Assembly arrangement
- Modular device for domestic switching devices
- Model
- Single push button
- Operating method
- Push button
- Number of rockers
- 1
- Number of modules (module system)
- 100
- Number of poles
- 1
- Rated current
- 10 A
- With lighting
- No
- Monitoring contact
- No
- Mounting method
- Built-in
- Type of fastening
- Engage (snap)
- Material
- Metal
- Surface protection
- Metallic
- Surface finishing
- Glossy
- Colour
- Silver
- RAL-number (similar)
- 7048
- Transparent
- No
- Label space/information surface
- Yes
- Device width
- 22.3 mm
- Device height
- 48.8 mm
- Device depth
- 54.6 mm
Packaging
- EAN
- 8007352620629
- Packed size (cm)
- 5.1 × 2.7 × 6.5
- Packed weight
- 29.8 g
- Pieces per box
- 10
Certifications
- Certifications
- CE marking (EU), INMETRO (Brazil), IMQ (Italy), ISI (India), VDE (Germany), CCC (China), RoHS UAE, NOM (Mexico), IQC (Argentina), WEEE Directive

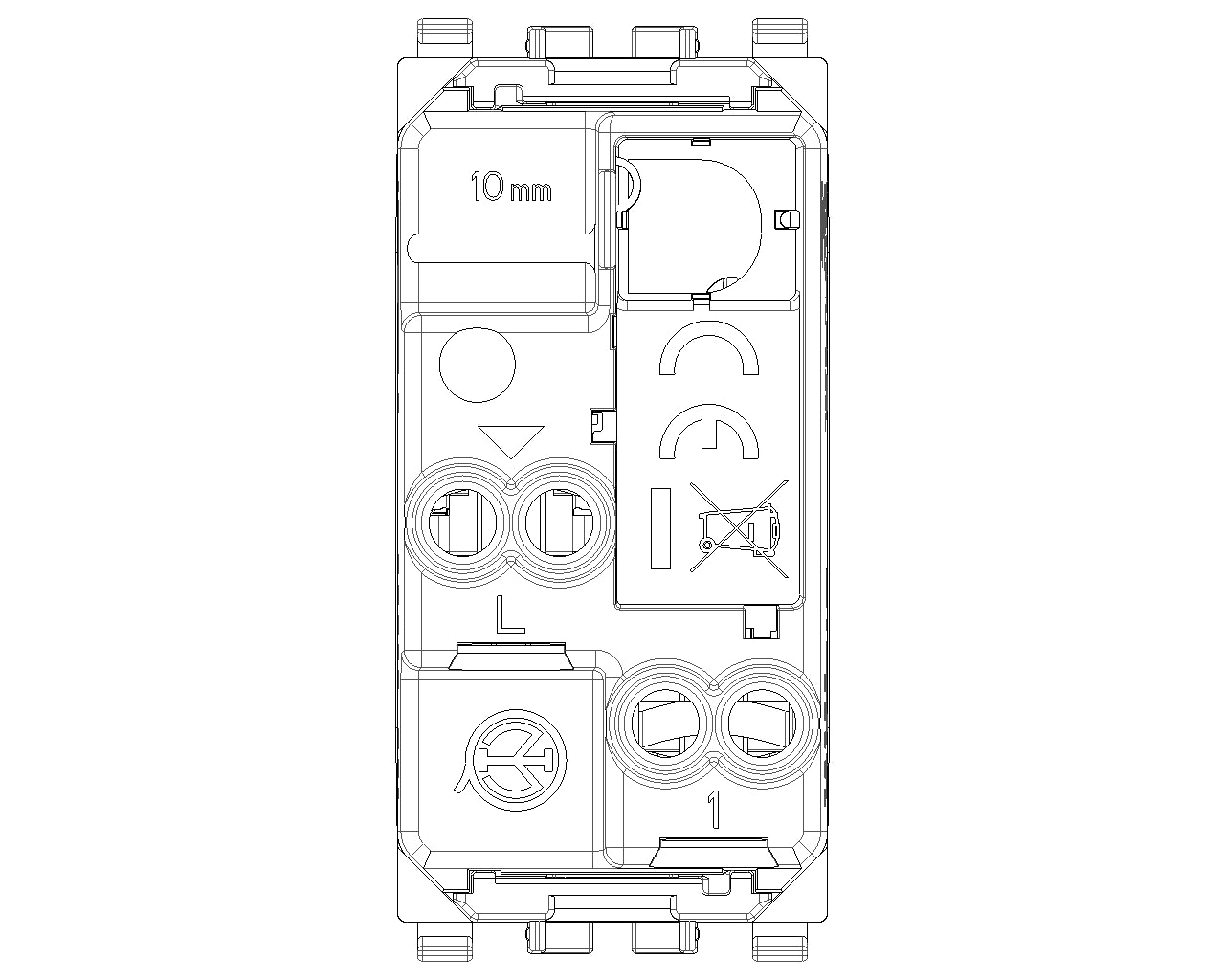

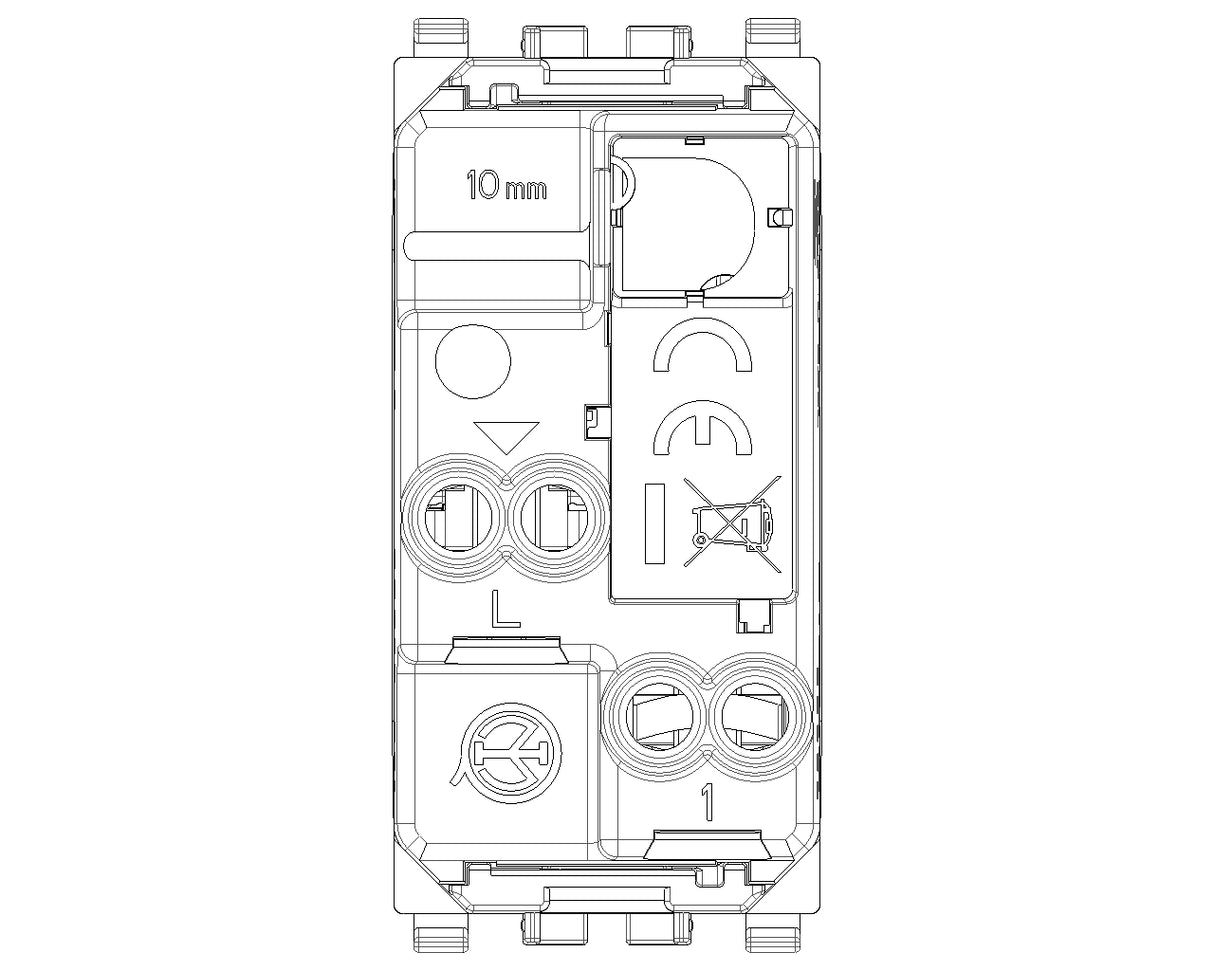

Technical drawings
Downloads
Datasheet1
Certificates2
Catalogues15
