Vimar

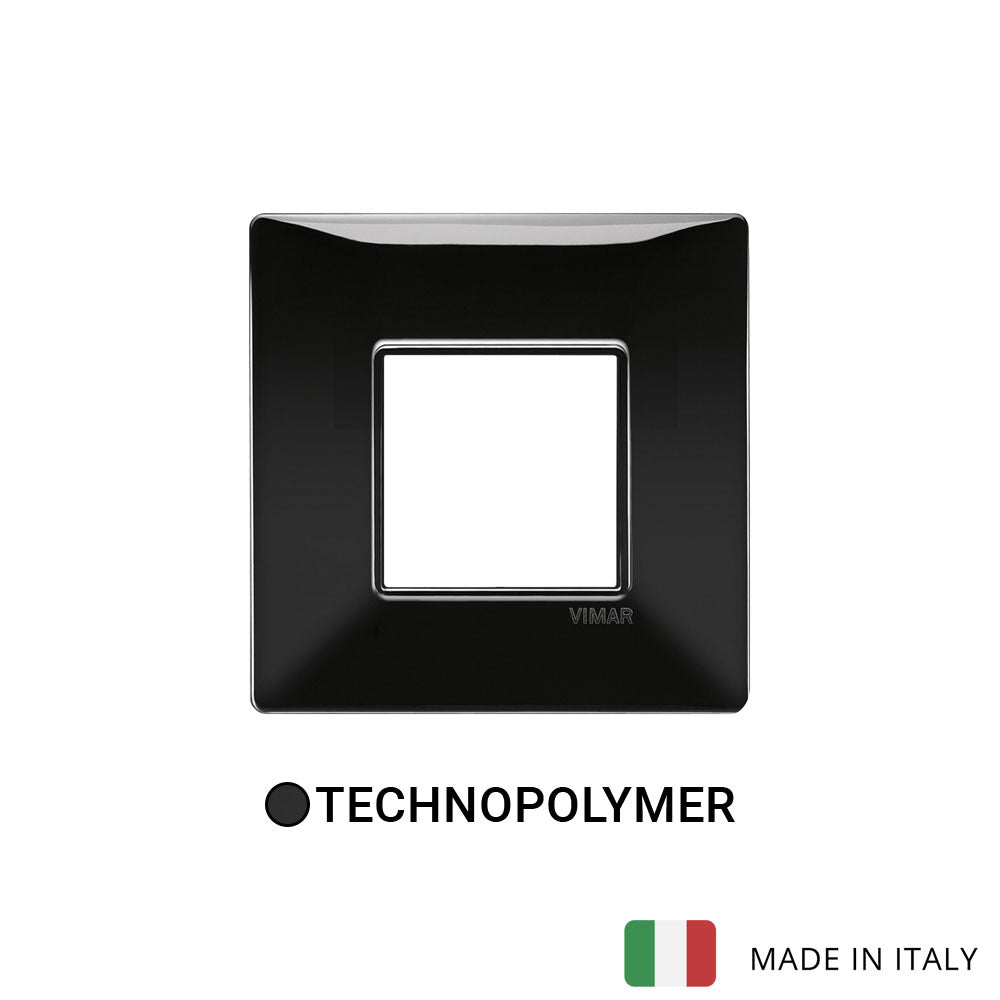

Vimar Plana Plate 2M BS Technopolymer Black

2 ModuleBlack
SKU VM-14647.05
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-14647.05 is Vimar PLANA 14647.05, plate 2M BS techn. black.

2-module cover plate, British Standard, technopolymer, black

Specifications

VM-14647.05Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
2
Number of device inserts vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Black
RAL-number (similar)
9005
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
95 mm
Height
95 mm
Depth
9 mm
Built-in width
95 mm
Built-in height
95 mm

Packaging

EAN
8007352371590
Packed size (cm)
14.5 × 9.5 × 0.9
Packed weight
16.9 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), ASTA (UK), IMQ (Italy)

Technical drawings

VM-14647.05 Drawings
Drawings

Downloads

FAQ

What is the Vimar Plana Plate 2M BS Technopolymer Black used for?

This product is a cover plate for switch applications in the Vimar Plana range. It is intended for buyers who need a 2M black plate with a clean, understated appearance for commercial or residential fit-outs.

Is this plate compatible with all Vimar switch ranges?

This model is identified as part of the Vimar Plana series, so it should be matched with Plana-format components and project requirements. Buyers should verify the series and 2M format they need before ordering, especially when standardizing across multiple rooms or sites.

What material and finish does this model have?

This plate is made from technopolymer and comes in a black finish. The product is positioned as a high-performance option with an essential, minimal appearance, which suits projects that want a modern black faceplate without moving to a metal finish.

Does this black version have the antibacterial option mentioned in the product description?

The description states that the material range is available in fifteen colour variants and that one of those variants is antibacterial. It does not state that this specific black model has the antibacterial property, so that feature should not be assumed for SKU VM-14647.05.

What are the basic product specs buyers should know for this model?

For SKU VM-14647.05, the listed warranty period is 3 years and the listed weight is 0.2500 kg. Those details can help with project documentation, procurement review, and shipping estimates for larger orders.
