Vimar

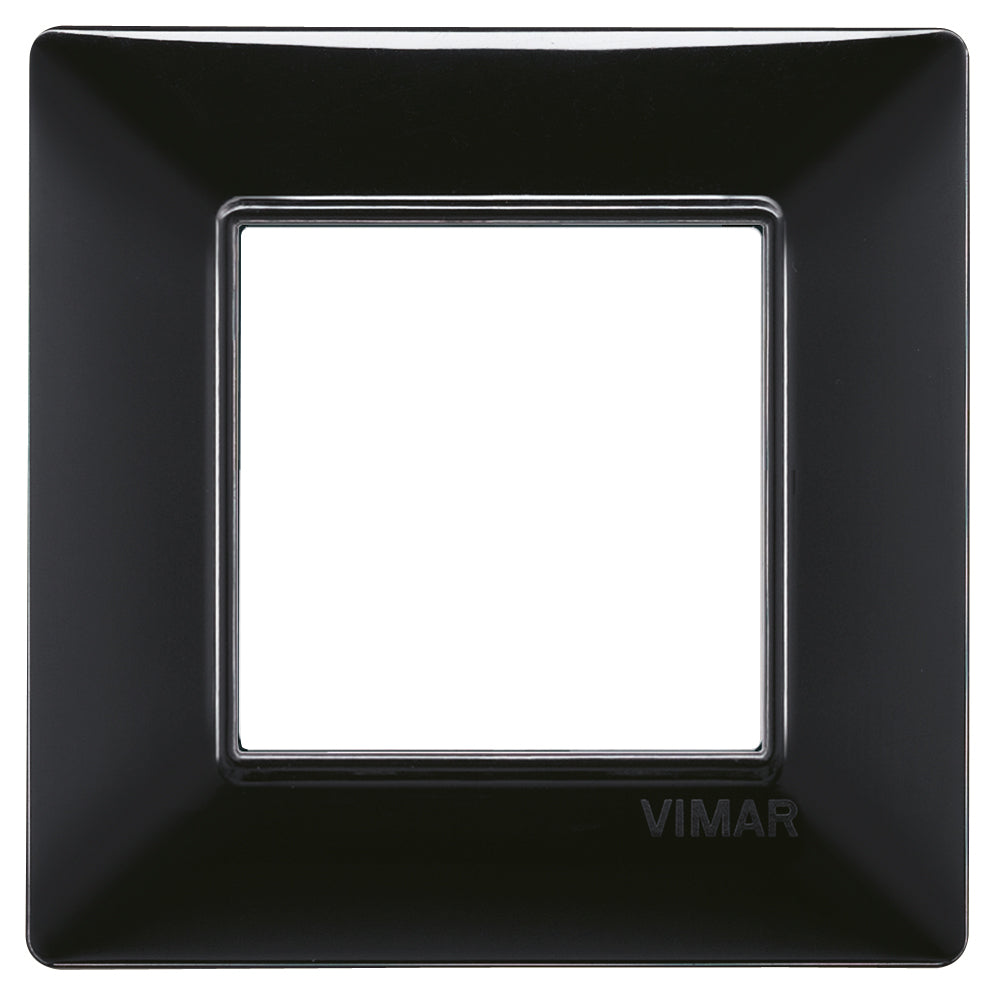

Vimar Plana Plate 2M Technopolymer Black - Square

2 ModuleBlackSquare
SKU VM-14642.05
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-14642.05 is Vimar PLANA 14642.05, plate 2M techn. black.

2-module cover plate, technopolymer, balck

Specifications

VM-14642.05Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
2
Number of device inserts vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Black
RAL-number (similar)
9005
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
80 mm
Height
80 mm
Depth
9 mm
Built-in width
80 mm
Built-in height
80 mm

Packaging

EAN
8007352111622
Packed size (cm)
13 × 8 × 0.9
Packed weight
12.8 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

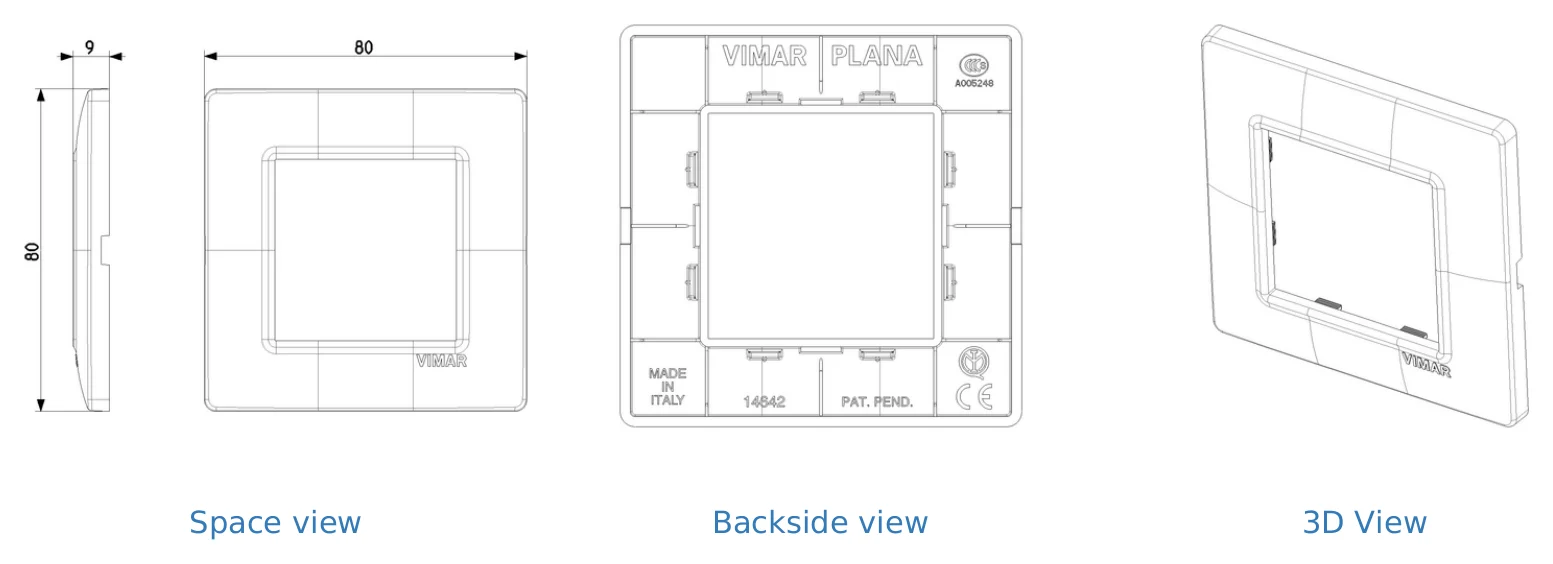

Technical drawings

VM-14642.05 Drawings
Drawings

Downloads

FAQ

What is the Vimar Plana Plate 2M Technopolymer Black - Square used for?

This model is a switch cover plate from the Vimar Plana range. It is intended for finishing a 2-module switch point while giving the front of the installation a coordinated black square look.

Which series is this cover plate compatible with?

This plate is part of the Vimar Plana series, as indicated by the product name and category mapping. It is designed for applications within that series rather than as a universal cover plate.

What material and colour does this plate have?

The Vimar Plana Plate 2M is made from technopolymer and comes in black. This combination gives the product a clean, coordinated appearance suited to interiors using dark switch detailing.

What style does this Vimar Plana plate offer?

According to the product description, this model reinterprets classic lines in a modern way for an exclusive, slightly retro style. Its square shape and black finish support a strong total-look effect with matching controls and cover elements.

What are the warranty and product weight for this model?

This specific model has a 3-year warranty period. Its listed weight is 0.1700 kg, which can be useful for product handling, shipping, and project documentation.
