Vimar

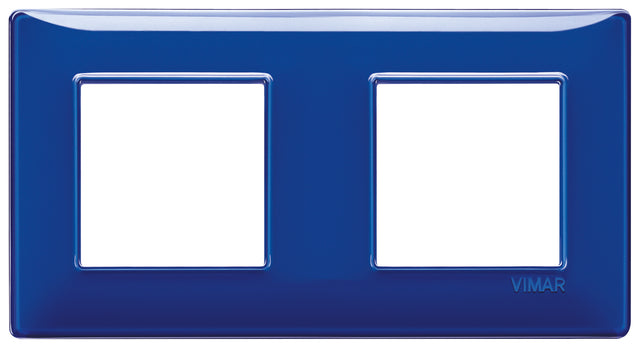

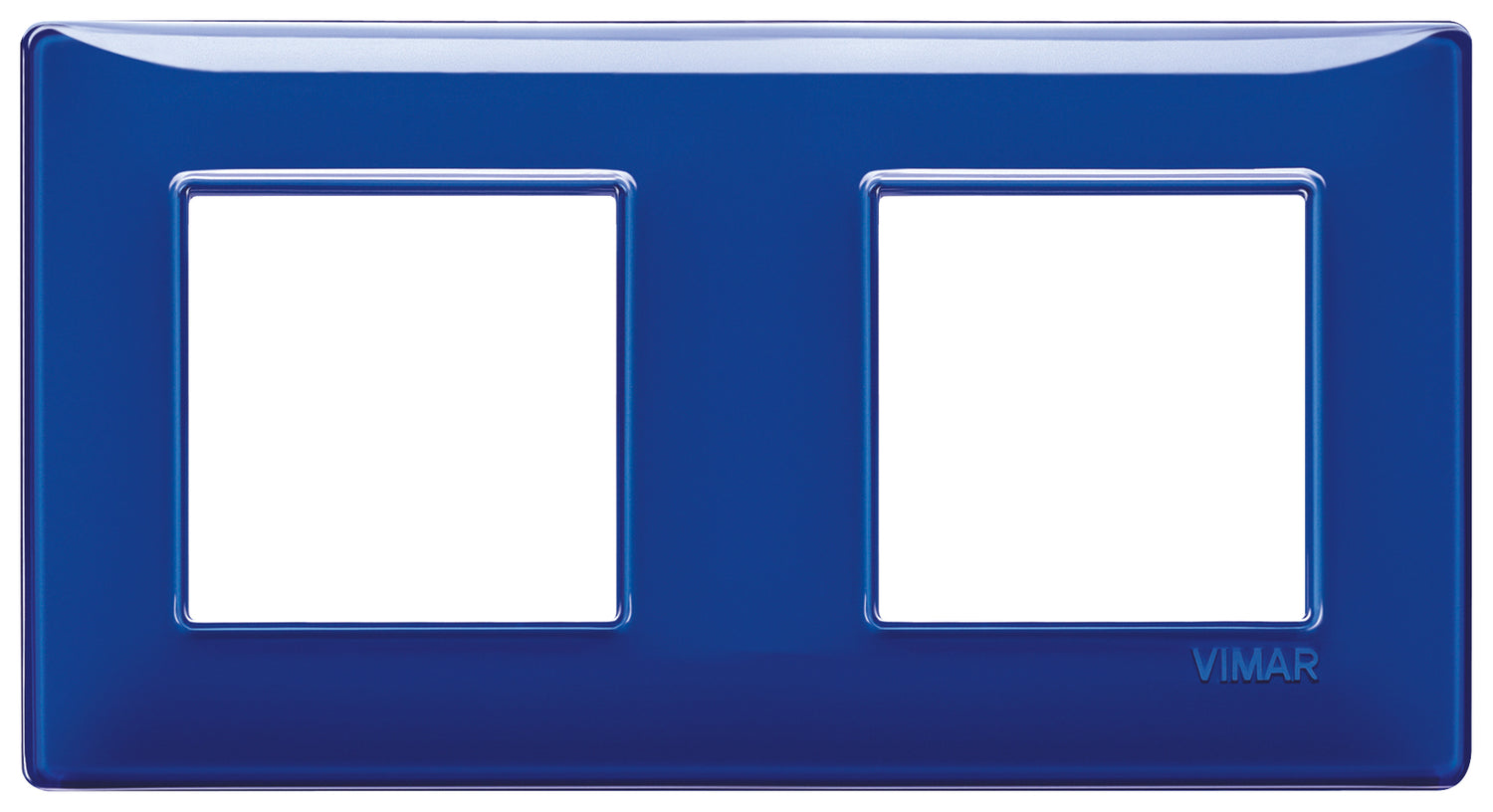

Vimar Plana Plate 4M Reflex Sapphire

4 ModuleBlue
SKU VM-14643.50
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-14643.50 is Vimar PLANA 14643.50, plate 4M (2+2) 71mm Reflex sapphire.

4-module cover plate (2+2, 71 mm distance between centres), technopolymer, Reflex sapphire

Specifications

VM-14643.50Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
4
Number of device inserts vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Acrylic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Blue
RAL-number (similar)
5002
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
151 mm
Height
80 mm
Depth
9.3 mm
Built-in width
151 mm
Built-in height
80 mm

Packaging

EAN
8007352432963
Packed size (cm)
20 × 8 × 0.9
Packed weight
32 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), IMQ (Italy)

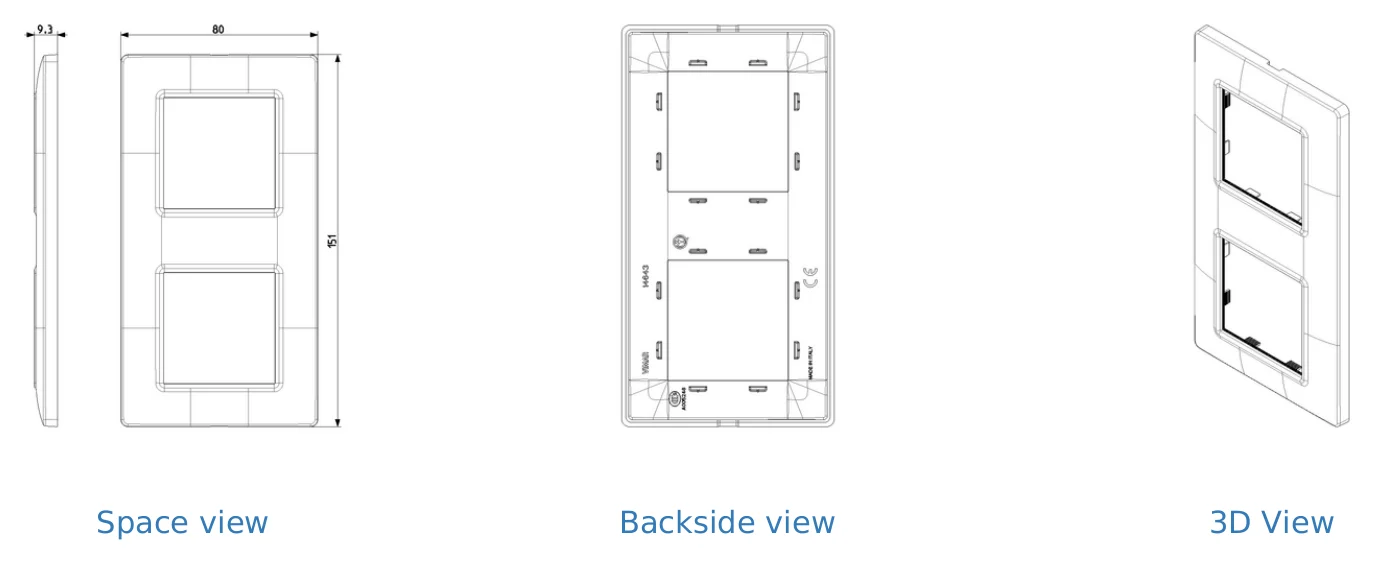

Technical drawings

VM-14643.50 Drawings
Drawings

Downloads

FAQ

What is the Vimar Plana Plate 4M Reflex Sapphire used for?

This model is a 4-module cover plate from the Vimar Plana range, intended for finishing compatible switch or control points with a clean, coordinated appearance. It is suited to commercial and professional projects where a consistent series and colour finish matter across the installation.

What makes the Reflex Sapphire version different from other cover plate options?

This version stands out for its Reflex Sapphire appearance, giving the plate a blue-toned finish within the Plana design line. It is a good choice when the project calls for a more distinctive decorative look rather than a more neutral cover plate colour.

Is this plate compatible with the Vimar Plana series?

Yes, this product is identified as a Vimar Plana cover plate and is intended for use within that series. For procurement accuracy, it should be selected where the project specification already calls for Plana-format components.

What material and design style does this cover plate offer?

The product description highlights a material designed for high performance with an essential appearance. It is part of a plastic cover plate offering in the Plana range, combining a simple visual style with a decorative sapphire finish.

Is this cover plate suitable for projects where durability and support matter?

This model is presented as a high-performance cover plate and includes a 3-year warranty period. That makes it a practical option for professional buyers looking for a branded finishing component with defined warranty coverage.
