Vimar

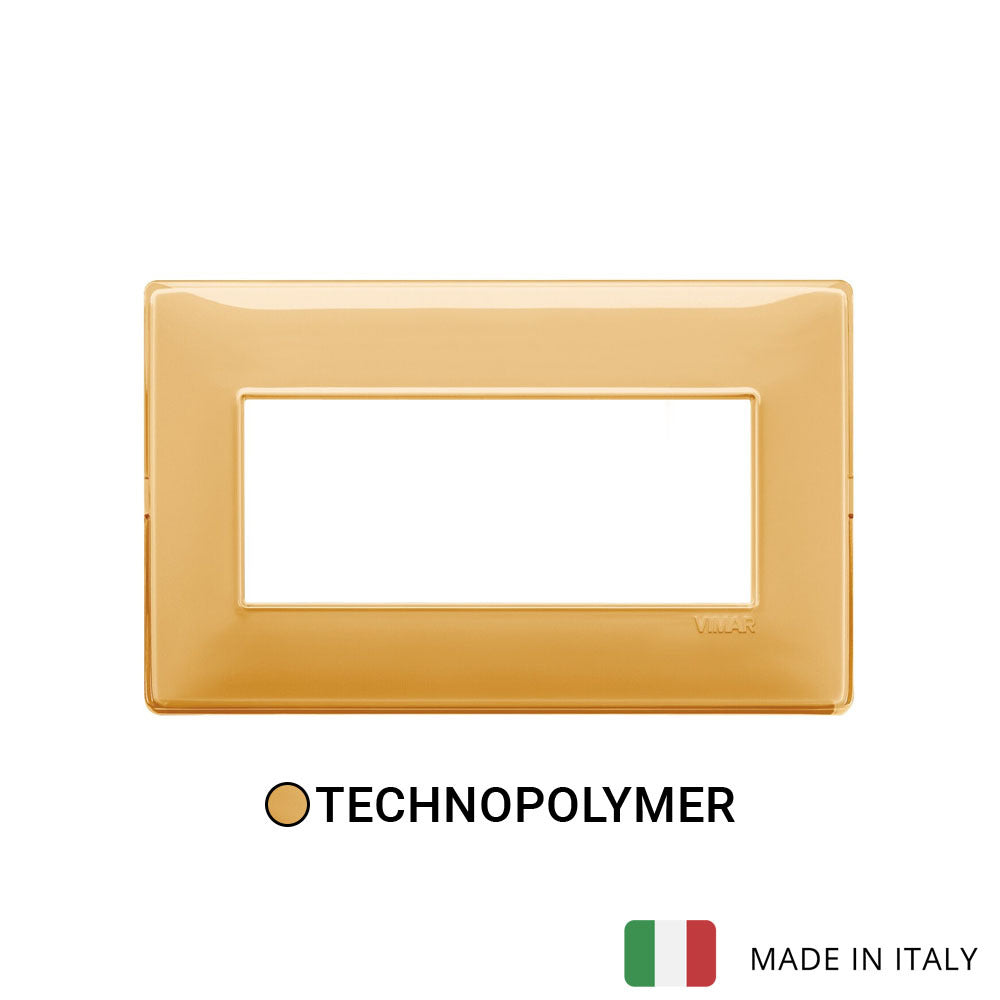

Vimar Plana Plate 5M BS Reflex Amber

5 ModuleYellow
SKU VM-14649.43
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-14649.43 is Vimar PLANA 14649.43, plate 5M BS Reflex amber.

5-module cover plate, British Standard, technopolymer, Reflex amber

Specifications

VM-14649.43Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
5
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
5
Number of device inserts vertical
1
Number of modules horizontal (module system)
5
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Acrylic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Yellow
RAL-number (similar)
1024
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
155 mm
Height
95 mm
Depth
9 mm
Built-in width
155 mm
Built-in height
95 mm

Packaging

EAN
8007352372313
Packed size (cm)
20.5 × 9.5 × 0.9
Packed weight
38.5 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), ASTA (UK), IMQ (Italy)

Technical drawings

VM-14649.43 Drawings
Drawings

Downloads

FAQ

What is the Vimar Plana Plate 5M BS Reflex Amber used for?

This model is a cover plate for Vimar Plana switch assemblies. It is intended for layouts that use a 5-module format, making it relevant for commercial or project work that needs a matching Plana-series finish.

Is this plate compatible with other Vimar series or only Plana components?

Based on the product name and categories, this plate is positioned within the Vimar Plana range. Compatibility with other Vimar series is not stated in the product data, so it should be selected for Plana-based configurations only unless a separate series cross-reference confirms otherwise.

What does the 5M designation mean on this Vimar Plana plate?

The 5M designation identifies this as a 5-module plate. For buyers comparing formats, that means this model is meant for projects that require the 5-module Plana cover size rather than a smaller or larger plate format.

What finish and appearance does the Vimar Plana Plate 5M BS Reflex Amber have?

This model is the Reflex Amber version of the plate, and the product data also classifies the finish colour as yellow. Vimar describes this material line as offering high performance with an essential appearance, so this SKU is suited to projects where a clean visual finish matters as much as series consistency.

What are the warranty period and product weight for this model?

The listed warranty period for this plate is 3 years. Its stated weight is 0.3500 kg, which can be useful for quotation, packing, or project documentation.
