Vimar

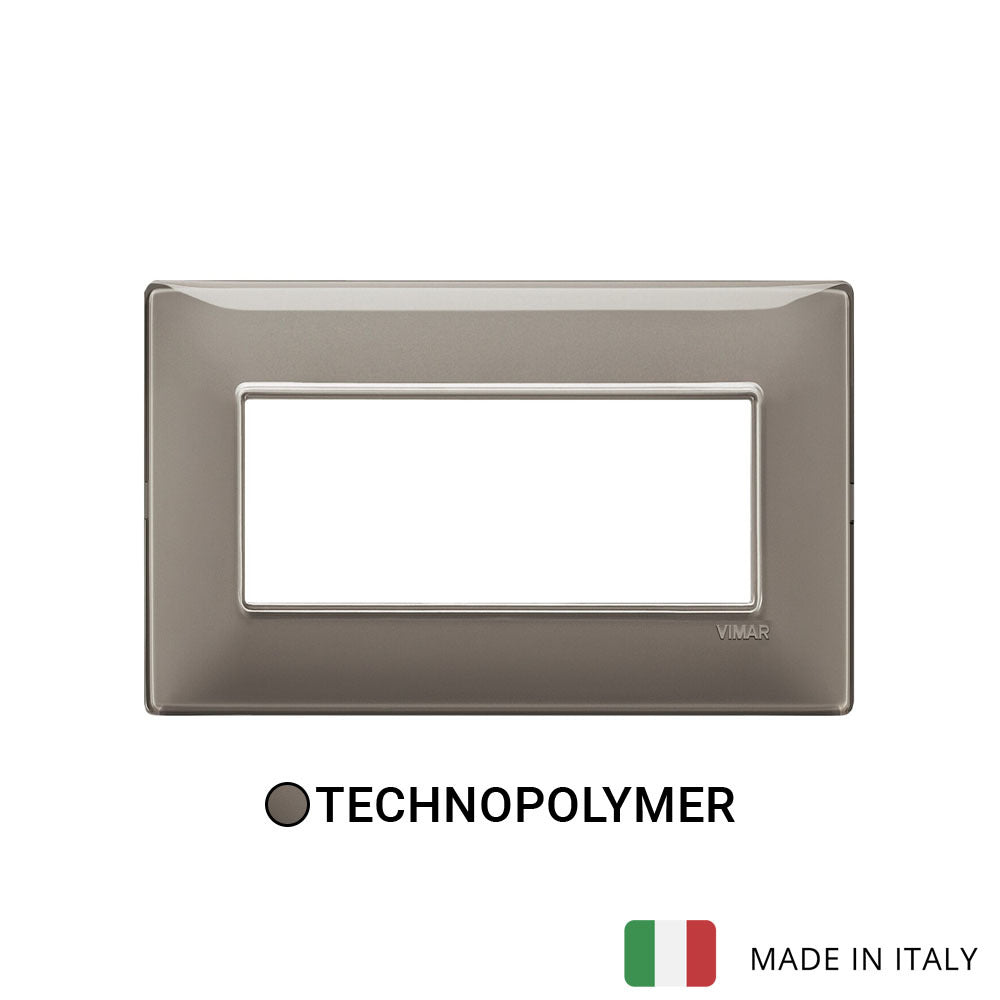

Vimar Plana Plate 5M BS Reflex Ash

5 ModuleGrey
SKU VM-14649.40
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-14649.40 is Vimar PLANA 14649.40, plate 5M BS Reflex ash.

5-module cover plate, British Standard, technopolymer, Reflex ash

Specifications

VM-14649.40Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
5
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
5
Number of device inserts vertical
1
Number of modules horizontal (module system)
5
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Acrylic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Grey
RAL-number (similar)
7023
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
155 mm
Height
95 mm
Depth
9 mm
Built-in width
155 mm
Built-in height
95 mm

Packaging

EAN
8007352372283
Packed size (cm)
20.5 × 9.5 × 0.9
Packed weight
38.1 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), ASTA (UK), IMQ (Italy)

Technical drawings

VM-14649.40 Drawings
Drawings

Downloads

FAQ

What is the Vimar Plana Plate 5M BS Reflex Ash used for?

This model is a cover plate for Vimar Plana switch and socket assemblies. It is intended for finishing a 5-module front plate position with a clean, minimal look in Reflex Ash. For B2B buyers, it is mainly relevant when specifying matching visible plates across a project.

Is this plate compatible with the Vimar Plana range?

Yes, this product belongs to the Vimar Plana series. It is designed for Plana configurations that require a 5-module cover plate. Buyers should match it with the correct Plana series components and layout requirement for the project.

What does the Reflex Ash finish look like?

Reflex Ash is a grey finish that gives this plate a restrained, modern appearance. It suits projects that need a neutral color that blends easily with contemporary commercial or residential interiors. The product description emphasizes an essential look with high-performance material styling.

What specifications are available for this exact model?

This product is listed as Vimar Plana Plate 5M BS Reflex Ash, SKU VM-14649.40. The stated finish colour is grey, the weight is 0.3500 kg, and the warranty period is 3 years. These are the model-specific details provided for this item.

Is this a suitable choice for projects that need a consistent finish across multiple rooms?

Yes, this plate is well suited to projects where visual consistency matters, such as offices, hospitality spaces, and multi-room residential developments. Because it is part of the Vimar Plana family, it helps maintain a uniform series appearance. The neutral grey Reflex Ash finish also makes it easier to coordinate across different interior schemes.
