Vimar

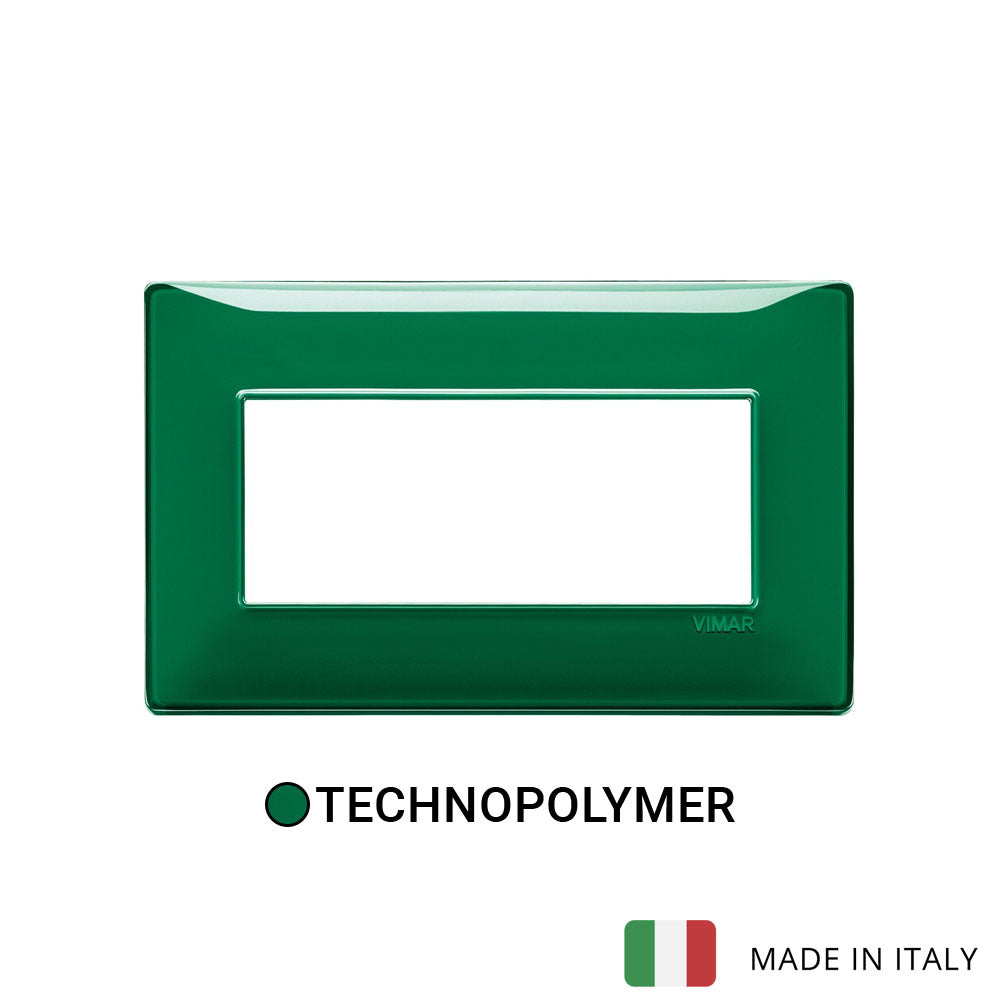

Vimar Plana Plate 5M BS Reflex Emerald

5 ModuleGreen
SKU VM-14649.47
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-14649.47 is Vimar PLANA 14649.47, plate 5M BS Reflex emerald.

5-module cover plate, British Standard, technopolymer, Reflex emerald

Specifications

VM-14649.47Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
5
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
5
Number of device inserts vertical
1
Number of modules horizontal (module system)
5
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Acrylic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Green
RAL-number (similar)
6001
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
155 mm
Height
95 mm
Depth
9 mm
Built-in width
155 mm
Built-in height
95 mm

Packaging

EAN
8007352372351
Packed size (cm)
20.5 × 9.5 × 0.9
Packed weight
38.3 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), ASTA (UK), IMQ (Italy)

Technical drawings

VM-14649.47 Drawings
Drawings

Downloads

FAQ

What is the Vimar Plana Plate 5M BS Reflex Emerald used for?

This model is a cover plate for a Vimar Plana 5-module switch layout. It is intended to provide the finished visible front for compatible Plana switch assemblies while matching the series' clean, essential look.

Is this plate compatible with the Vimar Plana series?

Yes. This product is identified as a Vimar Plana plate and is intended for 5-module Plana configurations. Buyers should match it to the Plana range and the 5M format shown in the product name.

What color and finish does this specific model have?

This version is the Reflex Emerald option, with a green finish colour listed for the product. It is a model chosen mainly for visual coordination within the Vimar Plana range.

Does this model have an antibacterial finish?

The product description says the material is offered in fifteen colour variants and that one of those variants is antibacterial. For this exact model, only the Reflex Emerald version is identified, so no antibacterial claim is stated for this SKU.

What are the listed warranty period and weight for this plate?

This model has a listed warranty period of 3 years. Its stated weight is 0.3500 kg, which can be useful when planning larger project orders or shipment estimates.
