Vimar

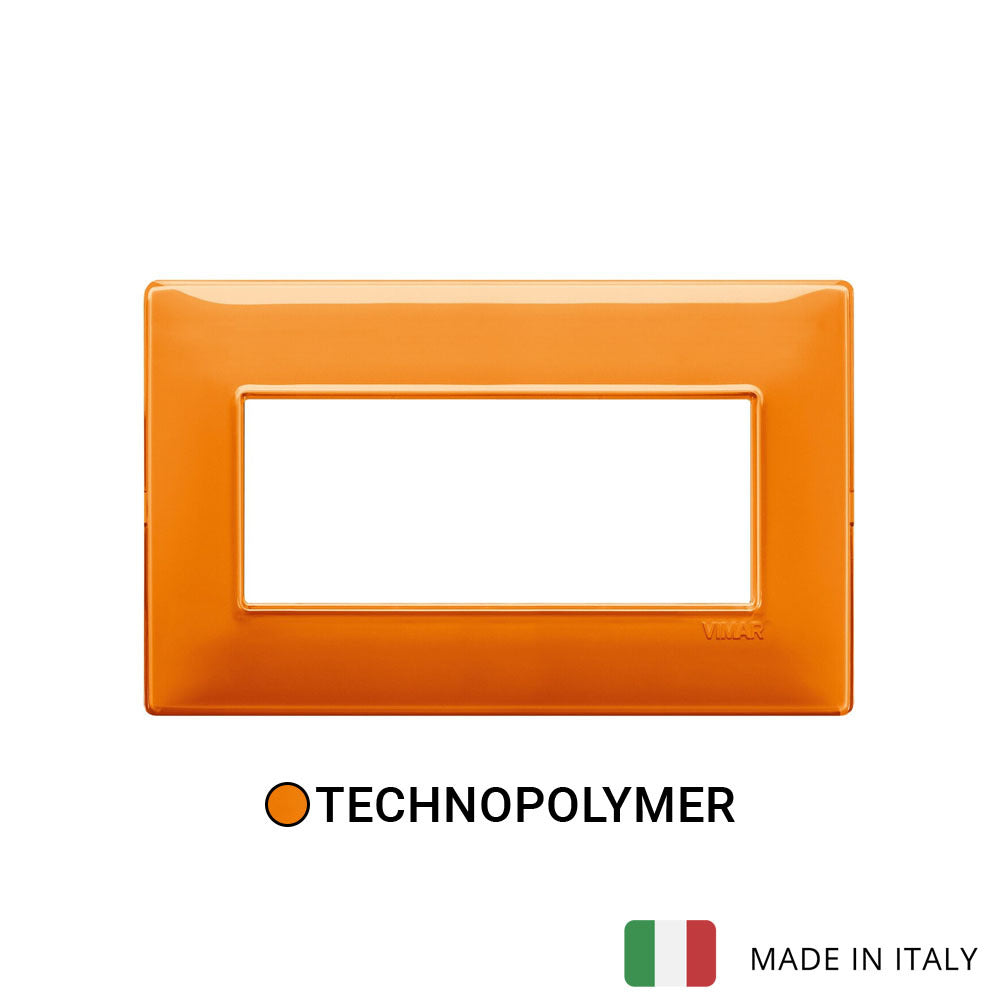

Vimar Plana Plate 5M BS Reflex Orange

5 ModuleOrange
SKU VM-14649.48
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-14649.48 is Vimar PLANA 14649.48, plate 5M BS Reflex orange.

5-module cover plate, British Standard, technopolymer, Reflex orange

Specifications

VM-14649.48Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
5
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
5
Number of device inserts vertical
1
Number of modules horizontal (module system)
5
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Acrylic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Orange
RAL-number (similar)
2011
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
155 mm
Height
95 mm
Depth
9 mm
Built-in width
155 mm
Built-in height
95 mm

Packaging

EAN
8007352372368
Packed size (cm)
20.5 × 9.5 × 0.9
Packed weight
38.2 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), ASTA (UK), IMQ (Italy)

Technical drawings

VM-14649.48 Drawings
Drawings

Downloads

FAQ

What is the Vimar Plana Plate 5M BS Reflex Orange used for?

This model is a cover plate for the Vimar Plana range. It is intended to provide the visible front finish for a 5-module configuration while maintaining the clean Plana look. It is a good fit for projects where appearance and consistent series matching matter.

Is this plate compatible with the Vimar Plana series?

Yes, this product is identified as part of the Vimar Plana cover plate range. It is designed for Plana applications and is specifically named as a 5M plate. Buyers should match it with the corresponding Plana series components and format.

What makes the Reflex Orange finish different?

This version stands out for its orange Reflex finish, which adds a stronger visual accent than more neutral plate colours. It suits interiors that use colour as part of the design language or want a more distinctive switch plate appearance. The product description also emphasizes an essential, high-performance design approach.

What material and finish style does this model offer?

The product belongs to the plastic cover plate category within the Vimar Plana series. Its description highlights a material designed for high performance with an essential appearance. This makes it suitable for projects that want a practical finish with a defined visual identity.

What are the basic product specifications for this model?

This model is SKU VM-14649.48 and is sold as the Vimar Plana Plate 5M BS Reflex Orange. The listed product weight is 0.3500 kg, and the stated warranty period is 3 years. These details help confirm the exact variant during specification and procurement.
