Vimar

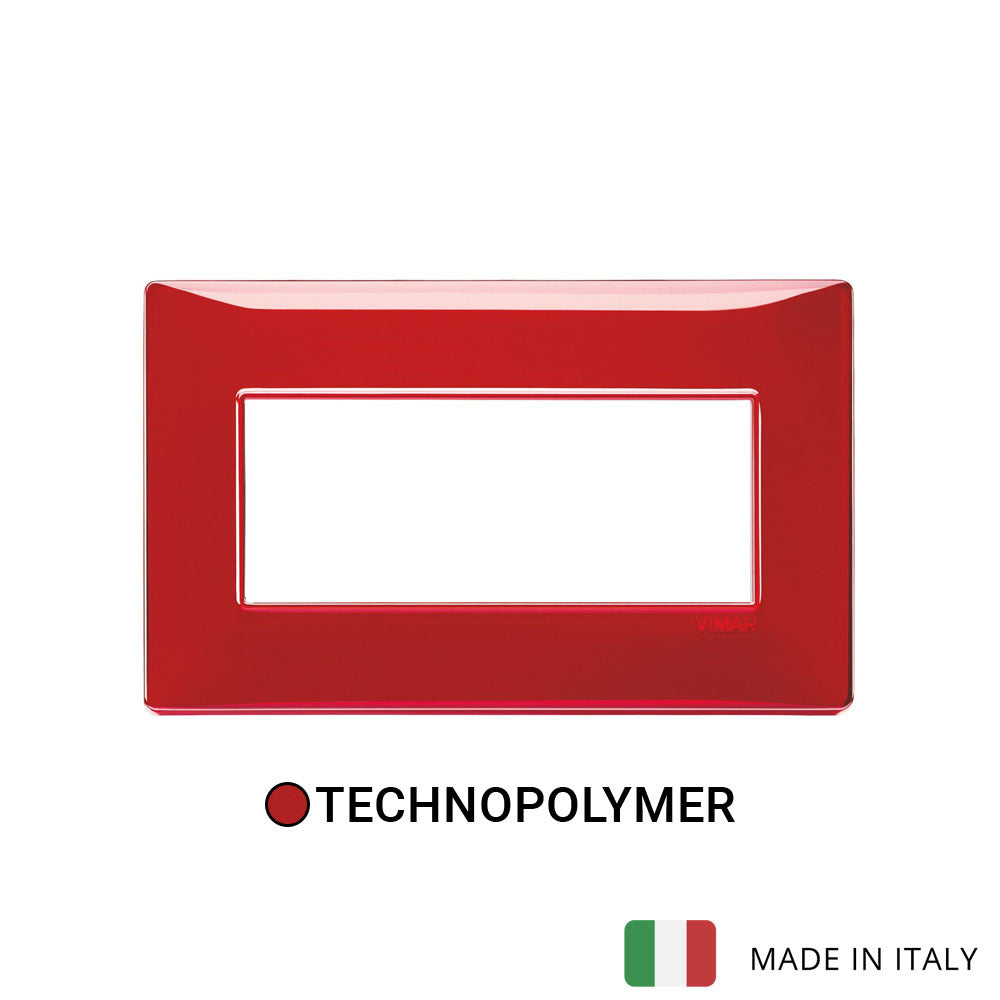

Vimar Plana Plate 5M BS Reflex Ruby

5 ModuleRed
SKU VM-14649.51
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-14649.51 is Vimar PLANA 14649.51, plate 5M BS Reflex ruby.

5-module cover plate, British Standard, technopolymer, Reflex ruby

Specifications

VM-14649.51Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
5
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
5
Number of device inserts vertical
1
Number of modules horizontal (module system)
5
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Acrylic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Red
RAL-number (similar)
3001
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
155 mm
Height
95 mm
Depth
9 mm
Built-in width
155 mm
Built-in height
95 mm

Packaging

EAN
8007352372399
Packed size (cm)
20.5 × 9.5 × 0.9
Packed weight
38.5 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), ASTA (UK), IMQ (Italy)

Technical drawings

VM-14649.51 Drawings
Drawings

Downloads

FAQ

What is the Vimar Plana Plate 5M BS Reflex Ruby used for?

This model is a cover plate for switch or control points in the Vimar Plana range. It is intended for projects that need a 5-module plate with a clean appearance and a distinctive Reflex Ruby finish.

Is this plate compatible with all Vimar series?

No. This product is specific to the Vimar Plana series and is identified as a 5M plate in that range. Buyers should match it to Plana-format devices and layouts rather than assuming cross-series compatibility.

What makes the Reflex Ruby version different from other options?

The main differentiator is its finish and visual style. This version combines the essential Plana look with a ruby red colour choice, making it more distinctive than neutral plate finishes while staying within the same product family.

What specifications are available for this model?

The listed product details include SKU VM-14649.51, a 3-year warranty period, and a weight of 0.3500 kg. It is part of the Vimar Plana cover plate family and is presented in the Reflex Ruby finish.

Is this a good fit for commercial interior projects where appearance matters?

Yes. The product description emphasizes high performance with an essential appearance, which suits commercial spaces that need a tidy and consistent finish. Its ruby colour also helps when the project calls for a stronger design accent instead of a standard neutral plate.
