Vimar

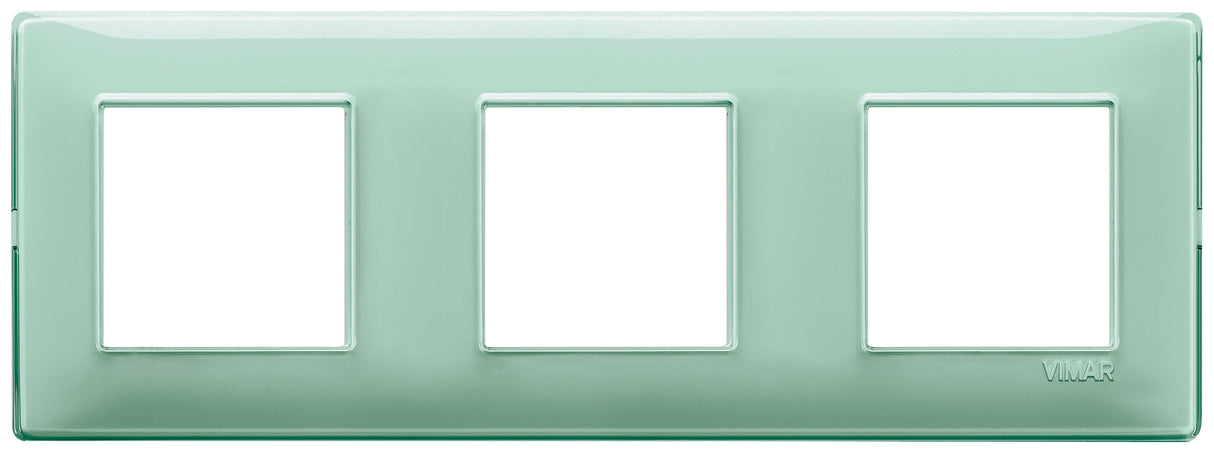

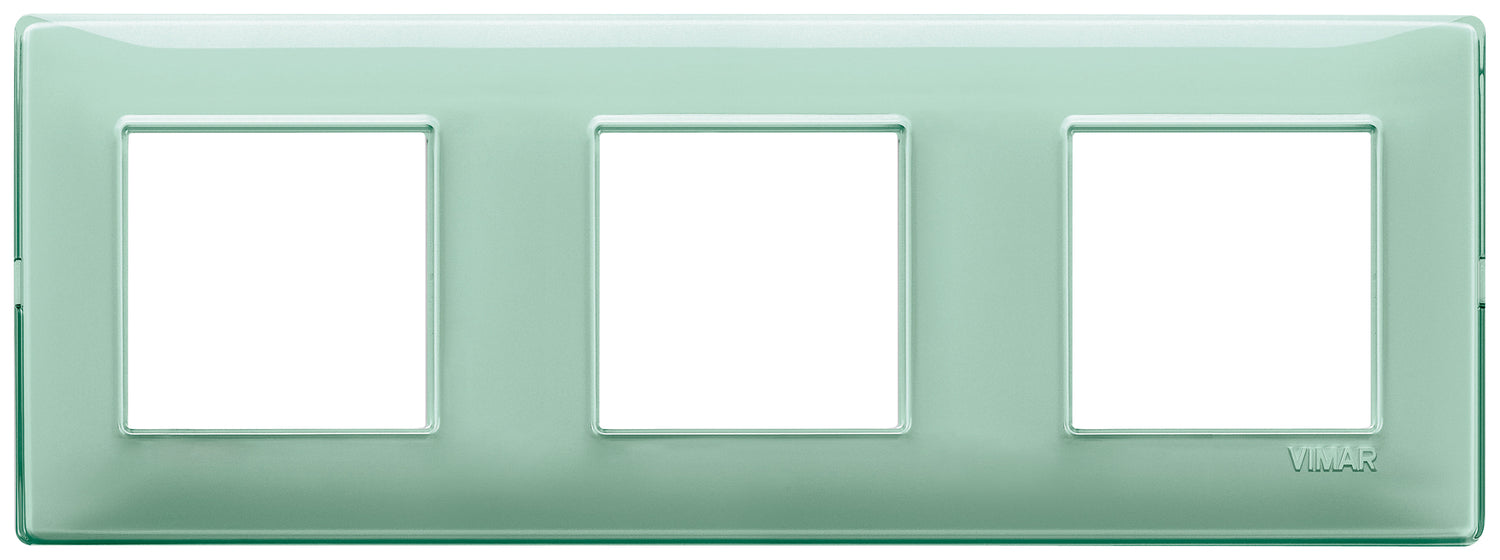

Vimar Plana Plate 6M Reflex Mint

6 ModuleGreen
SKU VM-14644.44
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-14644.44 is Vimar PLANA 14644.44, plate 6M (2+2+2) 71mm Reflex mint.

6-module cover plate (2+2+2, 71 mm distance between centres), technopolymer, Reflex mint

Specifications

VM-14644.44Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
6
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
6
Number of device inserts vertical
1
Number of modules horizontal (module system)
6
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Acrylic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Green
RAL-number (similar)
6019
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
222 mm
Height
80 mm
Depth
9.3 mm
Built-in width
222 mm
Built-in height
80 mm

Packaging

EAN
8007352432727
Packed size (cm)
27 × 8 × 0.9
Packed weight
46.6 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), IMQ (Italy)

Technical drawings

VM-14644.44 Drawings
Drawings

Downloads

FAQ

What is the Vimar Plana Plate 6M Reflex Mint used for?

This model is a cover plate for Vimar Plana series switch layouts that use a 6-module format. It is intended for finishing and matching compatible switch assemblies where the Plana design language is required. The Reflex Mint version is suited to projects that want a soft green accent rather than a standard neutral plate.

Is this cover plate compatible with the Vimar Plana series?

Yes, this product is identified as a Vimar Plana cover plate and is intended for Plana series applications. The 6M designation indicates the six-module plate format, which is the key compatibility point for this model. Buyers should match it with the corresponding Plana configuration required for their project.

What are the main specifications of the Vimar Plana Plate 6M Reflex Mint?

This product is the Vimar Plana Plate 6M Reflex Mint, SKU VM-14644.44. It has a green finish, a listed weight of 0.2030 kg, and a stated warranty period of 3 years. Its product family is switch cover plate.

How does the Reflex Mint finish compare with more standard cover plate colours?

Reflex Mint offers a more distinctive appearance than typical white, black, or metallic plate finishes. For this specific Vimar Plana plate, the green tone can help coordinate with interior palettes that need a softer or more design-led colour choice. It is best suited to projects where finish selection is part of the overall aesthetic brief.

Is this a good option for commercial or design-focused interiors?

Yes, this model is suitable for commercial and design-focused environments where appearance matters alongside standard hardware selection. The product description emphasizes an essential look with high performance material and notes that the range includes multiple colour variants. That makes this model a practical choice for projects that want a coordinated Plana-series finish in mint green.
