Vimar

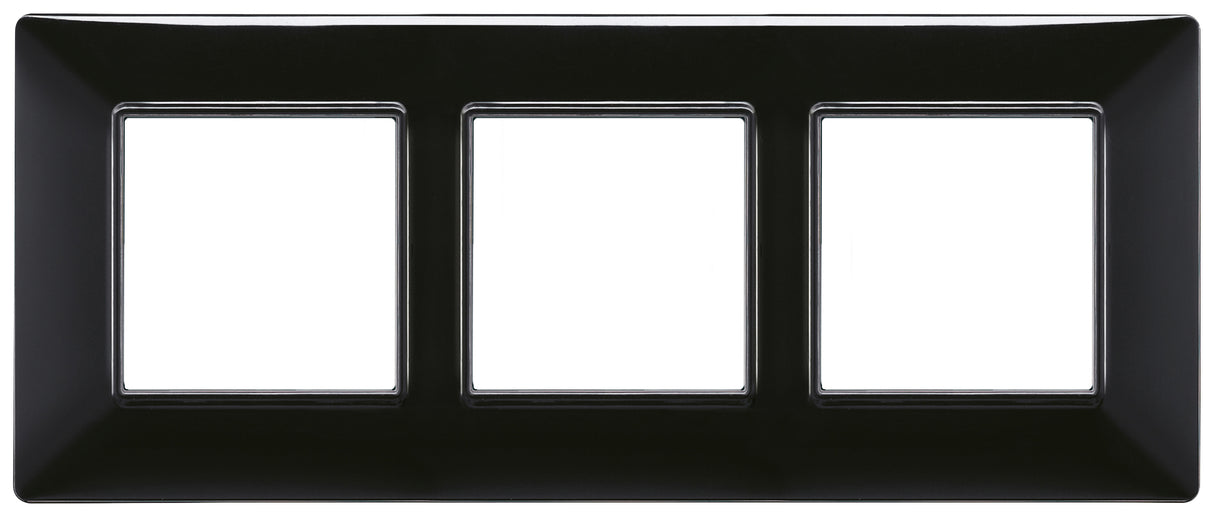

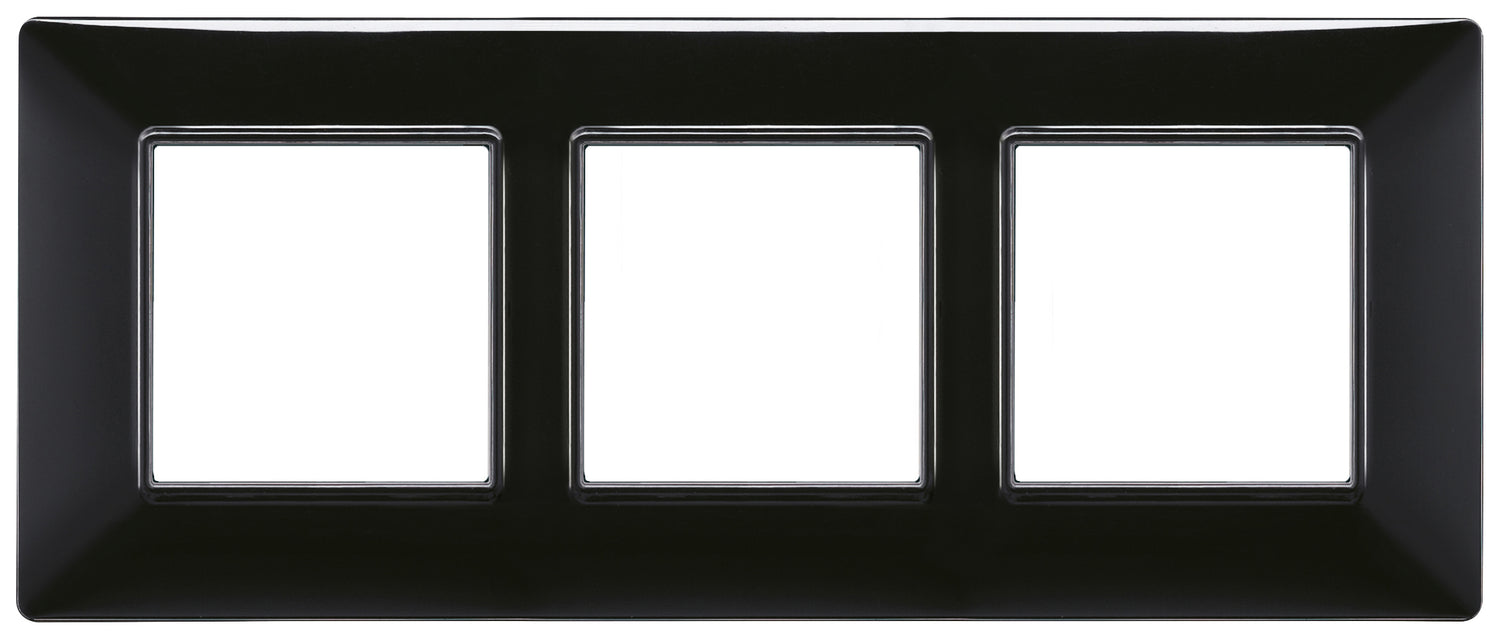

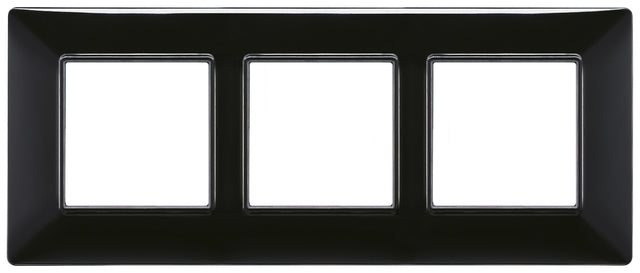

Vimar Plana Plate 6M Technopolymer Black

6 ModuleBlack
SKU VM-14646.05
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-14646.05 is Vimar PLANA 14646.05, plate 6M (2+2+2) 57mm techn.black.

6-module cover plate (2+2+2, 57 mm distance between centres), technopolymer, black

Specifications

VM-14646.05Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
6
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
6
Number of device inserts vertical
1
Number of modules horizontal (module system)
6
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Black
RAL-number (similar)
9005
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
194 mm
Height
80 mm
Depth
8.8 mm
Built-in width
194 mm
Built-in height
80 mm

Packaging

EAN
8007352113732
Packed size (cm)
24.3 × 8 × 0.9
Packed weight
26.2 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), IMQ (Italy)

Technical drawings

VM-14646.05 Drawings
Drawings

Downloads

FAQ

What is the Vimar Plana Plate 6M Technopolymer Black used for?

This model is a cover plate for Vimar Plana switch layouts in a 6M format. It is intended for projects that need a finished black front plate with a clean, minimal look for the Plana series.

Which series is this plate compatible with?

This product is part of the Vimar Plana range. It is designed for applications based on the Plana series and is identified as a 6M plate within that system.

What material and color does this model have?

The Vimar Plana Plate 6M Technopolymer Black is made from technopolymer and comes in black. The product description emphasizes high performance with an essential appearance, making it suitable where a simple, modern finish is preferred.

How does this black version differ from other variants?

The main difference is the finish color, since this specific model is the black version of the Plana technopolymer plate. The description also notes that the material line is offered in multiple color variants, so this option is best when a darker visual match is needed.

Is this plate suitable for commercial or professional environments?

Yes, it is well suited to professional projects that want a durable technopolymer plate with a restrained appearance. Its simple black finish works well in offices, retail spaces, and other interiors where a neutral, consistent look is important.

What are the warranty period and product weight for this model?

This model has a stated warranty period of 3 years. Its listed weight is 0.1880 kg, which can be useful when reviewing product handling or shipment details for larger orders.
