Vimar

Vimar Plana Plate 6M Technopolymer Matt Nickel

6 ModuleTitanium
SKU VM-14646.21
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

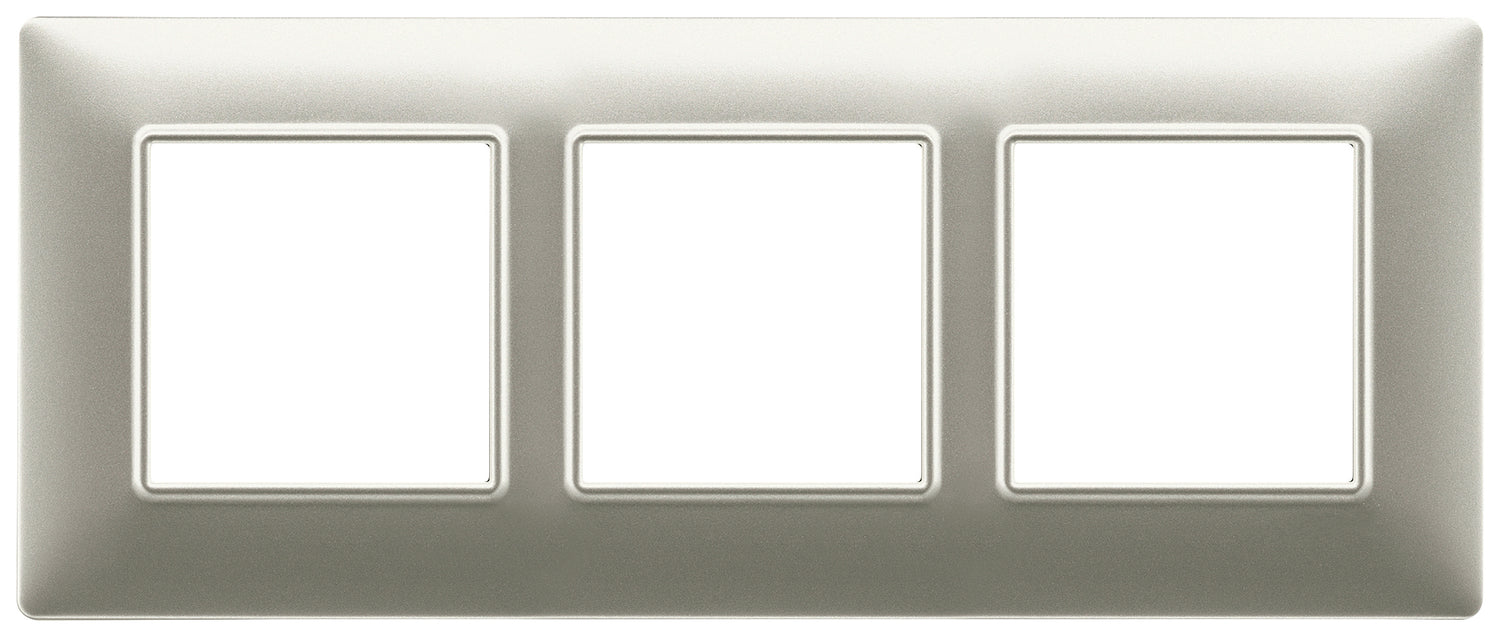

VM-14646.21 is Vimar PLANA 14646.21, plate 6M (2+2+2) 57mm techn.matt nickel.

6-module cover plate (2+2+2, 57 mm distance between centres), technopolymer, matt nickel

Specifications

VM-14646.21Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
6
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
6
Number of device inserts vertical
1
Number of modules horizontal (module system)
6
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Titanium
RAL-number (similar)
7048
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
194 mm
Height
80 mm
Depth
8.8 mm
Built-in width
194 mm
Built-in height
80 mm

Packaging

EAN
8007352113794
Packed size (cm)
24.3 × 8 × 0.9
Packed weight
27 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), IMQ (Italy)

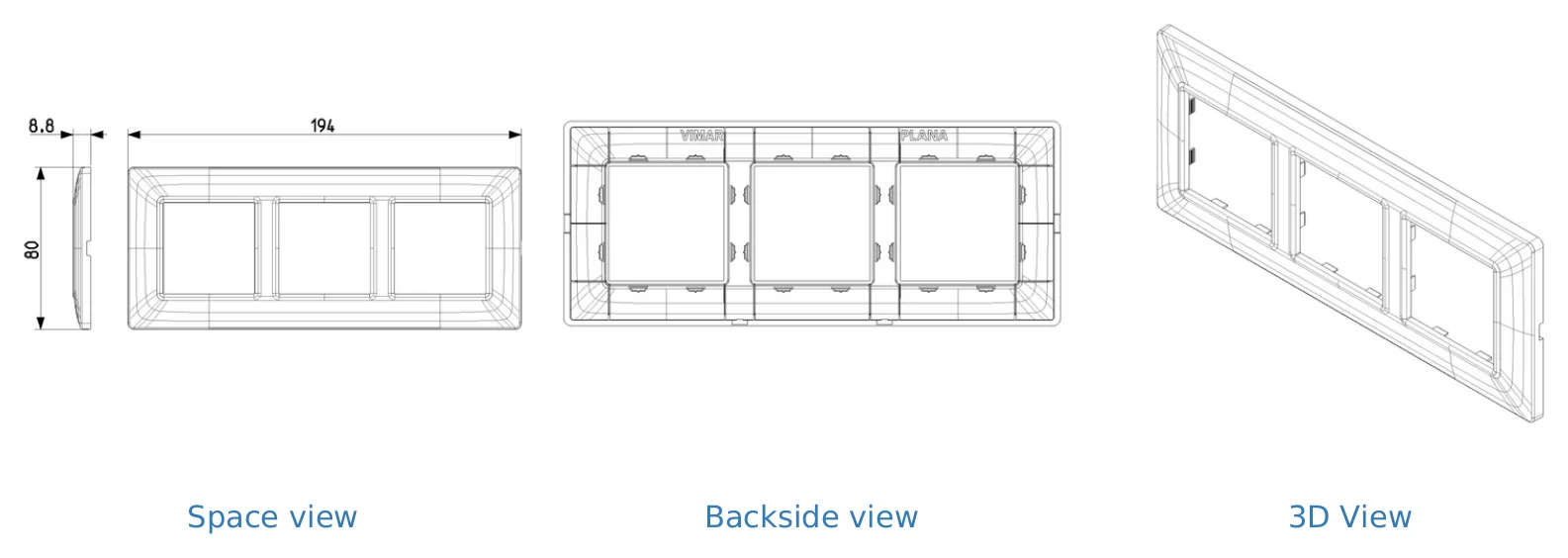

Technical drawings

VM-14646.21 Drawings
Drawings

Downloads

FAQ

What is the Vimar Plana Plate 6M Technopolymer Matt Nickel used for?

This model is a 6-module cover plate in the Vimar Plana range. It is intended for projects that need a clean, understated finishing plate for compatible switch layouts, with a matt nickel appearance suited to modern interiors.

Which series is this cover plate part of?

This product belongs to the Vimar Plana series. For buyers matching existing fittings or maintaining a consistent project finish, that series alignment is the key reference point for selection.

What material is this plate made from?

The plate is made from technopolymer. The product description highlights this material for its high performance and essential appearance, making it a practical choice where durability and a refined finish are both important.

Is this the antibacterial version of the Plana technopolymer plate?

Not based on the provided product data. The description says the technopolymer material is available in fifteen colour variants and that one of those variants is antibacterial, but this specific model is identified as the matt nickel version rather than an antibacterial variant.

What warranty and product weight should buyers expect for this model?

This cover plate has a listed warranty period of 3 years. Its stated weight is 0.188 kg, which can be useful for quoting, handling, and project documentation.
