Vimar

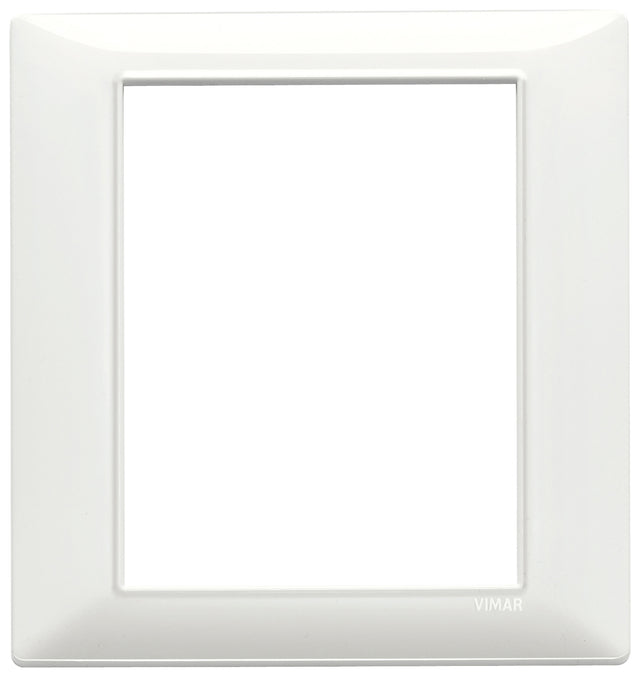

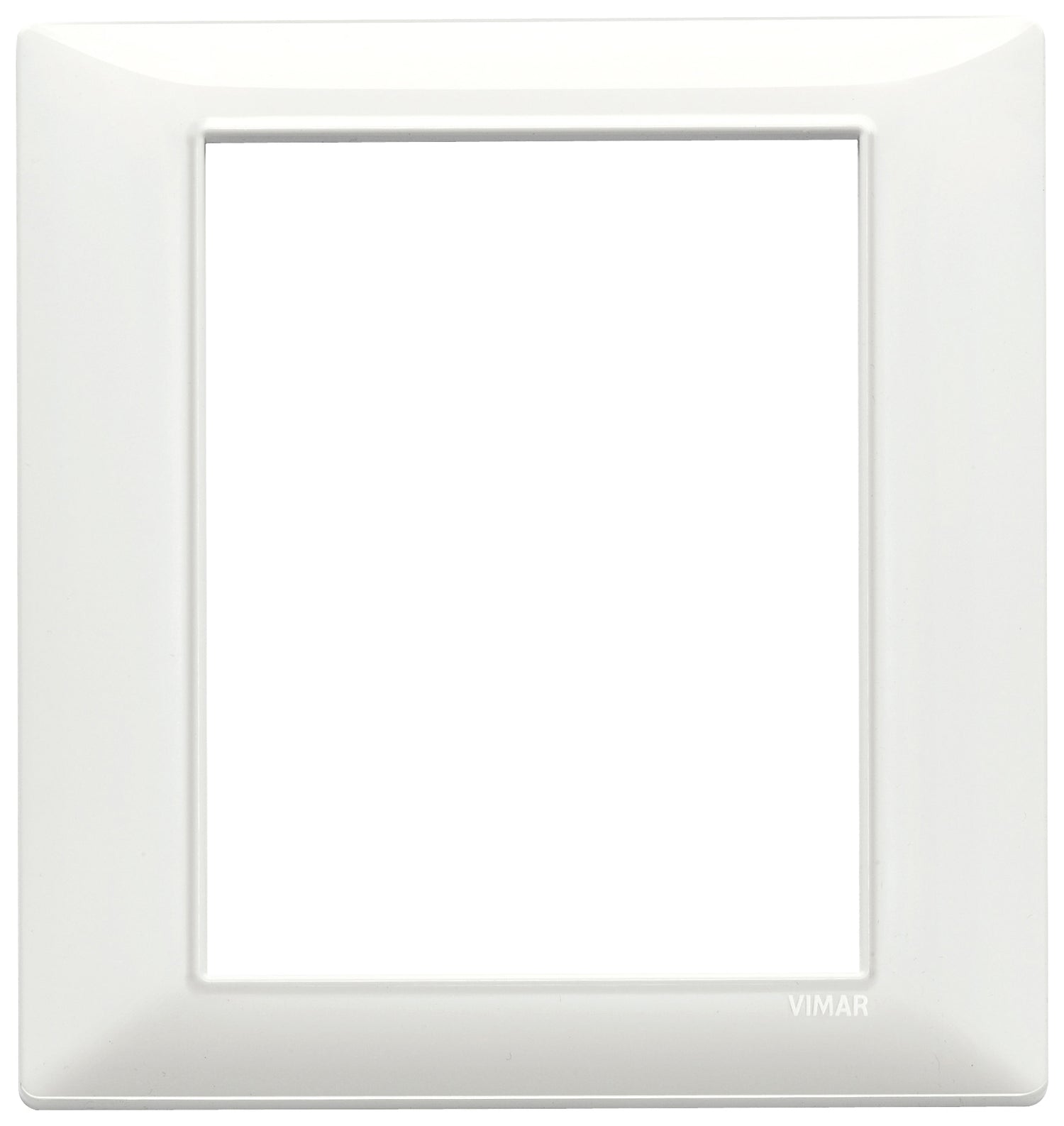

Vimar Plana Plate 8M Technopolymer White

8 ModuleWhite
SKU VM-14668.01
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-14668.01 is Vimar PLANA 14668.01, plate 8M techn. white.

8-module (4+4) cover plate, technopolymer, white

Specifications

VM-14668.01Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
8
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
4
Number of device inserts vertical
2
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
2
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9016
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
142.5 mm
Height
151 mm
Depth
9 mm
Built-in width
142.5 mm
Built-in height
151 mm

Packaging

EAN
8007352337671
Packed size (cm)
18.5 × 18.4 × 2.2
Packed weight
91.73 g

Certifications

Certifications
CE marking (EU), IMQ (Italy)

Technical drawings

VM-14668.01 Drawings
Drawings

Downloads

FAQ

What is the Vimar Plana Plate 8M Technopolymer White used for?

This model is a cover plate for Vimar Plana switch layouts with an 8-module format. It is intended for finishing and protecting compatible switch or socket arrangements while maintaining a clean white appearance.

Is this plate compatible with the Vimar Plana series?

Yes. This product is identified as a Vimar Plana plate and is intended for Plana-series applications. The 8M format means it is suited to compatible eight-module Plana configurations.

What material is this cover plate made from?

This plate is made from technopolymer. For this model, Vimar describes the material as offering high performance with an essential appearance, making it suitable for projects that need a simple, durable finish.

What color and finish does this model have?

This specific version comes in white. Its appearance is designed to be understated and practical, which makes it a straightforward choice for commercial and professional interiors using light-colored switch plates.

What are the warranty period and product weight for this plate?

The listed warranty period for this model is 3 years. Its weight is 0.092 kg, which can be useful when reviewing product handling or preparing larger material schedules.
