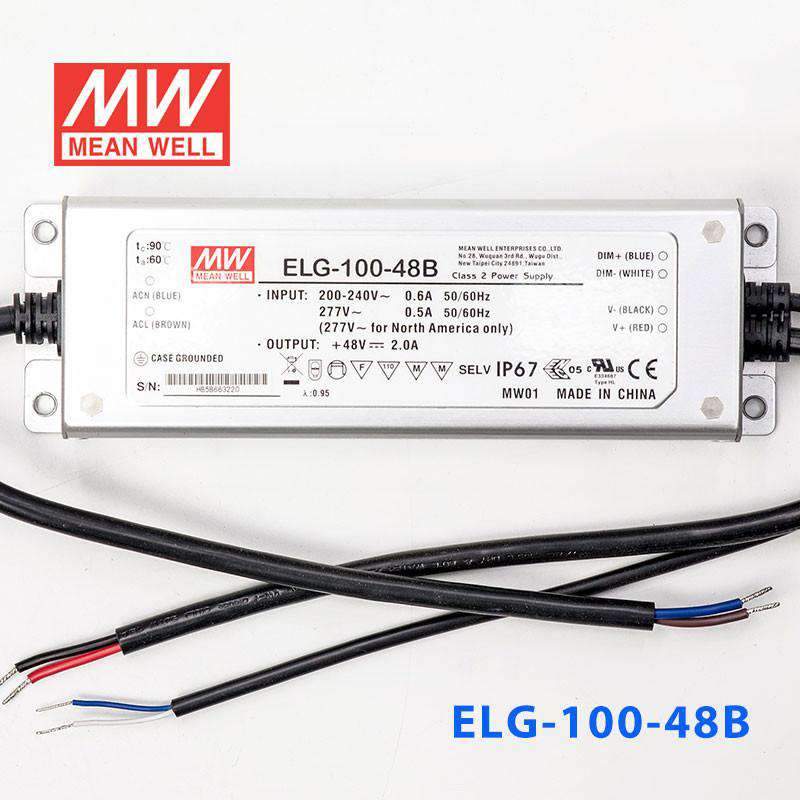

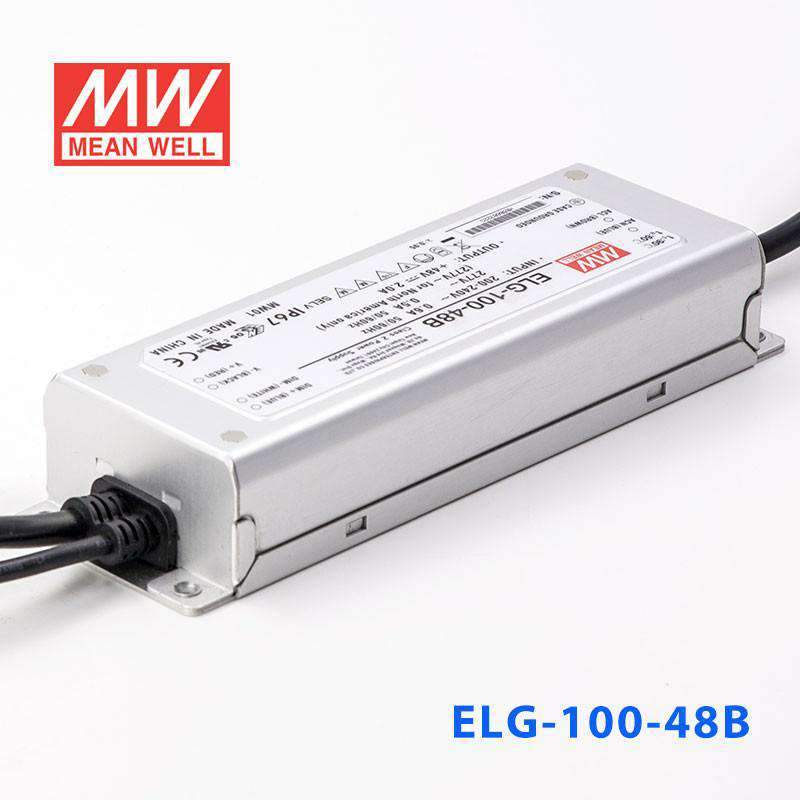

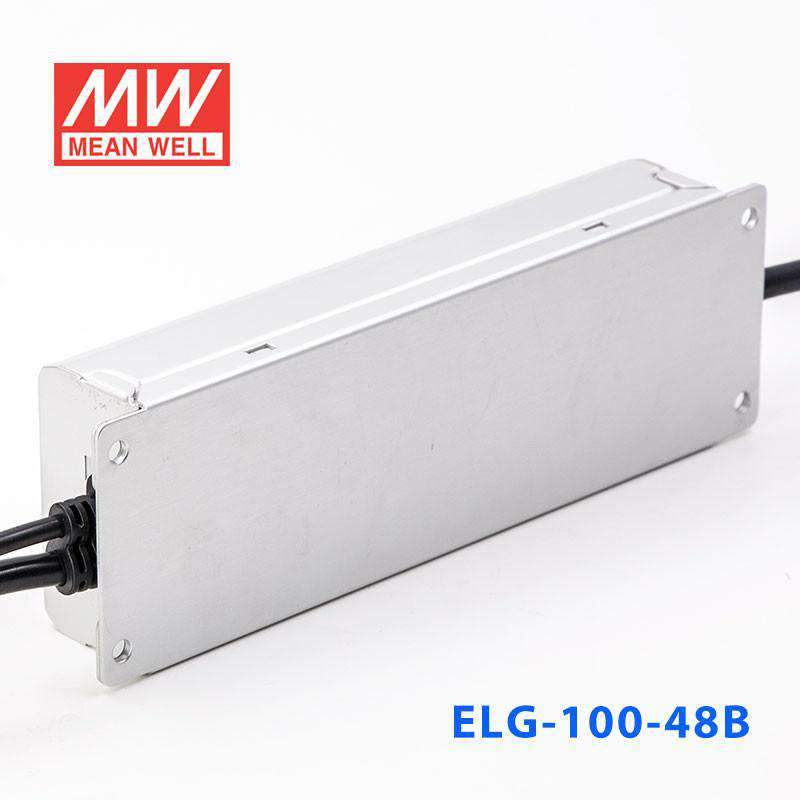

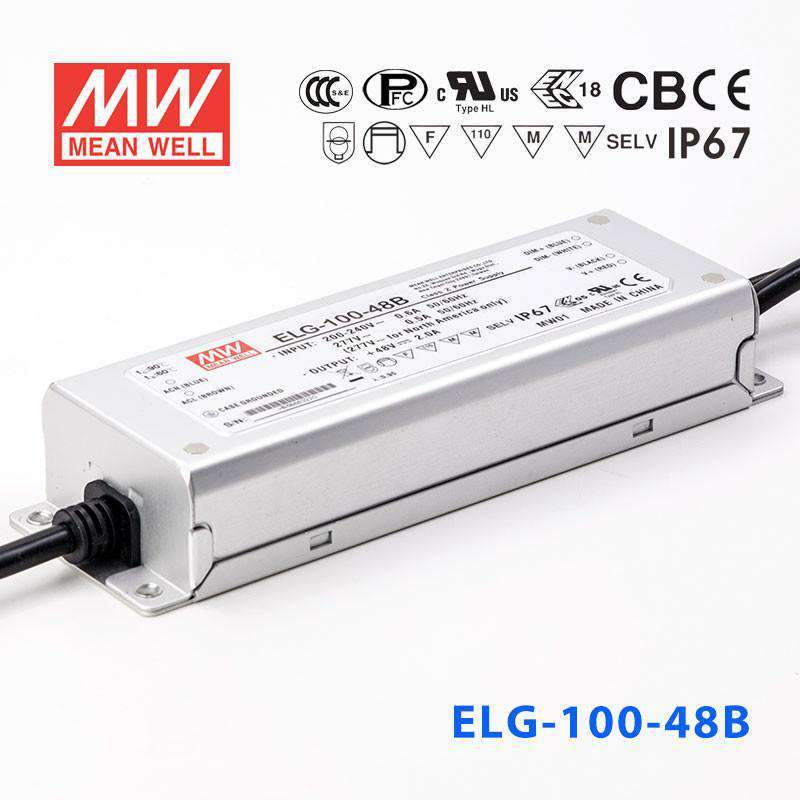

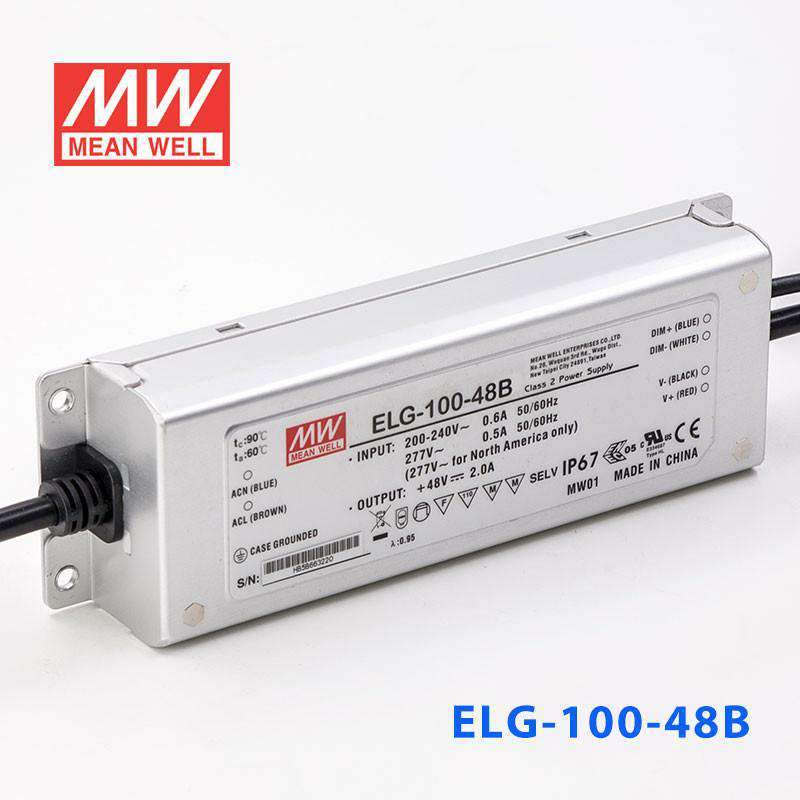

Mean Well ELG-100-48B Power Supply 96W 48V - Dimmable | Auckland Distributor

The ELG-100 is a 96W Mean Well AC-DC LED driver (input: 100~305VAC, output: 48V, operating temperature: -40~+90°C).

Key Features

✓ Input voltage: 100~305VAC
✓ Output voltage: 48V
✓ Rated output current: 2A
✓ Ingress protection: IP67
✓ Operating temperature: -40~+90°C
✓ Safety certifications: BSI, CB, CCC, CE, EAC, ENEC, RCM, UL
✓ 5 year warranty

Frequently Asked Questions

Can the ELG-100-48B be used for outdoor LED strip lighting exposed to rain?

Yes. The ELG-100-48B is rated IP67, meaning it is protected against temporary submersion in water up to 1 meter for 30 minutes, and is fully dust-tight. It is well suited for outdoor LED strip runs on building facades, signage, or landscape lighting where direct rain exposure is expected.

Can I use the ELG-100-48B to power 48V LED strips in an outdoor advertising sign?

Yes. The ELG-100-48B's IP67 waterproof rating and 96W output make it a good fit for outdoor advertising signs using 48V LED strips. It operates from -40°C to +90°C, handling extreme temperature swings common in outdoor signage enclosures.

How long a 48V LED strip run can the ELG-100-48B support?

The ELG-100-48B outputs a maximum of 96W. To estimate run length, divide 96W by your strip's rated power per meter. A 8 W/m strip allows up to 12 m per driver; a 14 W/m strip allows approximately 6.8 m. Always check your strip's rated power per meter and derate by at least 10%.

Is the ELG-100-48B suitable for 48V LED wall-wash lighting on an exterior building surface?

Yes. The IP67 rating protects the driver against rain and dust, and the -40°C to +90°C operating range accommodates the thermal extremes of exterior installations. The 96W capacity supports typical 48V LED wall-wash strip runs in commercial facade projects.

Can I use the ELG-100-48B with a 0-10V dimmer system?

The B suffix on Mean Well ELG drivers indicates a 3-in-1 dimming interface (1-10V, PWM, and resistance dimming). The ELG-100-48B supports dimming through these methods, making it compatible with 0-10V building automation systems and standard PWM dimmers used in LED lighting controls.

What is the difference between the ELG-100-48A and ELG-100-48B?

Both are 48V, 2A, 96W drivers in the same physical package. The ELG-100-48A (IP65) has an adjustable output voltage potentiometer but no external dimming interface. The ELG-100-48B (IP67) adds a 3-in-1 dimming interface (1-10V, PWM, resistance) and has a higher IP67 waterproof rating. Choose the A variant for basic output adjustment and the B variant when dimming control or full waterproofing is needed.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-ELG-100-24-3Y Power Supply 96W 24V 4A — 3-Wire Input (with Earth)	96W	24V	4A	IP67	View
Mean Well ELG-100-24DA-3Y Power Supply 96W 24V - DALI 4A — 3-Wire Input (with Earth)	96W	24V	4A	IP67	View
Mean Well ELG-100-24B-3Y Power Supply 96W 24V - Dimmable 4A — 3-Wire Input (with Earth)	100W	24V	4A	IP67	View
Mean Well ELG-100-24AB Power Supply 100W 24V - Adjustable and Dimmable 4A	96W	24V	4A	IP65	View
Mean Well ELG-100-48DA-3Y Power Supply 96W 48V - DALI 2A — 3-Wire Input (with Earth)	96W	48V	2A	IP67	View
