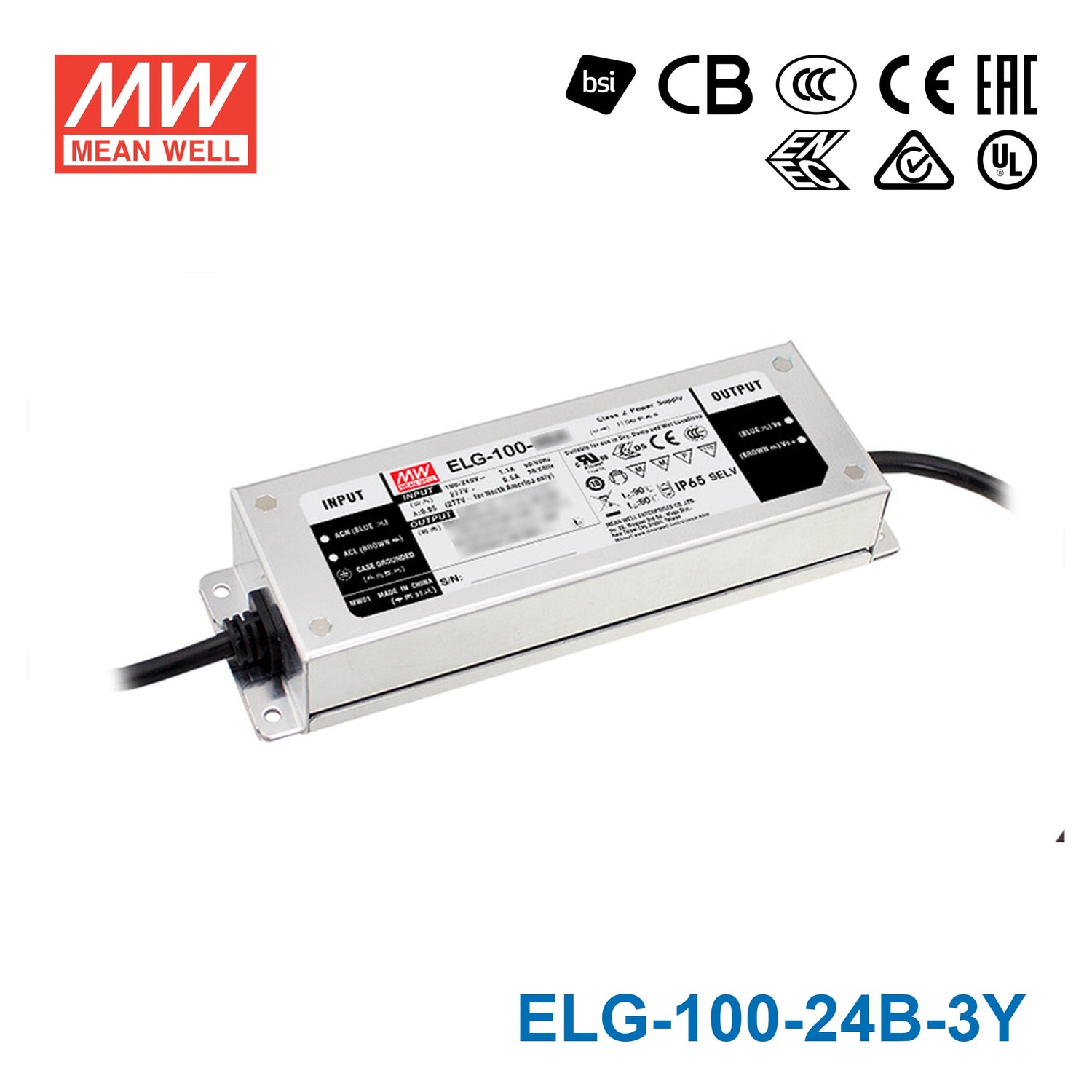

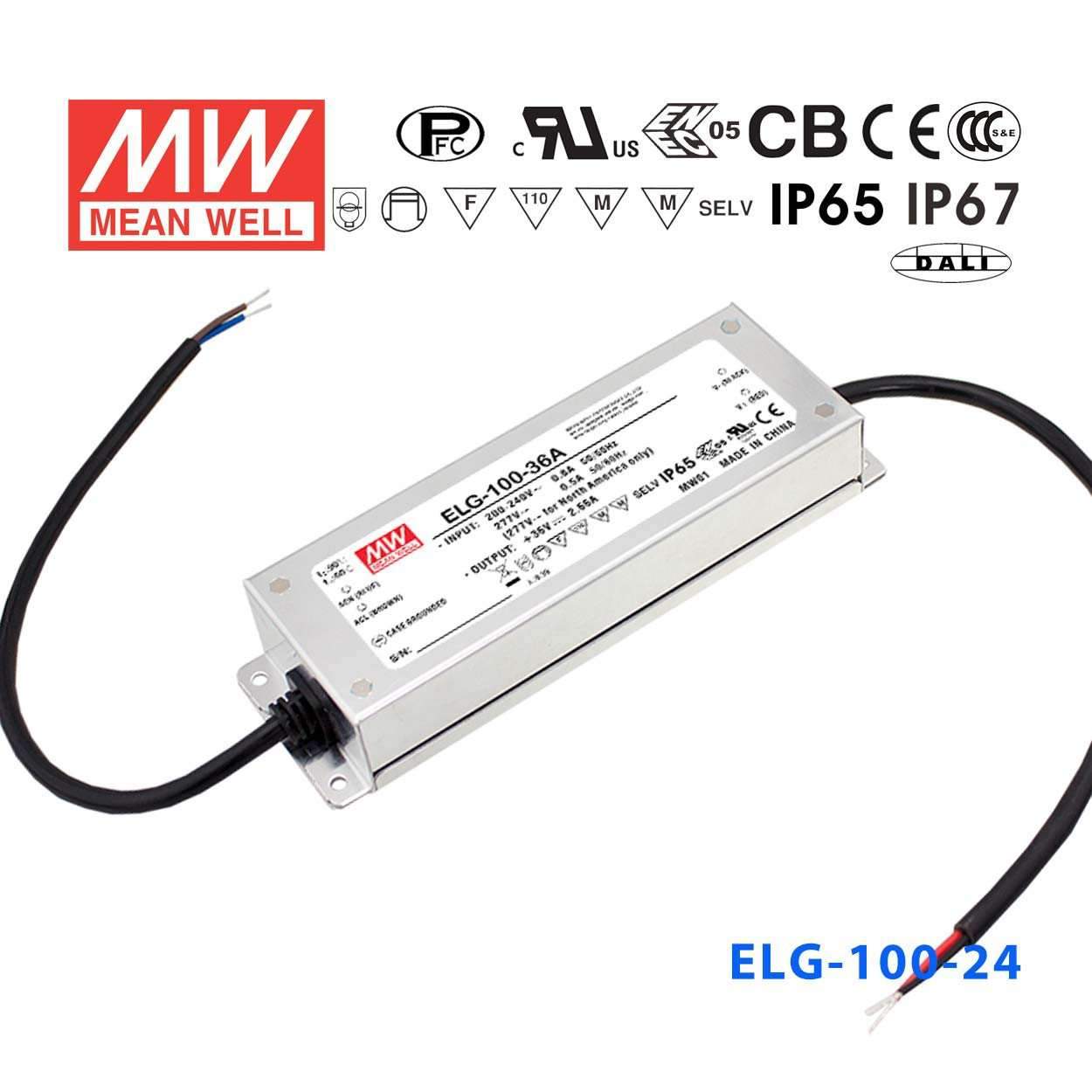

Mean Well ELG-100-24B-3Y Power Supply 96W 24V - Dimmable 4A — 3-Wire Input (with Earth)

metal caseIP675 years warranty

SKU ELG-100-24B-3Y

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

ELG-100-24B-3Y is the 24V output model of this series: rated current 4.0A, typical efficiency 88%.

ELG-100 series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-100 operates from 100~360VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

Constant Voltage + Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
Class 2 power unit
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-100-24B-3YSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE: 24V
CONSTANT CURRENT REGION^Note.2: 12 ~ 24V
RATED CURRENT: 4.0A
RATED POWER 200VAC ~ 305VAC: 96W
RATED POWER 100VAC ~ 180VAC: 70W
RIPPLE & NOISE (max.)^Note.3: 200mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 21.6 ~ 26.4V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 2 ~ 4A
VOLTAGE TOLERANCE^Note.4: ±3.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.6: 1000ms, 80ms/115VAC 500ms, 100ms/230VAC
HOLD UP TIME (Typ.): 15ms/115VAC 10ms/230VAC

INPUT

VOLTAGE RANGE^Note.5: 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 88%
AC CURRENT: 1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.): COLD START 60A(twidth=850μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 28 ~ 34V Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 24/24A/24B/24DA/36/36A/36B/42/42A/42ADA/42B/48/48B/54/54A/54ADA/54B only); GB/T19510.1, GB/T19510.213; IP65 or IP67;KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%); BS EN/EN61000-3-3;GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2920.8K hrs min. Telcordia SR-332 (Bellcore) 282.9Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*63*35.5mm (L*W*H)
PACKING: 0.85kg; 16pcs/14.2kg/0.72CUFT

Certifications & ratings

Type: HL

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
13. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-100-24B-3Y Block Diagram — Block Diagram

ELG-100-24B-3Y DIMMING OPERATION — DIMMING OPERATION

ELG-100-24B-3Y OUTPUT LOAD vs TEMPERATURE(Note.9) — OUTPUT LOAD vs TEMPERATURE(Note.9)

ELG-100-24B-3Y STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-100-24B-3Y TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-100-24B-3Y Mechanical Specification — Mechanical Specification

ELG-100-24B-3Y ※ B/DA-Type — ※ B/DA-Type

ELG-100-24B-3Y ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-100-24B-3Y Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED architectural lighting
LED bay lighting
LED floodlighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-100-24B-3Y datasheetELG-100-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates5

CB Certificate (ELG-100)(EN) PDF Download

UL Certificate (ELG-100)(EN) PDF Download

EMC Certificate (ELG-100)(EN) PDF Download

ERP Certificate (ELG-100)(EN) PDF Download

ENEC Certificate (ELG-100)(EN) PDF Download

Test reports1

Test Report (ELG-100-24)(EN) PDF Download

FAQ

Can the ELG-100-24B-3Y be used in outdoor wet locations?

Yes. The ELG-100-24B-3Y is rated IP67, protecting it against dust and temporary water immersion. It is suitable for exterior lighting installations, outdoor signage, or any application where direct water contact is possible.

How many meters of 24V LED strip can the ELG-100-24B-3Y support?

At 96W and 24V (70W on 100–180VAC input), divide by your strip's wattage per meter. At 96W, a 9.6 W/m strip allows up to 10 meters; a 19.2 W/m strip allows up to 5 meters. Always verify your specific strip's rated power per meter and leave a 20% safety margin.

What dimming inputs does the ELG-100-24B-3Y support?

As a 'B' suffix model, it supports 3-in-1 dimming: 0–10VDC analog, 10V PWM, and resistance-based dimming. This gives integrators flexibility to connect it to 0–10V, PWM or resistance-type lighting controls; the minimum dimming level is about 8%.

Is the ELG-100-24B-3Y suitable for powering 24V dimmable LED strip in an outdoor architectural facade?

Yes. With IP67 protection and 3-in-1 dimming at 96W / 24V, it is a strong match for facade wash lighting where weatherproofing and dimming control are both required. Its -40°C to +90°C case temperature (Tcase) rating covers wide ambient conditions on building exteriors, with load derating at high temperatures.

Can the ELG-100-24B-3Y power LED strip lighting in a commercial greenhouse or horticultural facility?

Yes. The IP67 rating handles the water spray common in greenhouse environments (working humidity is rated 20–95% RH non-condensing). At 96W / 24V with dimming control, it can drive a significant run of grow-assist LED strip while allowing light level adjustment for different crop stages.

Is this driver appropriate for powering dimmable 24V LED modules in outdoor wayfinding signage?

Yes. The ELG-100-24B-3Y's IP67 enclosure withstands rain and dust, and its 96W output is sufficient for multiple LED modules in a wayfinding sign cabinet. The 3-in-1 dimming input allows time-of-day brightness scheduling through a lighting controller.
