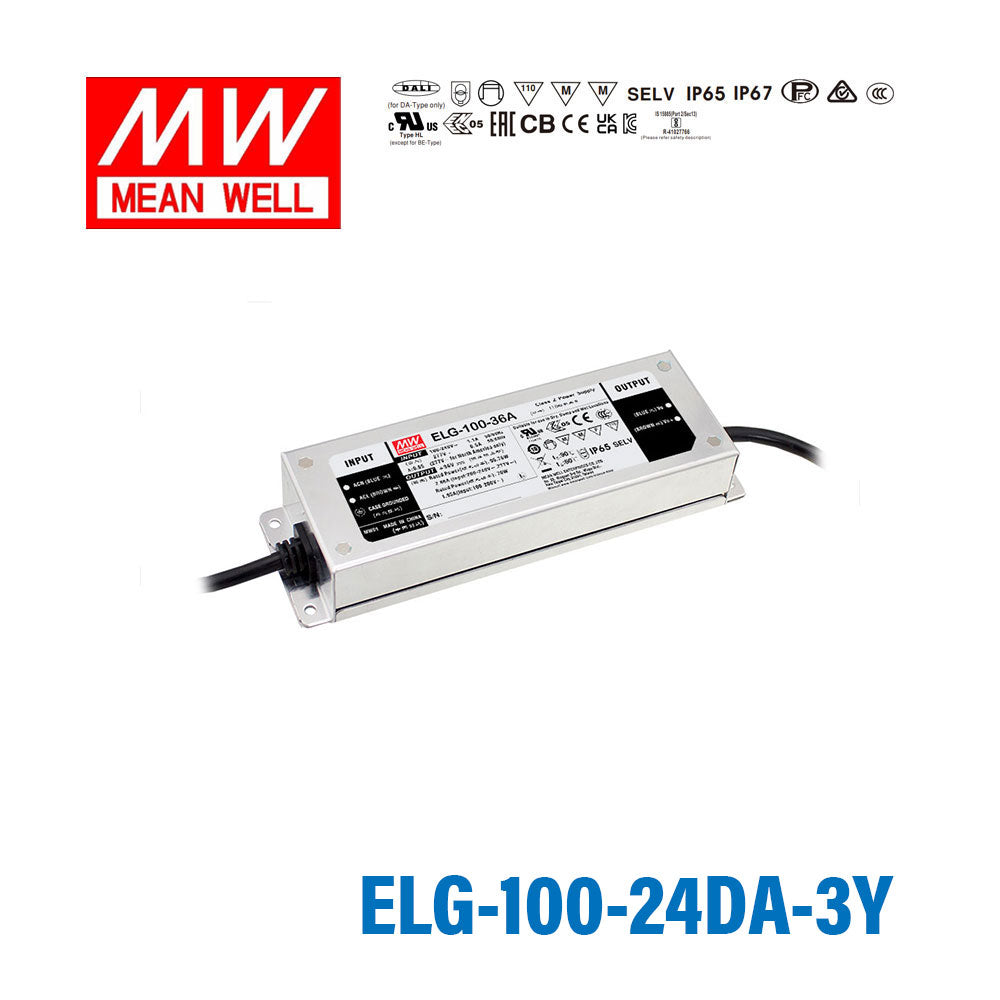

Mean Well ELG-100-24DA-3Y Power Supply - Auckland Distributor

Overview

ELG-100-24DA-3Y is the 24V output model of this series: rated current 4.0A, typical efficiency 88%.

ELG-100 series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-100 operates from 100~360VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

Constant Voltage + Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
Class 2 power unit
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-100-24DA-3YSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE: 24V
CONSTANT CURRENT REGION^Note.2: 12 ~ 24V
RATED CURRENT: 4.0A
RATED POWER 200VAC ~ 305VAC: 96W
RATED POWER 100VAC ~ 180VAC: 70W
RIPPLE & NOISE (max.)^Note.3: 200mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 21.6 ~ 26.4V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 2 ~ 4A
VOLTAGE TOLERANCE^Note.4: ±3.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.6: 1000ms, 80ms/115VAC 500ms, 100ms/230VAC
HOLD UP TIME (Typ.): 15ms/115VAC 10ms/230VAC

INPUT

VOLTAGE RANGE^Note.5: 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 88%
AC CURRENT: 1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.): COLD START 60A(twidth=850μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 28 ~ 34V Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 24/24A/24B/24DA/36/36A/36B/42/42A/42ADA/42B/48/48B/54/54A/54ADA/54B only); GB/T19510.1, GB/T19510.213; IP65 or IP67;KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%); BS EN/EN61000-3-3;GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2920.8K hrs min. Telcordia SR-332 (Bellcore) 282.9Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*63*35.5mm (L*W*H)
PACKING: 0.85kg; 16pcs/14.2kg/0.72CUFT

Certifications & ratings

Type: HL

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
13. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-100-24DA-3Y Block Diagram — Block Diagram

ELG-100-24DA-3Y DIMMING OPERATION — DIMMING OPERATION

ELG-100-24DA-3Y OUTPUT LOAD vs TEMPERATURE(Note.9) — OUTPUT LOAD vs TEMPERATURE(Note.9)

ELG-100-24DA-3Y STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-100-24DA-3Y TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-100-24DA-3Y Mechanical Specification — Mechanical Specification

ELG-100-24DA-3Y ※ B/DA-Type — ※ B/DA-Type

ELG-100-24DA-3Y ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-100-24DA-3Y Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED architectural lighting
LED bay lighting
LED floodlighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-100-24DA-3Y datasheetELG_100_Series_Spec_sheet.PDF · 2026-07-06 edition PDF Download

FAQ

Can I use the ELG-100-24DA-3Y to power 24V LED strip lighting outdoors?

Yes. The ELG-100-24DA-3Y outputs 24V at up to 4A (96W) and carries an IP67 waterproof rating, making it suitable for outdoor 24V LED strip installations exposed to rain. It is rated for a case temperature (Tcase) of -40°C to +90°C, with load derating at high temperatures.

Is the ELG-100-24DA-3Y suitable for DALI-controlled architectural or commercial LED lighting?

Yes. The DA suffix indicates this unit includes a DALI (Digital Addressable Lighting Interface) input, allowing it to be integrated into DALI-based building automation or lighting control systems. It outputs 24V at 96W, which suits commercial LED strip or luminaire installations where centralized DALI dimming is needed.

Can the ELG-100-24DA-3Y drive 24V LED modules for outdoor signage?

Yes. With 96W at 24V and an IP67 waterproof rating, it can reliably power outdoor 24V LED sign modules, channel letters, or light boxes. The DALI control input also allows sign brightness to be dimmed remotely via a DALI controller.

How many meters of 24V LED strip can the ELG-100-24DA-3Y power?

The ELG-100-24DA-3Y delivers up to 96W at 24V on 200–305VAC input (70W on 100–180VAC, e.g. 120VAC). Divide the wattage by your strip's rated power per meter to find the maximum run length. For example, at 96W a 24V strip rated at 12W/m allows up to 8 meters (96W / 12W per meter = 8m). Always verify your strip's rated power per meter and keep total load within the rating.

Can the ELG-100-24DA-3Y be installed in a wet outdoor enclosure or exposed to rain?

Yes. The unit carries an IP67 waterproof rating. It can be mounted in outdoor enclosures or wet-location junction boxes, or installed in locations with direct rain exposure; follow the IP installation cautions in MEAN WELL's user manual, and connect the case to PE via the 3-wire input.

What certifications does the ELG-100-24DA-3Y hold for international use?

The datasheet lists UL8750 (Type HL) and CSA C22.2 No. 250.13-12, IEC/EN/AS/NZS 61347-1 and 61347-2-13, EN62384, EAC TP TC 004, GB/T19510 and KC safety standards, EN55015/EN61000/EN61547 EMC compliance, and IEC62386-101/102 DALI compliance. This covers North America, Europe, Australia/New Zealand, the EAC region, China and Korea.

What is the difference between the ELG-100-24DA and the ELG-100-24DA-3Y?

Both share a 24V / 4A, 96W output (70W at 100–180VAC) with DALI dimming and IP67 waterproof rating. The -3Y suffix indicates a 3-wire AC input with a green/yellow protective-earth (PE) lead, instead of the 2-wire input of the standard ELG-100-24DA; it is not a warranty designation. For warranty terms, refer to the warranty statement on MEAN WELL's website.
