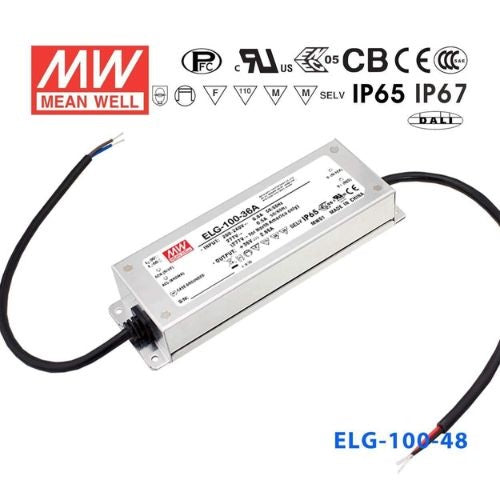

Mean Well ELG-100-48DA Power Supply - 96W 48V - DALI | Auckland Distributor

The ELG-100 is a 96W Mean Well AC-DC LED driver (input: 100~305VAC, output: 48V, operating temperature: -40~+90°C).

Key Features

✓ Input voltage: 100~305VAC
✓ Output voltage: 48V
✓ Rated output current: 2A
✓ Ingress protection: IP67
✓ Operating temperature: -40~+90°C
✓ Safety certifications: BSI, CB, CCC, CE, EAC, ENEC, RCM, UL
✓ 5 year warranty

Frequently Asked Questions

Can I use the ELG-100-48DA in a DALI-controlled museum or gallery lighting system?

Yes. The DA suffix indicates DALI dimming support, and the ELG-100-48DA integrates with DALI bus controllers for addressable dimming. Its 96W at 48V is appropriate for 48V LED tracks or strip systems used in display lighting where precise, scene-based control is required.

Is the ELG-100-48DA suitable for outdoor DALI-controlled architectural lighting?

Yes. The ELG-100-48DA is rated IP67, providing full dust-tightness and protection against temporary water submersion. Combined with DALI dimming, it is well suited for building facade, landscape, or architectural lighting installations managed by a DALI network.

How much 48V LED strip load can the ELG-100-48DA support?

The ELG-100-48DA provides up to 96W at 48V. For a 48V strip rated at 10 W/m, you can run up to 9.6 m per driver. For an 8 W/m strip, approximately 12 m. Divide 96W by your strip's rated power per meter and confirm with a 10% derating margin.

Can the ELG-100-48DA be used for 48V LED signage with DALI dimming in a retail environment?

Yes. The ELG-100-48DA's DALI interface and 96W output make it suitable for 48V illuminated retail signage where lighting levels need to be adjusted from a central control system. IP67 protection also accommodates outdoor or semi-exposed sign cabinet locations.

Does the ELG-100-48DA work in cold outdoor environments such as northern climates?

Yes. The ELG-100-48DA operates from -40°C to +90°C, covering the coldest ambient temperatures encountered in northern climate outdoor lighting. No warm-up period is required for startup in cold conditions.

What is the difference between the ELG-100-48DA and the ELG-100-48D2?

Both are 48V IP67 drivers in the same physical housing. The ELG-100-48DA (96W, 2A) uses the original DALI protocol interface, while the ELG-100-48D2 (100W, 2A) supports the newer DALI-2 standard with enhanced device interoperability. Choose the D2 variant for systems requiring DALI-2 compliance and the DA variant for legacy DALI installations.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-ELG-100-24-3Y Power Supply 96W 24V 4A — 3-Wire Input (with Earth)	96W	24V	4A	IP67	View
Mean Well ELG-100-24DA-3Y Power Supply 96W 24V - DALI 4A — 3-Wire Input (with Earth)	96W	24V	4A	IP67	View
Mean Well ELG-100-24B-3Y Power Supply 96W 24V - Dimmable 4A — 3-Wire Input (with Earth)	100W	24V	4A	IP67	View
Mean Well ELG-100-24AB Power Supply 100W 24V - Adjustable and Dimmable 4A	96W	24V	4A	IP65	View
Mean Well ELG-100-48DA-3Y Power Supply 96W 48V - DALI 2A — 3-Wire Input (with Earth)	96W	48V	2A	IP67	View
