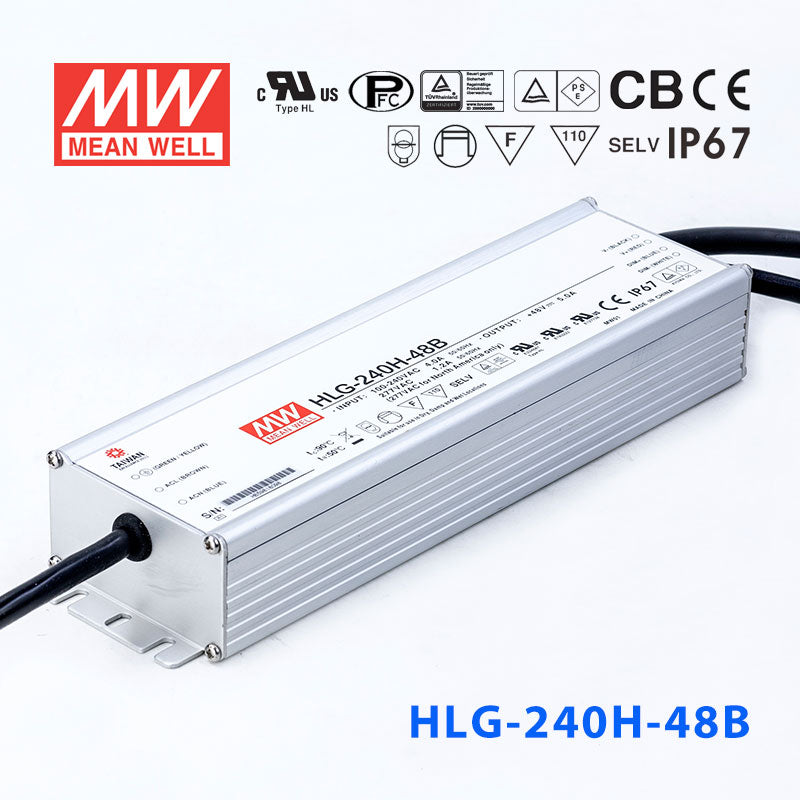

Mean Well HLG-240H-48AB | 240W 48V Power Supply - Adjustable and Dimmable

The HLG-240H is a 240W Mean Well AC-DC LED driver (input: 90~305VAC, output: 48V, operating temperature: -40~+90°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 48V
✓ Rated output current: 5A
✓ Ingress protection: IP65
✓ Operating temperature: -40~+90°C
✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
✓ 7 year warranty

Frequently Asked Questions

Can I use the HLG-240H-48AB to power 48V LED strip lighting in a commercial canopy or covered walkway?

Yes. The HLG-240H-48AB provides 240W at 48V and is IP65 water-resistant, which protects against dust and low-pressure water jets. It is well suited for covered outdoor areas such as canopies, walkways, and semi-enclosed signage enclosures where 48V LED strips are used. The built-in dimming input also lets you adjust brightness on-site.

Is the HLG-240H-48AB suitable for dimming 48V LED signage from a building management system?

Yes. The AB suffix indicates both adjustable output and a 1-10V/PWM dimming interface. You can pair with the HLG-240H-48AB to a BMS or lighting controller that outputs a 1-10V or PWM signal to dim the 48V LED signage remotely. The adjustable potentiometer also allows manual fine-tuning of voltage and current.

Can I power 48V LED high-bay fixtures with the HLG-240H-48AB in a warehouse?

Yes. At 240W and 48V with 5A output, the HLG-240H-48AB can drive 48V high-bay LED fixtures up to 240W total. The constant-current mode with a CC range of 24-48V accommodates LED modules with varying forward voltages. The dimming input allows integrating the driver into an occupancy-based lighting control scheme.

How many meters of 48V LED strip can the HLG-240H-48AB support?

That depends on the strip's rated power per meter. The HLG-240H-48AB supplies up to 240W at 48V. For example, if your 48V strip draws 14.4W per meter, you could run up to 240 / 14.4 = 16.6 meters. Always check your strip's rated power per meter and keep total wattage at or below 240W.

Can the HLG-240H-48AB be mounted in a damp location or semi-enclosed outdoor cabinet?

Yes. The IP65 rating protects against dust ingress and low-pressure water jets from any direction, making it suitable for damp locations, ventilated outdoor cabinets, and covered canopy installations. For direct rain exposure or standing water, consider the IP67-rated HLG-240H-48B instead.

What is the difference between the HLG-240H-48, 48A, 48AB, and 48B variants?

All four share 240W / 48V / 5A core specs. The base HLG-240H-48 has fixed output and IP67 waterproof rating. The -48A adds output voltage/current adjustment via potentiometer (IP65). The -48AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -48B provides dimming input only and retains IP67 waterproof rating.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-HLG-240H-24 Power Supply 240W 24V with AU/NZ plug 10A	240W	24V	10A	IP67	View
Mean Well HLG-240H-48A Power Supply 240W 48V - Adjustable 5A	240W	48V	5A	IP65	View
Mean Well HLG-240H-48 Power Supply 240W 48V 5A	240W	48V	5A	IP67	View
Mean Well HLG-240H-24A Power Supply 240W 24V - Adjustable 10A	240W	24V	10A	IP65	View
Mean Well S-HLG-240H-12 Power Supply 192W 12V with AU/NZ plug 16A	192W	12V	16A	IP67	View
Mean Well HLG-240H-24B Power Supply 240W 24V- Dimmable 10A	240W	24V	10A	IP67	View
Mean Well HLG-240H-12A Power Supply 192W 12V - Adjustable 16A	192W	12V	16A	IP65	View
