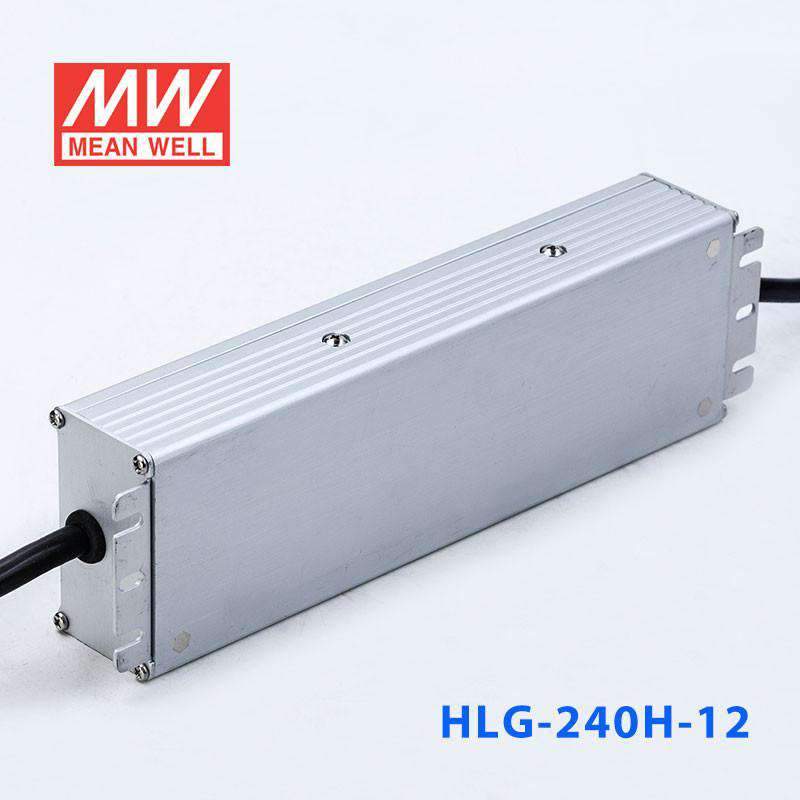

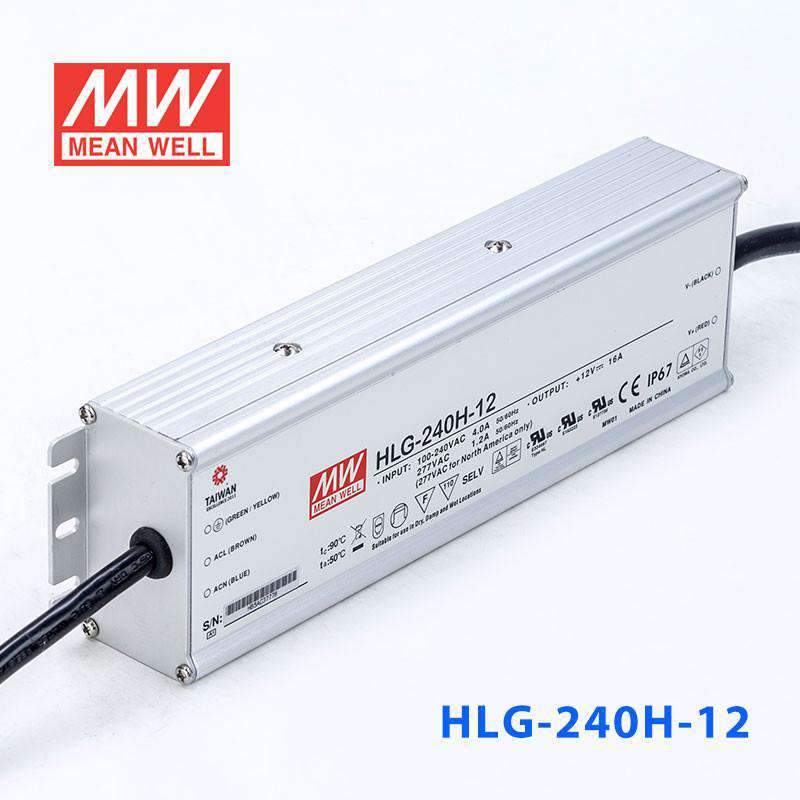

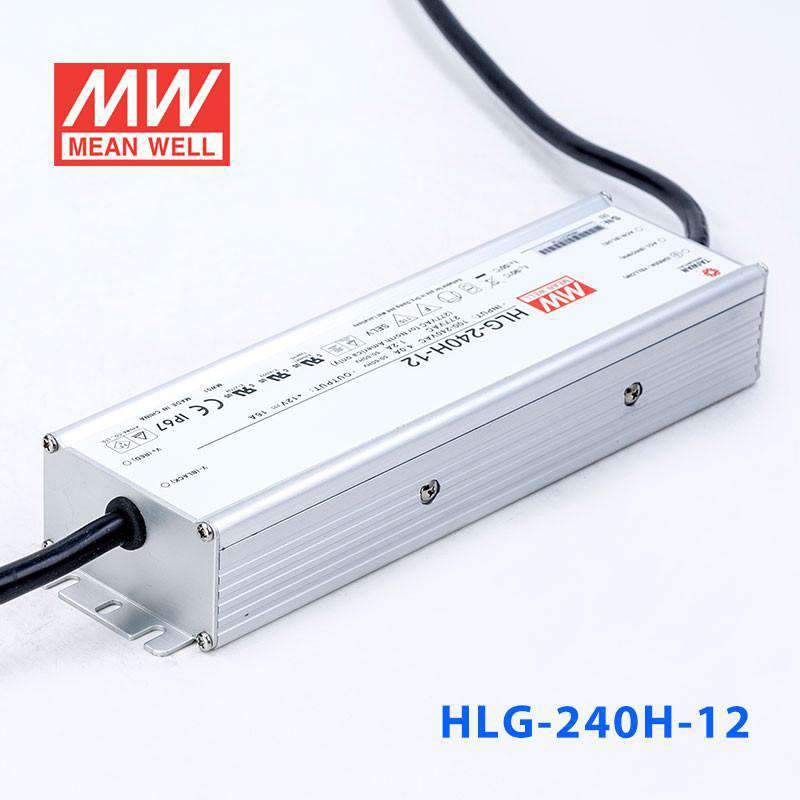

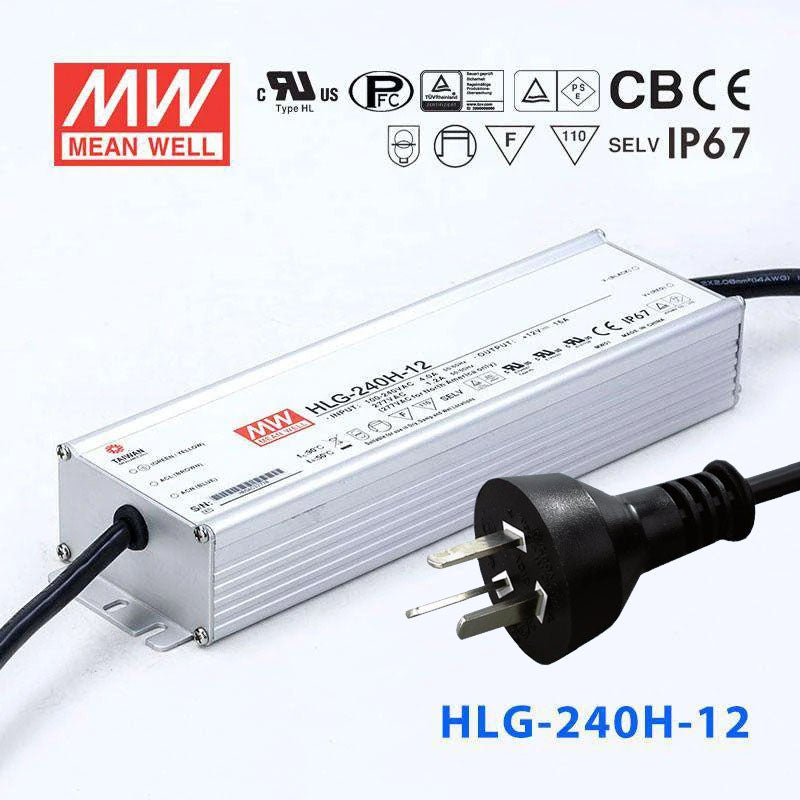

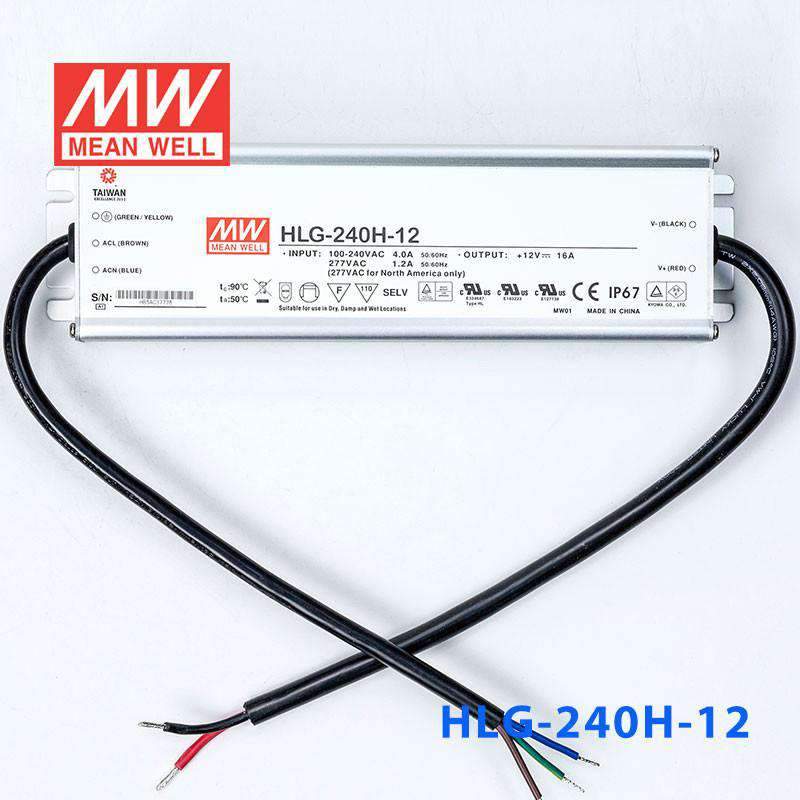

Mean Well S-HLG-240H-12 Power Supply 192W 12V with AU/NZ plug
Please Login for Pricing
Description
Description
The S-HLG-240H is a 240W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating192 Watt
-
Output Voltage12 Volt
-
Rated Current16 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length24.42 cm
-
Width6.8 cm
-
Height3.88 cm
-
Weight1.46 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well S-HLG-240H-12 power supply?
This model provides a 12V DC output with a rated current of 16A. Its listed power rating is 192W, making it suitable for higher-load 12V LED lighting applications.
Is the S-HLG-240H-12 suitable for outdoor use?
Yes, this model is described as having an IP67 / IP65 design for indoor or outdoor installations. That makes it a practical option for environments where dust or water resistance is important.
Does this power supply support dimming control?
No, the listed dimming control for the S-HLG-240H-12 is none. If your project requires dimming functionality, you would need to compare it with a different model that specifically includes dimming support.
What types of applications is the S-HLG-240H-12 designed for?
This model is described as suitable for LED lighting and street lighting applications. Its 12V output and high power rating make it relevant for commercial or industrial LED systems that need a robust constant-voltage power source.
What protection features are included in this model?
The S-HLG-240H-12 includes protection for short circuit, over current, over voltage, and over temperature. These built-in protections help support reliability in demanding LED power applications.
What input and efficiency characteristics does this power supply offer?
The product description states that it supports universal AC input up to 305VAC and offers efficiency up to 95%. It also includes active PFC, with a power factor above 0.9 at 60% load or higher.
What operating temperature range is listed for the S-HLG-240H-12?
This model is listed with a minimum temperature of -40°C and a maximum temperature of 90°C. That wide temperature range supports use in harsh operating environments, subject to the overall application design.
What warranty is provided for the Mean Well S-HLG-240H-12?
The listed warranty period for this model is 7 years. That extended warranty can be an advantage for professional buyers looking for long-service LED power solutions.
