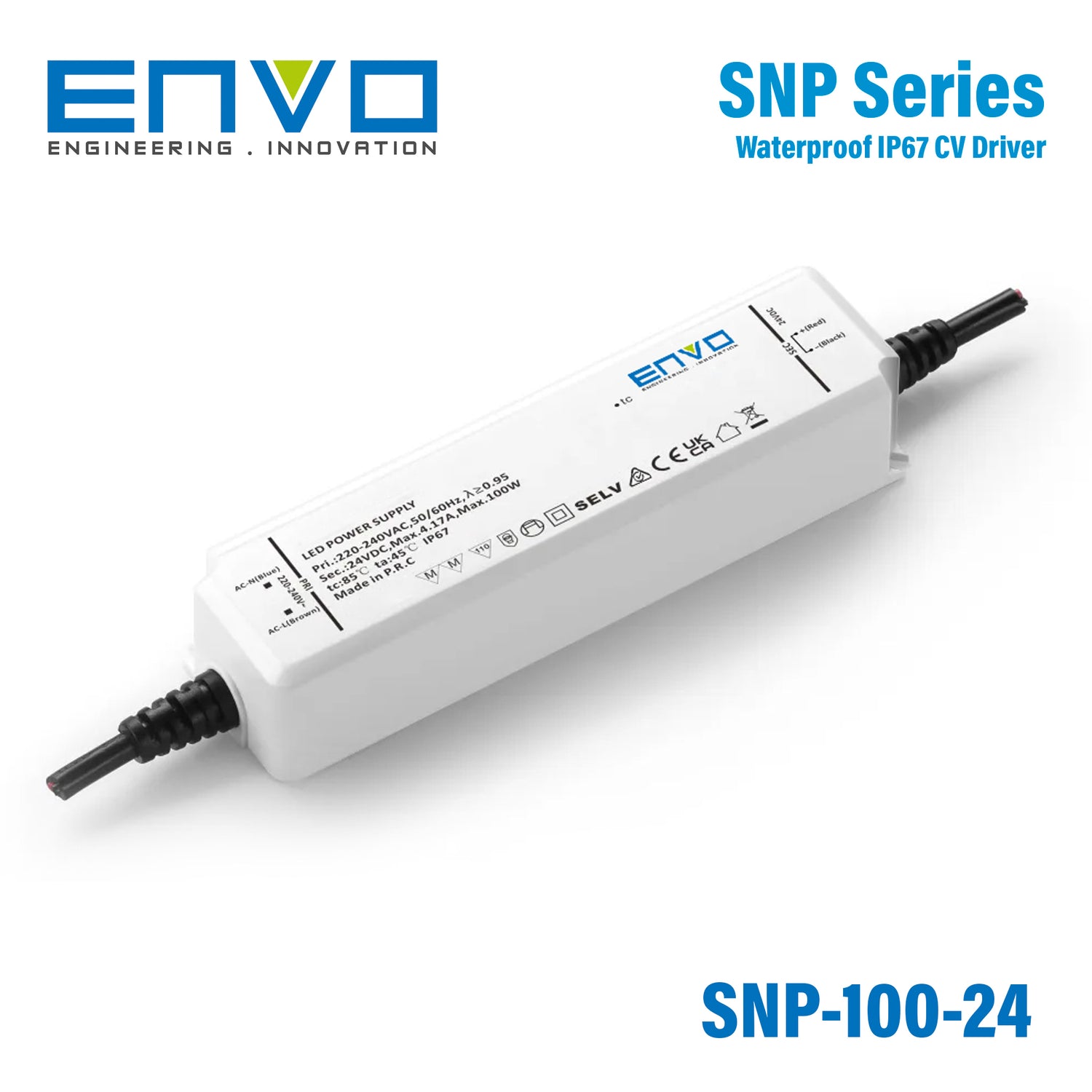

Envo EV-SNP-100-24 LED Driver 100W 24V Waterproof IP67 4.17A

waterproof IP67
SKU EV-SNP-100-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 4 in this family

EV-SNP-100-24
In stock
|

Overview

EV-SNP-100-24 is the 24V output model of this series: rated current 0-4.17A, rated power 100W.

EV-SNP-100-12/24 is a constant voltage IP67 LED driver with an input voltage range of 220-240Vac and a conversion efficiency up to 90%. Excellent power factor, low standby power consumption, and comprehensive protection functions not only greatly improve the reliability of the product, but also ensure the product life cycle. This series of products is designed for LED lighting design and applied to outdoor lighting. It is suitable for various application environments in almost all outdoor places where LED luminaires can be installed. Comply with the world's lighting equipment safety regulations

Features

  • AC input(220-240VAC)
  • Built-in active PFC function
  • Compliance to worldwide safety regulations for lighting
  • Protections: Short circuit / Over voltage / Over temperature/Over load
  • Using plastic shell. internal potting.
  • Compliance to worldwide safety

Specifications

EV-SNP-100-24Specifications from the official datasheetDownload datasheet PDF

Output

DC Voltage
24V
Voltage Tolerance
±5%
Rated current
0-4.17A
Rated power
100W

Input

Voltage Range
AC 220V - 240V
Frequency Range
50-60HZ
Power Factor
0.95
Full Load Efficiency (Typ.)
88%
AC Current (Max.)
0.3A/230V
Leakage current
0.7mA (240Vac/60HZ)

Protection

Short Circuit
hiccup mode, restart automatically after fault correction
Over load
1.2-1.5 times maximum rated load

Environment

Working TEMP.
-20 - 45°C
Working Humidity
5%RH - 85%RH
Storage TEM.,Humidity
-40°C-80°C; 5%RH-85%RH
TEMP.coefficient
±0.03%/°C (0 ~ 60°C)

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
Input-Output: 3750V/5mA/1min
Isolation resistance
>5M Ohm/500VDC/25°C/70%RH
EMC EMISSION
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017
EMC immunity
Compliance to EN-61547:2009, EN-61000-4-2,3,4,5,6,11

Others

Weight
0.48KG
Size
155.6*47.6*32.5mm (L*W*H)
Packing
25PCS

Notes

Warranty
5 years

Technical drawings

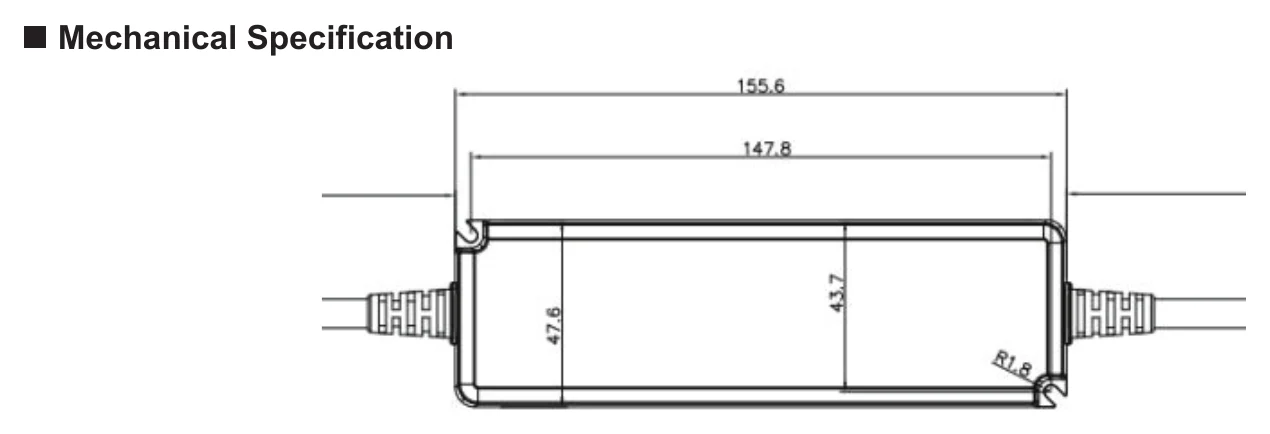

EV-SNP-100-24 Mechanical Specification
Mechanical Specification

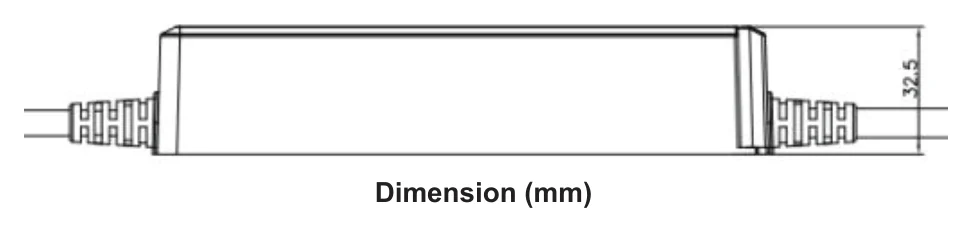

EV-SNP-100-24 Mechanical Specification (2)
Mechanical Specification (2)

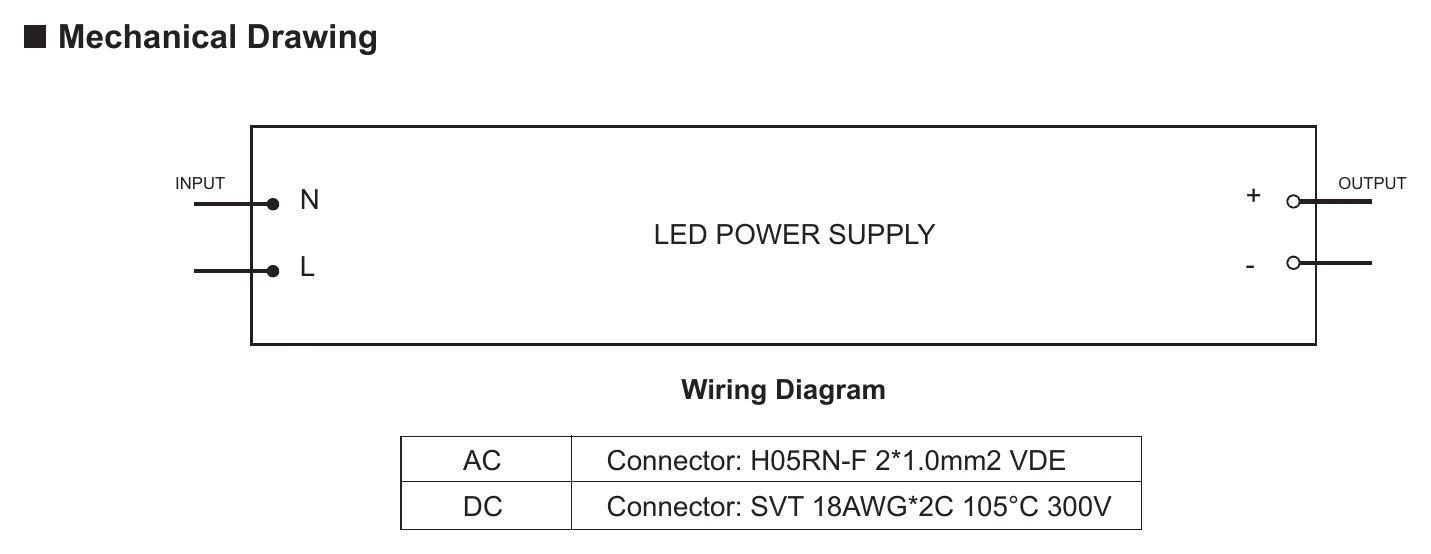

EV-SNP-100-24 Mechanical Drawing
Mechanical Drawing

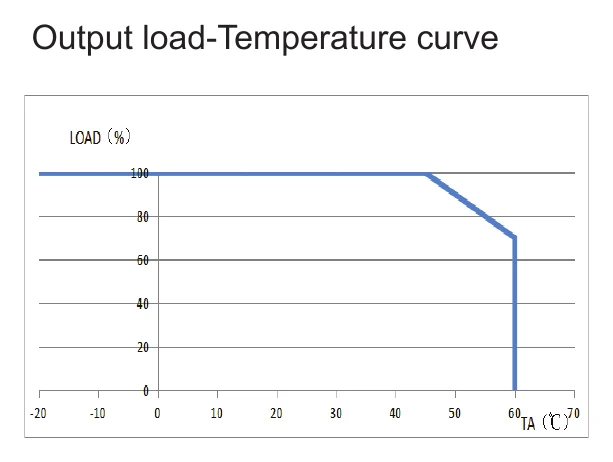

EV-SNP-100-24 Output load-Temperature curve
Output load-Temperature curve

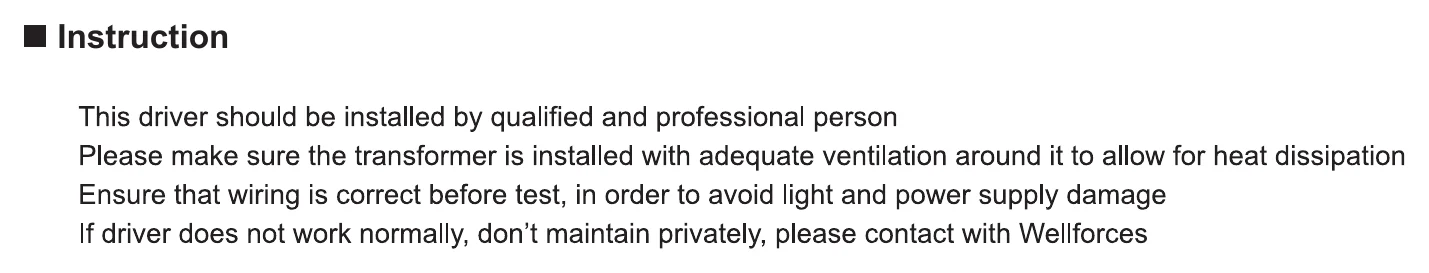

EV-SNP-100-24 Instruction
Instruction

Downloads

FAQ

What is the Envo EV-SNP-100-24 used for?

The Envo EV-SNP-100-24 is a 24V LED driver designed for constant-voltage lighting applications. With a 100W power rating, it is suited to systems that require a stable 24V DC output from a 220-240VAC input.

What are the main electrical specifications of this LED driver?

This model is rated at 100W with a 24V output and a rated current of 4.17A. It accepts a 220-240VAC input and is built for constant-voltage LED applications.

Is the EV-SNP-100-24 dimmable?

No, this model does not include a dimming control function. It is intended for applications where a non-dimmable 24V constant-voltage LED driver is needed.

Can this LED driver be used in demanding environments?

Yes, the EV-SNP-100-24 has an IP67 waterproof rating and uses a plastic shell with internal potting for added protection. Its specified operating temperature range is -20°C to 45°C.

What protection features are included in this model?

The EV-SNP-100-24 includes short circuit and over load protection. Short circuit protection uses hiccup mode with automatic restart after fault correction, while over load protection activates when the load exceeds 1.2-1.5 times the rated maximum.

What warranty is offered for the Envo EV-SNP-100-24?

This model includes a 5-year warranty period. That makes it a suitable option for buyers looking for a long-service-life 24V waterproof LED driver.
