Over 15 years experience of providing support of MEAN WELL Power Supplies

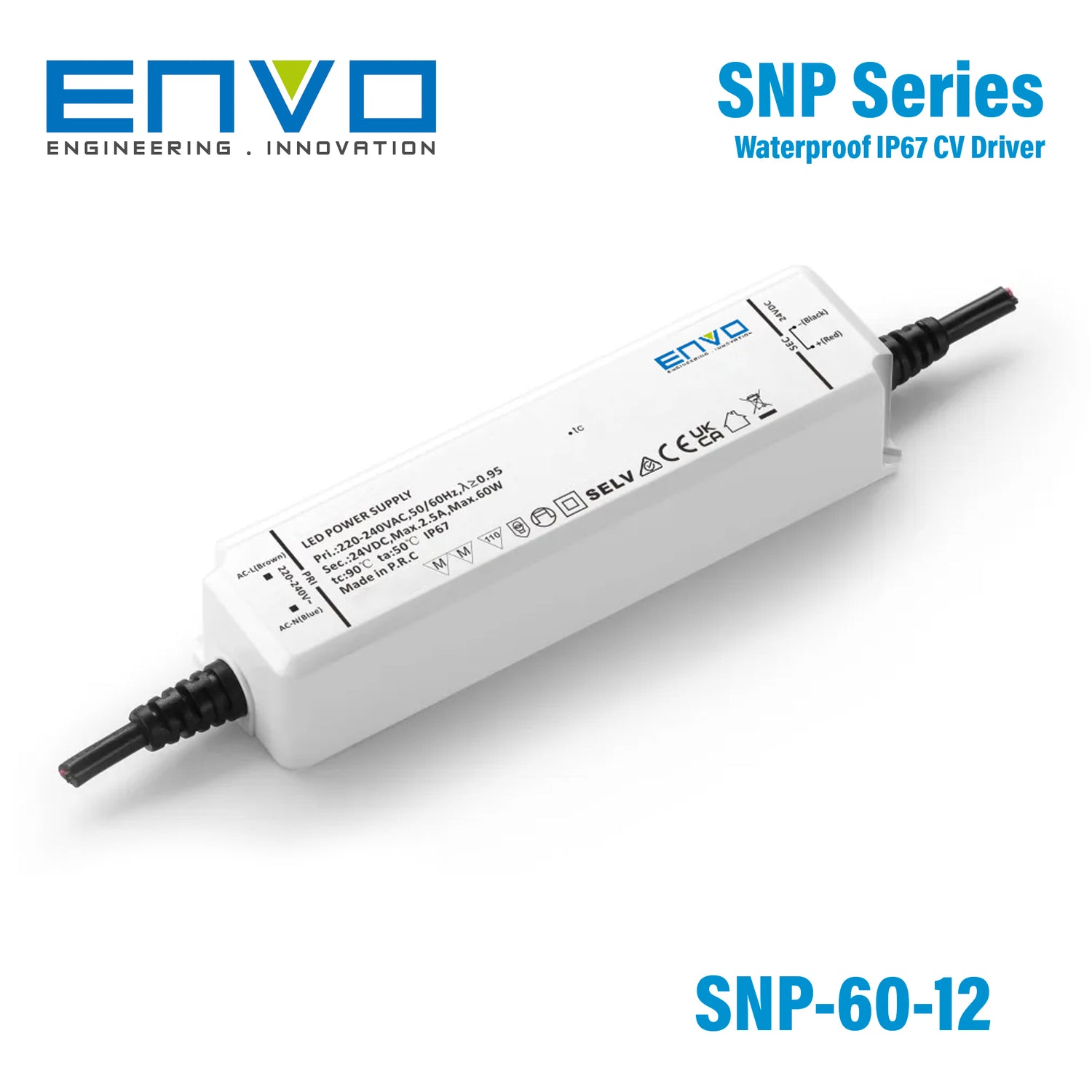

Envo EV-SNP-60-12 LED Driver 60W 12V Waterproof IP67 5A
Please Login for Pricing
Description
Description
- AC input（220-240VAC)
- Built-in active PFC function
- Compliance to worldwide safety regulations for lighting
- Protections: Short circuit / Over voltage / Over temperature/Over load
- Using plastic shell. internal potting.
- Compliance to worldwide safety
Features
Specifications
Specifications
-
BrandEnvo
-
SeriesSC Envo Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage220V~240V
-
Standards MetCE,SAA,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~45°C
-
Warranty5 Year
-
Length15.5 cm
-
Width4.15 cm
-
Height3 cm
-
Weight0.4 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED applications is the Envo EV-SNP-60-12 designed for?
The EV-SNP-60-12 is a 12V constant-voltage LED driver rated for up to 60W and 5A output. It is suited to LED lighting applications that require a 12V DC power source and need a waterproof IP67 housing.
How do I know if this LED driver is the right size for my project?
This model provides 12V output with a maximum rated current of 5A and a total power rating of 60W. It is a fit when your 12V LED load stays within those output limits and does not require a dimming-control driver.
What are the key specifications of the Envo EV-SNP-60-12?
This model accepts 220-240VAC input and delivers 12V DC output at up to 5A, for a total of 60W. It also includes active PFC, an IP67 waterproof design, and a 5-year warranty.
Can this driver be used in wet or dusty environments?
The EV-SNP-60-12 is described as waterproof IP67, which makes it suitable for environments where moisture resistance is important. Its operating temperature range is -20°C to 45°C, so ambient conditions should stay within that range.
What protections are built into the EV-SNP-60-12?
This LED driver includes protection for short circuit, over voltage, over temperature, and overload conditions. Those built-in protections help support reliability in lighting power applications using this specific 60W 12V model.
When would I choose this model over a non-waterproof 12V driver?
The EV-SNP-60-12 stands out when you need a 12V, 60W, 5A driver with an IP67 waterproof enclosure and active PFC. If your project does not need dimming and benefits from a sealed plastic housing with internal potting, this model is a stronger fit than a basic indoor-only alternative.
Other EV-SNP Models
5 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Envo EV-SNP-100-24 LED Driver 100W 24V Waterproof IP67 4.17A | 100W | 24V | 4.17A | Indoor | View |
| Envo EV-SNP-24-24 LED Driver 24W 24V Waterproof IP67 1A | 24W | 24V | 1A | Indoor | View |
| Envo EV-SNP-60-24 LED Driver 60W 24V Waterproof IP67 2.5A | 60W | 24V | 2.5A | Indoor | View |
| Envo EV-SNP-35-24 LED Driver 35W 24V Waterproof IP67 1.45A | 35W | 24V | 1.45A | Indoor | View |
| Envo EV-SNP-100-12 LED Driver 100W 12V Waterproof IP67 8.3A | 100W | 12V | 8.3A | Indoor | View |
