Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

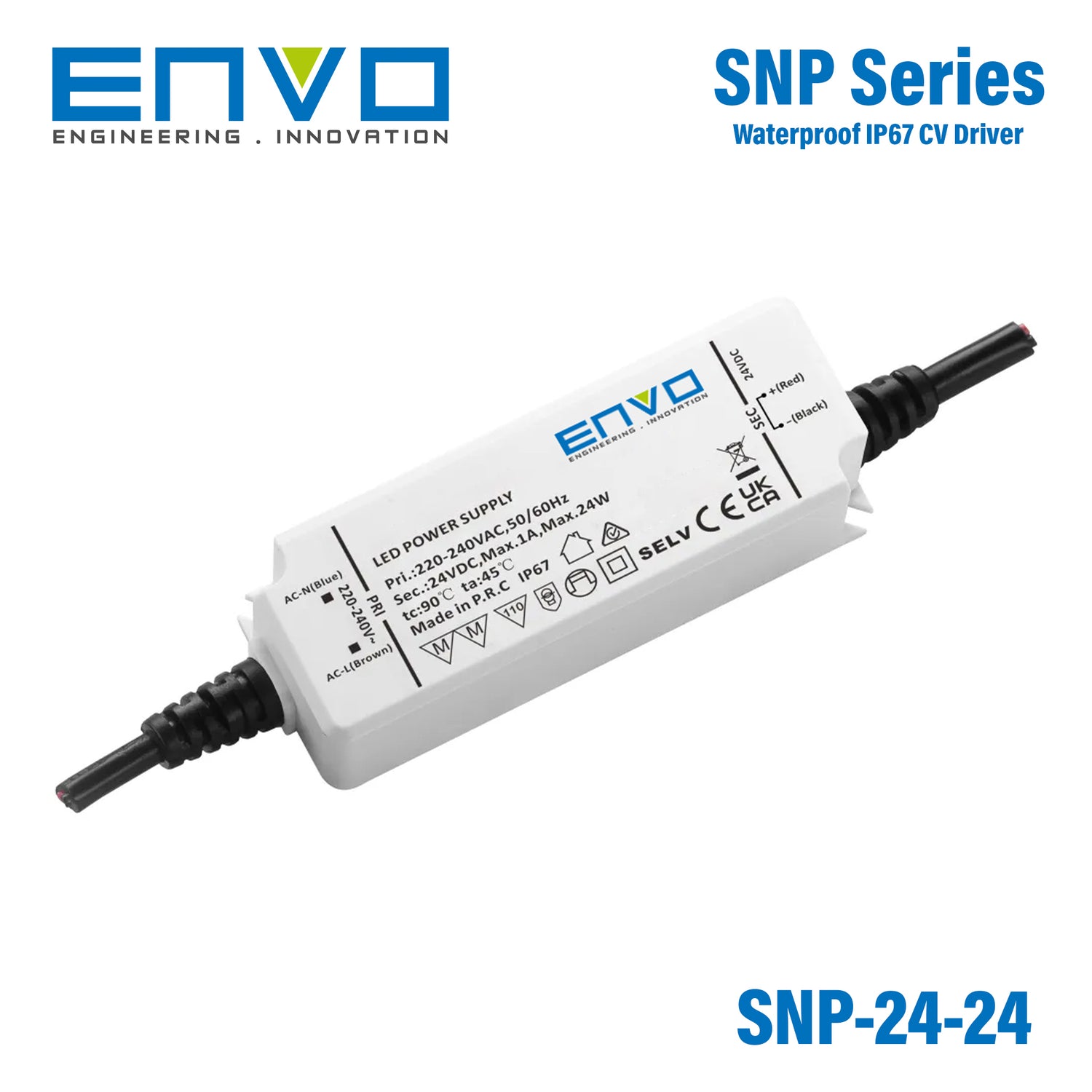

Envo EV-SNP-24-24 LED Driver 24W 24V Waterproof IP67 1A

waterproof IP67

SKU:

EV-SNP-24-24

Please for Pricing

Notify me when it's back in stock

Description

Features

AC input（220-240VAC)
Built-in active PFC function
Compliance to worldwide safety regulations for lighting
Protections: Short circuit / Over voltage / Over temperature/Over load
Using plastic shell. internal potting.
Compliance to worldwide safety

Specifications

Brand

Envo
Series

SC Envo Series
Power Rating

24 Watt
Output Voltage

24 Volt
Rated Current

1 Ampere
Input Voltage

220V~240V
Standards Met

CE,SAA,TUV
Operation Mode

Constant Voltage
Operating Temperature

-20°C~45°C
Warranty

5 Year
Length

11 cm
Width

4 cm
Height

2.95 cm
Weight

0.28 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Envo EV-SNP-24-24 designed for?

The Envo EV-SNP-24-24 is a constant-voltage LED driver for 24V lighting applications. It is rated at 24W with a 24V output, making it suitable for setups that need a matching 24V power supply within that power range.

What are the main electrical specifications of this LED driver?

This model has a 24W power rating, 24V output voltage, and 1.0A rated current. It accepts 220-240VAC input and is built as a non-dimming driver.

Is the EV-SNP-24-24 dimmable?

No, this model does not include a dimming control. If your project requires dimming functionality, you would need a different driver specifically designed for that purpose.

Can this driver be used in demanding environments?

This model is described as waterproof with an IP67 rating and uses a plastic shell with internal potting. It is also specified for operation from -20°C to 45°C, which helps it suit a range of indoor or protected outdoor lighting environments.

What protection features does the Envo EV-SNP-24-24 include?

The EV-SNP-24-24 includes short circuit, over voltage, over temperature, and over load protection. These built-in protections help safeguard the driver during abnormal operating conditions.

What warranty is offered for this LED driver?

This model is listed with a 5-year warranty period. That makes it a stronger fit for buyers looking for a longer service-life expectation in commercial or professional lighting projects.

Model	Power	Voltage	Current	IP Rating
Envo EV-SNP-100-24 LED Driver 100W 24V Waterproof IP67 4.17A	100W	24V	4.17A	Indoor	View
Envo EV-SNP-60-24 LED Driver 60W 24V Waterproof IP67 2.5A	60W	24V	2.5A	Indoor	View
Envo EV-SNP-60-12 LED Driver 60W 12V Waterproof IP67 5A	60W	12V	5A	Indoor	View
Envo EV-SNP-35-24 LED Driver 35W 24V Waterproof IP67 1.45A	35W	24V	1.45A	Indoor	View
Envo EV-SNP-100-12 LED Driver 100W 12V Waterproof IP67 8.3A	100W	12V	8.3A	Indoor	View
