Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

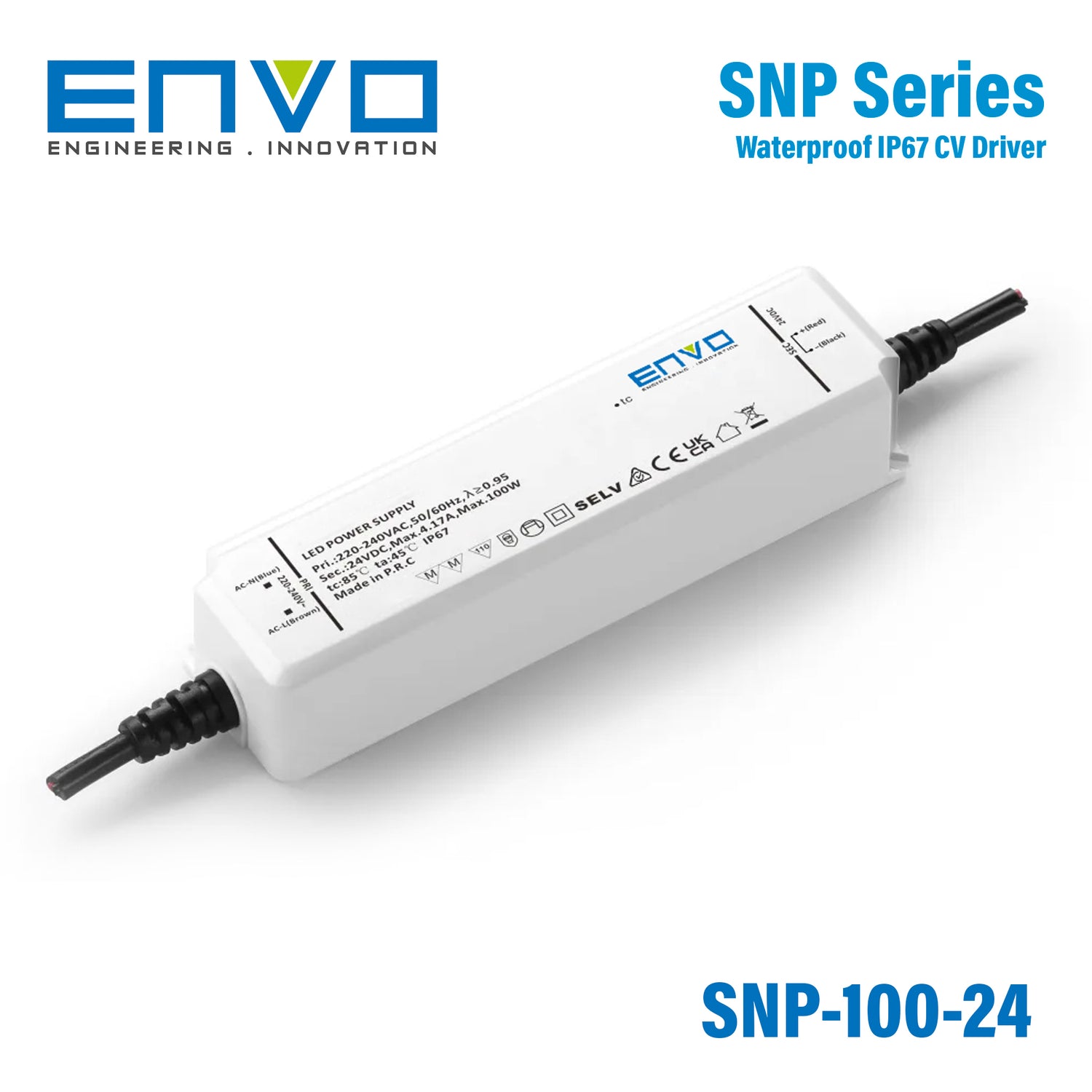

Envo EV-SNP-100-24 LED Driver 100W 24V Waterproof IP67 4.17A

waterproof IP67

SKU:

EV-SNP-100-24

Please for Pricing

Notify me when it's back in stock

Description

Features

AC input（220-240VAC)
Built-in active PFC function
Compliance to worldwide safety regulations for lighting
Protections: Short circuit / Over voltage / Over temperature/Over load
Using plastic shell. internal potting.
Compliance to worldwide safety

Specifications

Brand

Envo
Series

SC Envo Series
Power Rating

100 Watt
Output Voltage

24 Volt
Rated Current

4.17 Ampere
Input Voltage

220V~240V
Standards Met

CE,SAA,TUV
Operation Mode

Constant Voltage
Operating Temperature

-20°C~45°C
Warranty

5 Year
Length

15.56 cm
Width

4.76 cm
Height

3.25 cm
Weight

0.48 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Envo EV-SNP-100-24 used for?

The Envo EV-SNP-100-24 is a 24V LED driver designed for constant-voltage lighting applications. With a 100W power rating, it is suited to systems that require a stable 24V DC output from a 220-240VAC input.

What are the main electrical specifications of this LED driver?

This model is rated at 100W with a 24V output and a rated current of 4.17A. It accepts a 220-240VAC input and is built for constant-voltage LED applications.

Is the EV-SNP-100-24 dimmable?

No, this model does not include a dimming control function. It is intended for applications where a non-dimmable 24V constant-voltage LED driver is needed.

Can this LED driver be used in demanding environments?

Yes, the EV-SNP-100-24 has an IP67 waterproof rating and uses a plastic shell with internal potting for added protection. Its specified operating temperature range is -20°C to 45°C.

What protection features are included in this model?

The EV-SNP-100-24 includes short circuit, over voltage, over temperature, and over load protection. These built-in protections help support reliability in LED lighting applications.

What warranty is offered for the Envo EV-SNP-100-24?

This model includes a 5-year warranty period. That makes it a suitable option for buyers looking for a long-service-life 24V waterproof LED driver.

Model	Power	Voltage	Current	IP Rating
Envo EV-SNP-24-24 LED Driver 24W 24V Waterproof IP67 1A	24W	24V	1A	Indoor	View
Envo EV-SNP-60-24 LED Driver 60W 24V Waterproof IP67 2.5A	60W	24V	2.5A	Indoor	View
Envo EV-SNP-60-12 LED Driver 60W 12V Waterproof IP67 5A	60W	12V	5A	Indoor	View
Envo EV-SNP-35-24 LED Driver 35W 24V Waterproof IP67 1.45A	35W	24V	1.45A	Indoor	View
Envo EV-SNP-100-12 LED Driver 100W 12V Waterproof IP67 8.3A	100W	12V	8.3A	Indoor	View
