Envo

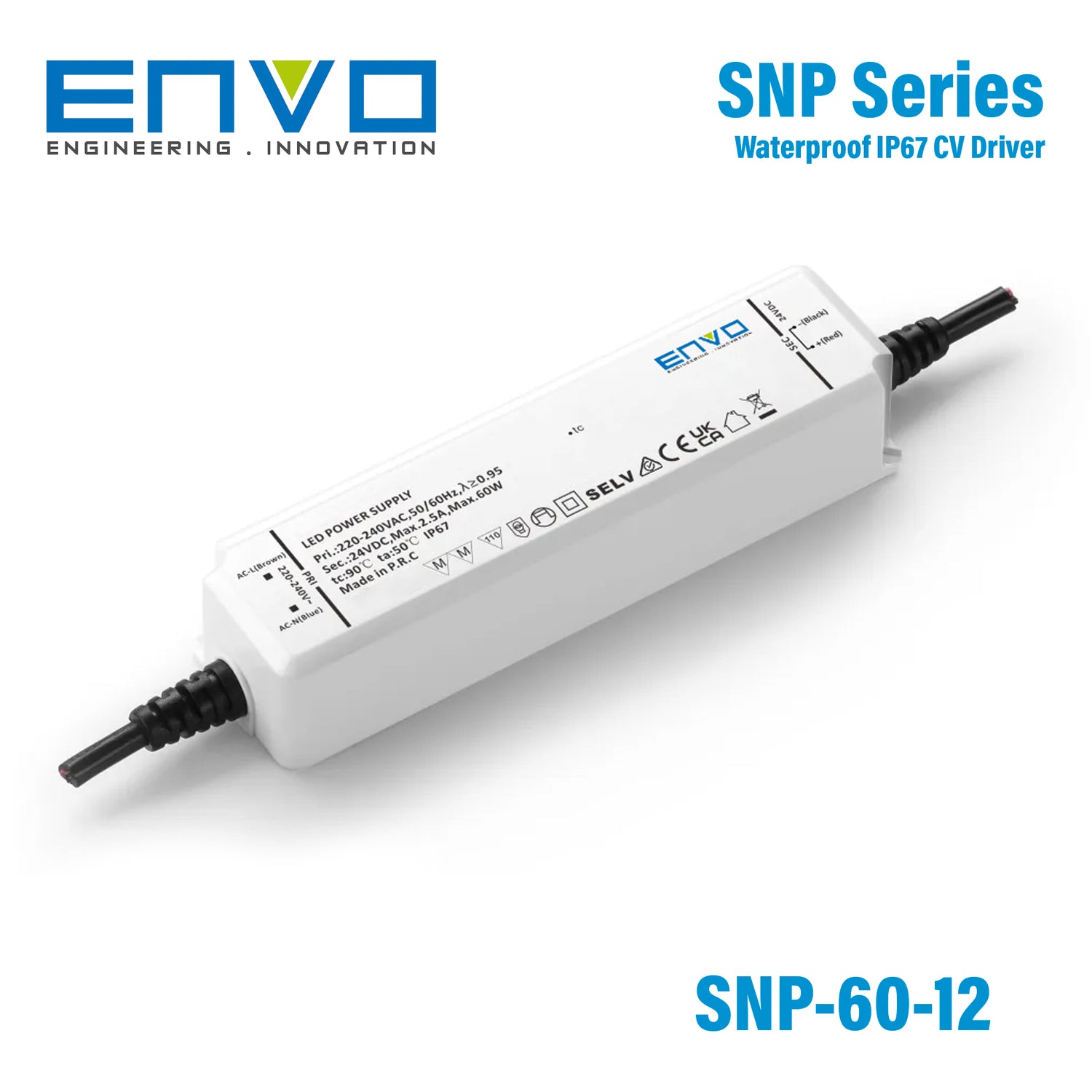

Envo EV-SNP-60-12 LED Driver 60W 12V Waterproof IP67 5A

waterproof IP67
SKU EV-SNP-60-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 4 in this family

EV-SNP-60-12
In stock
|

Overview

EV-SNP-60-12 is the 12V output model of this series: rated current 0-5A, rated power 60W.

EV-SNP-60-12/24 is a constant voltage IP67 LED driver with an input voltage range of 220- 240Vac and a conversion efficiency up to 86%.It works in the temperature range of - 20 ° C~+45 ° C natural cooling radiator housing, and has ultra-high power factor, ultra-low Total harmonic distortion, low standby power consumption, and all round protection functions, which not only greatly improves the reliability of the product, but also ensures the product lifecycle. Comply with global lighting safety regulations, ensuring the safety of both users and lighting systems during installation

Features

  • AC input 220-240VAC)
  • Built-in active PFC function
  • Compliance to worldwide safety regulations for lighting
  • Protections: Short circuit / Over voltage / Over temperature/Over load
  • Using plastic shell. internal potting.
  • Compliance to worldwide safety

Specifications

EV-SNP-60-12Specifications from the official datasheetDownload datasheet PDF

Output

DC Voltage
12V
Voltage Tolerance
±5%
Rated current
0-5A
Rated power
60W

Input

Voltage Range
AC 220V - 240V
Frequency Range
50-60HZ
Power Factor
0.95
Full Load Efficiency (Typ.)
87%
AC Current (Max.)
0.3A/230V
Leakage current
0.7mA (230Vac/60HZ)

Protection

Short Circuit
hiccup mode, restart automatically after fault correction
Over load
1.2-1.5 times maximum rated load

Environment

Working TEMP.
-20 - 45°C
Working Humidity
10%RH - 95%RH
Storage TEM.,Humidity
-40°C-80°C; 10%RH-95%RH
TEMP.coefficient
±0.03%/°C (0 ~ 60°C)

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
Input-Output 3750V/5mA/1min
Isolation resistance
>5M Ohm/500VDC/25°C/70%RH
EMC EMISSION
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017
EMC immunity
Compliance to EN-61547:2009, EN-61000-4-2,3,4,5,6,11

Others

Weight
0.4KG
Size
155.5*41.5*30mm (L*W*H)
Packing
25PCS
Warranty
5 years

Technical drawings

EV-SNP-60-12 Mechanical Specification
Mechanical Specification
EV-SNP-60-12 Mechanical Drawing
Mechanical Drawing
EV-SNP-60-12 Derating Curve
Derating Curve

Downloads

FAQ

What type of LED applications is the Envo EV-SNP-60-12 designed for?

The EV-SNP-60-12 is a 12V constant-voltage LED driver rated for up to 60W and 5A output. It is suited to LED lighting applications that require a 12V DC power source and need a waterproof IP67 housing.

How do I know if this LED driver is the right size for my project?

This model provides 12V output with a maximum rated current of 5A and a total power rating of 60W. It is a fit when your 12V LED load stays within those output limits and does not require a dimming-control driver.

What are the key specifications of the Envo EV-SNP-60-12?

This model accepts 220-240VAC input and delivers 12V DC output at up to 5A, for a total of 60W. It also includes active PFC, an IP67 waterproof design, and a 5-year warranty.

Can this driver be used in wet or dusty environments?

The EV-SNP-60-12 is described as waterproof IP67, which makes it suitable for environments where moisture resistance is important. Its operating temperature range is -20°C to 45°C, so ambient conditions should stay within that range.

What protections are built into the EV-SNP-60-12?

This LED driver includes protection for short circuit, over voltage, over temperature, and overload conditions. Those built-in protections help support reliability in lighting power applications using this specific 60W 12V model.

When would I choose this model over a non-waterproof 12V driver?

The EV-SNP-60-12 stands out when you need a 12V, 60W, 5A driver with an IP67 waterproof enclosure and active PFC. If your project does not need dimming and benefits from a sealed plastic housing with internal potting, this model is a stronger fit than a basic indoor-only alternative.
