Envo

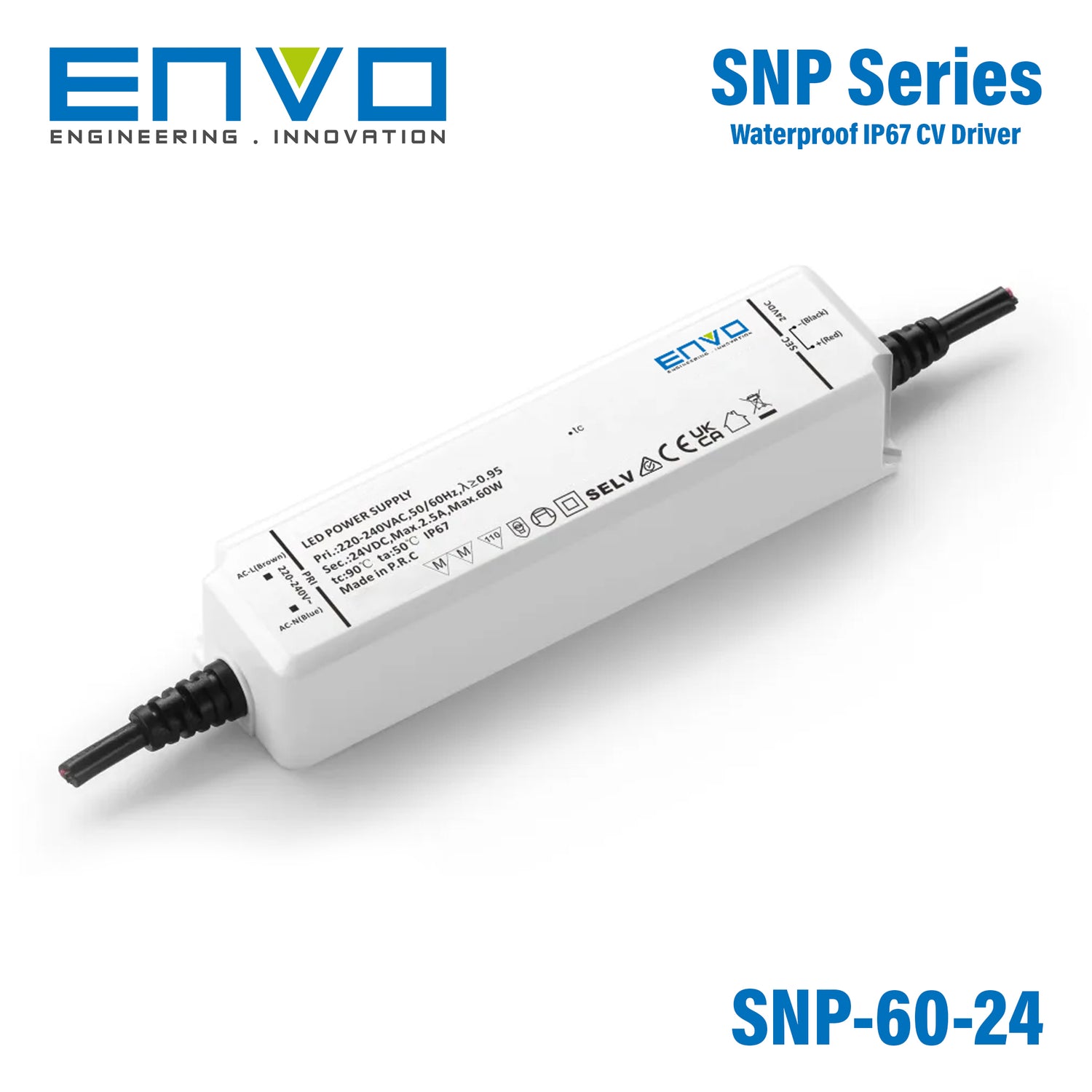

Envo EV-SNP-60-24 LED Driver 60W 24V Waterproof IP67 2.5A

waterproof IP67
SKU EV-SNP-60-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 4 in this family

EV-SNP-60-24
In stock
|

Overview

EV-SNP-60-24 is the 24V output model of this series: rated current 0-2.5A, rated power 60W.

EV-SNP-60-12/24 is a constant voltage IP67 LED driver with an input voltage range of 220- 240Vac and a conversion efficiency up to 86%.It works in the temperature range of - 20 ° C~+45 ° C natural cooling radiator housing, and has ultra-high power factor, ultra-low Total harmonic distortion, low standby power consumption, and all round protection functions, which not only greatly improves the reliability of the product, but also ensures the product lifecycle. Comply with global lighting safety regulations, ensuring the safety of both users and lighting systems during installation

Features

  • AC input 220-240VAC)
  • Built-in active PFC function
  • Compliance to worldwide safety regulations for lighting
  • Protections: Short circuit / Over voltage / Over temperature/Over load
  • Using plastic shell. internal potting.
  • Compliance to worldwide safety

Specifications

EV-SNP-60-24Specifications from the official datasheetDownload datasheet PDF

Output

DC Voltage
24V
Voltage Tolerance
±5%
Rated current
0-2.5A
Rated power
60W

Input

Voltage Range
AC 220V - 240V
Frequency Range
50-60HZ
Power Factor
0.95
Full Load Efficiency (Typ.)
88%
AC Current (Max.)
0.3A/230V
Leakage current
0.7mA (230Vac/60HZ)

Protection

Short Circuit
hiccup mode, restart automatically after fault correction
Over load
1.2-1.5 times maximum rated load

Environment

Working TEMP.
-20 - 45°C
Working Humidity
10%RH - 95%RH
Storage TEM.,Humidity
-40°C-80°C; 10%RH-95%RH
TEMP.coefficient
±0.03%/°C (0 ~ 60°C)

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
Input-Output 3750V/5mA/1min
Isolation resistance
>5M Ohm/500VDC/25°C/70%RH
EMC EMISSION
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017
EMC immunity
Compliance to EN-61547:2009, EN-61000-4-2,3,4,5,6,11

Others

Weight
0.4KG
Size
155.5*41.5*30mm (L*W*H)
Packing
25PCS
Warranty
5 years

Technical drawings

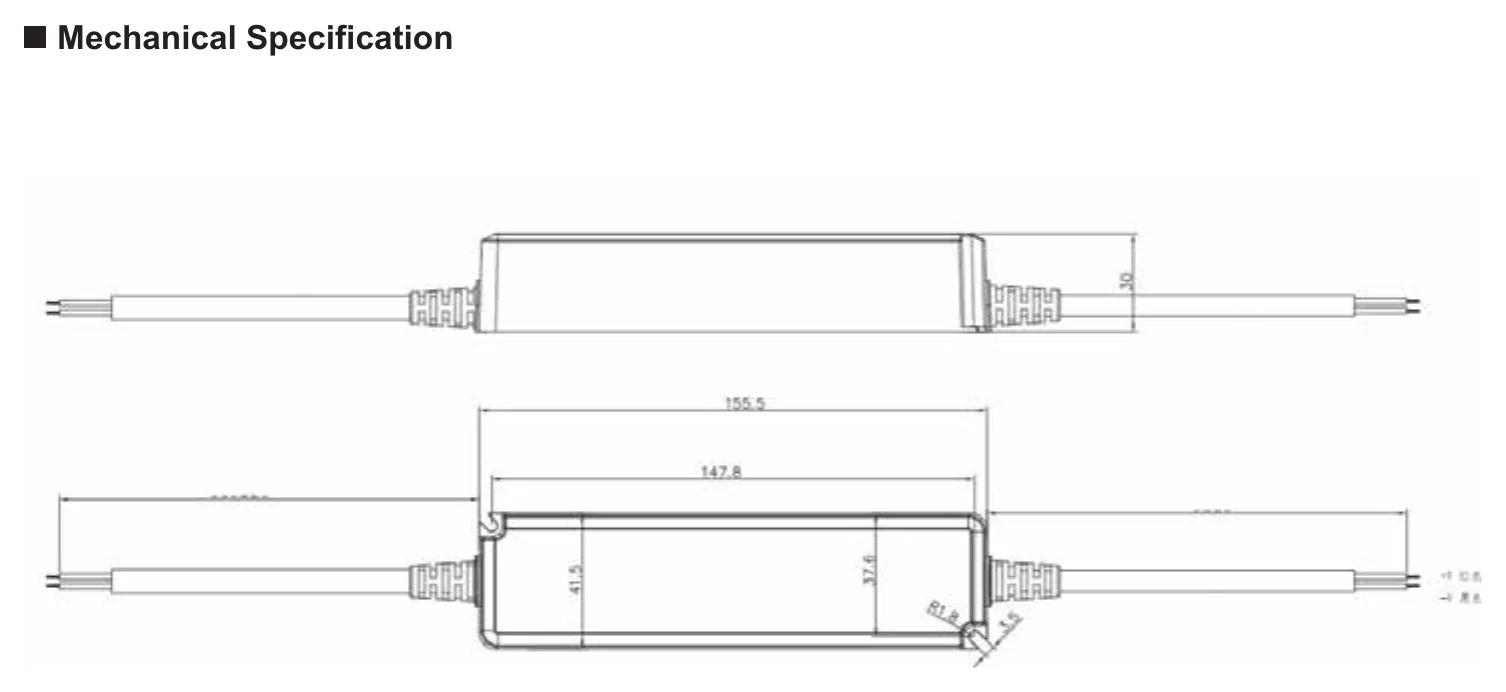

EV-SNP-60-24 Mechanical Specification
Mechanical Specification

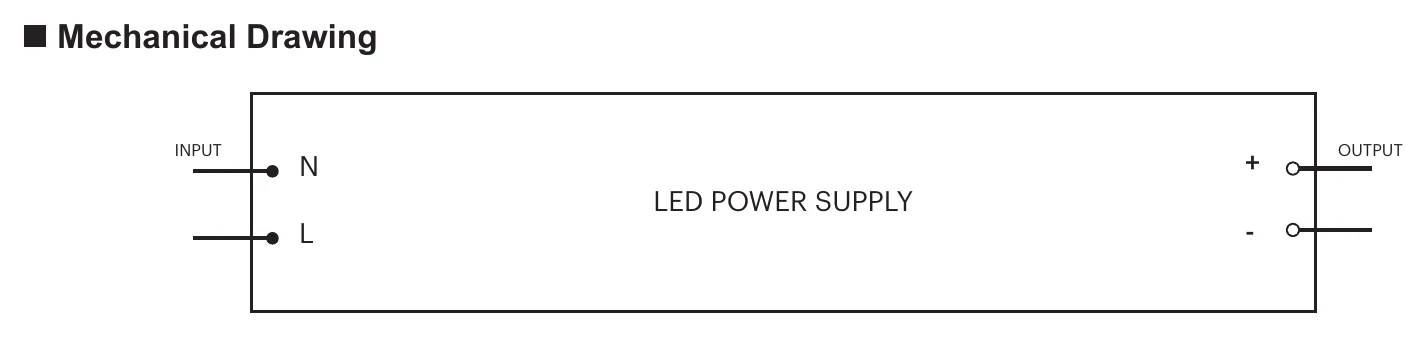

EV-SNP-60-24 Mechanical Drawing
Mechanical Drawing

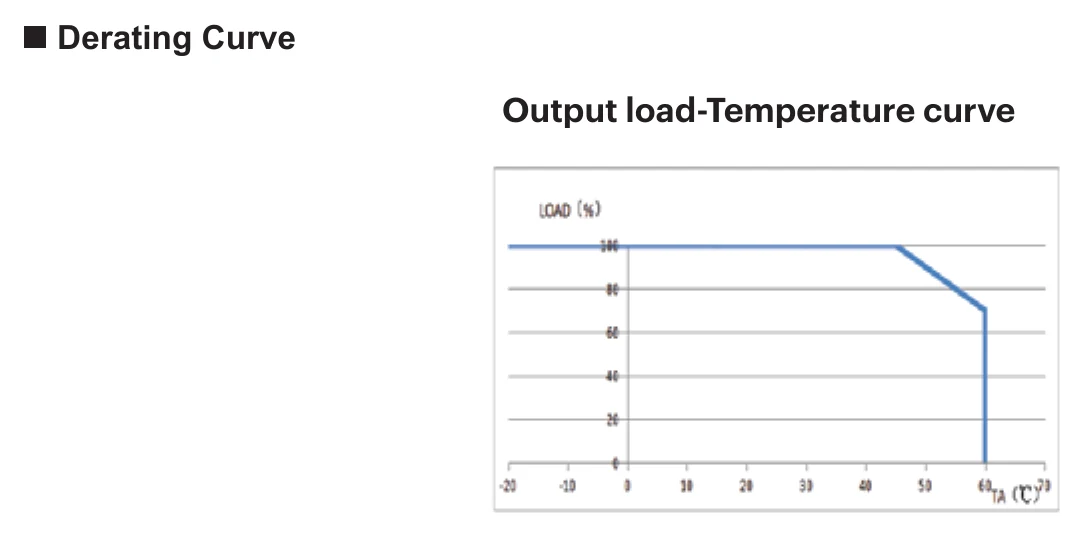

EV-SNP-60-24 Derating Curve
Derating Curve

Downloads

FAQ

What output does the Envo EV-SNP-60-24 provide?

The Envo EV-SNP-60-24 is a 60W constant-voltage LED driver with a 24V DC output. Its rated current is 2.5A, making it suitable for 24V lighting products that match those electrical requirements.

Is the Envo EV-SNP-60-24 dimmable?

No. This model is listed with no dimming control, so it is intended for non-dimming applications where a fixed 24V output is required.

Can this LED driver be used in wet or outdoor environments?

This model is rated IP67, which means it is built for waterproof use in demanding environments. That makes it a strong option for LED applications where moisture resistance is important.

What protections are included in the EV-SNP-60-24?

The EV-SNP-60-24 includes short circuit, over voltage, over temperature, and over load protection. These built-in safeguards help protect the driver during abnormal operating conditions.

What input voltage range does this driver support?

This LED driver is specified for 220-240VAC input. It is designed for applications using that AC supply range rather than universal multi-voltage input.

What operating temperatures is the Envo EV-SNP-60-24 rated for?

The stated operating temperature range for this model is -20°C to 45°C. Buyers should make sure the installation environment stays within that range for normal operation.

What kind of LED application is this model best suited for?

The EV-SNP-60-24 is best suited to 24V constant-voltage LED lighting applications that need up to 60W of power. Its IP67 construction and 24V output make it a practical choice for commercial or industrial LED projects requiring a waterproof driver.
