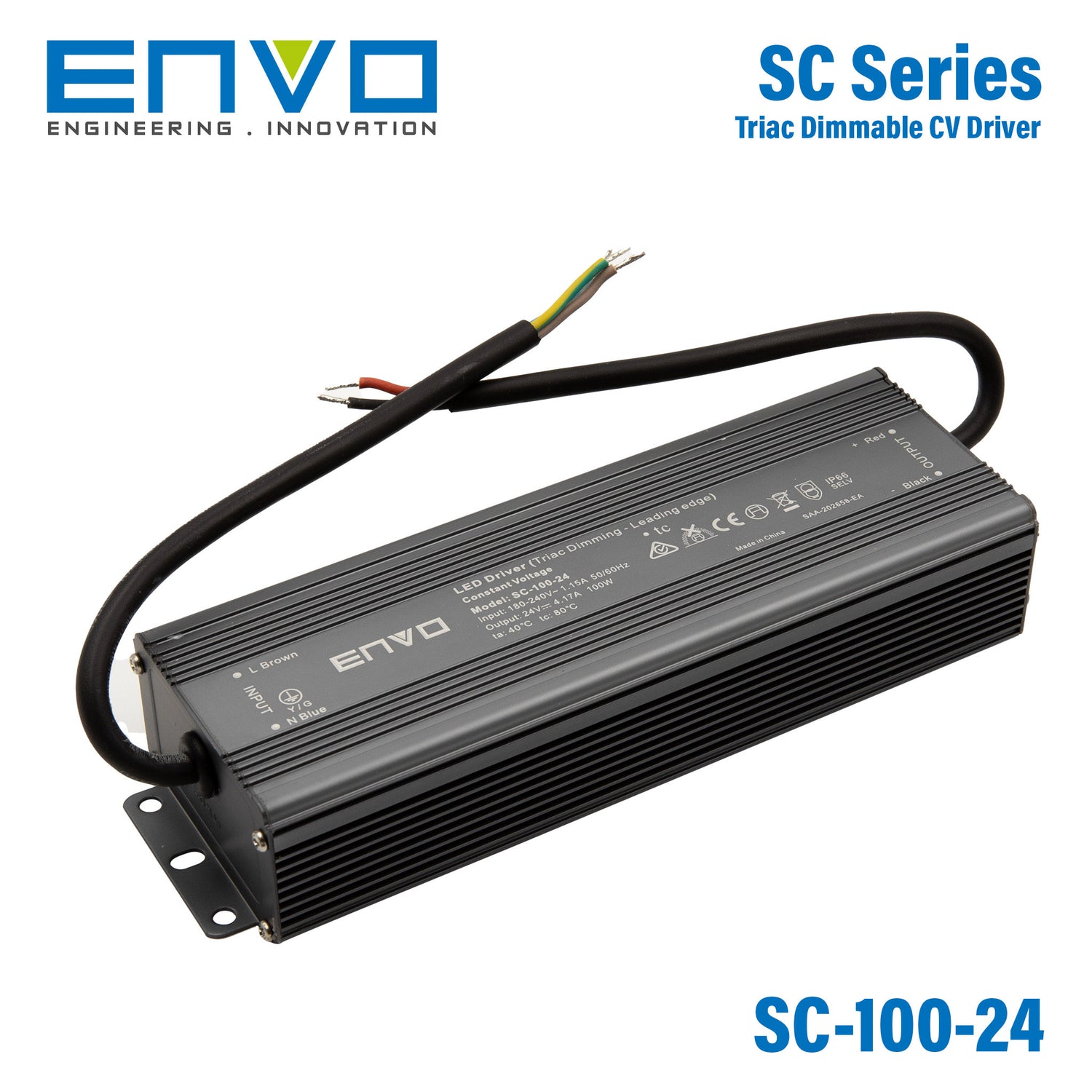

Envo SC-100-24 Power Supply 100W 24V - Triac dimmable 4.16A
Log in to see priceOverview
SC-100-24 is the 24V output model of this series: rated current 4.16A, rated power 100W, typical efficiency 84%@230VAC.
Features
- Output: Constant Voltage
- Range: 200-240VAC
- PFC design: Built-in active PFC function
- Efficiency: Up to 85%
- Protections: Short circuit/ over load/ over temperature
- Heat dissipation: Cooling by free air convection
- Waterproof performance: IP66
- Dimming function: Phase dimming: work with leading edge, MLV and trailing edge, ELV, TRIAC dimmers.
- Dimming range: 0-100%
- Warranty: 5 years warranty
Specifications
Certificate
- Certificate
- TUV / SAA / CCC / CE / CB / RoHS / Reach
Output
- DC Voltage
- 24V
- Voltage Tolerance
- ±0.5V
- Voltage Regulation
- ±0.5%
- Rated Current
- 4.16A
- Rated Power
- 100W
- Load Regulation
- ≤1%
Input
- Voltage Range
- 200-240VAC
- Frequency Range
- 47 - 63Hz
- THD(Typ.)@ Full Load
- ≤20% @ 200VAC, 230VAC, 240VAC

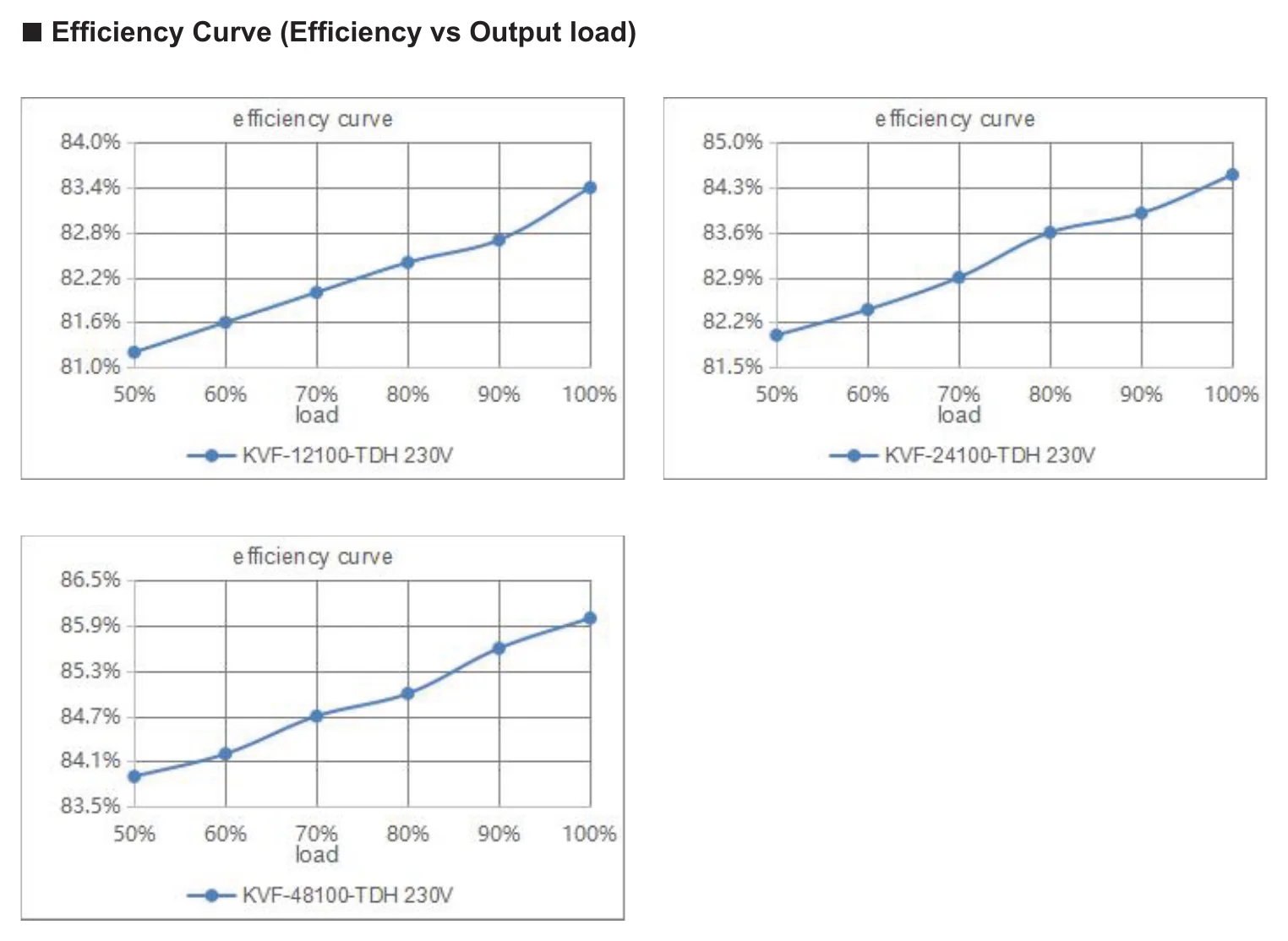

- Efficiency(Typ.)@ Full Load
- 84% @ 230VAC
- AC Current (Max.)
- 0.8A
- Inrush Current(Typ.)
- 56A, 280us @ 230VAC
- Leakage Current
- <0.5mA
Protection
- Short Circuit
- Hiccup mode, re-power on to recover after fault condition removed
- Over Load
- ≤120% Hiccup mode, recovers automatically after fault condition is removed
- Over Temperature
- Shell surface temp. 100°C±10°C shut down o/p voltage, automatically recover after the temperature drops.
Environment
- Working TEMP.

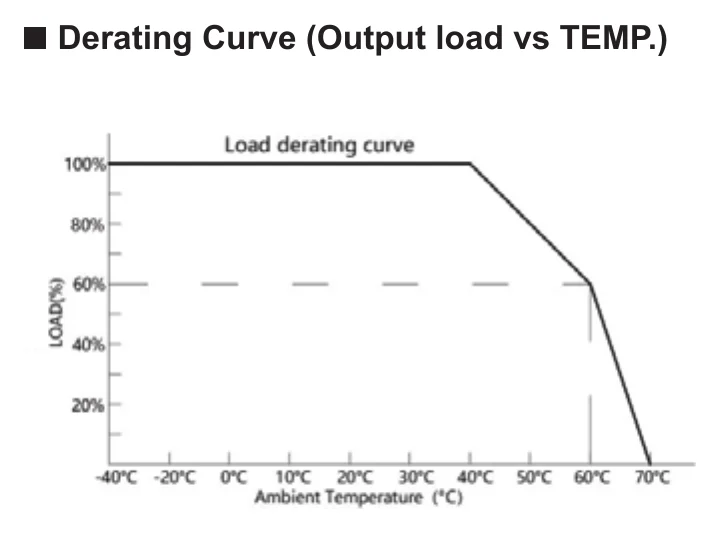

- -40~+60°C (see below derating curve)
- Working Humidity
- 20 - 95% RH non-condensing
- Storage TEM.,Humidity
- -40 - +80°C, 10 - 95% RH non-condensing
- TEMP.coefficient
- ±0.03%/°C (0 - 50°C)
- Vibration
- 10~500Hz, 5G 12min/1 cycle, period for 72min. each along X,Y,Z axes
Safety&EMC
- Safety standards
- EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
- Withstand voltage
- I/P-O/P: 3.75KVAC (EU), I/P-FG: 1.5KVAC (EU), I/P-FG: 0.5KVAC (EU)
- Isolation resistance
- I/P-O/P: 100MΩ / 500VDC / 25°C / 70%RH
- EMC Emission
- Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017
Others
- Net Weight
- 1.05kg
- Dimension
- 230*70*43mm (L*W*H)
- Packing
- 340*270*175mm, 10pcs/CT
Test conditions and notes2
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
- 2. Tolerance: includes set up tolerance and load regulation.

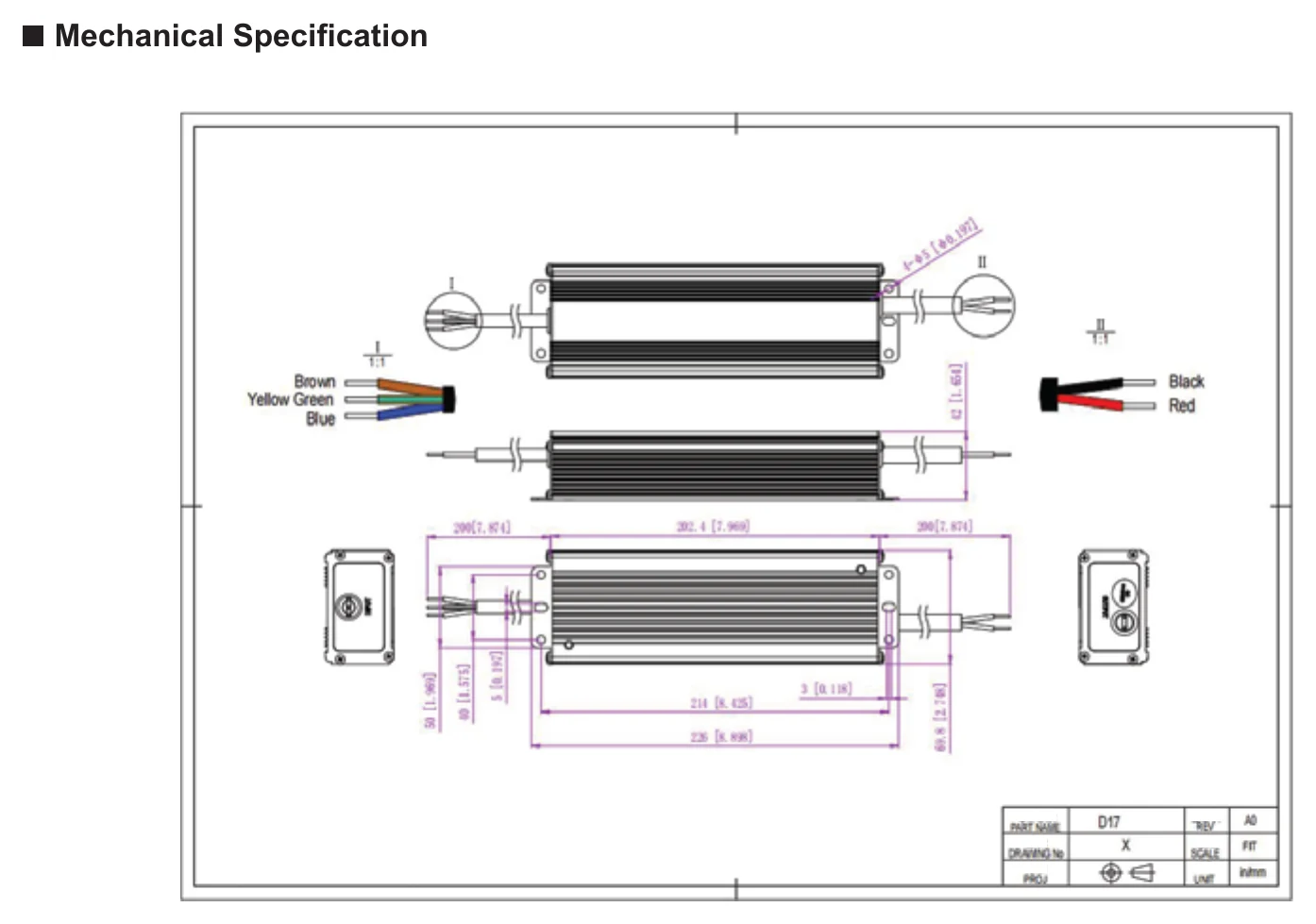

Technical drawings

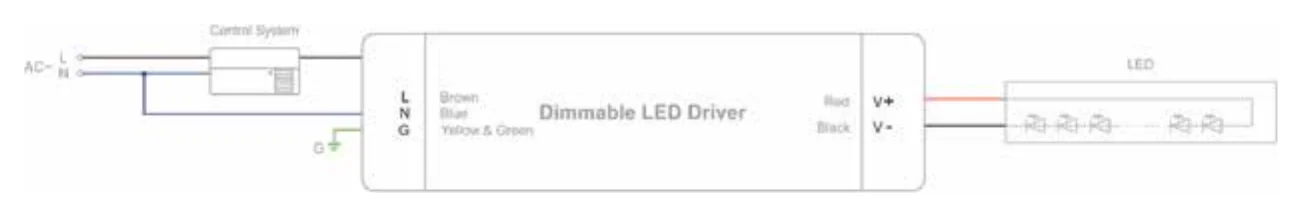

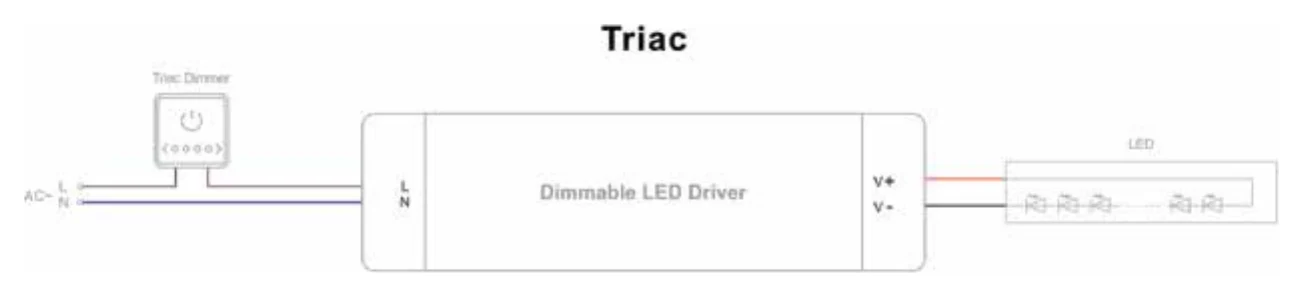

Typical applications
- Suitable for the application of LED lighting
Downloads
Datasheet1
FAQ
What is the Envo SC-100-24 used for?
The Envo SC-100-24 is a constant voltage 24V power supply designed for LED lighting and moving sign applications. Its 100W output makes it suitable for commercial and trade projects that need a higher-capacity 24V driver with phase-cut dimming support.
Is the Envo SC-100-24 dimmable?
Yes, this model is Triac dimmable and supports both leading edge and trailing edge phase-cut dimmers. It is described as offering strong compatibility and flicker-free dimming for suitable 24V LED applications.
What are the main electrical specifications of the Envo SC-100-24?
This model is rated at 100W with a 24V constant voltage output and a rated current of 4.16A. It accepts an AC input range of 200-240VAC and has an efficiency of 84% at 230VAC.
Can the Envo SC-100-24 be used outdoors?
Yes, the SC-100-24 has an IP66-rated design intended for outdoor installation. Its full aluminum housing also helps protect the unit in demanding environments.
What operating temperatures can the Envo SC-100-24 handle?
The specified operating temperature range is -40°C to 60°C. That makes it suitable for use across a wide range of indoor and outdoor commercial environments, provided the rest of the installation is designed appropriately.
What protection features does the Envo SC-100-24 include?
The SC-100-24 includes protection against short circuit, over load, and over temperature. These built-in protections help support reliability in demanding LED power supply applications.
How does the Envo SC-100-24 compare with non-dimmable 24V power supplies?
A key difference is that the SC-100-24 supports leading edge and trailing edge Triac dimming, while a non-dimmable 24V supply would not offer that control capability. This makes it a better fit for projects where dimming performance and compatibility are important requirements.
What warranty is offered for the Envo SC-100-24?
The listed warranty period for the Envo SC-100-24 is 5 years. For trade buyers, that can be an important consideration for longer-term LED lighting projects.
