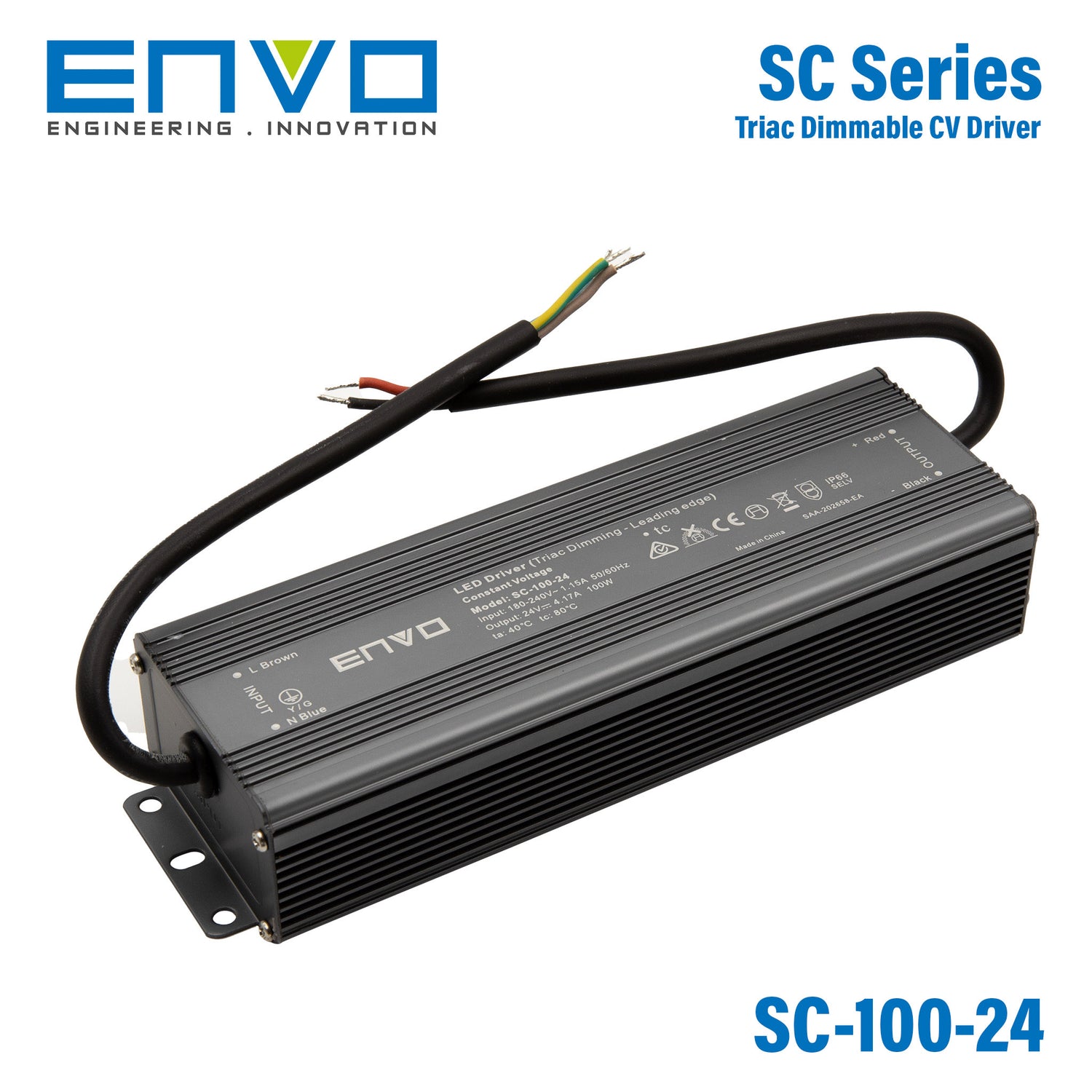

Envo SC-100-24 Power Supply 100W 24V - Triac dimmable 4.16A
Please Login for Pricing
Description
Description
- Output constant voltage
- Range AC input:180-240VA
- Efficiency :up to 83%
- Protections:short circuit/over loading/over current
- /Over temperature
- Full protection aluminum housing easy installation
- IP66 design for outdoor installation
- Cooling by free air convection
- Work with leading edge
- or trailing edge Triac dimmer
- Strong compatibility
- flicker-free dimming
- Suitable for LED lighting and moving sign applications
Specifications
Specifications
-
BrandEnvo
-
SeriesSC Envo Series
-
Power Rating100 Watt
-
Output Voltage24 Volt
-
Rated Current4.16 Ampere
-
Input Voltage180V~240V
-
Standards MetCE,SAA
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~60°C
-
Warranty5 Year
-
Length23 cm
-
Width7 cm
-
Height4.6 cm
-
Weight1.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Envo SC-100-24 used for?
The Envo SC-100-24 is a constant voltage 24V power supply designed for LED lighting and moving sign applications. Its 100W output makes it suitable for commercial and trade projects that need a higher-capacity 24V driver with phase-cut dimming support.
Is the Envo SC-100-24 dimmable?
Yes, this model is Triac dimmable and supports both leading edge and trailing edge phase-cut dimmers. It is described as offering strong compatibility and flicker-free dimming for suitable 24V LED applications.
What are the main electrical specifications of the Envo SC-100-24?
This model is rated at 100W with a 24V constant voltage output and a rated current of 4.16A. It accepts an AC input range of 180-240V and has efficiency of up to 83%.
Can the Envo SC-100-24 be used outdoors?
Yes, the SC-100-24 has an IP66-rated design intended for outdoor installation. Its full aluminum housing also helps protect the unit in demanding environments.
What operating temperatures can the Envo SC-100-24 handle?
The specified operating temperature range is -40°C to 60°C. That makes it suitable for use across a wide range of indoor and outdoor commercial environments, provided the rest of the installation is designed appropriately.
What protection features does the Envo SC-100-24 include?
The SC-100-24 includes protection against short circuit, over loading, over current, and over temperature. These built-in protections help support reliability in demanding LED power supply applications.
How does the Envo SC-100-24 compare with non-dimmable 24V power supplies?
A key difference is that the SC-100-24 supports leading edge and trailing edge Triac dimming, while a non-dimmable 24V supply would not offer that control capability. This makes it a better fit for projects where dimming performance and compatibility are important requirements.
What warranty is offered for the Envo SC-100-24?
The listed warranty period for the Envo SC-100-24 is 5 years. For trade buyers, that can be an important consideration for longer-term LED lighting projects.
Other SC-100 Models
2 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Envo SC-100-24-US Power Supply 100W 24V - Triac dimmable 4.17A | 100W | 24V | 4.17A | IP66 | View |
| Envo SC-100-12 Power Supply 100W 12V - Triac dimmable 8.33A | 100W | 12V | 8.33A | IP66 | View |
