Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Envo

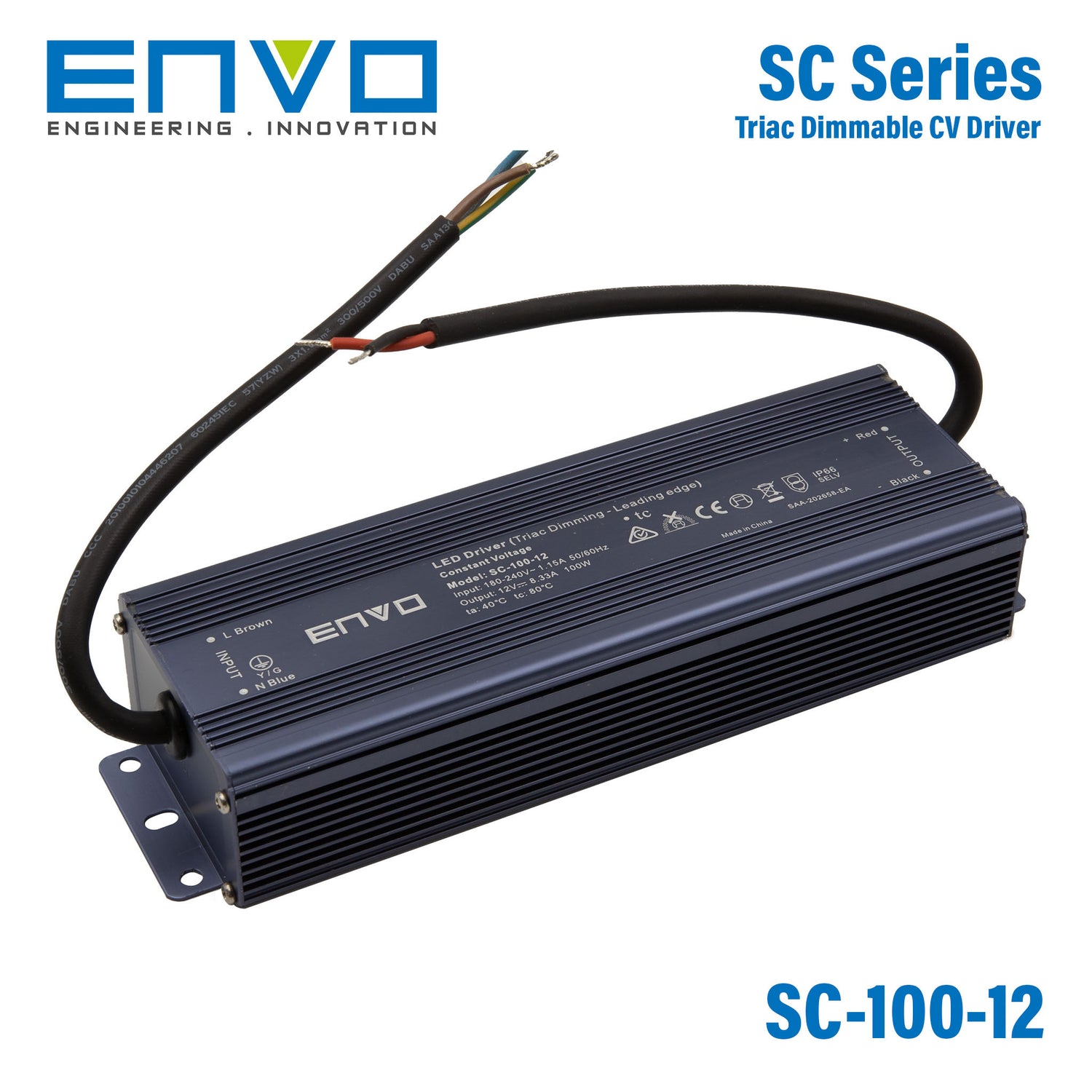

Envo SC-100-12 Power Supply 100W 12V - Triac dimmable 8.33A

triac dimmable
SKU SC-100-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 13 in this family

SC-100-12
In stock
|

Overview

SC-100-12 is the 12V output model of this series: rated current 8.33A, rated power 100W, typical efficiency 83%@230VAC.

Features

  • Output: Constant Voltage
  • Range: 200-240VAC
  • PFC design: Built-in active PFC function
  • Efficiency: Up to 85%
  • Protections: Short circuit/ over load/ over temperature
  • Heat dissipation: Cooling by free air convection
  • Waterproof performance: IP66
  • Dimming function: Phase dimming: work with leading edge, MLV and trailing edge, ELV, TRIAC dimmers.
  • Dimming range: 0-100%
  • Warranty: 5 years warranty

Specifications

SC-100-12Specifications from the official datasheetDownload datasheet PDF

Certificate

Certificate
TUV / SAA / CCC / CE / CB / RoHS / Reach

Output

DC Voltage
12V
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Rated Current
8.33A
Rated Power
100W
Load Regulation
≤2%

Input

Voltage Range
200-240VAC
Frequency Range
47 - 63Hz
THD(Typ.)@ Full Load
≤20% @200VAC, @230VAC, @240VAC
Efficiency(Typ.)@ Full Load
83% @230VAC
AC Current (Max.)
0.8A
Inrush Current(Typ.)
56A, 280us @230VAC
Leakage Current
<0.5mA

Protection

Short Circuit
Hiccup mode, re-power on to recover after fault condition removed
Over Load
≤120% Hiccup mode, recovers automatically after fault condition is removed
Over Temperature
Shell surface temp. 100°C±10°C shut down o/p voltage, automatically recover after the temperature drops.

Environment

Working TEMP.
-40~+60°C (see below derating curve)
Working Humidity
20 - 95% RH non-condensing
Storage TEM.,Humidity
-40 - +80°C, 10 - 95% RH non-condensing
TEMP.coefficient
±0.03%/°C (0 - 50°C)
Vibration
10~500Hz, 5G 12min/1 cycle, period for 72min. each along X,Y,Z axes

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
I/P-O/P: 3.75KVAC (EU), I/P-FG: 1.5KVAC (EU), I/P-FG: 0.5KVAC (EU)
Isolation resistance
I/P-O/P: 100MΩ / 500VDC / 25°C / 70%RH
EMC Emission
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017

Others

Net Weight
1.05kg
Dimension
230*70*43mm (L*W*H)
Packing
340*270*175mm, 10pcs/CTN
Test conditions and notes2
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
  2. 2. Tolerance: includes set up tolerance and load regulation.

Technical drawings

SC-100-12 Efficiency Curve (Efficiency vs Output load)
Efficiency Curve (Efficiency vs Output load)
SC-100-12 Derating Curve (Output load vs TEMP.)
Derating Curve (Output load vs TEMP.)
SC-100-12 Power Factor Curve
Power Factor Curve
SC-100-12 Mechanical Specification
Mechanical Specification
SC-100-12 TRIAC/Phase cut dimming
TRIAC/Phase cut dimming
SC-100-12 TRIAC/Phase cut dimming (2)
TRIAC/Phase cut dimming (2)

Typical applications

  • Suitable for the application of LED lighting

Downloads

FAQ

What type of LED application is the Envo SC-100-12 designed for?

The Envo SC-100-12 is a 12V constant voltage power supply intended for LED lighting and moving sign applications. Its 100W output and Triac dimming support make it suitable for projects that need stable 12V power with phase-cut dimming compatibility.

Is the Envo SC-100-12 a constant voltage or constant current driver?

This model is a constant voltage power supply. It provides a 12V output and is rated for up to 8.33A, which makes it appropriate for 12V constant voltage LED loads rather than constant current applications.

Does the Envo SC-100-12 support Triac dimming?

Yes. The SC-100-12 is specified as Triac dimmable and is designed to work with both leading edge and trailing edge Triac dimmers. The product description also states strong compatibility and flicker-free dimming performance.

Can the Envo SC-100-12 be used outdoors or in demanding environments?

This model has an IP66 design for outdoor installation, so it is intended for use in exposed environments where weather resistance matters. It is also rated for operation from -40°C to 60°C, which supports use across a wide temperature range.

What are the main electrical specifications of the Envo SC-100-12?

The SC-100-12 is rated at 100W output power with a 12V output voltage and 8.33A rated current. It also lists efficiency of up to 83%, making it a higher-power 12V option within this product type.

What protection features are included on the Envo SC-100-12?

The SC-100-12 includes protection for short circuit, over load, and over temperature. These protection features are relevant for commercial LED applications where reliability and equipment protection are important.

What warranty is offered for the Envo SC-100-12?

The listed warranty period for the Envo SC-100-12 is 5 years. That makes it a suitable option for buyers who want a longer warranty on a dimmable outdoor-rated 12V power supply.
