Envo

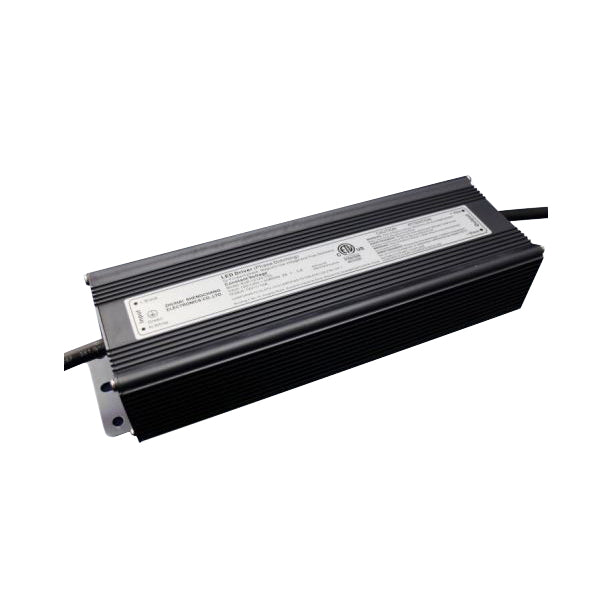

Envo SC-100-24-US Power Supply 100W 24V - Triac dimmable 4.17A

triac dimmableUS input
SKU SC-100-24-US
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

SC-100-24-US is the 24V output model of this series: rated current 4.17A, rated power 100W, typical efficiency 83%.

Features

  • Output constant voltage
  • Universal AC input: 100-130VAC
  • High efficiency :up to 86%
  • Protection:short circuit/over loading/over current/ Over temperature
  • Full protection aluminum housing
  • Easy installation
  • Cooling by free air convection
  • Compatible with Forward phase,Magnetic low voltage,Triac Dimmer
  • Strong compatibility, flicker-free dimming
  • Suitable for LED lighting and moving sign applications and others
  • Provide with a junction box for connection to line voltage
  • Suitable for indoor and outdoor location use, IP66

Specifications

SC-100-24-USSpecifications from the official datasheetDownload datasheet PDF

Certificates

Certificates
ETL,cETL,FCC

Output

DC Voltage
24V
Voltage Tolerance
±0.5V
Rated current
4.17A
Rated power
100W

Input

Voltage Range
100-130VAC
Frequency Range
50-60Hz
Power Factor
0.65（Full loading）
Efficiency（Typ.）
83%
AC Current（Max.）
1.7A
Leakage current
< 0.50mA/120VAC

Protection

Short Circuit
Hiccup mode, recover automatically after fault condition is removed
Over Current
≤1.2*I out
Over Loading
≤120%
Over temperature
100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.

Environment

Working TEMP.
-40 to +60℃
Working Humidity
20-95%RH, non-condensing
Storage TEMP. Humidity
-40 to +80℃, 10-95%RH
TEMP .coefficient
±0.03%/℃ (0-50℃)
Vibration
10-500Hz, 5G 12min./1 cycle, period for 72min. each along X, Y, Z axes

Safety& EMC

Safety standards
UL1012
Withstand voltage
I/P-O/P:1500VAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B

Others

Net. Weight
With junction 1.84Kg
Size
380*77*57mm (L*W*H）
packing
415*360*190mm 10PCS/CTN

Technical drawings

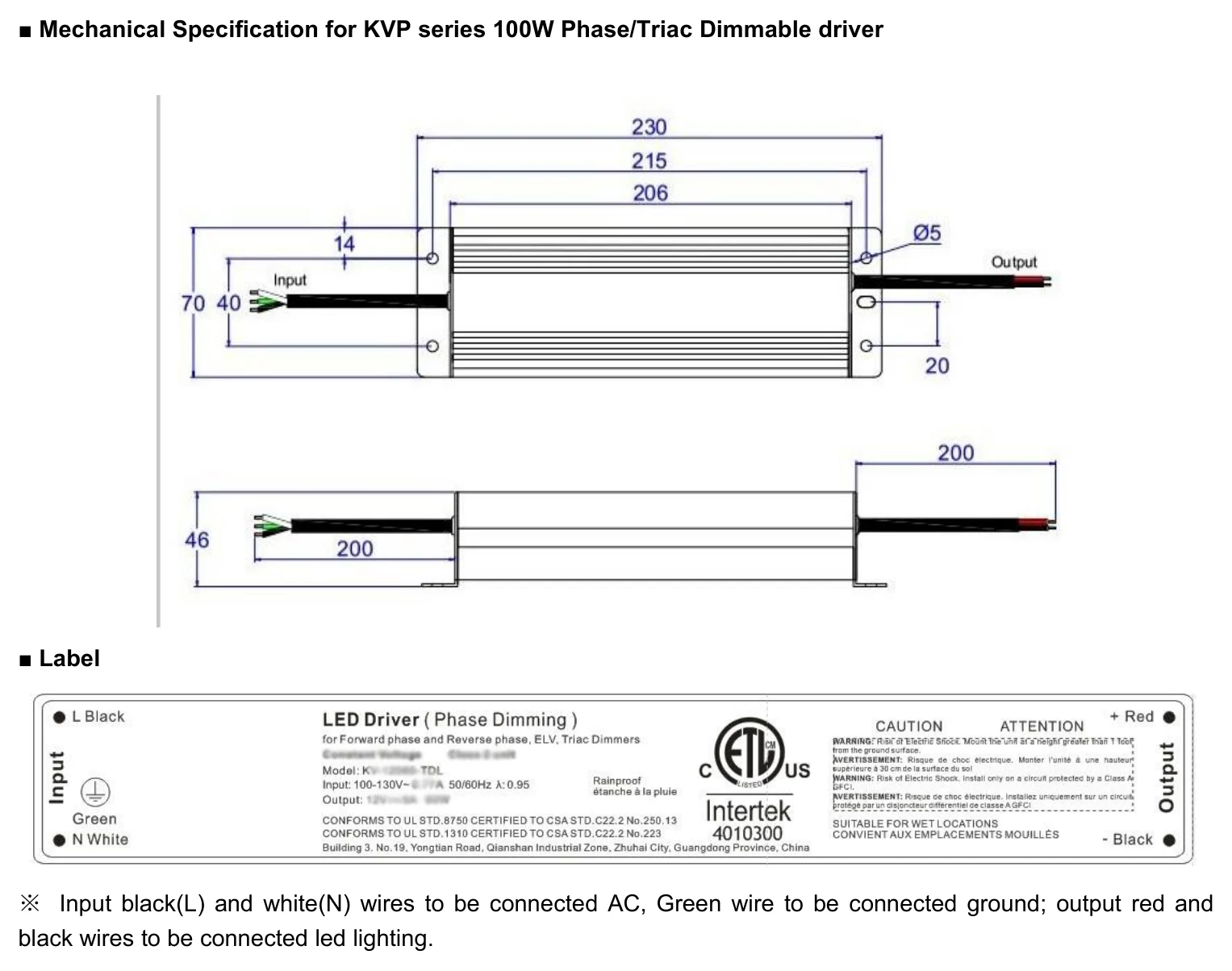

SC-100-24-US Mechanical Specification for KVP series 100W Phase/Triac…
Mechanical Specification for KVP series 100W Phase/Triac…

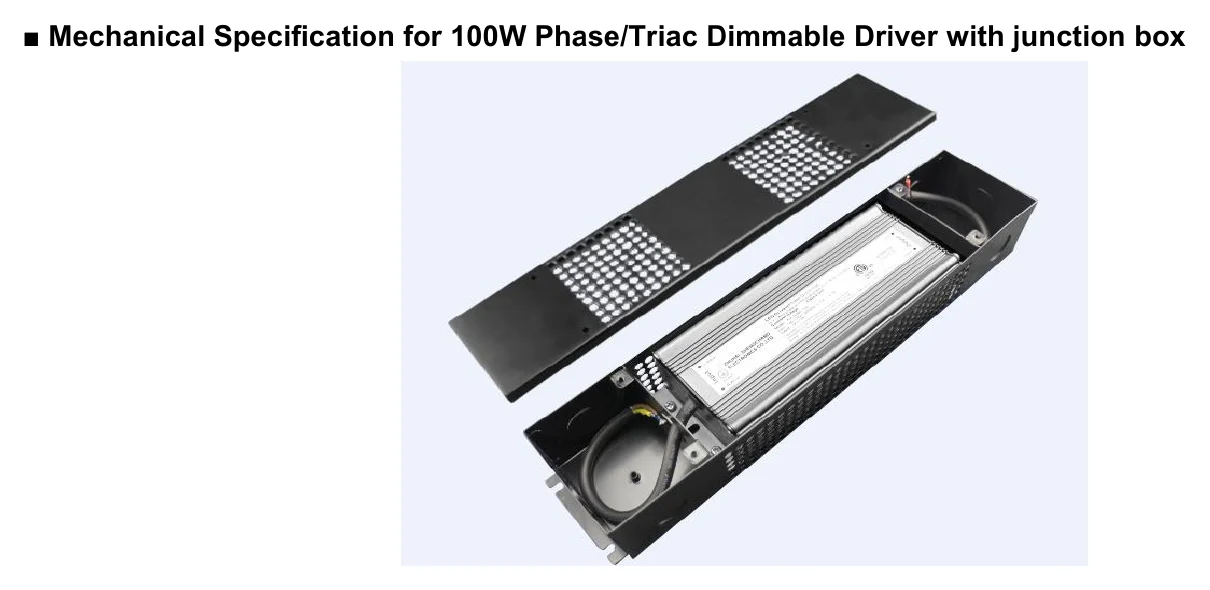

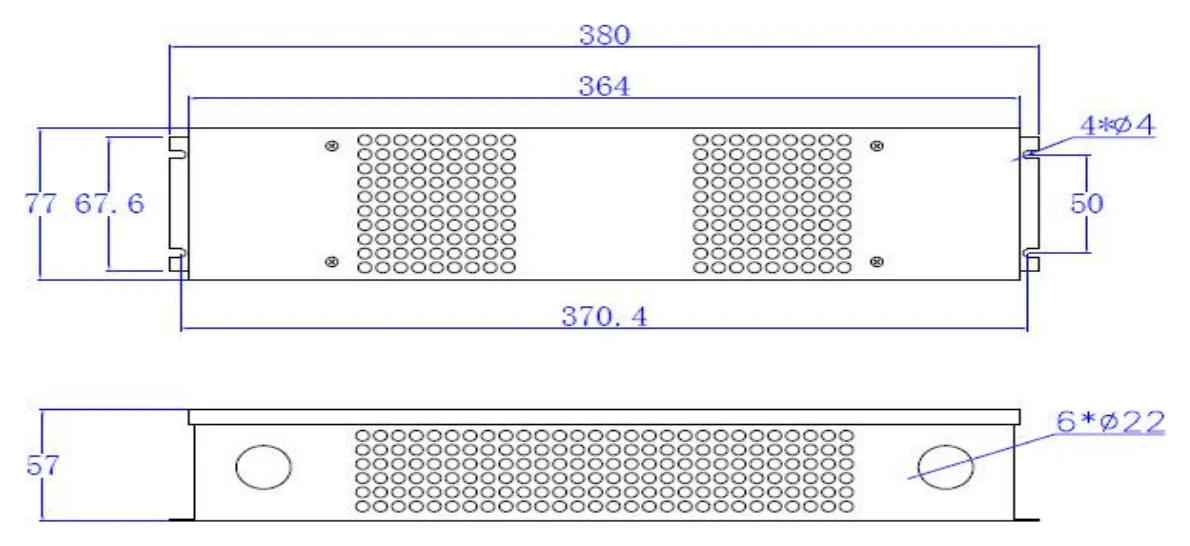

SC-100-24-US Mechanical Specification for 100W Phase/Triac Dimmable…
Mechanical Specification for 100W Phase/Triac Dimmable…
SC-100-24-US Illustration (page 3)
Illustration (page 3)

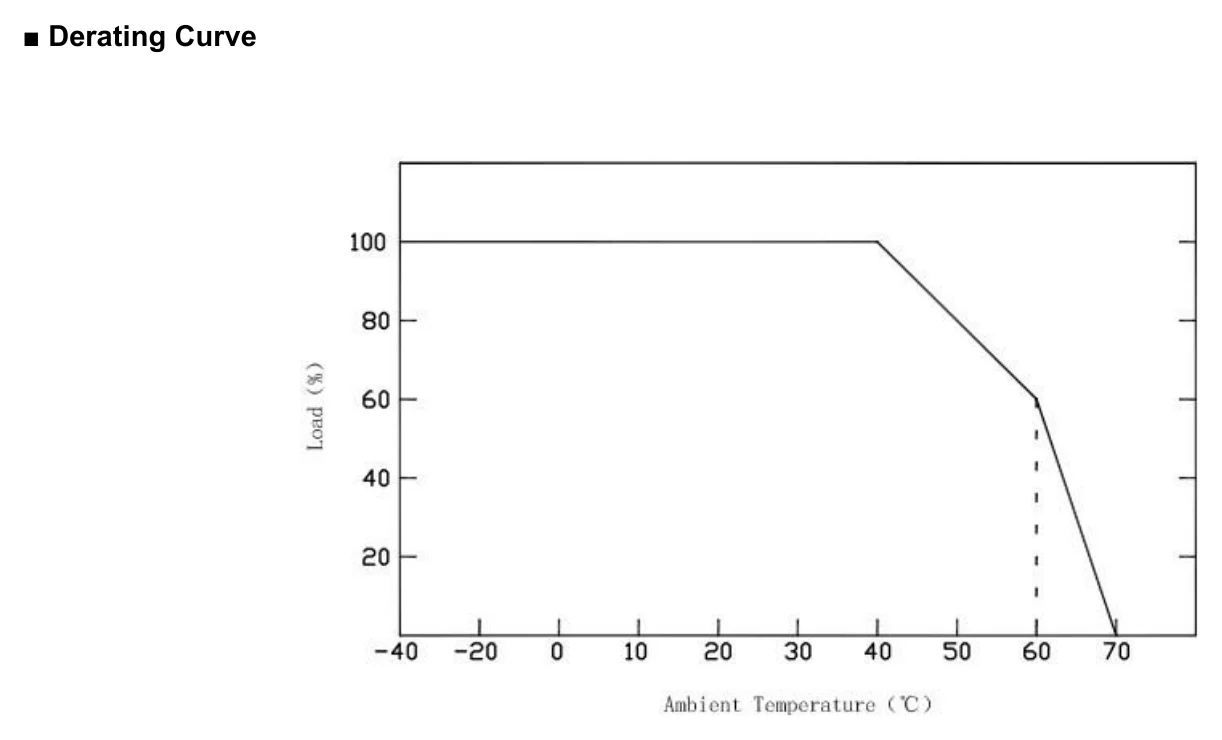

SC-100-24-US Derating Curve
Derating Curve

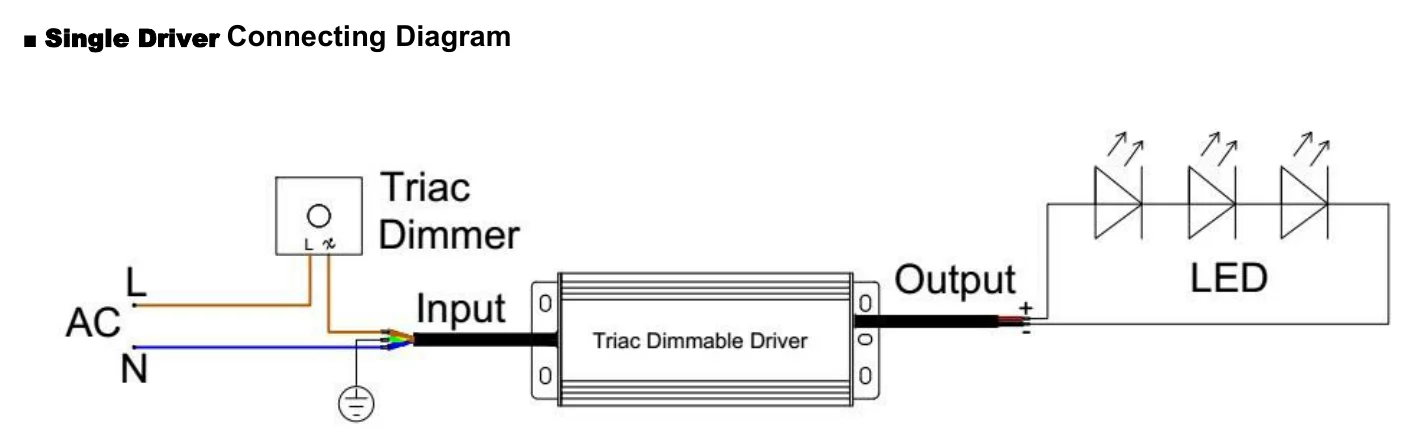

SC-100-24-US Single Driver Connecting Diagram
Single Driver Connecting Diagram

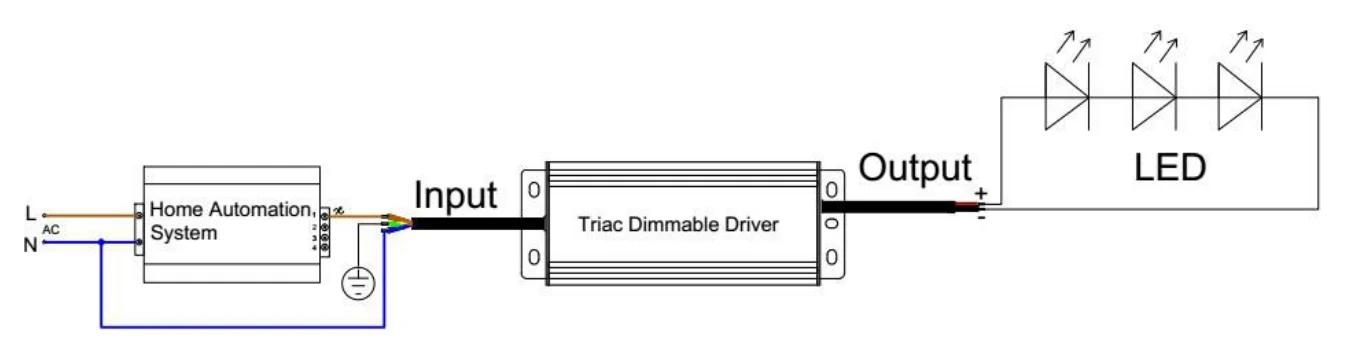

SC-100-24-US Illustration (page 4)
Illustration (page 4)

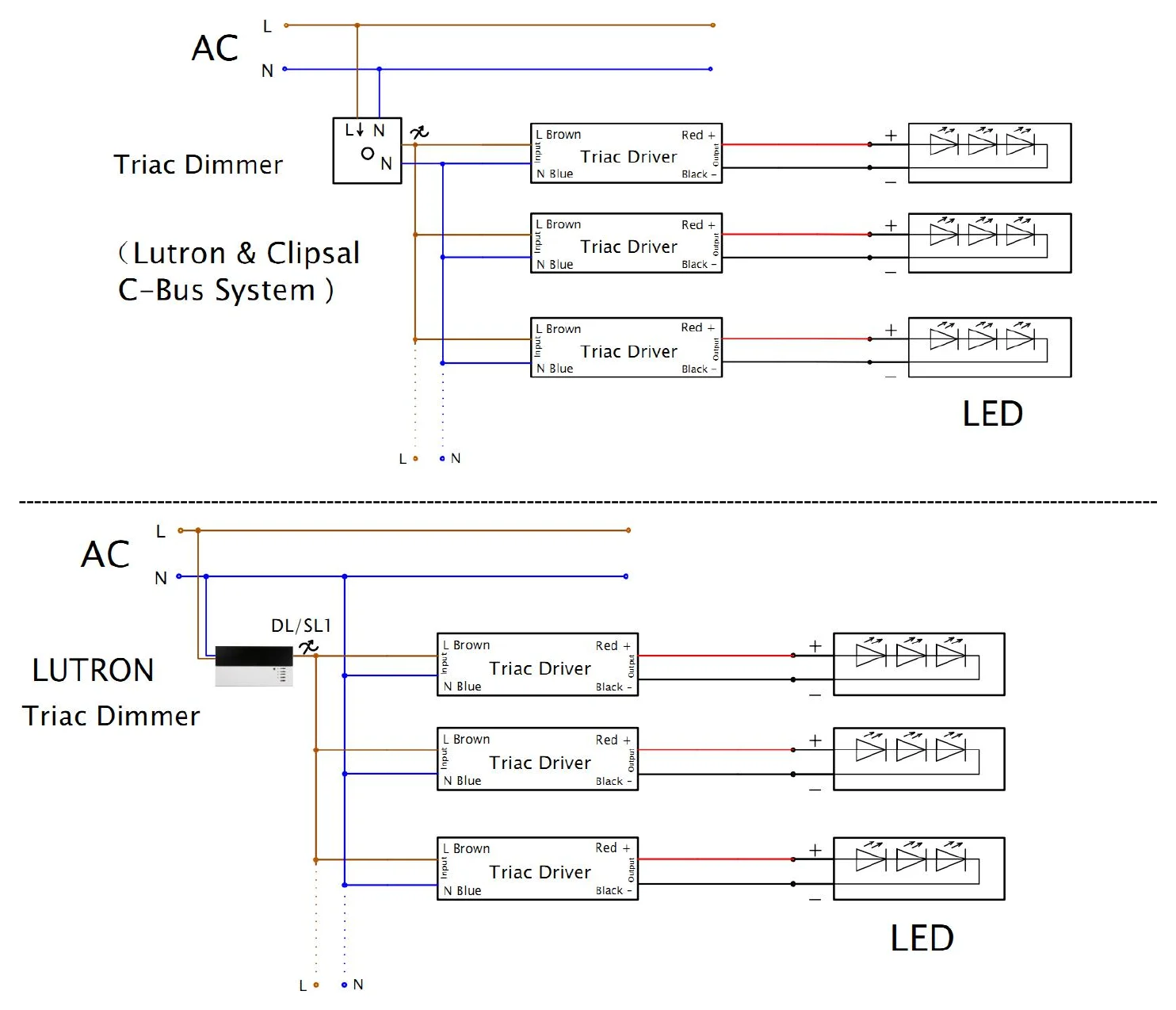

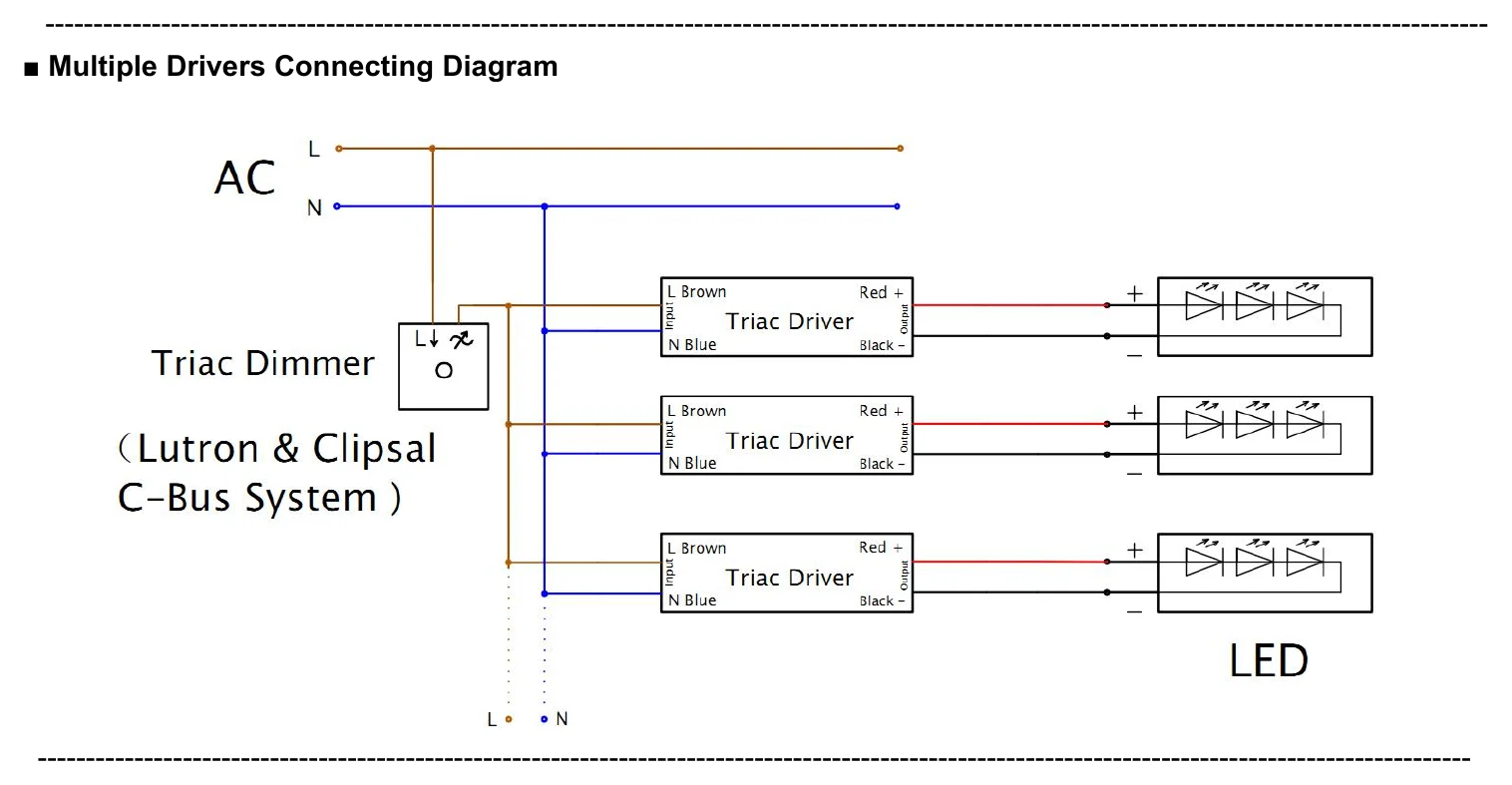

SC-100-24-US Multiple Drivers Connecting Diagram
Multiple Drivers Connecting Diagram
SC-100-24-US Illustration (page 5)
Illustration (page 5)

Downloads

FAQ

What is the Envo SC-100-24-US designed for?

The Envo SC-100-24-US is a 100W constant-voltage 24V power supply intended for LED lighting and moving sign applications. Its triac dimmable design makes it a suitable option for projects that need 24V output with phase-cut dimming support.

Is the Envo SC-100-24-US triac dimmable?

Yes. This model is designed to work with both leading-edge and trailing-edge Triac dimmers. The product description also highlights strong compatibility and flicker-free dimming performance.

What are the main electrical specifications of the SC-100-24-US?

This model provides constant 24V output with a 100W power rating and a rated current of 4.17A. Its AC input range is 100-130VAC, and efficiency is rated up to 83%.

Can the Envo SC-100-24-US be used outdoors or in demanding environments?

Yes. The SC-100-24-US has an IP66-rated design for outdoor installation and uses a full aluminum housing. It is also rated for operation from -40°C to 60°C, which supports use in a wide range of environmental conditions.

What protection features does the SC-100-24-US include?

This power supply includes protection for short circuit, over loading, over current, and over temperature conditions. These built-in protections help support reliability in commercial LED lighting and signage applications.

How does the SC-100-24-US compare with non-dimmable 24V power supplies?

A key difference is that the SC-100-24-US supports AC phase-cut dimming, including both leading-edge and trailing-edge Triac dimmers. It is also built for outdoor use with IP66 protection, which may make it a better fit than basic non-dimmable indoor-only 24V power supplies.

What warranty does the Envo SC-100-24-US include?

The SC-100-24-US is certified to UL1012 and FCC standards. It features a robust aluminum housing and is designed for reliable commercial LED lighting and signage applications.
