Envo

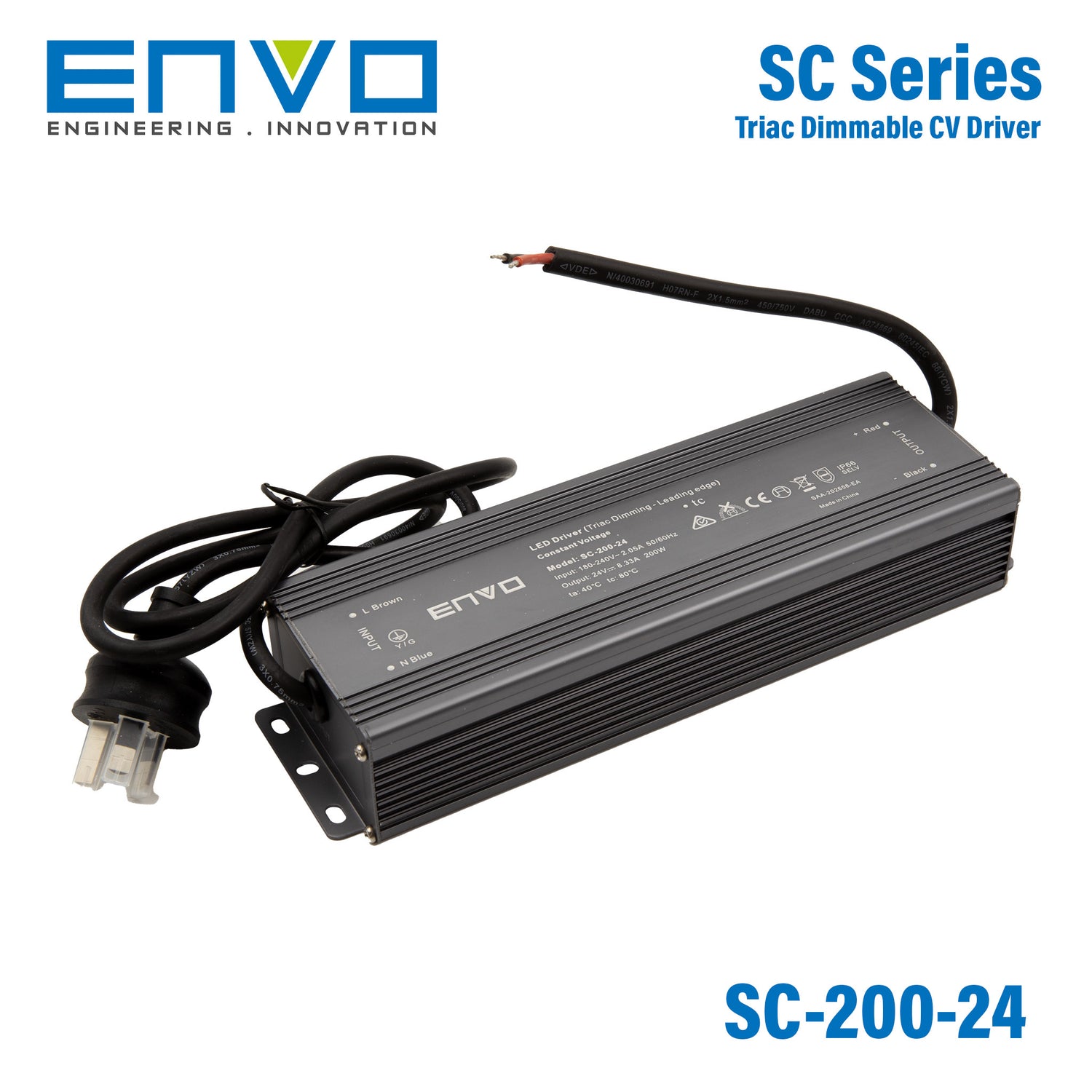

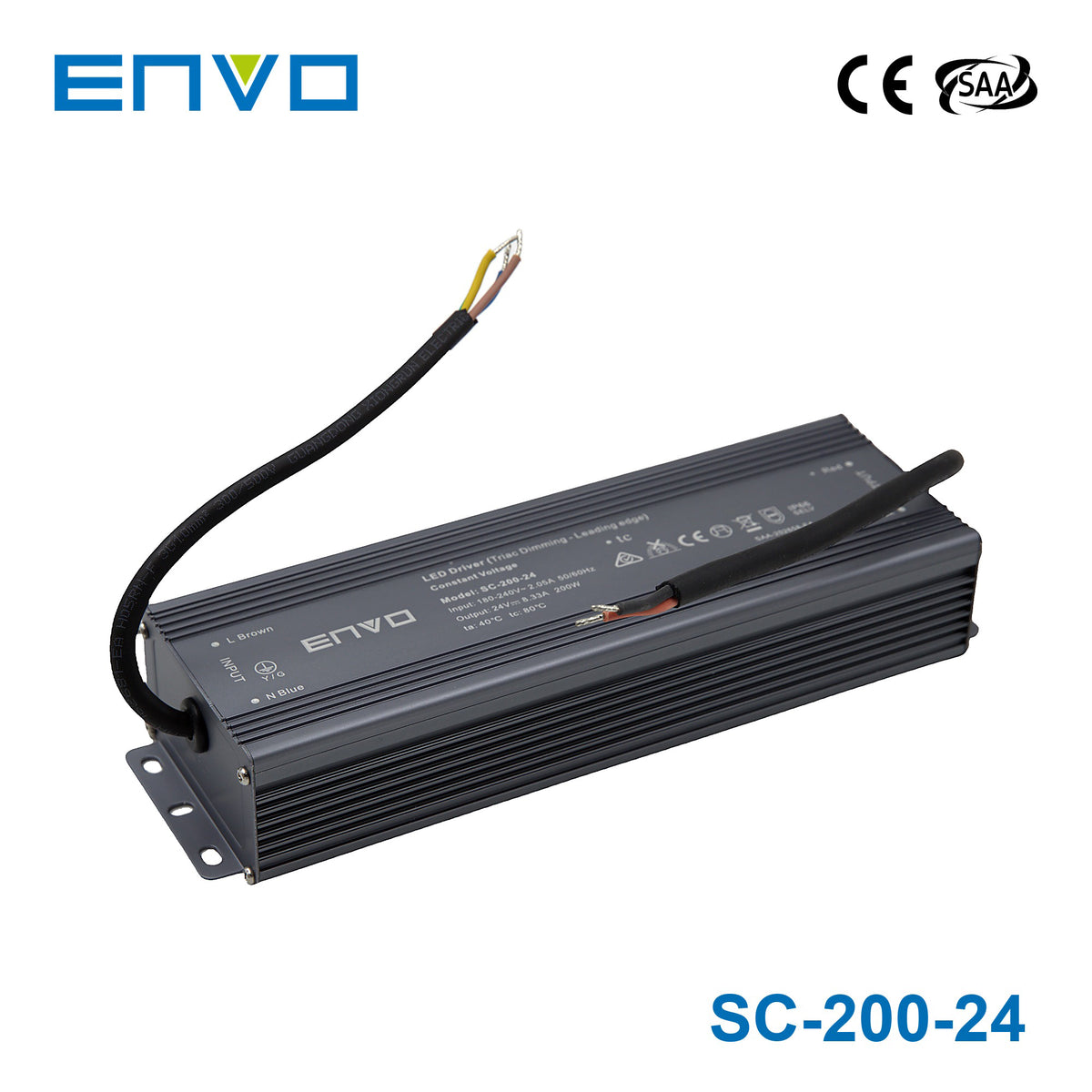

Envo SC-200-24 Power Supply 200W 24V - Triac dimmable 8.33A

triac dimmable
SKU SC-200-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 14 in this family

SC-200-24
In stock
|

Overview

SC-200-24 is the 24V output model of this series: rated current 8.33A, rated power 200W, typical efficiency 87%@230VAC.

Features

  • Output: Constant Voltage
  • Range: 200-240VAC
  • PFC design: Built-in active PFC function
  • Efficiency: Up to 88%
  • Protections: Short circuit/ over load/ over temperature
  • Heat dissipation: Cooling by free air convection
  • Waterproof performance: IP66
  • Dimming function: Phase dimming: work with leading edge, MLV and trailing edge, ELV, TRIAC dimmers.
  • Dimming range: 0-100%
  • Warranty: 5 years warranty

Specifications

SC-200-24Specifications from the official datasheetDownload datasheet PDF

Certificate

Certificate
SAA / CCC / CE / ENEC/ TUV/ SELV/ RoHS / Reach

Output

DC Voltage
24V
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Rated Current
8.33A
Rated Power
200W
Load Regulation
≤1%

Input

Voltage Range
200-240VAC
Frequency Range
47 - 63Hz
THD(Typ.)@ Full Load
≤20% @ 200VAC, 230VAC, 240VAC
Efficiency(Typ.)@ Full Load
87% @ 230VAC
AC Current (Max.)
1.3A
Inrush Current(Typ.)
96A, 72us @ 230VAC
Leakage Current
<0.5mA

Protection

Short Circuit
Hiccup mode, re-power on to recover after fault condition removed
Over Load
≤120% Hiccup mode, recovers automatically after fault condition is removed
Over Temperature
Shell surface temp. 100°C±10°C shut down o/p voltage, automatically recover after the temperature drops.

Environment

Working TEMP.
-40~+60°C (see below derating curve)
Working Humidity
20 - 95% RH non-condensing
Storage TEM.,Humidity
-40 - +80°C, 10 - 95% RH non-condensing
TEMP.coefficient
±0.03%/°C (0 - 50°C)
Vibration
10~500Hz, 5G 12min/1 cycle, period for 72min. each along X,Y,Z axes

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
I/P-O/P: 3.75KVAC (EU), I/P-FG: 1.5KVAC (EU), I/P-FG: 0.5KVAC (EU)
Isolation resistance
I/P-O/P: 100MΩ / 500VDC / 25°C / 70%RH
EMC Emission
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017

Others

Net Weight
1.45kg
Dimension
256*78*47mm (L*W*H)
Packing
340*270*185mm, 10pcs/CTN
Test conditions and notes2
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
  2. 2. Tolerance: includes set up tolerance and load regulation.

Technical drawings

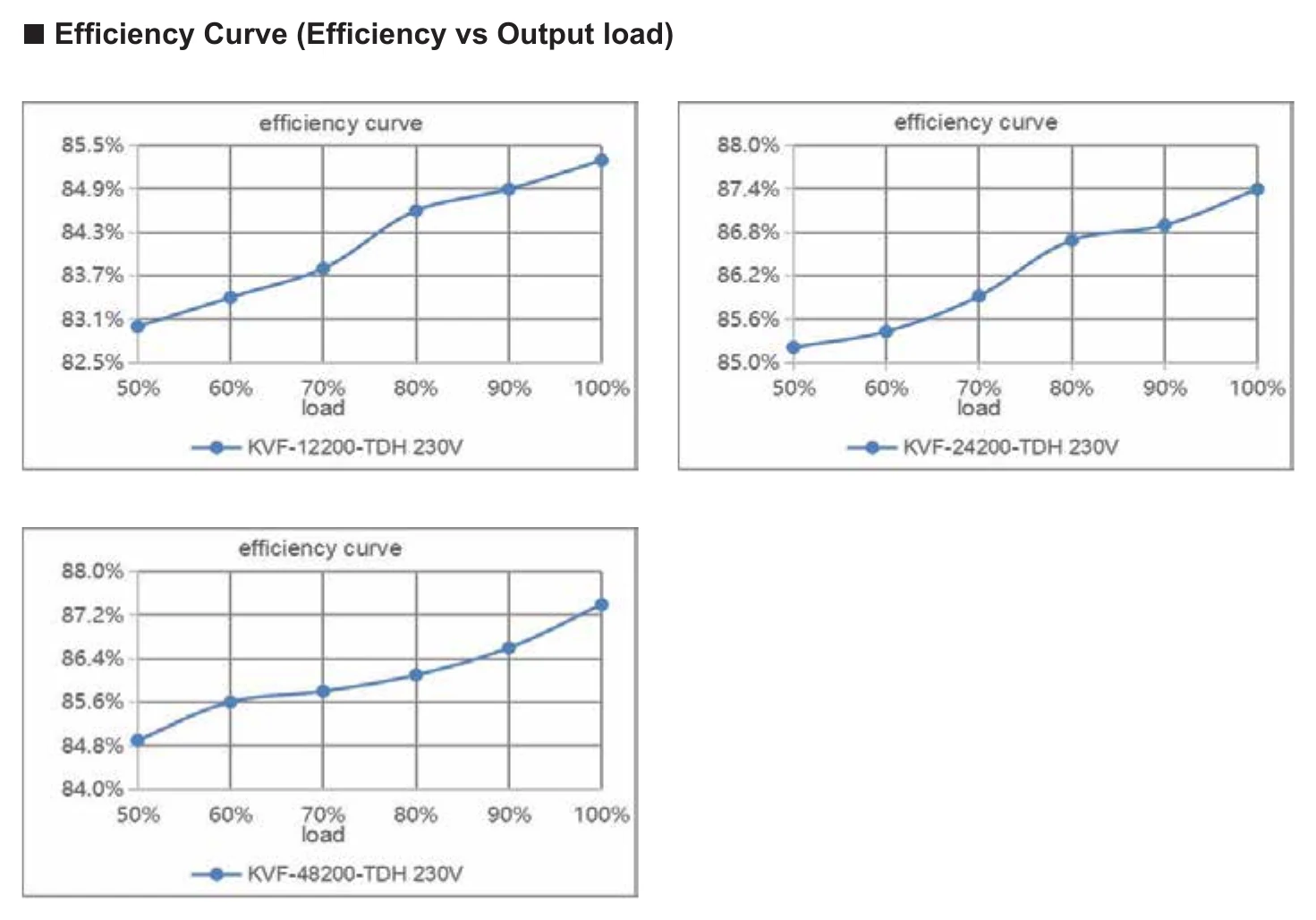

SC-200-24 Efficiency Curve (Efficiency vs Output load)
Efficiency Curve (Efficiency vs Output load)

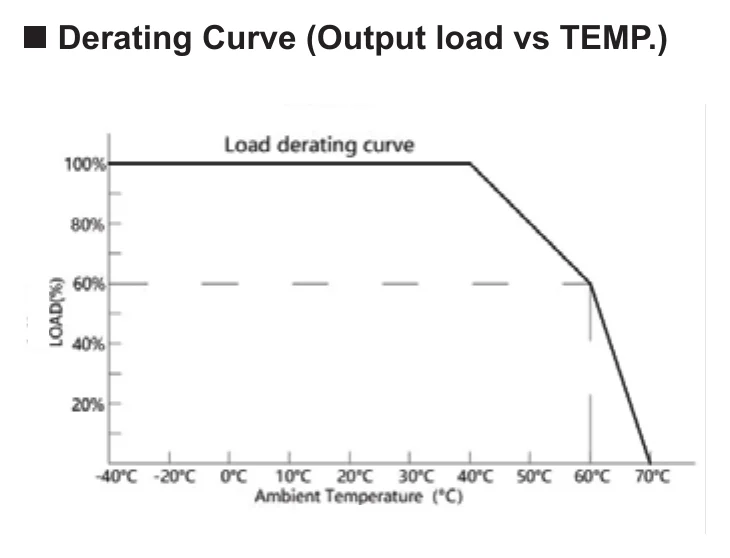

SC-200-24 Derating Curve (Output load vs TEMP.)
Derating Curve (Output load vs TEMP.)

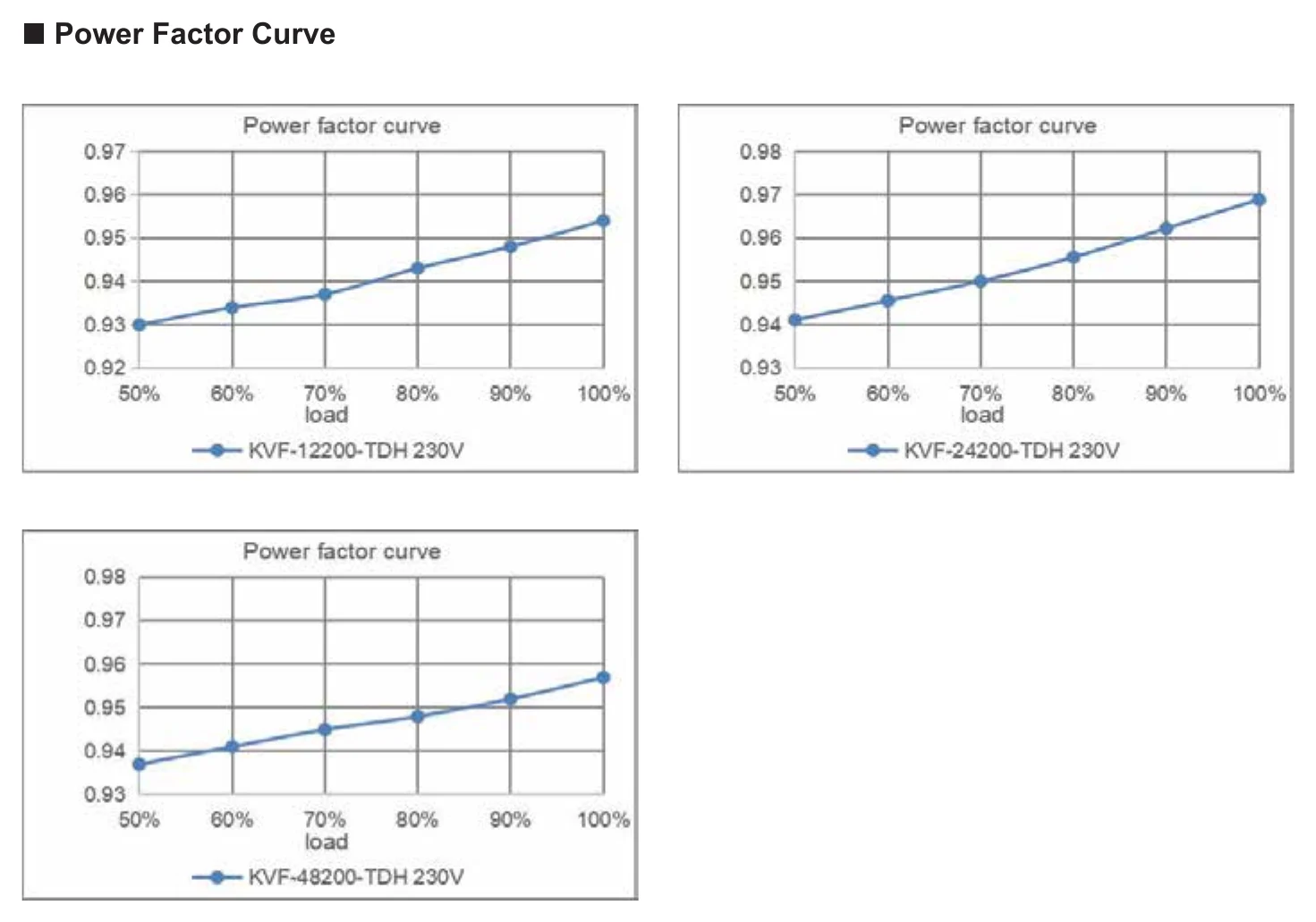

SC-200-24 Power Factor Curve
Power Factor Curve

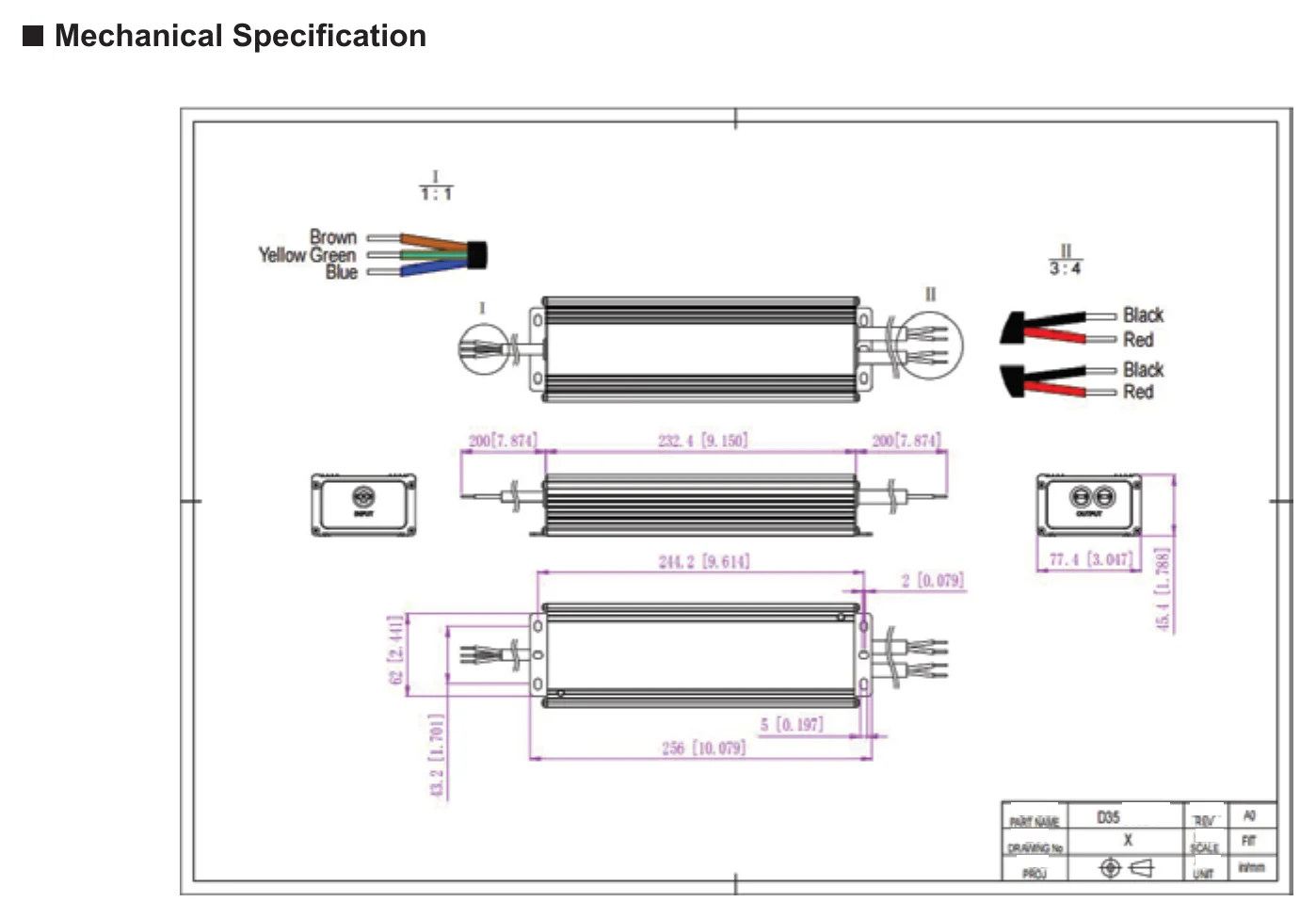

SC-200-24 Mechanical Specification
Mechanical Specification

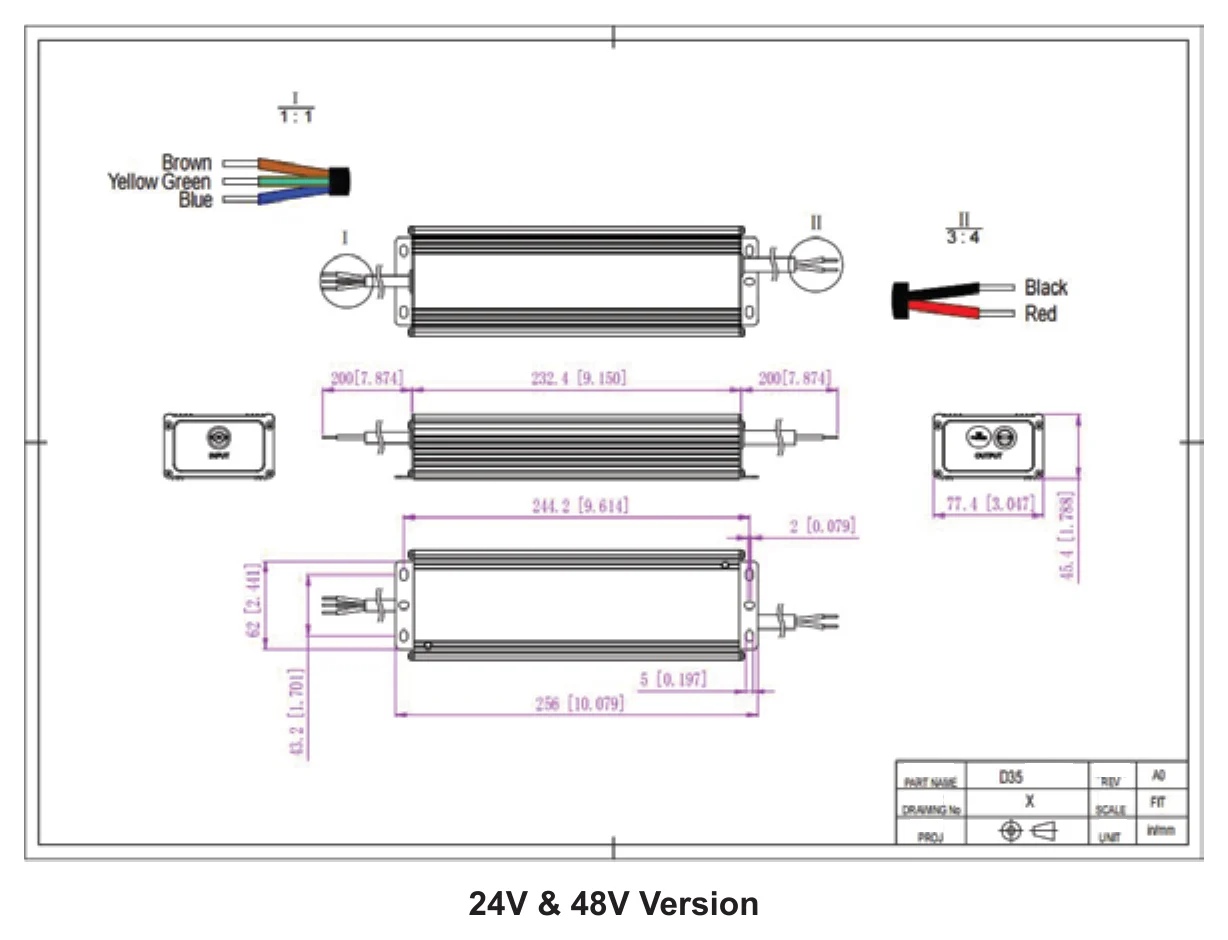

SC-200-24 24V & 48V Version
24V & 48V Version

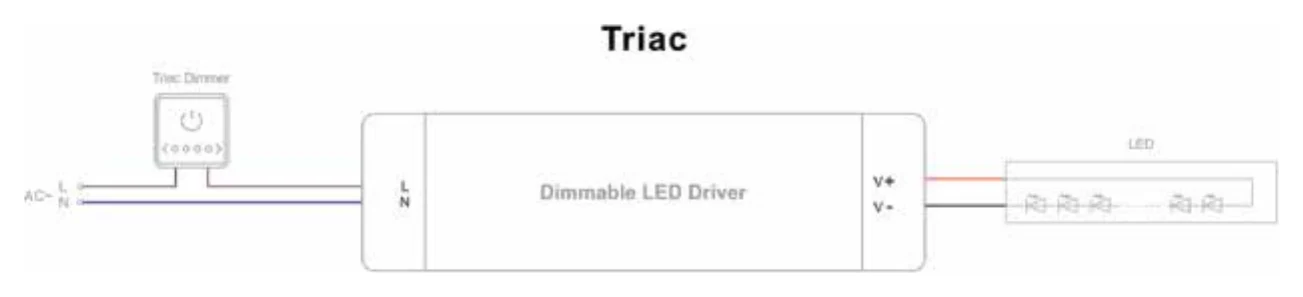

SC-200-24 TRIAC/Phase cut dimming
TRIAC/Phase cut dimming

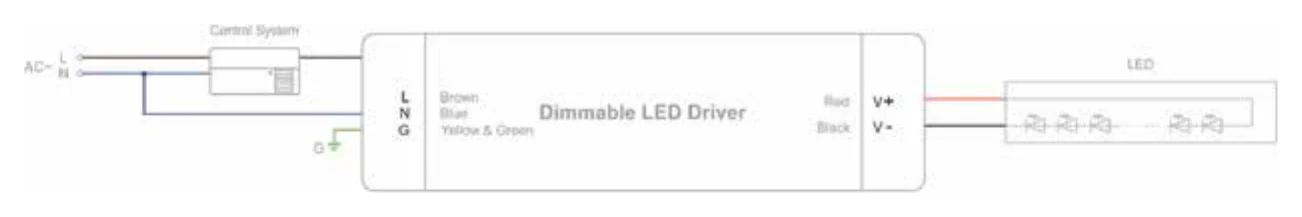

SC-200-24 TRIAC/Phase cut dimming (2)
TRIAC/Phase cut dimming (2)

Typical applications

  • Suitable for the application of LED lighting

Downloads

FAQ

What is the Envo SC-200-24 designed for?

The Envo SC-200-24 is a 200W 24V constant voltage power supply intended for LED lighting and moving sign applications. It is built for buyers who need a dimmable 24V unit with TRIAC phase-cut compatibility in commercial or project-based installations.

Is the Envo SC-200-24 TRIAC dimmable?

Yes. This model supports AC phase-cut dimming and is designed to work with both leading edge and trailing edge TRIAC dimmers. The product description also states strong compatibility and flicker-free dimming performance.

What are the key electrical ratings of the Envo SC-200-24?

This model is rated at 200W output with a 24V constant voltage output. Its rated current is 8.33A, making it suitable for 24V LED systems that need higher power capacity within that voltage class.

What protections does the Envo SC-200-24 include?

The Envo SC-200-24 includes protection against short circuit, over load, and over temperature. These built-in protections help support reliable operation in demanding lighting applications.

Can the Envo SC-200-24 be used in demanding temperature conditions?

This model is rated for operation from -40°C to 60°C. That wide temperature range makes it a practical option for projects where the power supply may be exposed to cold or warm ambient conditions.

How does the Envo SC-200-24 compare with smaller 24V dimmable power supplies?

The main difference is output capacity: the Envo SC-200-24 provides up to 200W at 24V with a rated current of 8.33A. For applications with larger 24V LED loads, it offers more headroom than lower wattage TRIAC-dimmable models in the same voltage class.

What type of housing and cooling does the Envo SC-200-24 use?

The product uses a full protection aluminum housing and is cooled by free air convection. This design supports durability while avoiding the need for active fan cooling.

What warranty is offered for the Envo SC-200-24?

The Envo SC-200-24 comes with a 5-year warranty period. That makes it a suitable choice for professional buyers who want longer coverage for LED power supply projects.
