Envo

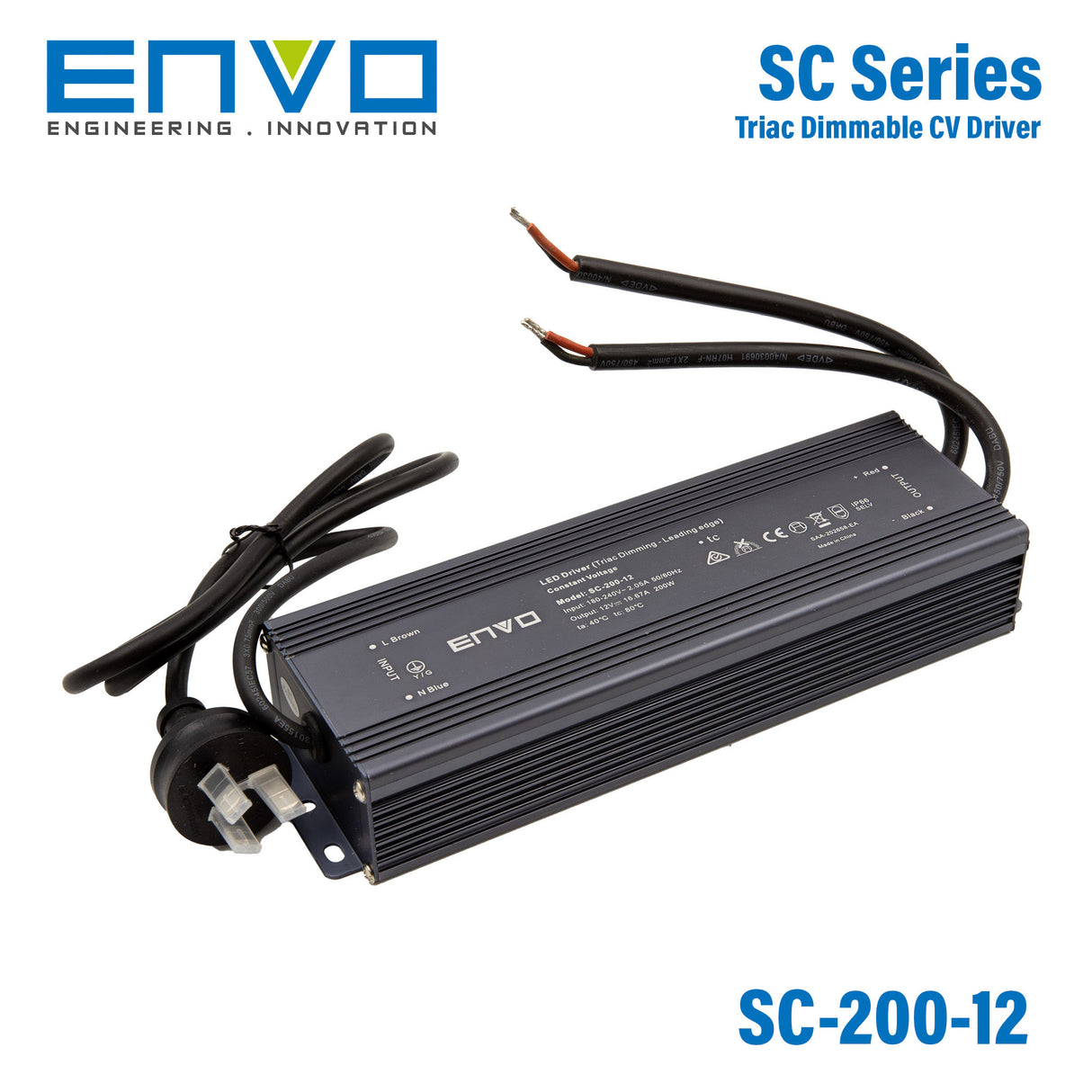

Envo SC-200-12 Power Supply 200W 12V - Triac dimmable 16.67A

triac dimmable
SKU SC-200-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 13 in this family

SC-200-12
In stock
|

Overview

SC-200-12 is the 12V output model of this series: rated current 16.66A, rated power 200W, typical efficiency 85%@230VAC.

Features

  • Output: Constant Voltage
  • Range: 200-240VAC
  • PFC design: Built-in active PFC function
  • Efficiency: Up to 88%
  • Protections: Short circuit/ over load/ over temperature
  • Heat dissipation: Cooling by free air convection
  • Waterproof performance: IP66
  • Dimming function: Phase dimming: work with leading edge, MLV and trailing edge, ELV, TRIAC dimmers.
  • Dimming range: 0-100%
  • Warranty: 5 years warranty

Specifications

SC-200-12Specifications from the official datasheetDownload datasheet PDF

Certificate

Certificate
SAA / CCC / CE / ENEC/ TUV/ SELV/ RoHS / Reach

Output

DC Voltage
12V
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Rated Current
16.66A
Rated Power
200W
Load Regulation
≤2%

Input

Voltage Range
200-240VAC
Frequency Range
47 - 63Hz
THD(Typ.)@ Full Load
≤20% @ 200VAC, 230VAC, 240VAC
Efficiency(Typ.)@ Full Load
85% @ 230VAC
AC Current (Max.)
1.3A
Inrush Current(Typ.)
96A, 72us @ 230VAC
Leakage Current
<0.5mA

Protection

Short Circuit
Hiccup mode, re-power on to recover after fault condition removed
Over Load
≤120% Hiccup mode, recovers automatically after fault condition is removed
Over Temperature
Shell surface temp. 100°C±10°C shut down o/p voltage, automatically recover after the temperature drops.

Environment

Working TEMP.
-40~+60°C (see below derating curve)
Working Humidity
20 - 95% RH non-condensing
Storage TEM.,Humidity
-40 - +80°C, 10 - 95% RH non-condensing
TEMP.coefficient
±0.03%/°C (0 - 50°C)
Vibration
10~500Hz, 5G 12min/1 cycle, period for 72min. each along X,Y,Z axes

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
I/P-O/P: 3.75KVAC (EU), I/P-FG: 1.5KVAC (EU), I/P-FG: 0.5KVAC (EU)
Isolation resistance
I/P-O/P: 100MΩ / 500VDC / 25°C / 70%RH
EMC Emission
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017

Others

Net Weight
1.45kg
Dimension
256*78*47mm (L*W*H)
Packing
340*270*185mm, 10pcs/CTN
Test conditions and notes2
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
  2. 2. Tolerance: includes set up tolerance and load regulation.

Technical drawings

SC-200-12 Efficiency Curve (Efficiency vs Output load)
Efficiency Curve (Efficiency vs Output load)
SC-200-12 Derating Curve (Output load vs TEMP.)
Derating Curve (Output load vs TEMP.)
SC-200-12 Power Factor Curve
Power Factor Curve
SC-200-12 Mechanical Specification
Mechanical Specification
SC-200-12 24V & 48V Version
24V & 48V Version
SC-200-12 TRIAC/Phase cut dimming
TRIAC/Phase cut dimming
SC-200-12 TRIAC/Phase cut dimming (2)
TRIAC/Phase cut dimming (2)

Typical applications

  • Suitable for the application of LED lighting

Downloads

FAQ

What is the Envo SC-200-12 designed for?

The Envo SC-200-12 is a 200W constant voltage power supply for 12V LED lighting and moving sign applications. It is intended for buyers who need a TRIAC dimmable model with broad dimmer compatibility.

What are the main electrical ratings of the SC-200-12?

This model is rated for 200W output at 12V. Its rated current is 16.66A, making it suitable for higher-power 12V constant voltage LED systems within that output range.

Is the Envo SC-200-12 TRIAC dimmable?

Yes, this power supply is designed for AC phase-cut dimming and works with both leading edge and trailing edge TRIAC dimmers. The product description also notes strong compatibility and flicker-free dimming performance.

What input range does this power supply support?

The listed input range for the SC-200-12 is 200-240V AC. That makes it a fit for applications using that specific AC input range rather than low-voltage DC input sources.

Can the SC-200-12 be used in demanding temperature conditions?

This model is specified for operation from -40°C to 60°C. That wide temperature range makes it suitable for environments where lighting equipment may be exposed to both low and elevated ambient temperatures.

What protections does the Envo SC-200-12 include?

The product description lists protections for short circuit, over load, and over temperature. These built-in protections help support reliability in commercial LED lighting applications.

How is the SC-200-12 different from a non-dimmable 12V power supply?

The key difference is that the SC-200-12 is built for AC phase-cut dimming, including compatibility with leading edge and trailing edge TRIAC dimmers. It is also positioned for flicker-free dimming, which matters when dimming performance is a purchase priority.

What physical and build characteristics are noted for this model?

The SC-200-12 has a full protection aluminum housing and is cooled by free air convection. Its listed weight is 1.45kg, which is useful when evaluating enclosure space and handling requirements for larger lighting projects.
