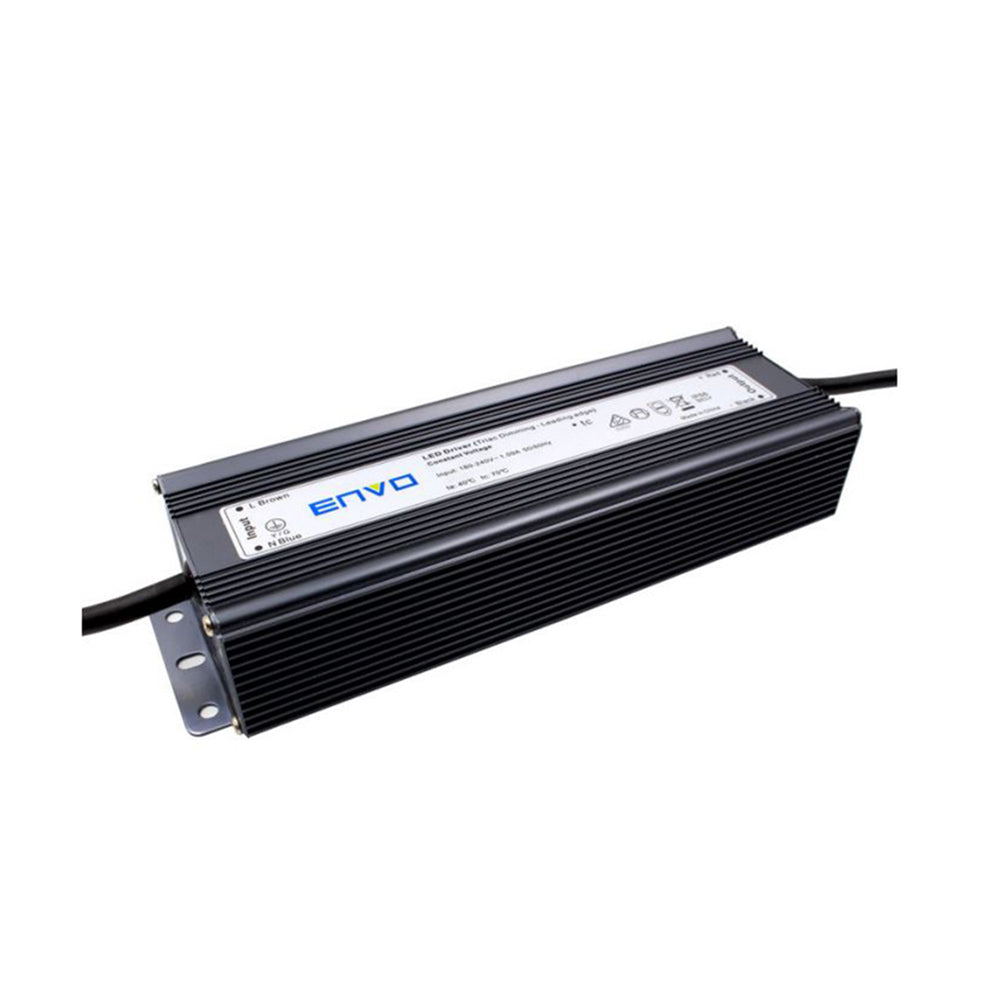

Envo SC-200-24PWM Power Supply 200W 24V - PWM dimmable 8.3A
Log in to see priceOverview
SC-200-24PWM is the 24V output model of this series: rated current 0 - 8.3A, rated power 200W, typical efficiency 89%.
Features
- Output constant voltage
- Universal AC input:100-265VAC
- Built-in active PFC function
- High efficiency up to 90%
- Protections: Short circuit/Over current/Over loading
- Cooling by free air convection
- IP66 design for indoor or outdoor installation
- Class 1 power unit
- Three in one dimming function(0/1-10Vdc or PWM signal or resistance)
- Dimming range: 0-100%
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- Three years warranty
Specifications
Output
- DC Voltage
- 24V
- Voltage Tolerance
- ±0.5V
- Rated current
- 0 - 8.3A
- Rated power
- 200W
Input
- Voltage Range
- 100～265VAC
- Frequency Range
- 47～63HZ
- Power Factor
- PF≥0.98/120VAC, PF≥0.98/230VAC, PF≥0.95/265VAC (Full loading)
- Efficiency（Typ.）
- 89%
- AC Current（Max.）
- 1.98A
- Leakage current
- <0.5mA
Protection
- Short Circuit
- Hiccup mode, recovers automatically after fault condition is removed
- Over Loading
- ≤120%
- Over Current
- ≤1.2*Iout
- Over temperature
- 100℃±10℃, Shut down o/p voltage, recovers automatically after temp. goes down
Environment
- Working TEMP.
- -40～+60℃
- Working Humidity
- 20～95%RH non-condensing
- Storage TEMP., Humidity
- -40～+80℃，10～95%RH
- TEMP. coefficient
- ±0.03%/℃（0～50℃）
- Vibration
- 10～500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes
Safety&EMC
- Safety standards
- EN61347-1 EN61347-2-13
- Withstand voltage
- I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
- Isolation resistance
- I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70%RH
- EMC EMISSION
- EN55015,EN61000-3-2 (≥60%load)
- EMC IMMUNITY
- EN61000-4-2,3,4,5,6,11, EN61547, light industry Level (surge 4KV) Criteria A
Others
- Net. Weight
- 1.6Kg
- Size
- 256*78*47mm（L*W*H）
- packing
- 329*279*176mm/10pcs /CTN
Test conditions and notes3
- 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature.
- 2. Tolerance: includes set up tolerance, line regulation and load regulation .
- 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

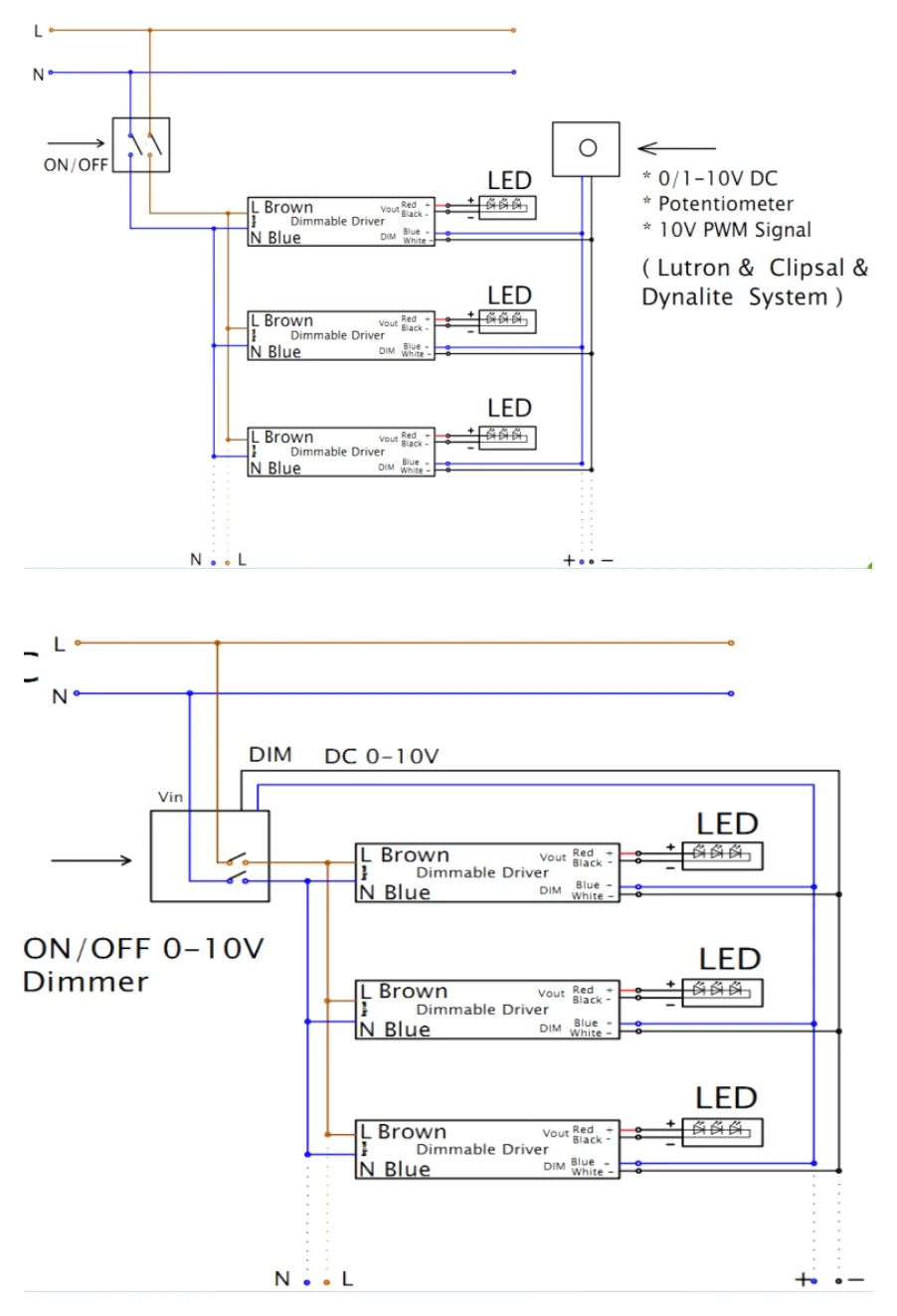

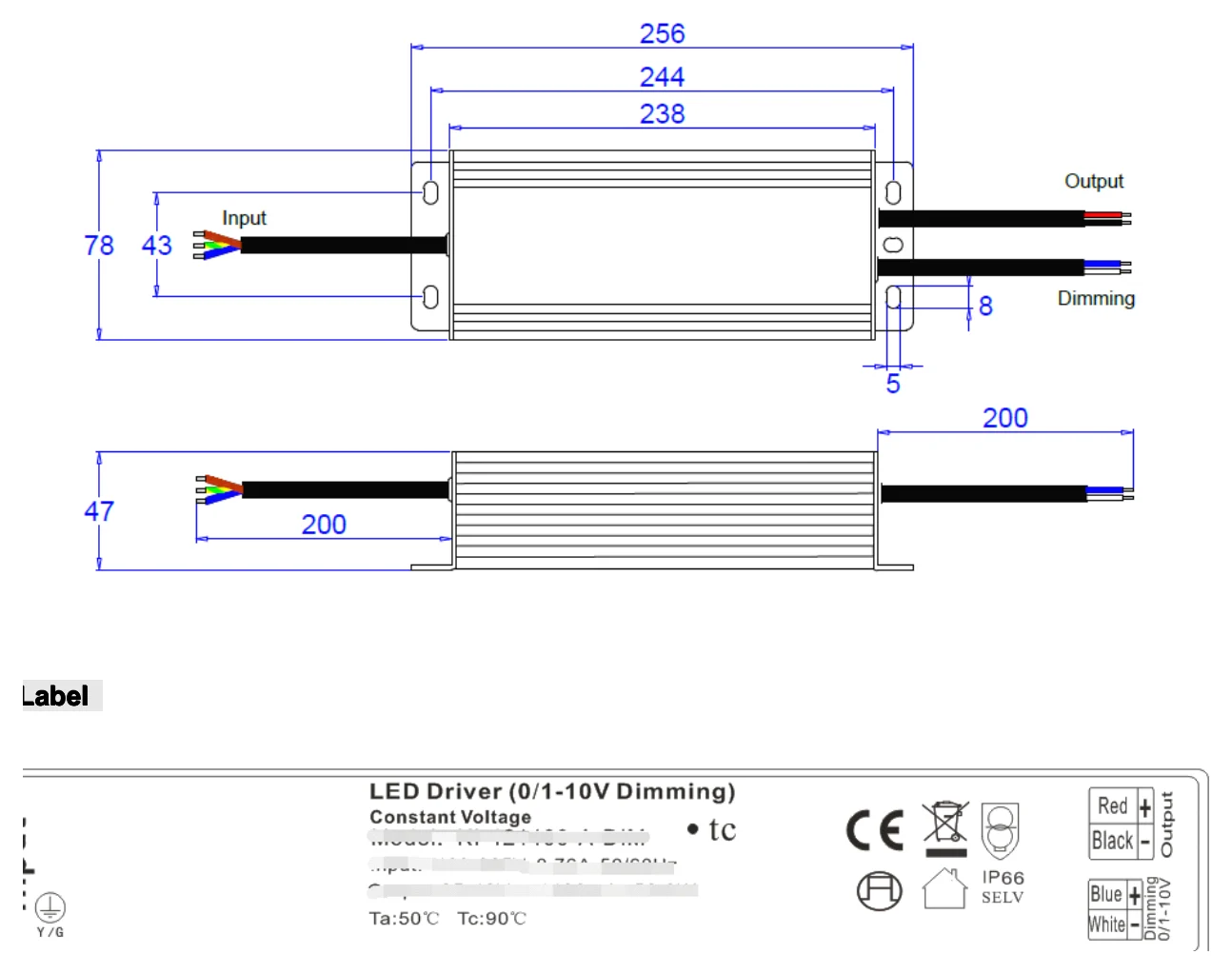

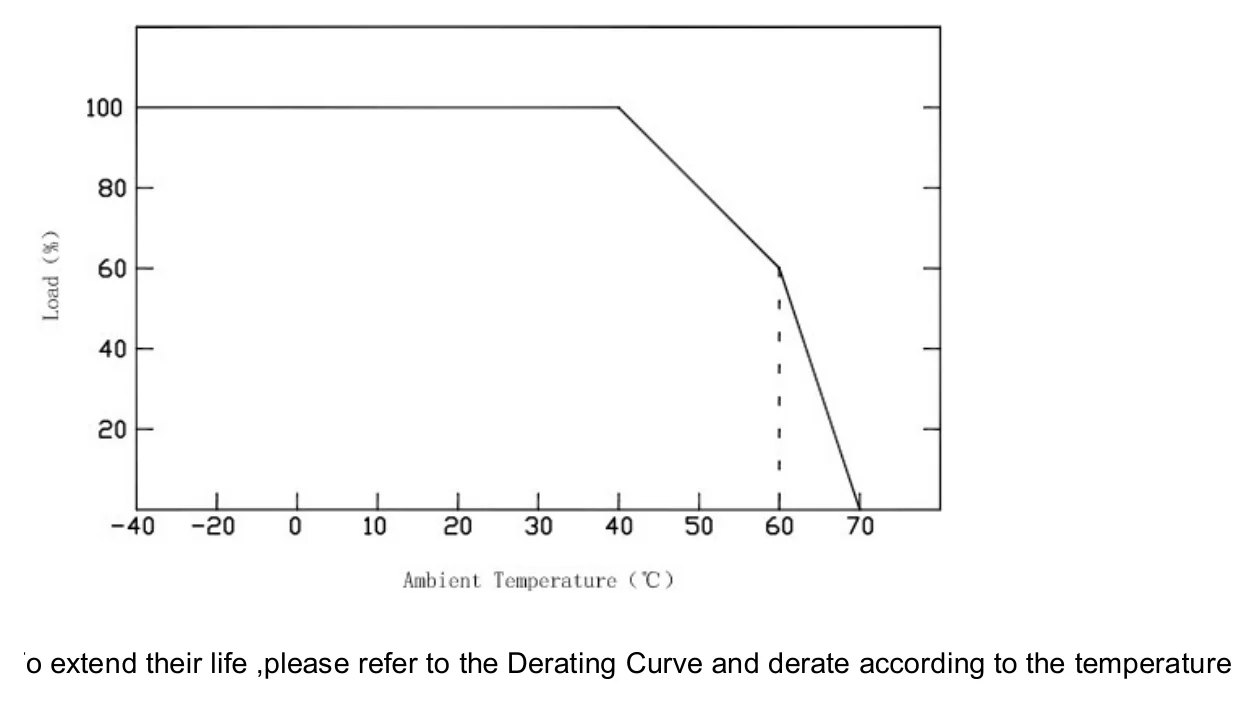

Technical drawings
Downloads
Datasheet1
FAQ
What type of power supply is the Envo SC-200-24PWM?
The Envo SC-200-24PWM is a constant-voltage 24V power supply rated at 200W. It delivers up to 8.3A output and is designed for applications that need PWM dimming support. This model is positioned for LED lighting and moving sign use cases.
Is the SC-200-24PWM suitable for outdoor or exposed environments?
This model has an IP66-rated housing, which makes it suitable for outdoor installation where protection from dust and water ingress is important. Its full aluminum housing also supports durability in more demanding environments. Buyers still need to confirm the overall enclosure and site conditions match the project requirements.
What dimmers is the Envo SC-200-24PWM compatible with?
The SC-200-24PWM features a built-in 3-in-1 dimming function, supporting 0-10Vdc, PWM signal, or resistance control. It is not designed for leading-edge, trailing-edge, or TRIAC dimmers. This makes it suitable for projects requiring analog or digital dimming control with a 24V constant-voltage supply.
What applications is the SC-200-24PWM intended for?
This power supply is described as suitable for LED lighting and moving sign applications. With 24V constant-voltage output and PWM dimming, it fits projects that need dimmable low-voltage LED power in a higher-wattage format. Its 200W rating also makes it more appropriate for larger loads than smaller-format drivers.
What operating conditions can this model handle?
The SC-200-24PWM is rated for operation from -40°C to 60°C. It uses free-air convection cooling and includes protections for short circuit, over loading, over current, and over temperature. These specs make it relevant for projects that need a robust supply for variable ambient conditions.
Why choose the SC-200-24PWM over a lower-power 24V driver?
This model is intended for applications that need a higher-capacity 24V supply, with a 200W rating and 8.3A output current. It combines IP66 protection with 3-in-1 dimming support (0-10V, PWM, or resistance). For buyers comparing within 24V options, the main differentiators here are output capacity, dimming method, and outdoor-ready housing.
