Over 15 years experience of providing support of MEAN WELL Power Supplies

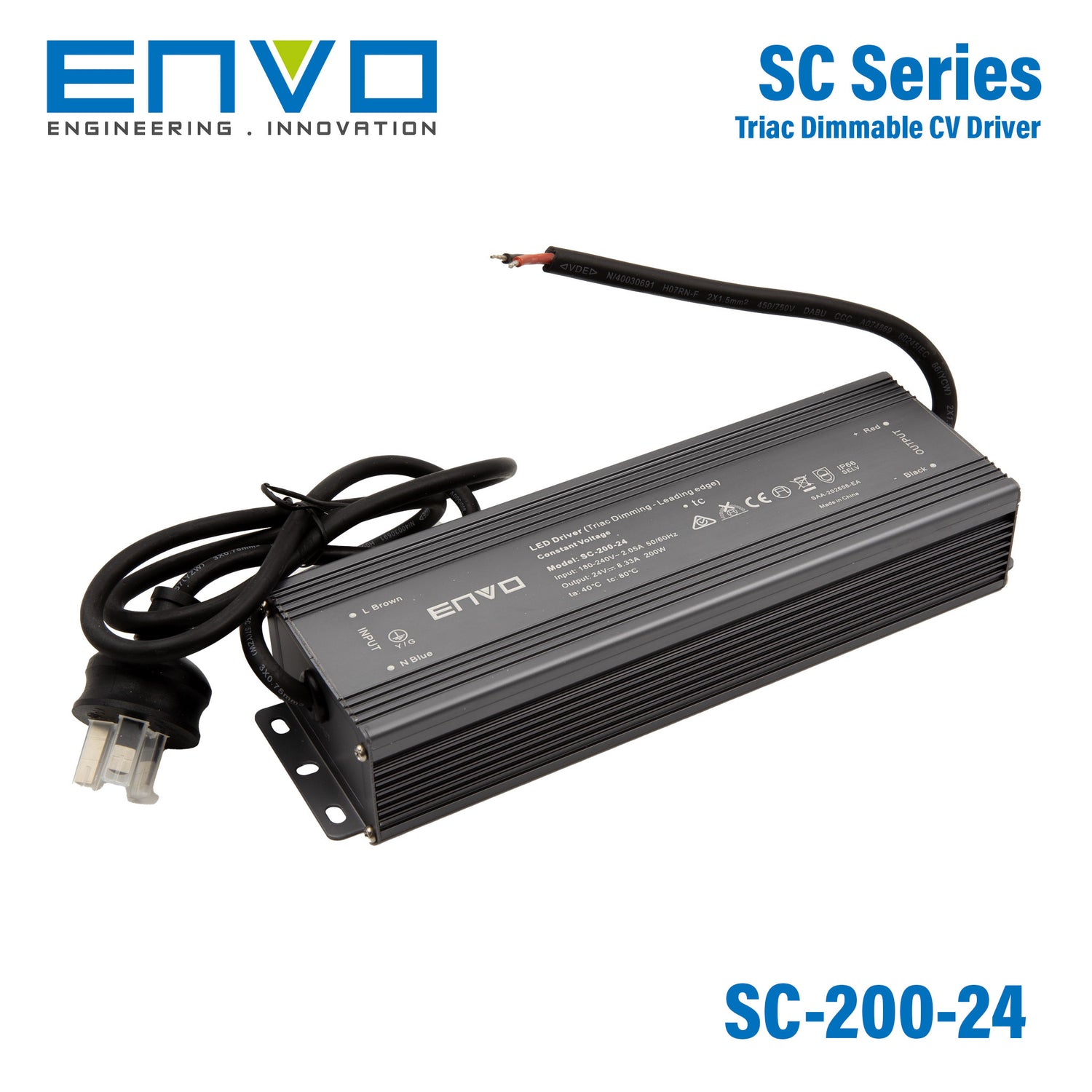

Envo SC-200-24 Power Supply 200W 24V - Triac dimmable 8.33A
Please Login for Pricing
Description
Description
- Output constant voltage
- Universal AC input/ :180-240VA
- High efficiency :up to 87%
- Protections:short circuit/over loading/over current
- Full protection aluminum housing
- Easy installation
- Cooling by free air convection
- Work with leading edge and trailing edge TRIAC dimmers
- Strong compatibility
- flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
Specifications
Specifications
-
BrandEnvo
-
SeriesSC Envo Series
-
Power Rating200 Watt
-
Output Voltage24 Volt
-
Rated Current8.33 Ampere
-
Input Voltage180V~240V
-
Standards MetCE,SAA
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~60°C
-
Warranty5 Year
-
Length25.6 cm
-
Width7.8 cm
-
Height4.7 cm
-
Weight1.5 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Envo SC-200-24 designed for?
The Envo SC-200-24 is a 200W 24V constant voltage power supply intended for LED lighting and moving sign applications. It is built for buyers who need a dimmable 24V unit with TRIAC phase-cut compatibility in commercial or project-based installations.
Is the Envo SC-200-24 TRIAC dimmable?
Yes. This model supports AC phase-cut dimming and is designed to work with both leading edge and trailing edge TRIAC dimmers. The product description also states strong compatibility and flicker-free dimming performance.
What are the key electrical ratings of the Envo SC-200-24?
This model is rated at 200W output with a 24V constant voltage output. Its rated current is 8.33A, making it suitable for 24V LED systems that need higher power capacity within that voltage class.
What protections does the Envo SC-200-24 include?
The Envo SC-200-24 includes protection against short circuit, over loading, and over current. These built-in protections help support reliable operation in demanding lighting applications.
Can the Envo SC-200-24 be used in demanding temperature conditions?
This model is rated for operation from -40°C to 60°C. That wide temperature range makes it a practical option for projects where the power supply may be exposed to cold or warm ambient conditions.
How does the Envo SC-200-24 compare with smaller 24V dimmable power supplies?
The main difference is output capacity: the Envo SC-200-24 provides up to 200W at 24V with a rated current of 8.33A. For applications with larger 24V LED loads, it offers more headroom than lower wattage TRIAC-dimmable models in the same voltage class.
What type of housing and cooling does the Envo SC-200-24 use?
The product uses a full protection aluminum housing and is cooled by free air convection. This design supports durability while avoiding the need for active fan cooling.
What warranty is offered for the Envo SC-200-24?
The Envo SC-200-24 comes with a 5-year warranty period. That makes it a suitable choice for professional buyers who want longer coverage for LED power supply projects.
Other SC-200 Models
2 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Envo SC-200-12 Power Supply 200W 12V - Triac dimmable 16.67A | 200W | 12V | 16.67A | IP66 | View |
| Envo SC-200-24 Power Supply 200W 24V - PWM dimmable 8.3A | 200W | 24V | 8.3A | IP66 | View |
