Mean Well

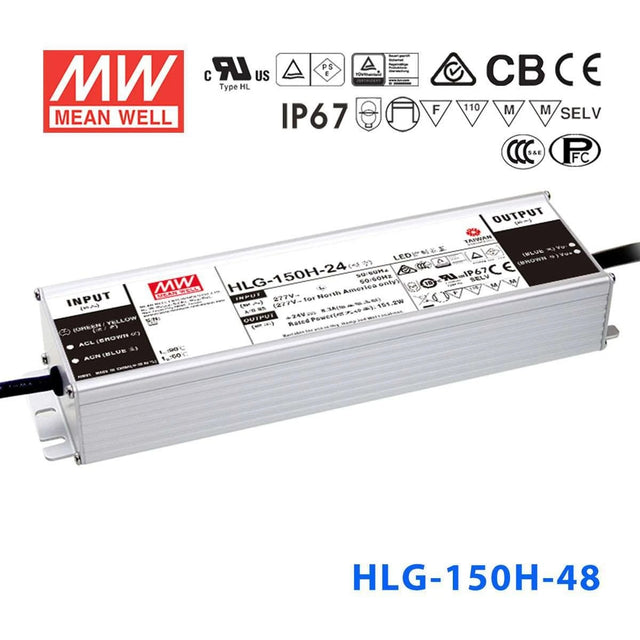

Mean Well HLG-150H-48 Power Supply 150W 48V 3.2A

4.9 (21 reviews)
premium quality7 years warrantyaluminium casinghigh efficiency
SKU HLG-150H-48
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 22 in this family

HLG-150H-48
Available to order
|

Overview

HLG-150H-48 is the 48V output model of this series: rated current 3.2A, rated power 153.6W, typical efficiency 94%.

HLG-150H series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-150H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-150H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming
  • Typical lifetime > 62000 hours
  • 7 years warranty

Specifications

HLG-150H-48Specifications from the official datasheet (2026-07-24 edition)

OUTPUT

DC VOLTAGE
48V
CONSTANT CURRENT REGIONNote.4
24 ~ 48V
RATED CURRENT
3.2A
RATED POWER
153.6W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer)
VOLTAGE ADJ. RANGE
43 ~ 53V
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE
1.92 ~ 3.2A
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
1000ms,200ms/115VAC 500ms,200ms/230VAC
HOLD UP TIME (Typ.)
16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.)
94%
AC CURRENT (Typ.)
1.7A / 115VAC 0.75A / 230VAC 0.7A / 277VAC
INRUSH CURRENT (Typ.)
COLD START 65A(twidth=425μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
54 ~ 63V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURENote.9
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase= +90℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750(type”HL”), CSA C22.2 No. 250.0-08; BS EN/EN 61347-1, BS EN/EN 61347-2-13, AS/NZS 61347-1, AS/NZS 61347-2-13 independent; GB/T19510.1,GB/T19510.213 (except for D-type) ;IP65 or IP67; J61347-1, J61347-2-13 (except for D-type) ,BIS Is15885( for A,B type only), EAC TP TC 004; KC61347-1,KC61347-2-13 (except for D-type) approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1(except for D-type), EAC TP TC 020, KSC 9815(except for D-type)
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020, KSC 9547(except for D-type)

OTHERS

MTBF
2176.1K hrs min. Telcordia SR-332(Bellcore) ; 166.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
228*68*38.8mm
PACKING
1.15Kg; 12pcs/14.8Kg/0.8CUFT

Certifications & ratings

Type
H
Test conditions and notes15
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Please refer to "DRIVING METHODS OF LED MODULE".
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
  10. 10. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
  11. 11. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
  12. 12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  13. 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  14. 14. For A/AB type need to consider build in using to comply with Type HL application.
  15. 15. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

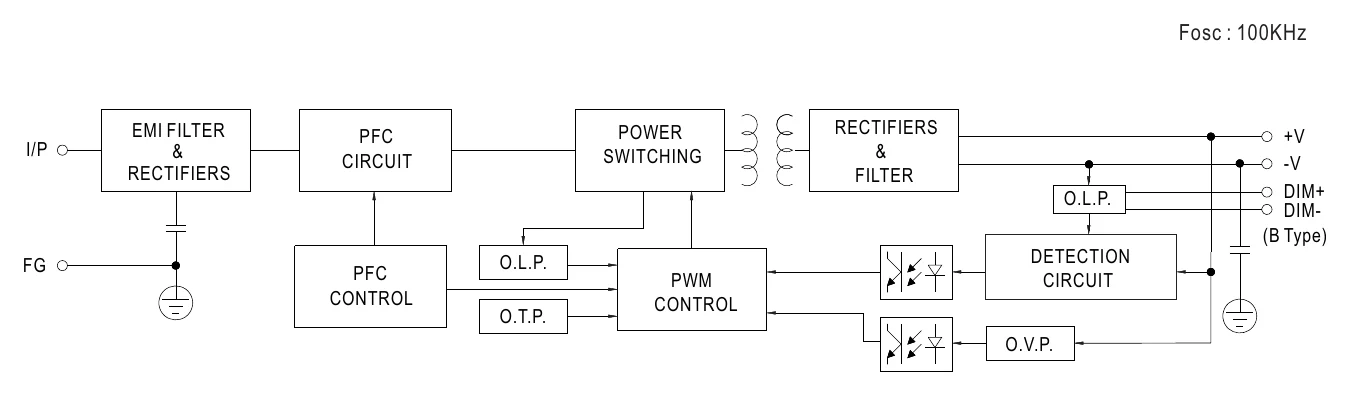

HLG-150H-48 BLOCK DIAGRAM
BLOCK DIAGRAM

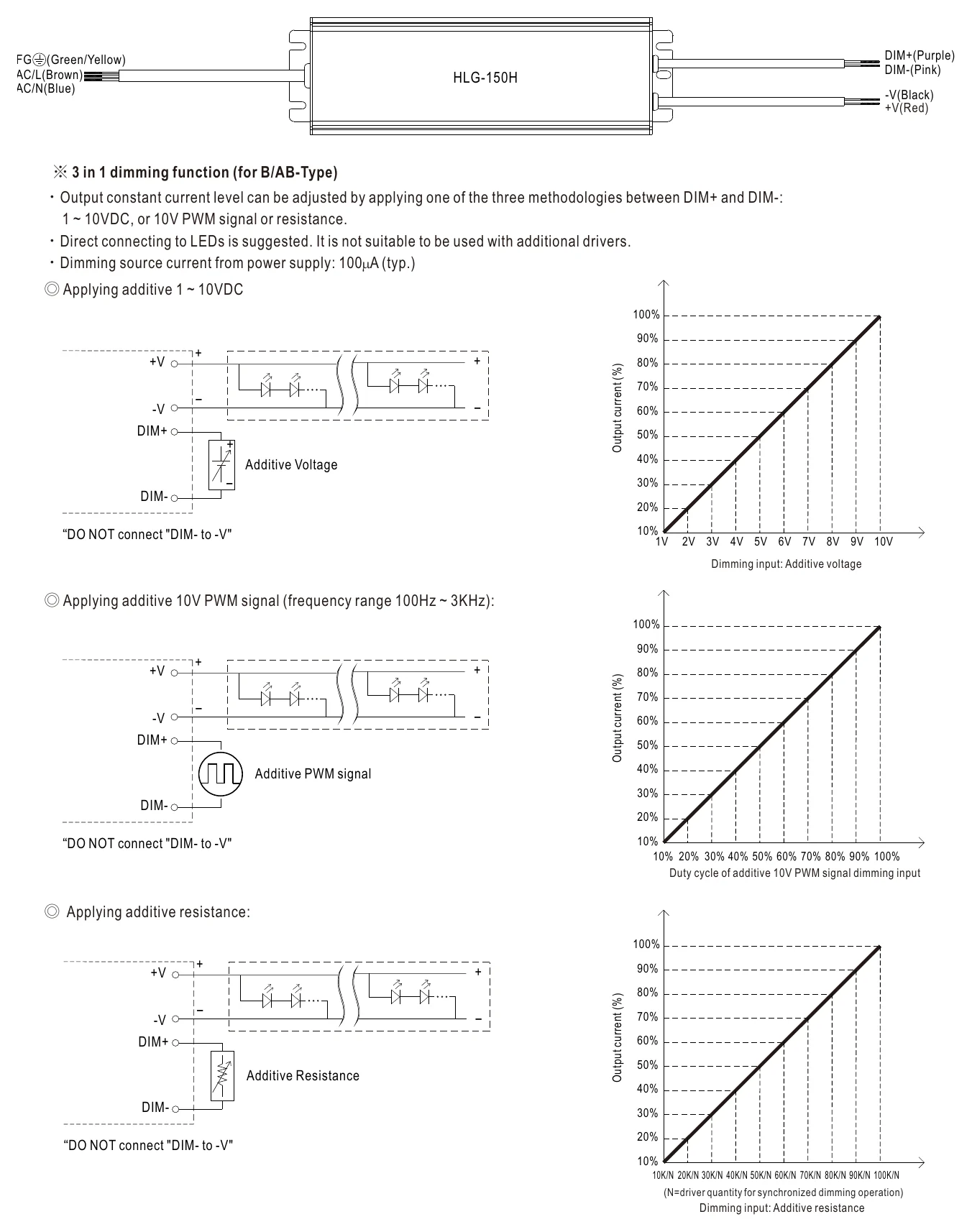

HLG-150H-48 DIMMING OPERATION
DIMMING OPERATION

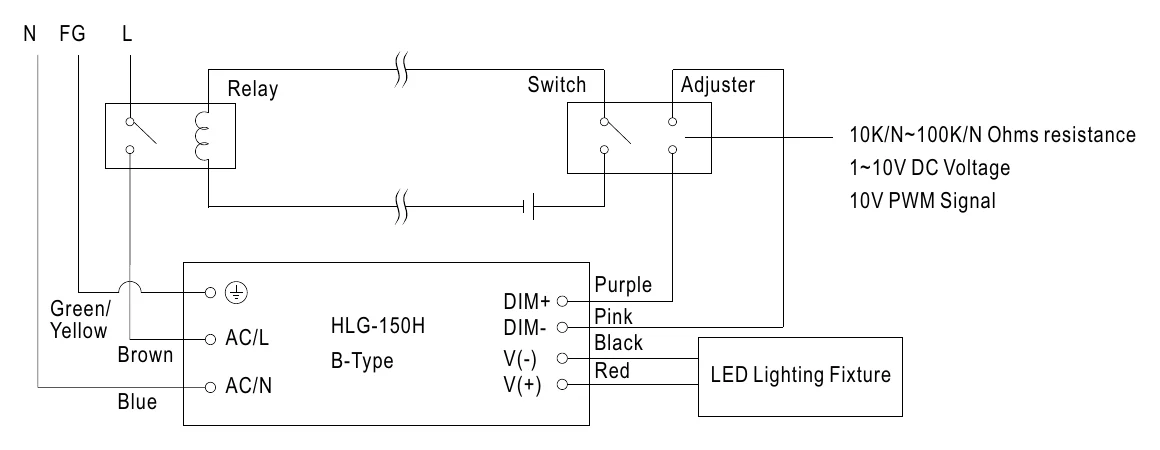

HLG-150H-48 Illustration (page 5)
Illustration (page 5)

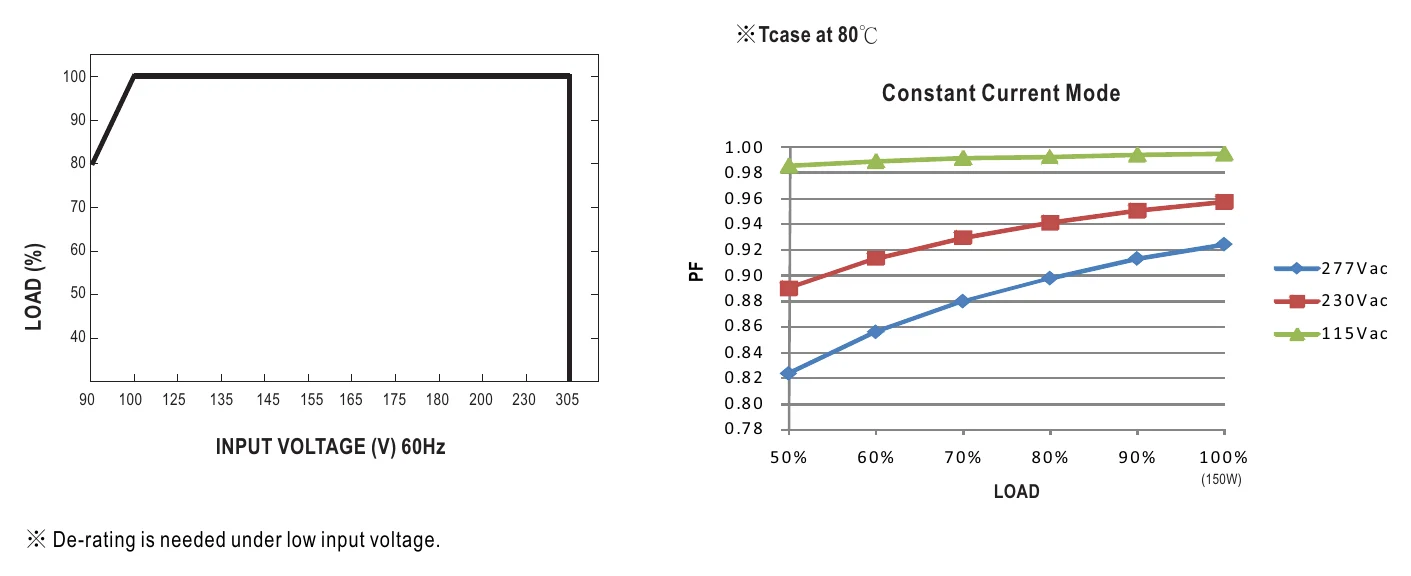

HLG-150H-48 STATIC CHARACTERISTICS
STATIC CHARACTERISTICS

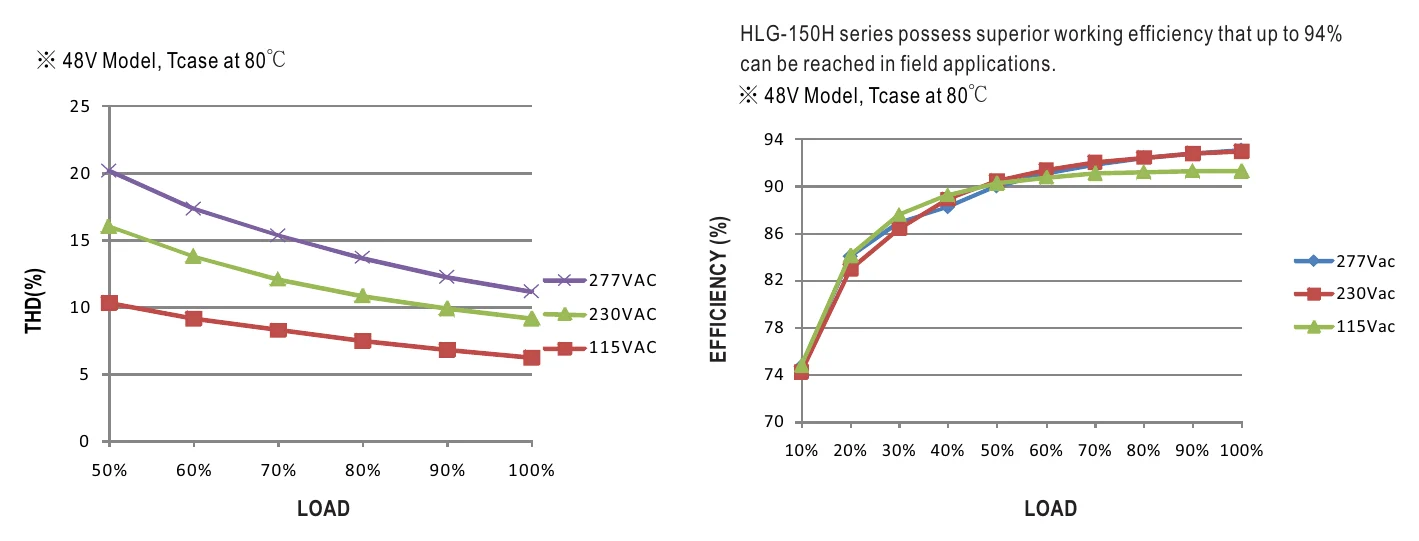

HLG-150H-48 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION

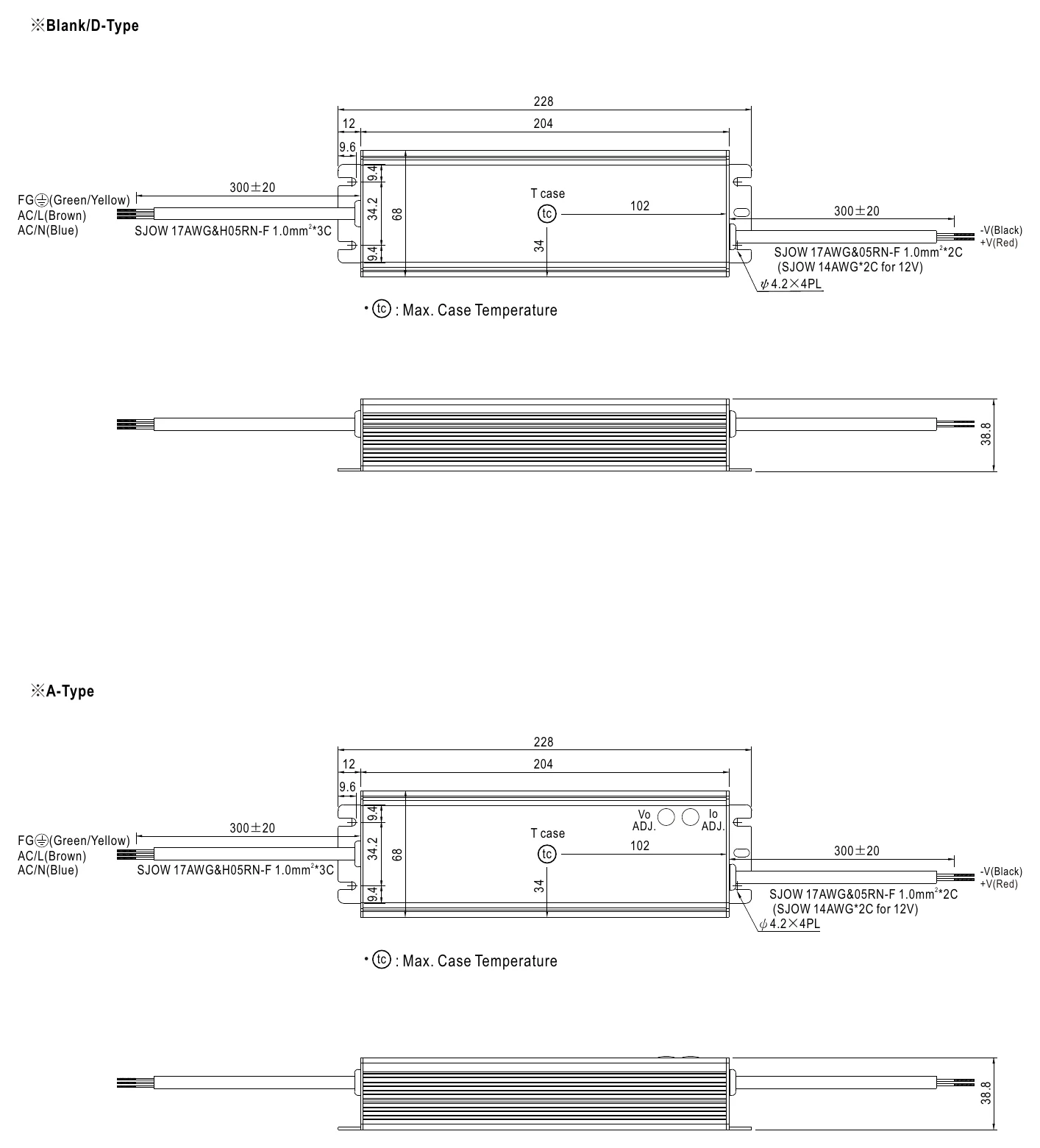

HLG-150H-48 MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION

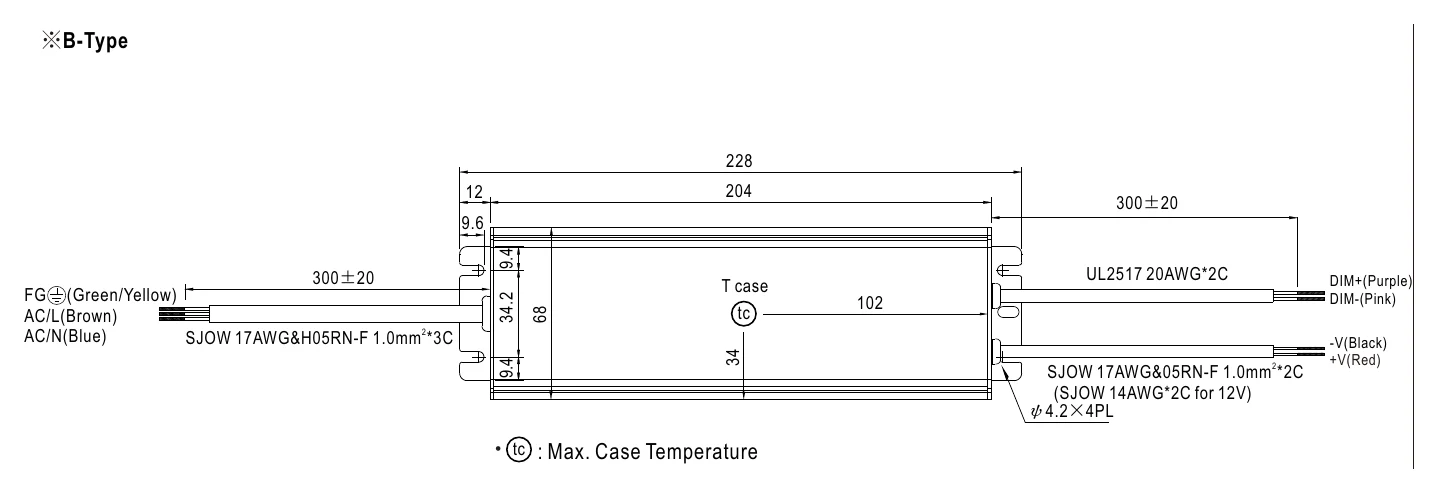

HLG-150H-48 ※B-Type
※B-Type

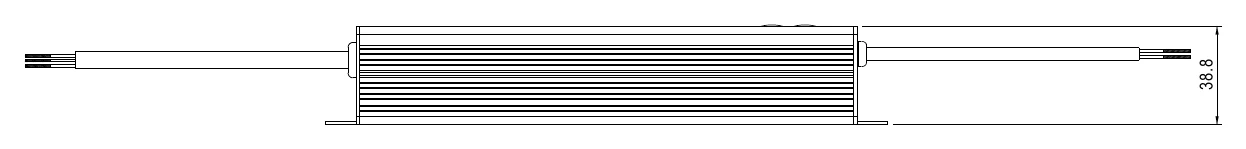

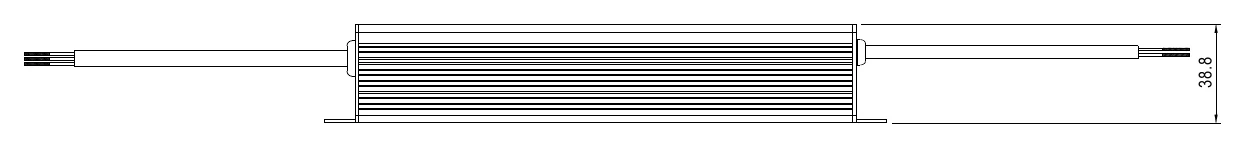

HLG-150H-48 Dimensions (mm)
Dimensions (mm)

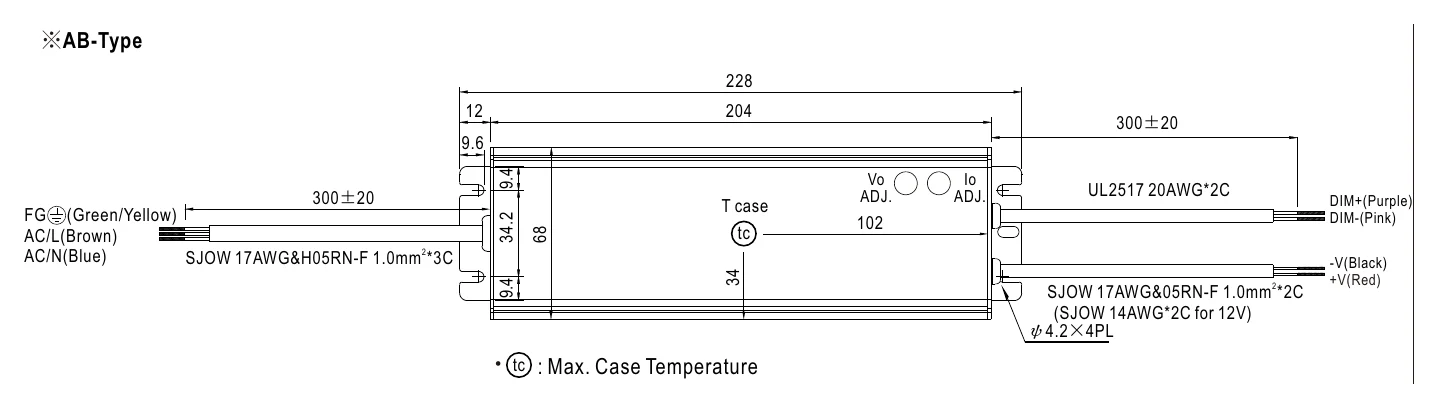

HLG-150H-48 ※AB-Type
※AB-Type
HLG-150H-48 Dimensions (mm)
Dimensions (mm)

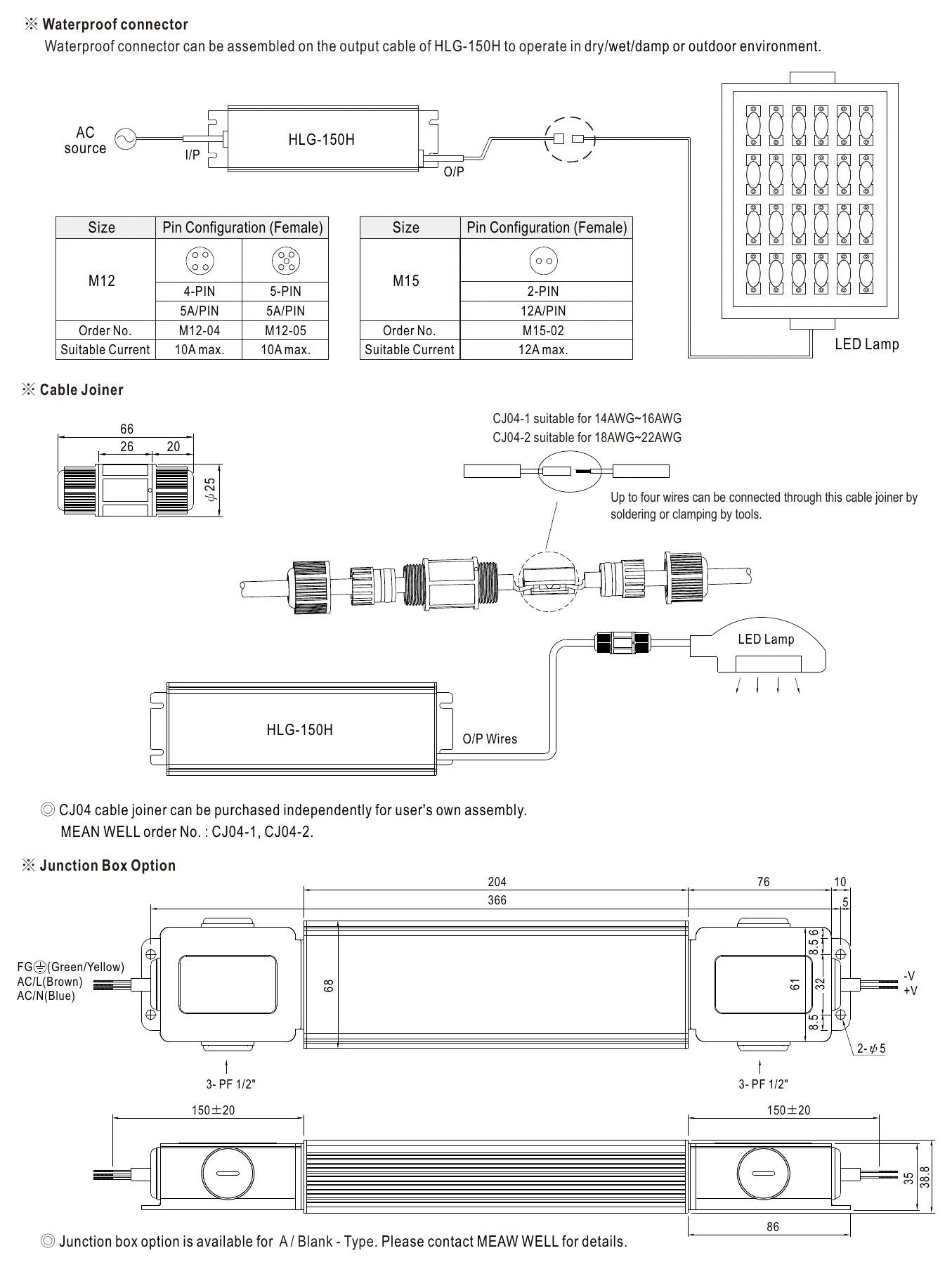

HLG-150H-48 WATERPROOF CONNECTION
WATERPROOF CONNECTION

Typical applications

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • LED greenhouse lighting
  • Type "H" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can I use the HLG-150H-48 to power 48V LED street lights?

Yes. The HLG-150H-48 delivers 153.6W at 48V with up to 3.2A in constant-current mode, suitable for 48V LED street light fixtures. Its IP67 waterproof rating and -40°C to +90°C case-temperature (Tcase) range allow reliable operation in fully exposed outdoor pole-mounted installations.

Is the HLG-150H-48 a good fit for 48V LED high-bay industrial lighting?

Yes. With 153.6W at 48V output, it can drive 48V high-bay LED fixtures used in warehouses, factories, and distribution centers. The fanless metal housing is cooled by free air convection (derate the load at high temperatures per the datasheet curve), and the wide 90-305VAC input handles varying industrial power supplies.

Can the HLG-150H-48 power 48V LED modules in outdoor signage?

Yes. At 153.6W and 48V, it can drive 48V LED channel letters, cabinet signs, or light-box modules. The 48V output reduces current draw compared to lower-voltage alternatives, allowing longer wire runs with less voltage drop — a practical advantage for large sign installations.

How many meters of 48V LED strip can the HLG-150H-48 power?

Divide the 153.6W rated power by your strip's power consumption per meter. For example, a 48V strip rated at 10W/m could run about 15.3 meters (153.6W / 10W per meter). Always check your strip's rated power per meter and keep total load at or below 153.6W.

Can the HLG-150H-48 be mounted outdoors without a separate enclosure?

Yes. Its IP67 waterproof rating means the unit is sealed against dust and protected against temporary water immersion. It can be mounted directly on outdoor walls, poles, or structures, even in heavy rain or snow; make the wiring connections with waterproof connectors or a cable joiner as shown on the datasheet.

What are the differences between the HLG-150H-48, 48A, 48AB, and 48B models?

All four share the same 153.6W / 48V / 3.2A core specs. The base HLG-150H-48 has no output adjustment and is IP67 waterproof. The -48A adds output voltage/current adjustment via built-in potentiometer and is IP65. The -48AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -48B adds dimming input only and retains IP67.
