Mean Well

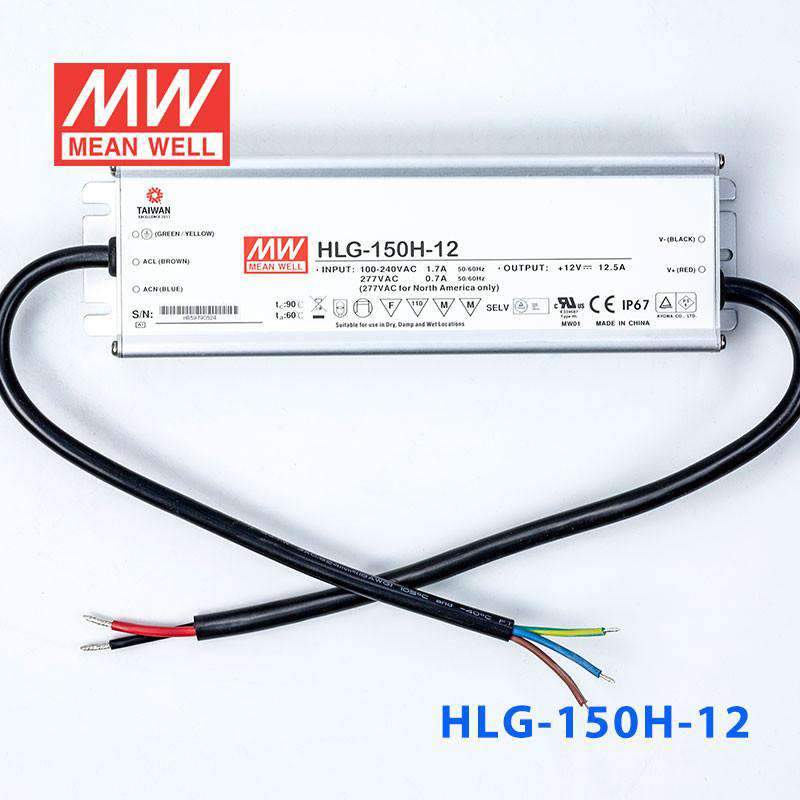

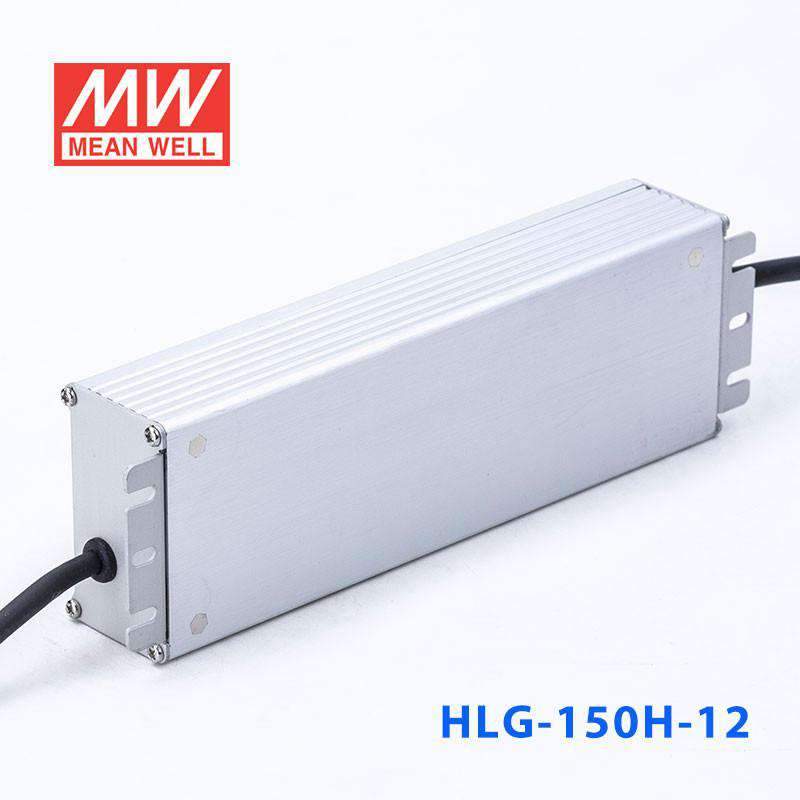

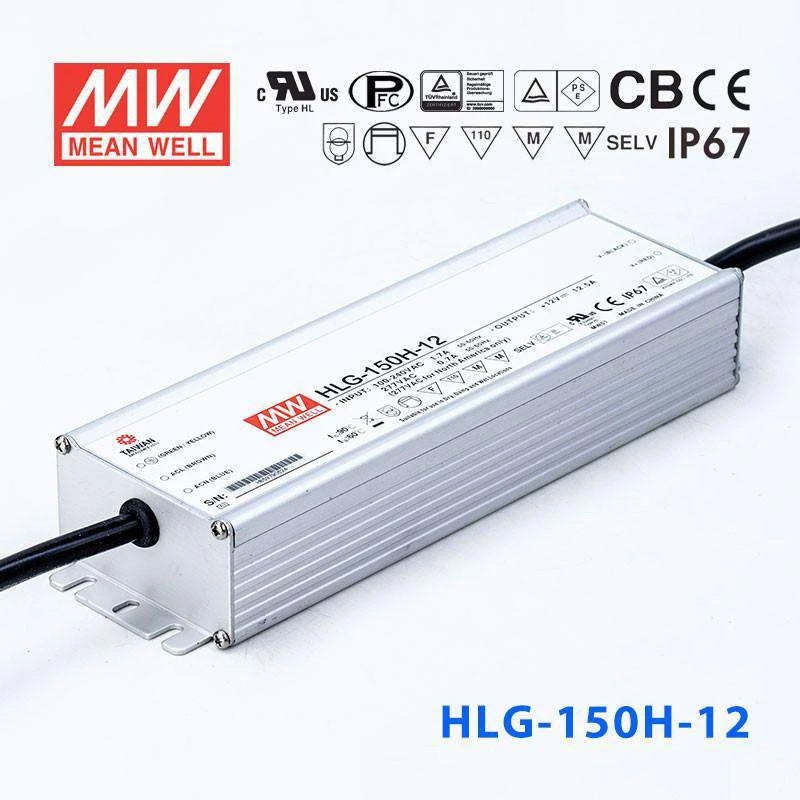

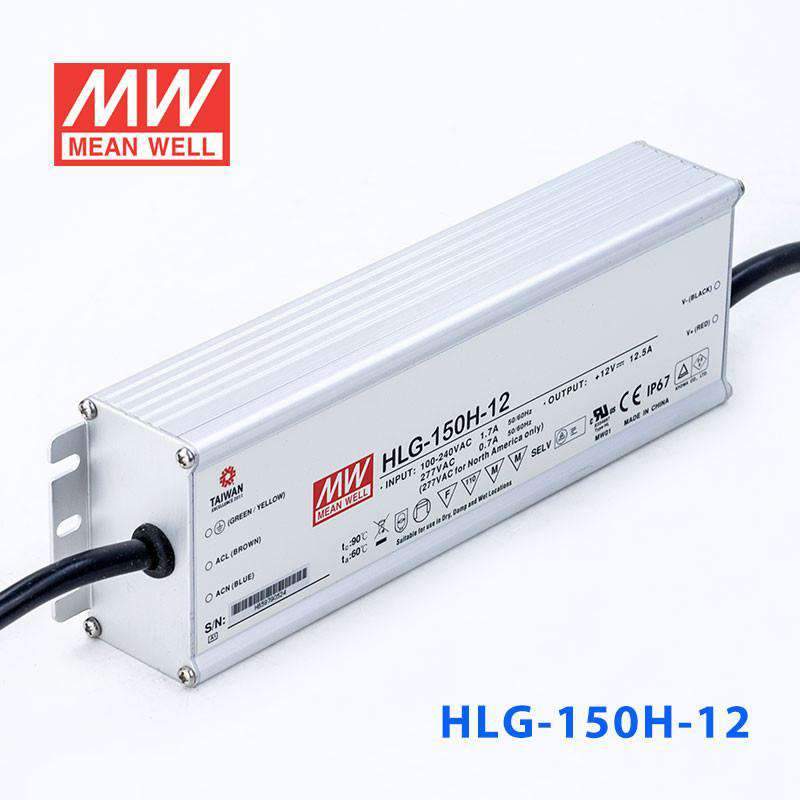

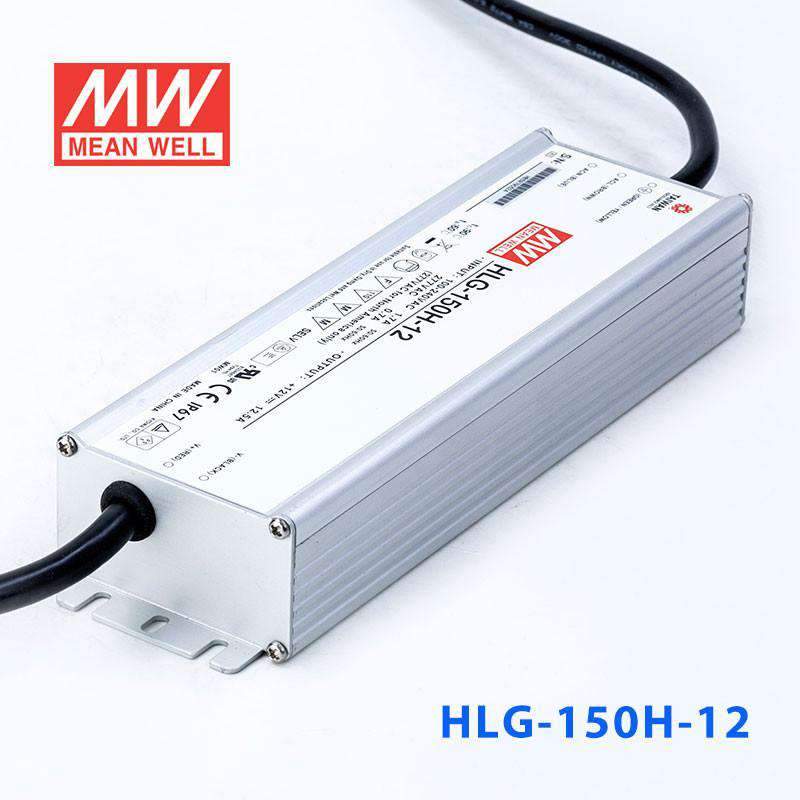

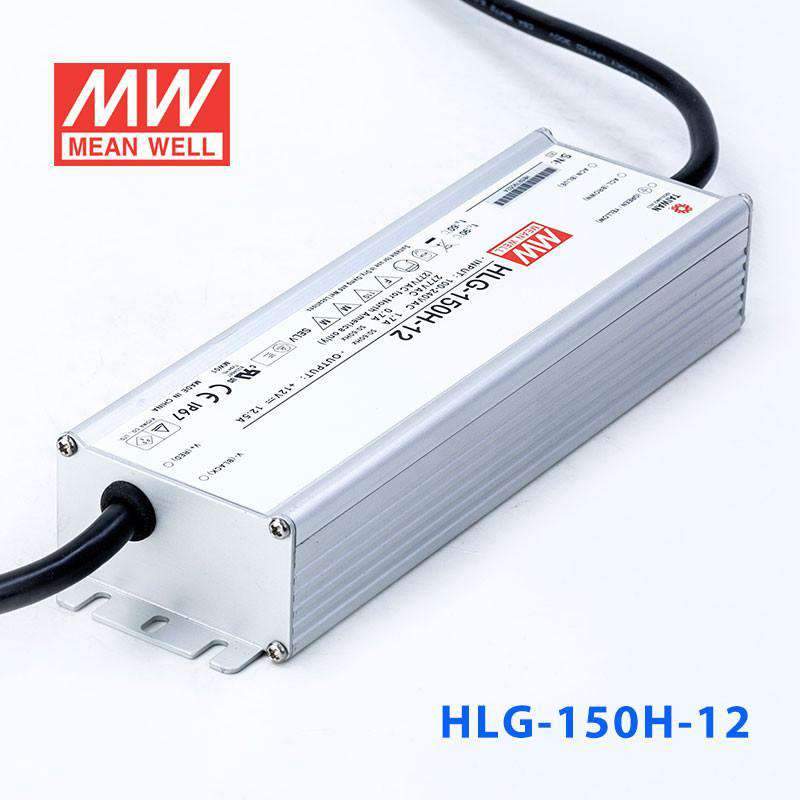

Mean Well HLG-150H-12 Power Supply 150W 12V 12.5A

4.9 (21 reviews)
premium quality7 years warrantyaluminium casinghigh efficiency
SKU HLG-150H-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 16 in this family

HLG-150H-12
In stock
|

Overview

HLG-150H-12 is the 12V output model of this series: rated current 12.5A, rated power 150W, typical efficiency 91.5%.

HLG-150H series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-150H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-150H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming
  • Typical lifetime > 62000 hours
  • 7 years warranty

Specifications

HLG-150H-12Specifications from the official datasheet (2026-07-24 edition)

OUTPUT

DC VOLTAGE
12V
CONSTANT CURRENT REGIONNote.4
6 ~12V
RATED CURRENT
12.5A
RATED POWER
150W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer)
VOLTAGE ADJ. RANGE
10.8 ~ 13.5V
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE
7.5 ~ 12.5A
VOLTAGE TOLERANCENote.3
±2.5%
LINE REGULATION
±0.5%
LOAD REGULATION
±2.0%
SETUP, RISE TIMENote.6
1000ms,200ms/115VAC 500ms,200ms/230VAC
HOLD UP TIME (Typ.)
16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.)
91.5%
AC CURRENT (Typ.)
1.7A / 115VAC 0.75A / 230VAC 0.7A / 277VAC
INRUSH CURRENT (Typ.)
COLD START 65A(twidth=425μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
14 ~ 17V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURENote.9
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase= +90℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750(type”HL”), CSA C22.2 No. 250.0-08; BS EN/EN 61347-1, BS EN/EN 61347-2-13, AS/NZS 61347-1, AS/NZS 61347-2-13 independent; GB/T19510.1,GB/T19510.213 (except for D-type) ;IP65 or IP67; J61347-1, J61347-2-13 (except for D-type) ,BIS Is15885( for A,B type only), EAC TP TC 004; KC61347-1,KC61347-2-13 (except for D-type) approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1(except for D-type), EAC TP TC 020, KSC 9815(except for D-type)
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020, KSC 9547(except for D-type)

OTHERS

MTBF
2176.1K hrs min. Telcordia SR-332(Bellcore) ; 166.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
228*68*38.8mm
PACKING
1.15Kg; 12pcs/14.8Kg/0.8CUFT

Certifications & ratings

Type
H
Test conditions and notes15
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Please refer to "DRIVING METHODS OF LED MODULE".
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
  10. 10. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
  11. 11. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
  12. 12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  13. 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  14. 14. For A/AB type need to consider build in using to comply with Type HL application.
  15. 15. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-150H-12 BLOCK DIAGRAM
BLOCK DIAGRAM
HLG-150H-12 DIMMING OPERATION
DIMMING OPERATION
HLG-150H-12 Illustration (page 5)
Illustration (page 5)
HLG-150H-12 STATIC CHARACTERISTICS
STATIC CHARACTERISTICS
HLG-150H-12 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
HLG-150H-12 MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION
HLG-150H-12 ※B-Type
※B-Type
HLG-150H-12 Dimensions (mm)
Dimensions (mm)
HLG-150H-12 ※AB-Type
※AB-Type
HLG-150H-12 Dimensions (mm)
Dimensions (mm)
HLG-150H-12 WATERPROOF CONNECTION
WATERPROOF CONNECTION

Typical applications

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • LED greenhouse lighting
  • Type "H" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can I use the HLG-150H-12 to power 12V LED strip lighting in an outdoor sign?

Yes. The HLG-150H-12 delivers 12V at up to 12.5A (150W) and has an IP67 waterproof rating, so it can be mounted inside outdoor sign cabinets or other exposed enclosures. The fanless metal housing and -40°C to +90°C case-temperature (Tcase) range also handle harsh weather conditions.

Is the HLG-150H-12 suitable for powering 12V LED facade or building accent lighting?

It is a strong fit for facade and building accent lighting using 12V LED strips or modules. With 150W of output and IP67 waterproof protection, the driver can be installed in exposed outdoor locations close to the LED fixtures. The wide 90-305VAC input accepts mains supplies worldwide.

Can I run 12V LED under-cabinet lighting from the HLG-150H-12?

Yes, as long as the total LED load stays at or below 150W. The HLG-150H-12 provides 12V at up to 12.5A, which is ample for most residential or commercial under-cabinet LED strip runs. Its compact 228 x 68 x 38.8 mm size allows it to be concealed above cabinetry.

How many meters of 12V LED strip can the HLG-150H-12 power?

That depends on your strip's rated wattage per meter. The HLG-150H-12 provides 150W at 12V. For example, a strip drawing 14.4W/m would allow approximately 10.4 meters (150W / 14.4W per meter). Always check your strip's rated power per meter and keep total load at or below 150W.

Can the HLG-150H-12 handle full outdoor exposure including rain and temporary submersion?

Yes. The IP67 rating means the HLG-150H-12 is protected against dust ingress and can withstand temporary immersion in water. Combined with the sealed metal housing and -40°C to +90°C case-temperature (Tcase) range, it is built for fully exposed outdoor installations.

What are the differences between the HLG-150H-12, 12A, 12AB, and 12B variants?

All four share the same 150W, 12V, 12.5A core output. The base HLG-150H-12 has fixed output and IP67 waterproof rating. The -12A adds adjustable output via potentiometer but uses an IP65 water-resistant rating. The -12AB offers both adjustable output and dimming at IP65. The -12B provides dimming without adjustable output and retains IP67 waterproof protection.
